Aerocool KCAS 80 PLUS GOLD 850W ARGB Gaming Power Supply

Aerocool KCAS 80 PLUS GOLD 850Watts ARGB Power Supply

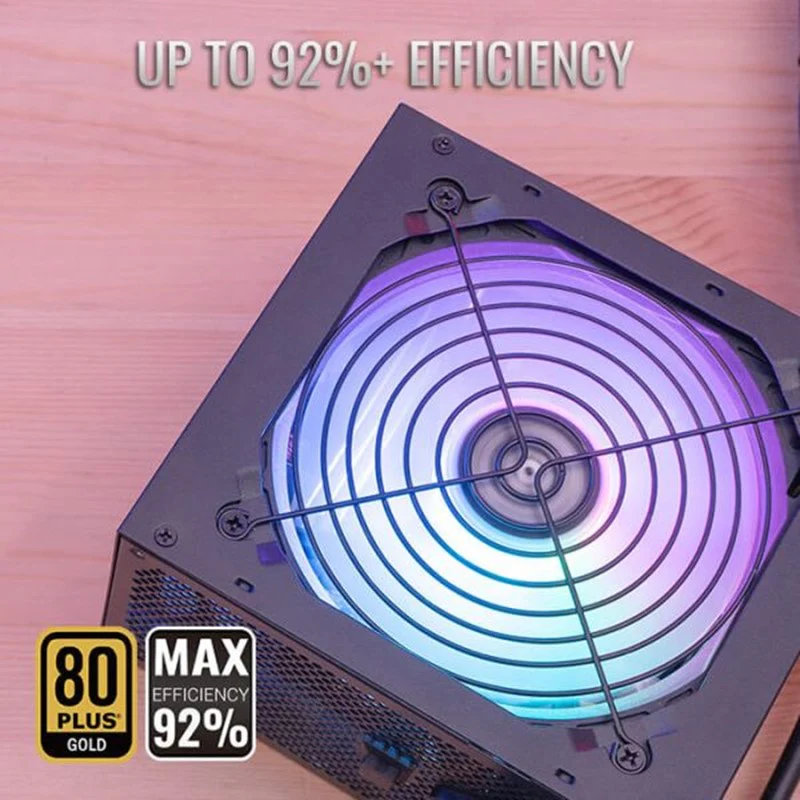

Up To 92%+ Efficiency

80Plus Gold Certified for up to 92%+ efficiency, delivering maximum efficiency performance

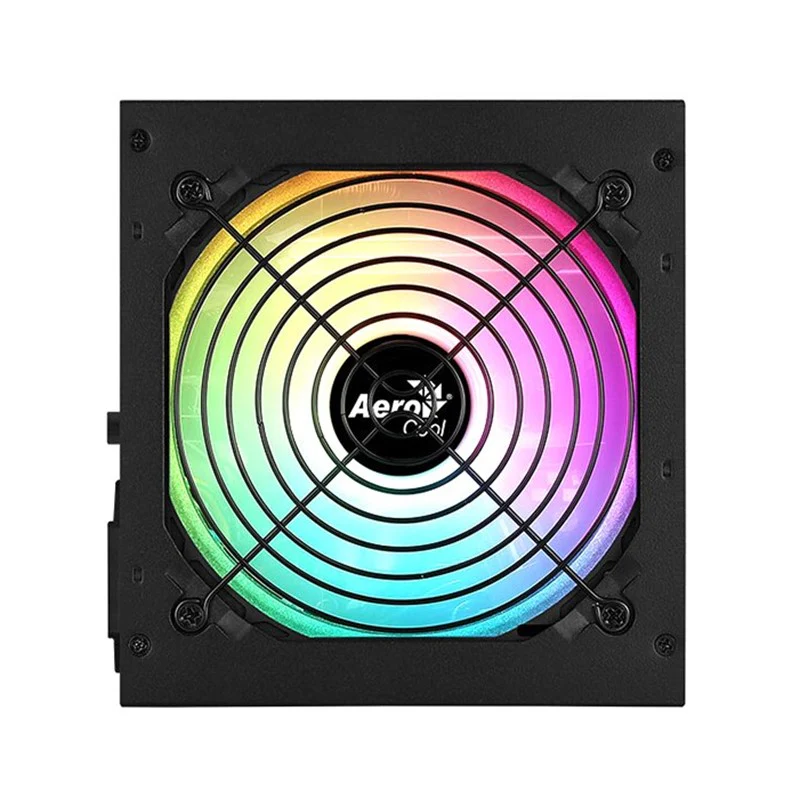

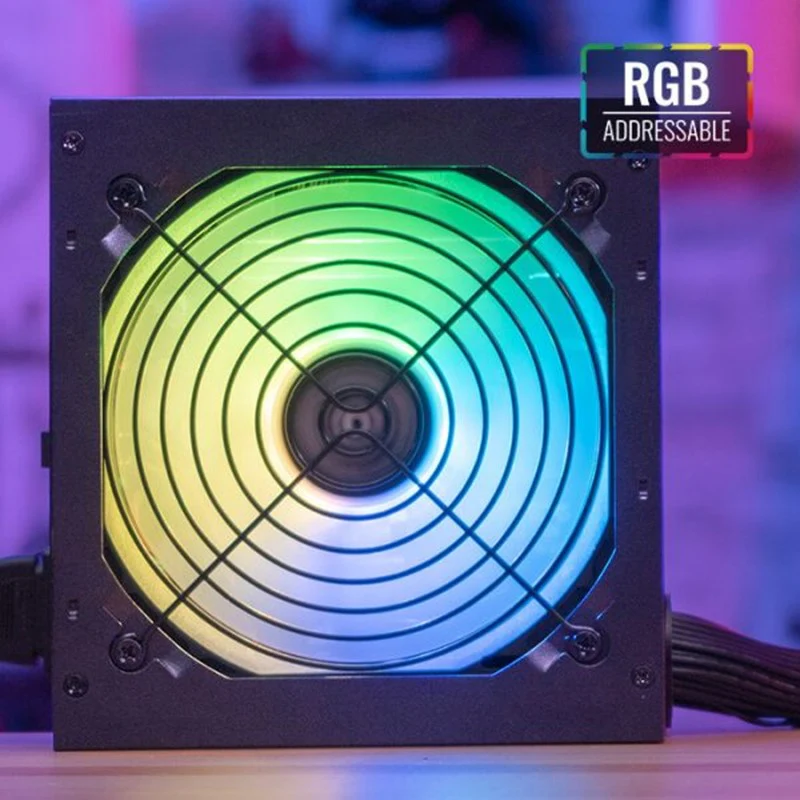

Addressable RGB Compatible

Stylize and personalize your lighting experience with 16.8 million colors by connecting your power supply to your Addressable RGB motherboard.

DC-TO-DC Conversion Circuit

Built-in DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading conditions.

Active Power Factor Corrector

Built-in APFC providing higher voltage stabilization and lower power consumption (Active Power Factor Correction rate > 0.9.

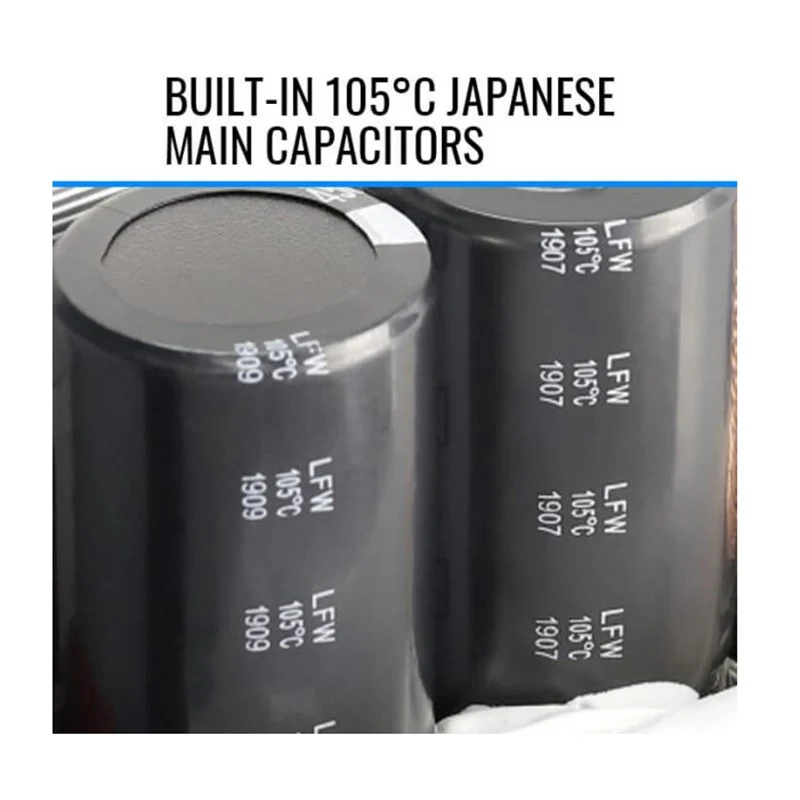

BUILT-IN 105°C Japanese Capacitors

Built-in premium 105°C Japanese capacitors provide uncompromised performance, reliability and durability even under the most demanding conditions.

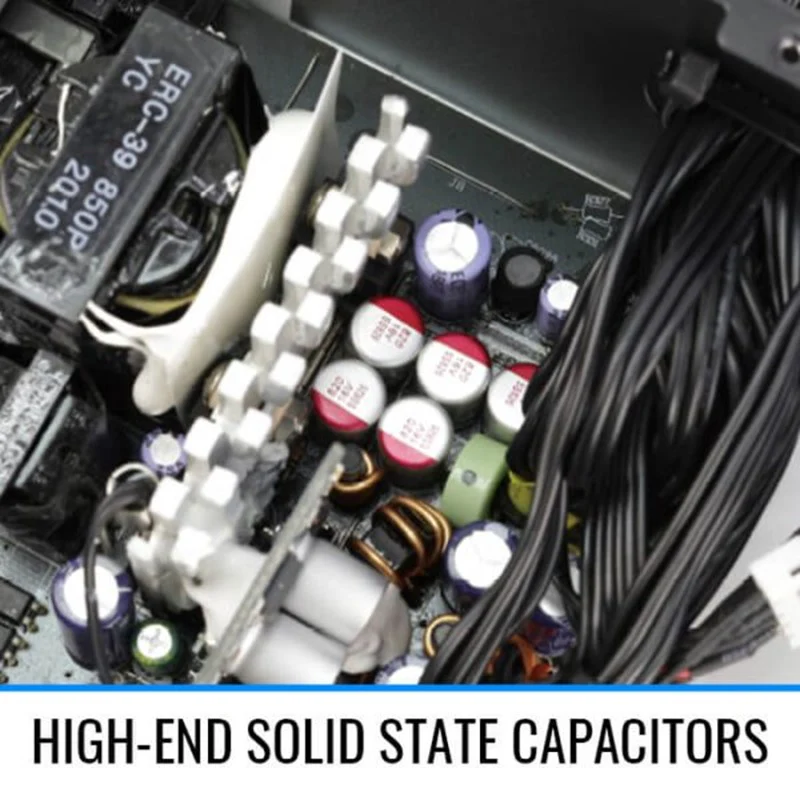

High End Solid State Capacitors

High-end solid state capacitors provide great DC output quality for improved noise filtering and low ripple

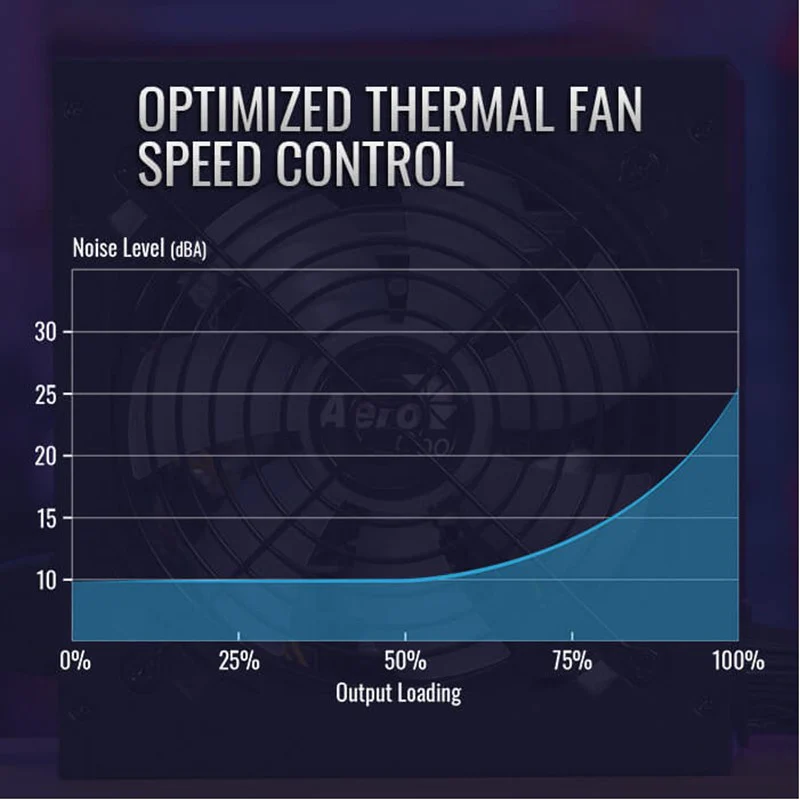

Optimized Thermal Fan SpeedControl

Optimized fan speed allows for near inaudible fan noise and silent PSU operation.

Smart thermal fan control keeps the fan running at startup speed before reaching 60% load at 40°C ambient temperatures.

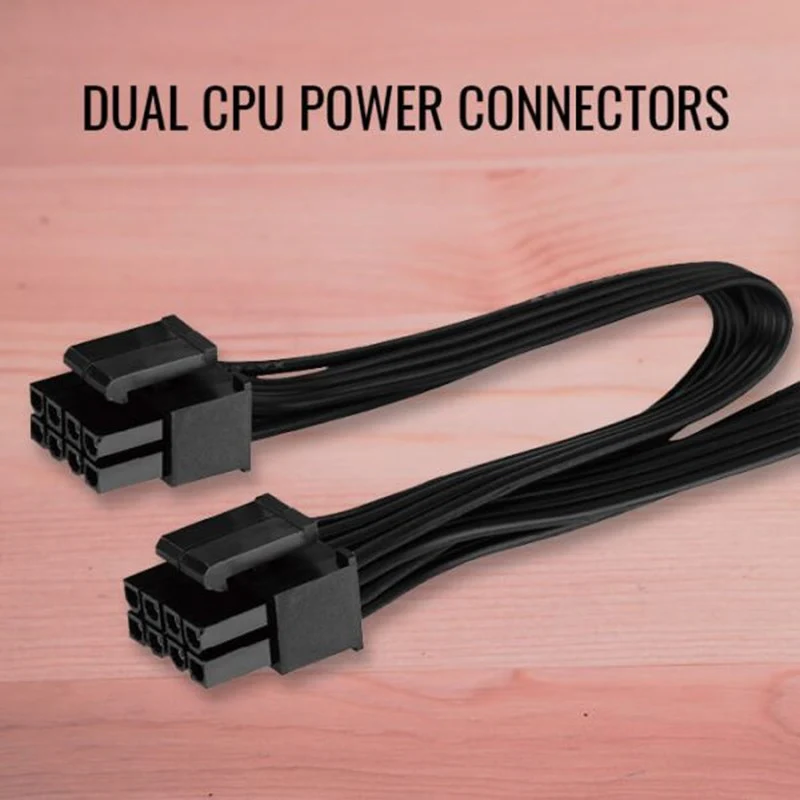

Dual CPU Power Connectors

Dual CPU power connectors allows for compatibility with high-end AMD Ryzen CPUs.

Brand

Aerocool

AC Input Voltage

100 - 240 V

AC Input Frequency

47 - 63 Hz

Efficiency

92%

Fan Diameter

12 cm

Number of fans

1 fan(s)

Total power

850 W

80 PLUS Certification

80 PLUS Gold

Input current

11 - 5.5 A

Combined power (+12V)

840 W

Combined power (+3.3V)

130 W

Combined power (+5V)

130 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

12.5 W

Max output current (+3.3V)

20 A

Max output current (+5V)

20 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

2.5 A

Max output current (+12V)

70 A

Purpose

PC

PCI Express power connectors (6+2 pin)

3

Number of SATA power connectors

8

CPU power connector (4+4 pin)

Y

Motherboard power connector

20+4 pin ATX

Illumination

Y

ATX version

2.52

Number of PATA power connectors

4

Product colour

Black
