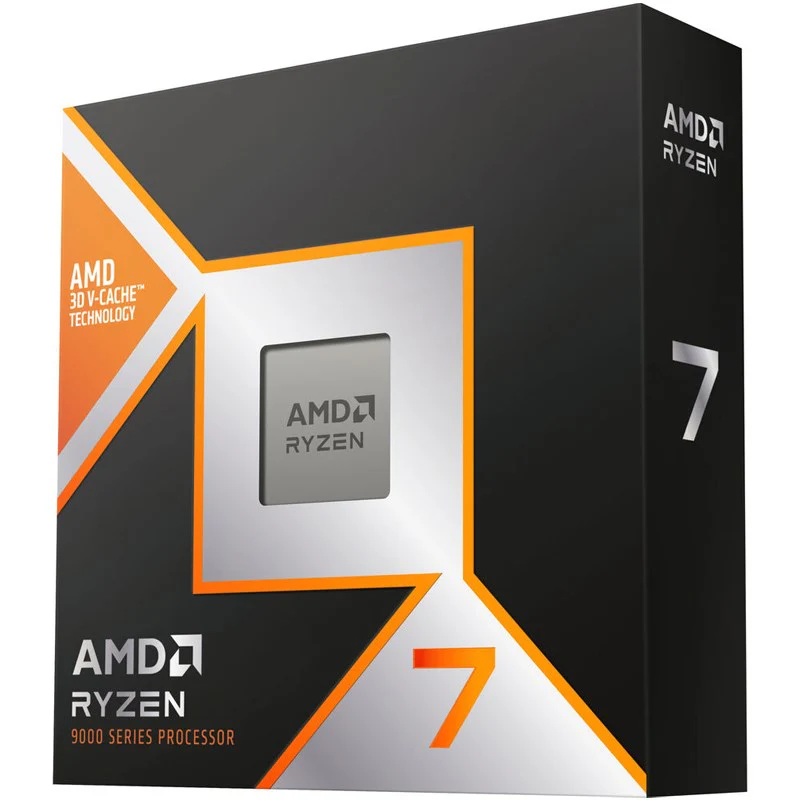

AMD Ryzen 7 9800X3D 4.7 GHz Eight-Core AM5 Processor

Product image 1
Product image 2
Product image 3

AMD Ryzen 7 9800X3D 4.7 GHz Eight-Core AM5 Processor

AMD Ryzen 7 9800X3D 4.7 GHz Eight-Core AM5 Processor

For gamers looking to upgrade their socket AM5 motherboards, the Ryzen 7 9800X3D 4.7 GHz Eight-Core AM5 Processor is ready to let you boost frame rates and graphics settings in the latest triple-A titles. Like other X3D CPUs, the 9800X3D features AMD 3D V-Cache technology designed to boost gaming performance by positioning its 96MB of ultra-fast stacked L3 cache close to the cores. Built upon Zen 5 architecture and providing eight-core, sixteen-thread processing, the 9800X3D can achieve a 4.7 GHz base clock speed, with a max boosted clock of 5.2 GHz. Other advanced technologies that are supported include PCIe 5.0 for high-end graphics cards and SSDs, and up to 192GB of speedy DDR5-5600 memory.

AMD EXPO

Ryzen-optimized AMD EXPO (Extended Profiles for Overclocking) profiles provide a user-friendly method to overlocking your DDR5 memory when using the Ryzen 7 9800X3D with your socket AM5, increasing software load speeds and boosting overall gaming performance.

Additional Features

  • Unlocked to support CPU overclocking

  • 120W TDP (Thermal Design Power) with no active cooling provided

  • Integrated Radeon graphics

  • Increase CPU speed with Precision Boost 2

Specifications:

General Specifications



Name

AMD Ryzen™ 7 9800X3D

Family

Ryzen

Series

Ryzen 9000 Series

Form Factor

Desktops , Boxed Processor

Market Segment

Enthusiast Desktop

AMD PRO Technologies

No

Consumer Use

Yes

Regional Availability

Global

Former Codename

Granite Ridge AM5

Architecture

Zen 5

# of CPU Cores

8

Multithreading (SMT)

Yes

# of Threads

16

Max. Boost Clock

Up to 5.2 GHz

Base Clock

4.7 GHz

L1 Cache

640 KB

L2 Cache

8 MB

L3 Cache

96 MB

Default TDP

120W

Processor Technology for CPU Cores

TSMC 4nm FinFET

Processor Technology for I/O Die

TSMC 6nm FinFET

Package Die Count

2

Unlocked for Overclocking

Yes

AMD EXPO™ Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes

Curve Optimizer Voltage Offsets

Yes

AMD Ryzen™ Master Support

Yes

CPU Socket

AM5

Supporting Chipsets

A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB)

Not Included

Recommended Cooler

Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)

95°C

*OS Support

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity



Native USB 3.2 Gen 2 (10Gbps)

4

Native USB 2.0 (480Mbps)

1

PCI Express® Version

PCIe® 5.0

Native PCIe® Lanes (Total/Usable)

28 , 24

NVMe Support

Boot , RAID0 , RAID1 , RAID5 , RAID10

System Memory Type

DDR5

Memory Channels

2

Max. Memory

192 GB

System Memory Subtype

UDIMM

Max Memory Speed



2x1R

DDR5-5600

2x2R

DDR5-5600

4x1R

DDR5-3600

4x2R

DDR5-3600

ECC Support

Yes (Requires mobo support)

Graphics Capabilities



Graphics Model

AMD Radeon™ Graphics

Graphics Core Count

2

Graphics Frequency

2200 MHz

USB Type-C® DisplayPort™ Alternate Mode

Yes

Key Features



Supported Technologies

AMD EXPO™ Technology , AMD Ryzen™ Technologies
$209.48

Original: $598.51

-65%
AMD Ryzen 7 9800X3D 4.7 GHz Eight-Core AM5 Processor—

$598.51

$209.48
