Apple Mac Studio M2 Ultra 24-Core CPU, 60-Core GPU 16-Core Neural Engine, 64GB RAM , 1TB SSD

M2 Ultra

Built from two M2 Max chips, M2 Ultra lets you power through workflows on an unprecedented scale. So you can quickly transcode and export videos, run complex particle simulations, or work with massive 3D environments that were previously impossible to render. And with twice the Media Engine resources, M2 Ultra can support up to 22 streams of 8K ProRes 422 video playback — something no other personal computer can do.

Fits right in

Run completely unrestrained within an unbelievably small footprint. Designed to fit perfectly under most displays, putting prodigious power and connectivity at arm’s reach, Mac Studio is a high-performance desktop unlike any other.

Powerful connections

Mac Studio lets you create the studio of your dreams with an array of 12 high-performance ports. Transfer photos and videos with an SDXC card reader. Connect to TVs or displays with an enhanced HDMI output that supports up to 8K resolution. Sync with next-generation accessories using Bluetooth 5.3. And enjoy up to two times faster throughput with Wi‑Fi 6E.

Dream team

We designed Mac Studio together with Studio Display for the ultimate studio setup. With its breathtaking 27" 5K Retina display, 12 MP Ultra Wide camera with Center Stage, studio-quality three-mic array, six-speaker sound system with Spatial Audio, and optional nano-texture finish, Studio Display completes the full Mac experience.

Transform your studio

With its shockingly compact form factor and abundance of ports, Mac Studio lets you reimagine your workspace and unleash your creativity.

macOS and pro apps

macOS was not only designed to be powerful, intuitive, and reliably up to date, but also to scale with Apple silicon. This means the system automatically benefits from the increased graphics, massive memory, and powerful machine learning.

Designed with the earth in mind

100 percent recycled materials in its magnets and in the solder of the main logic board. Responsible packaging. A greener supply chain. Mac Studio was engineered to minimize its environmental impact.

Color

Silver

Processor

Apple M2 Ultra chip

24-core CPU with 16 performance cores and 8 efficiency cores

60-core GPU

32-core Neural Engine

800GB/s memory bandwidth

Media engine

Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

Two video decode engines

Four video encode engines

Four ProRes encode and decode engines

Configurable to:

M2 Ultra with 24-core CPU, 76-core GPU, and 32-core Neural Engine

RAM

64GB

64GB unified memory

Configurable to:

128GB or 192GB

SSD

1TB

1TB SSD

Configurable to:

2TB, 4TB, or 8TB

Display Support

M2 Ultra

Simultaneous support for up to eight displays:

Eight displays with up to 4K resolution at 60Hz

Three displays with up to 8K resolution at 60Hz

Six displays with up to 6K resolution at 60Hz

Audio

Built-in speaker

3.5 mm headphone jack with advanced support for high-impedance headphones

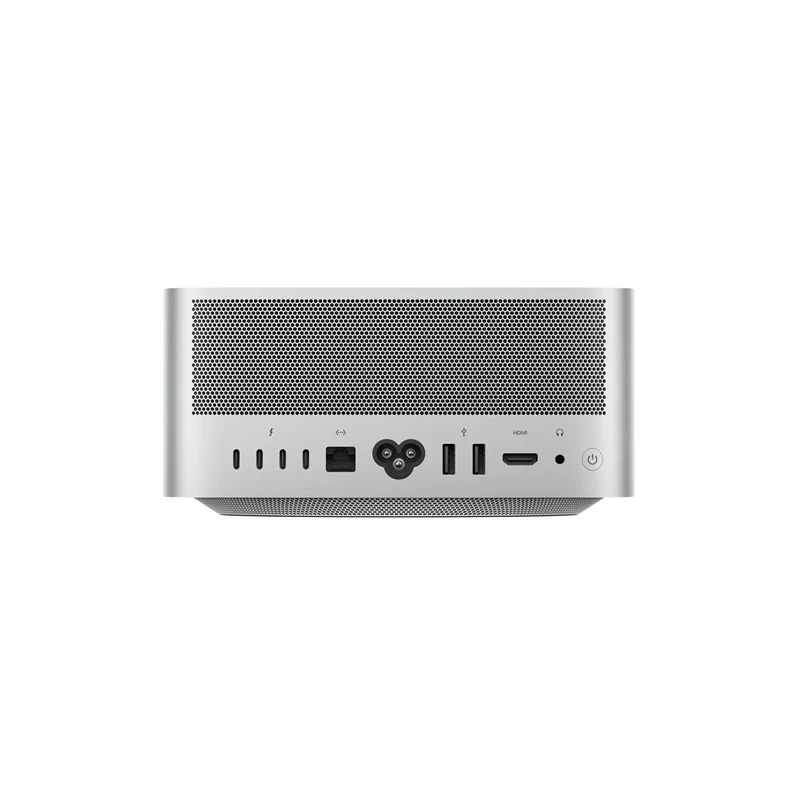

Connections and Expansion

Four Thunderbolt 4 ports with support for:

Thunderbolt 4 (up to 40GB/s)

DisplayPort

USB 4 (up to 40GB/s)

USB 3.1 Gen 2 (up to 10GB/s)

Two USB-A ports (up to 5GB/s)

HDMI port

10GB Ethernet

3.5 mm headphone jack

On front (M2 Ultra):

Two Thunderbolt 4 ports (up to 40Gb/s)

SDXC card slot (UHS-II)

Communications

Wi-Fi

Wi-Fi 6E (802.11ax)

Bluetooth

Bluetooth 5.3

Ethernet

10GB Ethernet (Nbase-T Ethernet with support for 1GB, 2.5GB, 5GB, and 10GB Ethernet using RJ-45 connector)

Size and Weight

Height: 3.7 " (9.5 cm)

Width: 7.7 " (19.7 cm)

Depth: 7.7 " (19.7 cm)

Weight (M2 Ultra): 7.9 lb (3.6 Kg)

Electrical and Operating Requirements

Line voltage: 100–240V AC

Frequency: 50Hz to 60Hz, single phase

Maximum continuous power: 370 Watts

Operating temperature: 50° to 95° F (10° to 35° C)

Storage temperature: –40° to 116° F (–40° to 47° C)

Relative humidity: 5% to 95% noncondensing

Operating altitude: tested up to 16,400 feet (5000 m)

Operating System

macOS

macOS is the most advanced desktop operating system in the world. macOS Ventura makes the things you do most on Mac even better, so you can work smarter, play harder, and go further.

Accessibility

Accessibility features help people with disabilities get the most out of their new Mac Studio. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.

Features include

Voice Control

VoiceOver

Zoom

Increase Contrast

Reduce Motion

Siri and Dictation

Switch Control

Live Captions
