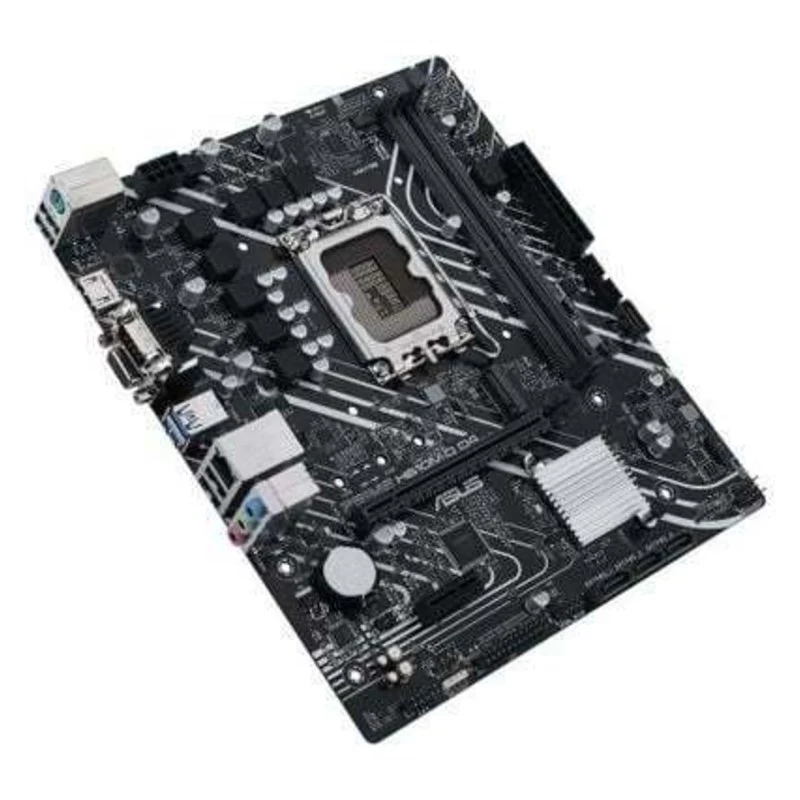

Asus PRIME H610M-D D4, Socket LGA 1700, mATX Gaming Motherboard

ASUS Prime Series

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

CPU Socket

Socket 1700

CPU Brand

Intel

Installed Processors (Max)

0 (1)

Supported Processor Manufacturer

Intel

Supported Processors

12th Gen Intel Core, Pentium Gold and Celeron Processors

64-bit Support

Yes

Socket

LGA1700

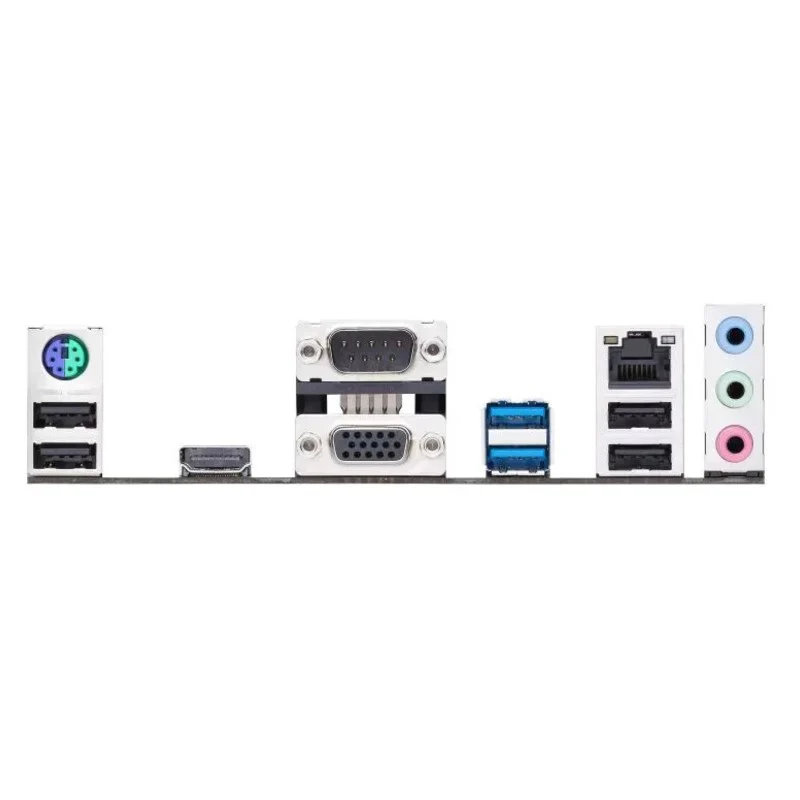

USB Ports

2 x USB 3.0

2 x USB 2.0

HDMI Port

1 x HDMI 2.1

VGA Port

1 x D-Sub

Keyboard/Mouse Combo Port

1 x PS/2

Serial Ports

1 x COM

RJ-45 Ports

1 x RJ-45

Audio Line In Ports

1 x 3.5mm Jack

Audio Line Out Ports

1 x 3.5mm Jack

Microphone In Port

1 x 3.5mm Jack

SATA Connectors

4 x SATA III

USB Connectors

1 x USB 3.0 header (supports 2 ports)

1 x USB 2.0 header (supports 2 ports)

Speaker

1 x Speaker header

Front Panel Connectors

1 x Front Panel

1 x Front Audio

Cooling Fan Support

1 x CPU fan header

1 x Chassis fan header

S/PDIF Connectors

1 x S/PDIF Out header

Parallel Connectors

1 x LPT header

TPM Header

1 x SPI TPM header

Power Connector Port

1 x 24-pin ATX

1 x 8-pin EPS

Other Connectors

1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen3 or SATA)

1 x 4-pin RGB LED header

Memory Bus Speed

Up to 3200 MHz

Memory Type

DDR4

Maximum RAM

64 GB

Memory Slot

2 x DIMM

Chipset Manufacturer

Intel

Northbridge

H610

SATA Supported

Yes

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot

1 x PCI Express 3.0 x1 slot

Integrated Graphics Supported

Yes

Integrated Sound

Realtek

Integrated Network

Realtek

Network Speeds Supported

Up to 1 Gbps

Operating Systems Supported

Microsoft Windows 11 / 10 64-bit

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Jumpers

1 x Clear CMOS

Software Included (may be trial or restricted)

Yes

Drivers

Yes

Form Factor

MicroATX Motherboard

Width

234 mm

Length

203 mm

Key Features

Memory Channel

Dual

Number of SATA Ports

4 port(s)

Number of USB Ports

6 port(s)

SATA III Support

Yes

USB 3.0 Support

Yes

VGA Connection

Yes

HDMI Connection

Yes

Motherboard Form Factor

mATX

Motherboard Power Connectors

8-Pin

Motherboard Chipset

Intel H610

Motherboard Model

ASUS Prime H610M-D D4

Internal USB3.0 Header

Yes

M.2 Support

Yes

On-board RGB Control

ASUS Aura Sync

Memory Speed

3200 MHz

RGB Header Type

4-Pin RGB
