Model
|
PRIME H810M-A WIFI
|
CPU
|
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
|
|
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
|
|
* Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
|
Chipset
|
Intel® H810 Chipset
|
Memory
|
2 x DIMM slots, max. 128GB, DDR5
|
|
Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
|
|
Dual channel memory architecture
|
|
DIMM Fit
|
|
Supports Intel® Extreme Memory Profile (XMP) memory module
|
|
ASUS Enhanced Memory Profile II (AEMP II)
|
|
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
|
|
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
|
Graphics
|
1 x DisplayPort**
|
|
1 x HDMI™ port***
|
|
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
|
|
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
|
|
*** Supports 4K@60Hz as specified in HDMI 2.1.
|
|
**** VGA resolution support depends on processors' or graphic cards' resolution.
|
Expansion Slots
|
Intel® Core™ Ultra Processors (Series 2)
|
|
1 x PCIe 4.0 x16 slot
|
|
Intel® H810 Chipset
|
|
1 x PCIe 4.0 x1 slot
|
Storage
|
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
|
|
Intel® H810 Chipset
|
|
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
|
|
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
|
|
4 x SATA 6Gb/s ports
|
Ethernet
|
1 x Intel® 1Gb Ethernet port*
|
|
ASUS LANGuard
|
|
*With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
|
Wireless & Bluetooth
|
Wi-Fi 6
|
|
1x1 Wi-Fi 6 (802.11ax)
|
|
Supports 2.4/5GHz frequency band
|
|
Bluetooth® v5.3*
|
|
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
|
USB
|
Rear USB (Total 6 ports)
|
|
2 x USB 10Gbps ports (2 x Type-A)
|
|
4 x USB 2.0 ports (4 x Type-A)
|
|
Front USB (Total 5 ports)
|
|
1 x USB 5Gbps connector (supports USB Type-C®)*
|
|
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
|
|
1 x USB 2.0 header supports 2 additional USB 2.0 ports
|
|
* USB Type-C® power delivery output: max. 5V/3A
|
|
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
|
Audio
|
Realtek 7.1 Surround Sound High Definition Audio CODEC*
|
|
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
|
|
- Supports up to 24-Bit/192 kHz playback
|
Audio Features
|
- Audio Shielding
|
|
- Premium audio capacitors
|
|
- Dedicated audio PCB layers
|
|
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
|

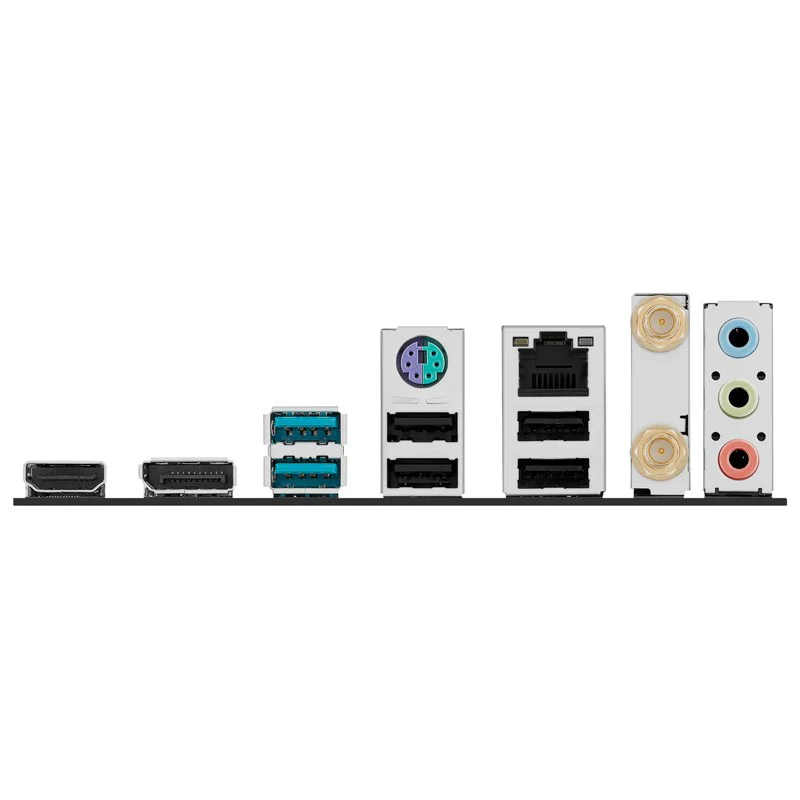

Back Panel I/O Ports
|
2 x USB 10Gbps ports (2 x Type-A)
|
|
4 x USB 2.0 ports (4 x Type-A)
|
|
1 x DisplayPort
|
|
1 x HDMI™ port
|
|
1 x Wi-Fi module
|
|
1 x Intel® 1Gb Ethernet port
|
|
3 x Audio jacks
|
|
1 x PS/2 keyboard/mouse combo port
|
Internal I/O Connectors
|
Fan and Cooling Related
|
|
1 x 4-pin CPU Fan header
|
|
2 x 4-pin Chassis Fan headers
|
|
Power Related
|
|
1 x 24-pin Main Power connector
|
|
1 x 8-pin +12V CPU Power connector
|
|
Storage Related
|
|
2 x M.2 slots (Key M)
|
|
4 x SATA 6Gb/s ports
|
|
USB
|
|
1 x USB 5Gbps connector (supports USB Type-C® )
|
|
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
|
|
1 x USB 2.0 header supports 2 additional USB 2.0 ports
|
|
Miscellaneous
|
|
3 x Addressable Gen2 headers
|
|
1 x Clear CMOS header
|
|
1 x COM Port header
|
|
1 x Front Panel Audio header (F_AUDIO)
|
|
1 x S/PDIF Out header
|
|
1 x SPI TPM header (14-1 pin)
|
|
1 x 10-1 pin Front Panel System header
|
Special Features
|
ASUS 5X PROTECTION III
|
|
- DIGI+ VRM
|
|
- LANGuard
|
|
- Overvoltage protection
|
|
- SafeSlot Core+
|
|
- Stainless-steel back I/O
|
|
ASUS Q-Design
|
|
- Q-DIMM
|
|
- Q-Dashboard
|
|
- Q-LED Core
|
|
- Q-Slot
|
|
ASUS Thermal Solution
|
|
- VRM heatsink design
|
|
Aura Sync
|
|
- Addressable Gen 2 headers
|
Software Features
|
ASUS Exclusive Software
|
|
Armoury Crate
|
|
- Aura Creator
|
|
- Aura Sync
|
|
- Fan Xpert 2+
|
|
- Power Saving
|
|
ASUS DriverHub
|
|
ASUS GlideX
|
|
ASUS CPU-Z
|
|
Norton 360 Deluxe (60 Days Free Trial)
|
|
WinRAR (40 Days Free Trial)
|
|
UEFI BIOS
|
|
ASUS EZ DIY
|
|
- ASUS CrashFree BIOS 3
|
|
- ASUS EZ Flash
|
|
- ASUS UEFI BIOS EZ Mode
|
|
- ASUS MyHotkey
|
BIOS
|
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
|
Manageability
|
WOL by PME, PXE
|

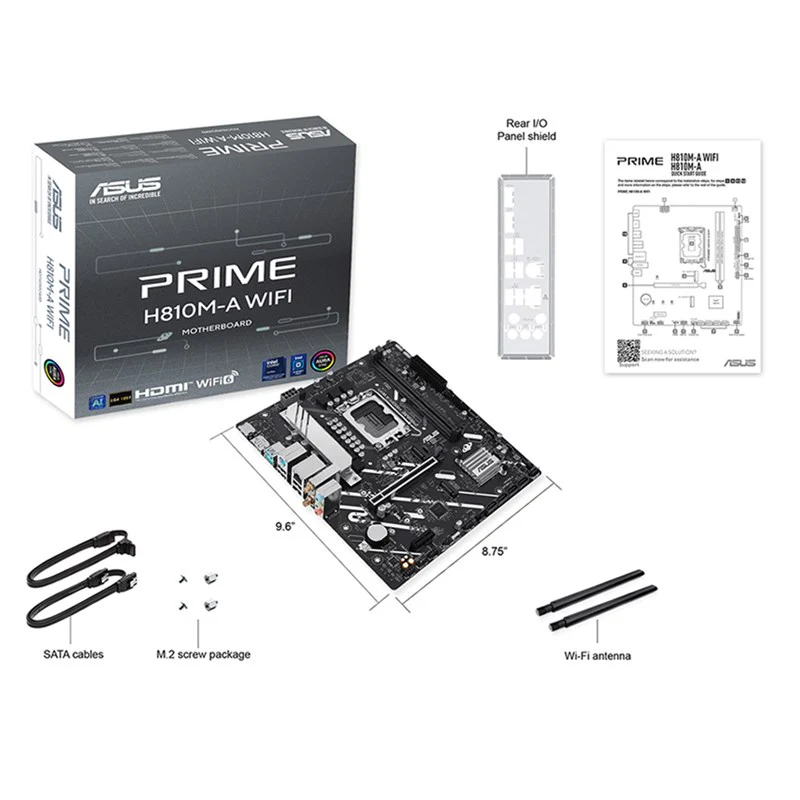

Accessories
|
|
Cables
|
2 x SATA 6Gb/s cables
|
Miscellaneous
|
1 x ASUS Wi-Fi moving antenna
|
|
1 x I/O shield
|
|
1 x Screw package for M.2 SSD
|
Documentation
|
1 x Quick start guide
|
Operating System
|
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
|
Form Factor
|
micro-ATX Form Factor
|
|
9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
|
