Model
|
PRIME X870-P
|
CPU
|
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
|
Chipset
|
AMD X870 Chipset
|
Memory
|
4 x DIMM slots, max. 192GB, DDR5
|
|
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
|
|
ECC and Non-ECC, Un-buffered DIMM*
|
|
Dual channel memory architecture
|
|
Supports AMD Extended Profiles for Overclocking (EXPO™)
|
|
ASUS Enhanced Memory Profile (AEMP)
|
|
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
|
|
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
|
|
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
|
Graphics
|
1 x HDMI™ port**
|
|
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
|
|
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
|
|
** Supports 4K@60Hz as specified in HDMI 2.1.
|
|
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
|
|
*** VGA resolution support depends on processors' or graphic cards' resolution.
|
Expansion Slots
|
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
|
|
1 x PCIe 5.0 x16 slot (supports x16 mode)
|
|
AMD Ryzen™ 8000 Series Desktop Processors
|
|
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
|
|
AMD X870 Chipset
|
|
2 x PCIe 4.0 x16 slots (support x1 mode)***
|
|
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
|
|
** Specifications vary by CPU types.
|
|
*** PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs.
|
Storage
|
Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
|
|
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
|
|
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
|
|
AMD Ryzen™ 8000 Series Desktop Processors
|
|
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
|
|
AMD X870 Chipset
|
|
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
|
|
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
|
|
M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**
|
|
2 x SATA 6Gb/s ports**
|
|
* PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs.
|
|
** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
|
|
AMD RAIDXpert2 Technology
|
|
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
|
|
Ryzen™ 8000 Series Processors: RAID 0/1
|
|
Ryzen™ 7000 Series Processors: RAID 0/1/10
|
Ethernet
|
1 x Realtek 2.5Gb Ethernet
|
|
ASUS LANGuard
|
USB
|
Rear USB (Total 10 ports)
|
|
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
|
|
1 x USB 10Gbps port (1 x Type-A)
|
|
3 x USB 5Gbps ports (3 x Type-A)
|
|
4 x USB 2.0 ports (4 x Type-A)
|
|
Front USB (Total 7 ports)
|
|
1 x USB 10Gbps connector (supports USB Type-C®)
|
|
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
|
|
2 x USB 2.0 headers support 4 additional USB 2.0 ports
|
|
* USB Type-C® power delivery output: max. 5V/3A
|
Audio
|
Realtek 7.1 Surround Sound High Definition Audio CODEC*
|
|
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
|
|
- Supports up to 24-Bit/192 kHz playback
|
|
Audio Features
|
|
- Audio Shielding
|
|
- Premium audio capacitors
|
|
- Dedicated audio PCB layers
|
|
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
|

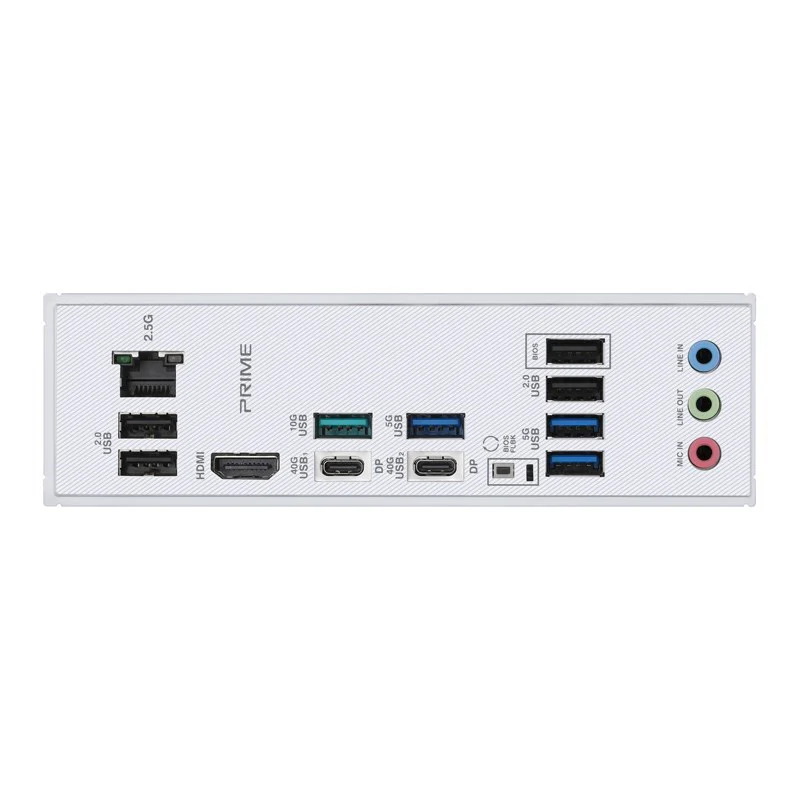

Back Panel I/O Ports
|
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
|
|
1 x USB 10Gbps port (1 x Type-A)
|
|
3 x USB 5Gbps ports (3 x Type-A)
|
|
4 x USB 2.0 ports (4 x Type-A)
|
|
1 x HDMI™ port
|
|
1 x Realtek 2.5Gb Ethernet port
|
|
3 x Audio jacks
|
|
1 x BIOS FlashBack™ button
|
Internal I/O Connectors
|
Fan and Cooling Related
|
|
1 x 4-pin CPU Fan header
|
|
1 x 4-pin CPU OPT Fan header
|
|
1 x 4-pin AIO Pump header
|
|
4 x 4-pin Chassis Fan headers
|
|
Power Related
|
|
1 x 24-pin Main Power connector
|
|
2 x 8-pin +12V CPU Power connectors
|
|
Storage Related
|
|
4 x M.2 slots (Key M)
|
|
2 x SATA 6Gb/s ports
|
|
USB
|
|
1 x USB 10Gbps connector (supports USB Type-C®)
|
|
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
|
|
2 x USB 2.0 headers support 4 additional USB 2.0 ports
|
|
Miscellaneous
|
|
3 x Addressable Gen 2 headers
|
|
1 x Clear CMOS header
|
|
1 x COM Port header
|
|
1 x Front Panel Audio header (F_AUDIO)
|
|
1 x S/PDIF Out header
|
|
1 x SPI TPM header (14-1 pin)
|
|
1 x 10-1 pin System Panel header
|
Special Features
|
ASUS 5X PROTECTION III
|
|
- DIGI+ VRM (- Digital power design with DrMOS)
|
|
- LANGuard
|
|
- Overvoltage protection
|
|
- SafeSlot
|
|
- Stainless-steel back I/O
|
|
ASUS Q-Design
|
|
- M.2 Q-Latch
|
|
- PCIe Slot Q-Release
|
|
- Q-Dashboard
|
|
- Q-DIMM
|
|
- Q-LED Core
|
|
- Q-Slot
|
|
ASUS Thermal Solution
|
|
- Flexible M.2 heatsink
|
|
- VRM heatsink design
|
|
ASUS EZ DIY
|
|
- BIOS FlashBack™ button
|
|
- BIOS FlashBack™ LED
|
|
- ProCool
|
|
- Pre-mounted I/O shield
|
|
- SafeSlot
|
|
Aura Sync
|
|
- Addressable Gen 2 headers
|
Software Features
|
ASUS Exclusive Software
|
|
Armoury Crate
|
|
- Aura Creator
|
|
- Aura Sync
|
|
- Fan Xpert 4 (with AI Cooling II)
|
|
- Power Saving
|
|
ASUS DriverHub
|
|
TurboV Core
|
|
ASUS CPU-Z
|
|
Norton 360 Deluxe (60 Days Free Trial)
|
|
WinRAR (40 Days Free Trial)
|
|
UEFI BIOS
|
|
ASUS EZ DIY
|
|
- ASUS CrashFree BIOS 3
|
|
- ASUS EZ Flash 3
|
|
- ASUS UEFI BIOS EZ Mode
|
|
- ASUS MyHotkey
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS
|
Manageability
|
WOL by PME, PXE
|

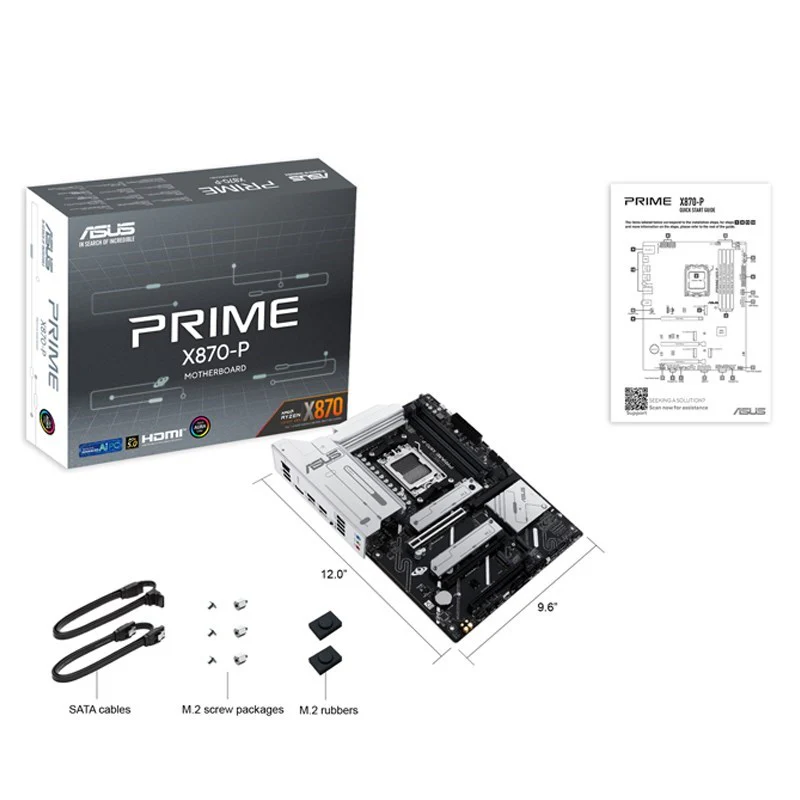

Accessories
|
Cables
|
|
2 x SATA 6Gb/s cables
|
|
Miscellaneous
|
|
1 x M.2 rubber package
|
|
2 x Screw packages for M.2 SSD
|
|
Documentation
|
|
1 x Quick start guide
|
Operating System
|
Windows 11, Windows 10 64-bit
|
Form Factor
|
ATX Form Factor
|
|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
