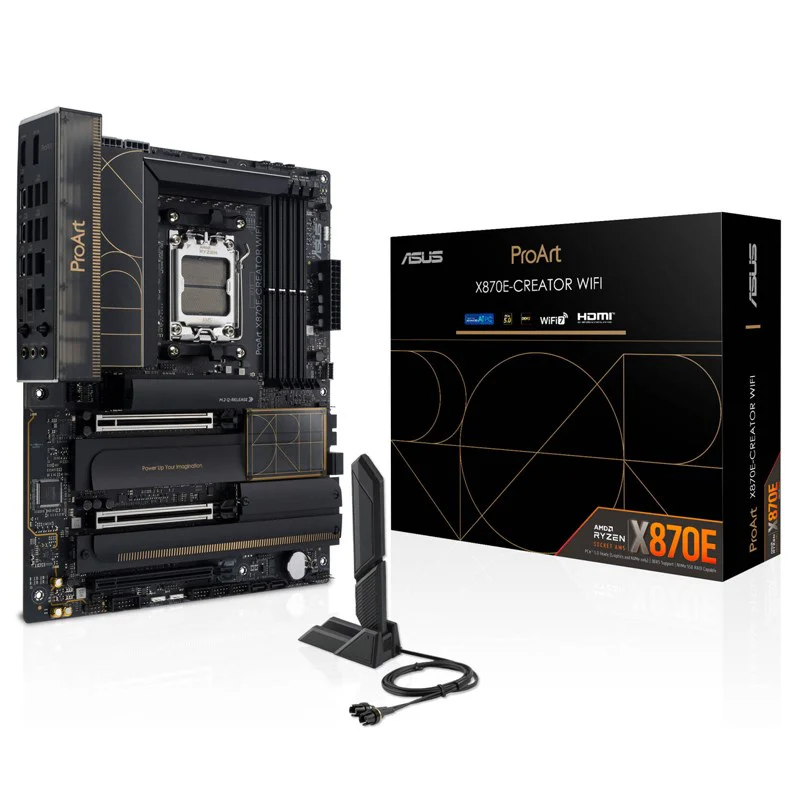

ProArt X870E-Creator WiFi

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe 5.0 and lightning-fast connectivity including dual USB4, 10G and 2.5G Ethernet, and WiFi 7.​

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.

Dual USB4 Connectivity

Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort In port on the rear I/O panel and direct the video output via the USB4 port.​

PCIe 5.0 Expansion Slots

Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.

What are the benefits of Asus ProArt X870E-Creator AMD Ryzen Wi-Fi7 ATX Gaming MotherBoard ?

• Supports latest AMD Ryzen processors for powerful performance.

• Strong power design ensures stable performance for demanding tasks.

• PCIe 5.0 slots deliver ultra-fast speeds for GPUs and expansion cards.

• Dual USB4 ports enable high-speed data transfer up to 40 Gbps.

• WiFi 7 and dual Ethernet provide fast and reliable connectivity.

• Supports multiple high-resolution displays including 8K output.

• Durable design with reinforced slots for heavy graphics cards.

• Professional and premium design suited for creators.

Chipset

AMD X870E

Memory

4 x DIMM slots, max. 256 GB, DDR5

Support up to

8000+MT/s(OC) with Ryzen 9000 Series Processors,

8000+MT/s(OC) with Ryzen 8000 Series Processors,

8000+MT/s(OC) with Ryzen 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM

Dual Channel Memory Architecture

Supports AMD Extended Profiles for

Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP)

Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot is not supported

AMD X870E Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

PCIEX16(G5)_2 slot shares bandwidth with M.2_2.

AMD RAIDXpert2 Technology

Ryzen 7000 series processors: PCIe RAID 0/1/10

Ryzen 8000 series processors: PCIe RAID 0/1

Ryzen 9000 series processors: PCIe RAID 0/1/5/10

X870/B850/X670/B650/A620 chipset: SATA RAID 0/1/10

Ethernet

1 x Marvell AQtion 10Gb Ethernet

1 x Intel 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Supports Wi-Fi 7 320MHz bandwidth

Bluetooth v5.4

Back Panel I/O Ports

2 x USB4 (40Gbps) port(s) (2 x USB Type-C)

1 x USB 20Gbps port (1 x USB Type-C)

7 x USB 10Gbps ports (7 x Type-A)

1 x USB 2.0 port (1 x Type-A)

1 x DisplayPort (Input only)

1 x HDMITM port

1 x Wi-Fi Module

1 x Marvell AQtion 10Gb Ethernet

1 x Intel 2.5Gb Ethernet

3 x Audio jacks

1 x BIOS FlashBack button

1 x Clear CMOS button

Remote Management Features

IT Management software supported

ASUS Control Center Express(ACCE)

BIOS

256 MB Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows 11

Form Factor

ATX Form Factor

12" x 9.6" ( 30.5 cm x 24.4 cm )
