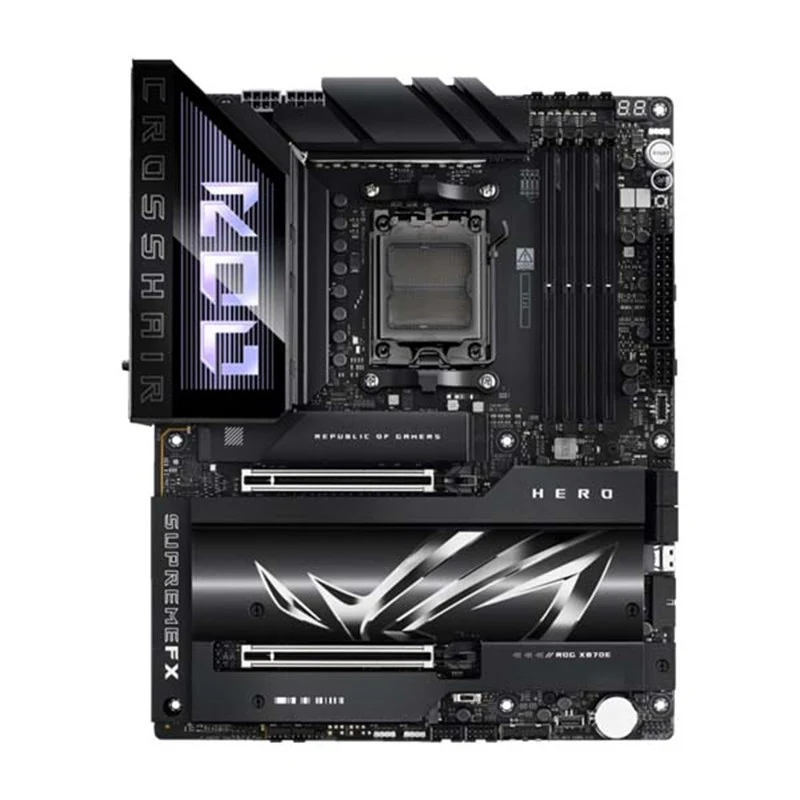

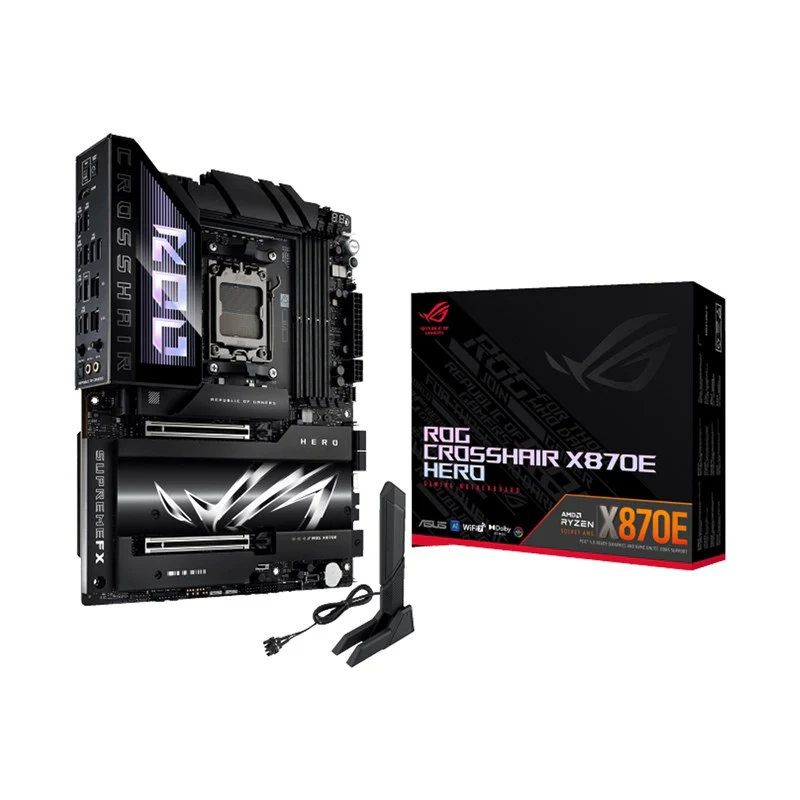

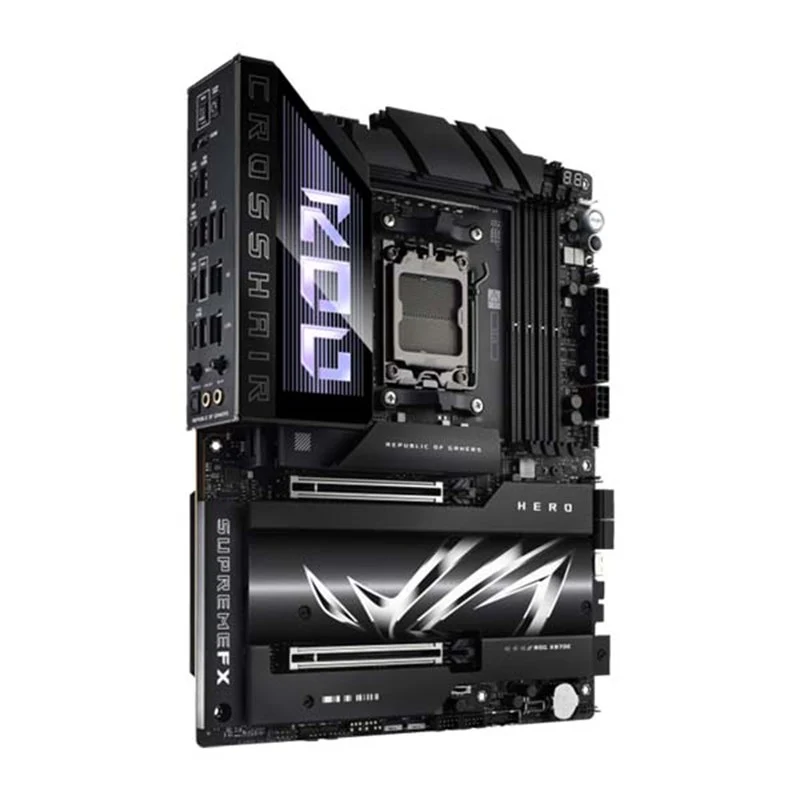

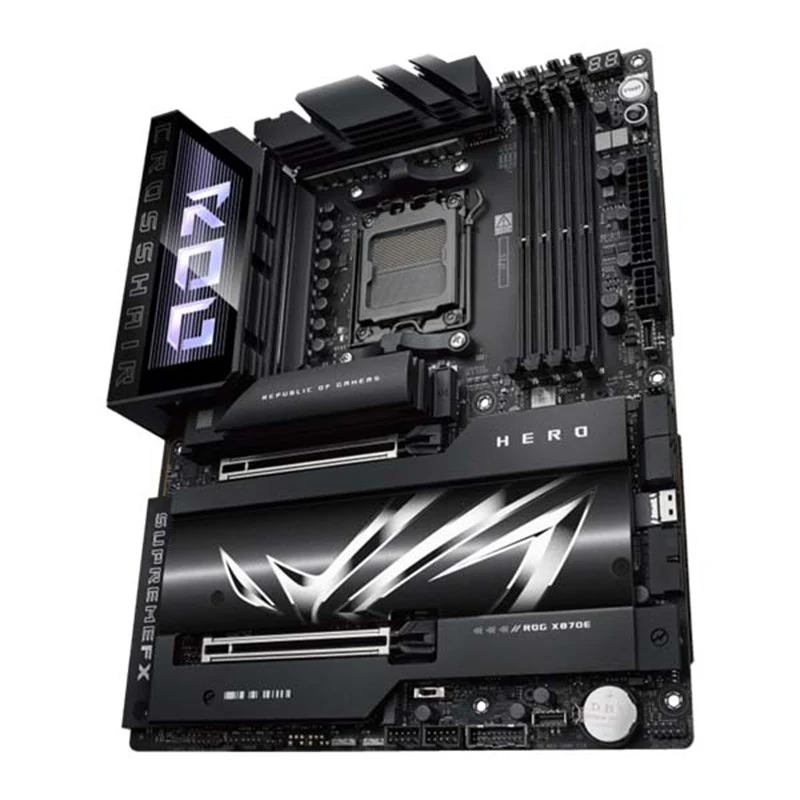

ROG Crosshair X870E HERO

The ROG Crosshair X870E Hero, tailored for PC AI, delivers unyielding power delivery, robust thermal management, hyper-fast connectivity, PCIE 5.0 and full DDR5 support to unleash the performance of AMD Ryzen 9000 Series processors. Dark hues predominate on this motherboard, drawing attention to premium metal textures, nickel-plated surfaces, elegant contours and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features Polymo Lighting II. This enhanced lighting module, integrated into the I/O housing, provides more dynamic RGB illumination for the ROG logo.

AI COOLING II

An ASUS-patented algorithm reduces unnecessary noise while performing a quick stress test, then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling system to determine the optimal system configuration. Predicted values can be automatically engaged or used as a baseline for further experimentation.

AI NETWORKING II

Fast Check

Armoury Crate's Fast Check allows users to quickly detect WiFi signal strength.

Traffic Monitor

Armoury Crate Traffic Monitor tracks the usage of your current WiFi channel. Switch to a less congested channel by clicking the “Channel Switch” button* to improve network performance.

*The “Channel Switch” feature requires pairing with an ASUS router. If not paired with an ASUS router, the channel switching process can be done in the “Router IP” section of the Traffic Monitor.

Gamefirst

GameFirst is now integrated with Armoury Crate for an even better user experience. GameFirst optimizes network performance by allocating bandwidth in real-time, based on intelligent algorithms designed for various customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA GeForce NOW to ensure the lowest possible latency during intense cloud gaming streaming sessions. To improve the user experience, GameFirst is now integrated with Armoury Crate.

Direction Finder

Armoury Crate’s Direction Finder* helps users detect the optimal antenna orientation for the best WiFi signal strength.
*Direction Finder is only compatible with connections in the 5GHz and 6GHz bands.

OVERCLOCKING

CORE FLEX

In its simplest form, you can maximize the base clock during light loads and set breakpoints to gradually reduce the CPU core frequency as temperature or current increases. However, the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently. This allows you to tailor CPU performance to your will.

Dynamic OC Switch

Dynamic OC Switcher maximizes CPU performance by allowing you to set current and temperature thresholds to automatically switch between manual overlock for heavy multi-threaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest version of Overclocking Load Guard features an improved instantaneous current protection mechanism to prevent users from experiencing system crashes while overclocking.

MEMORY

AEMP

AEMP automatically detects the memory chips in your kit and then presents optimized frequency, timing, and voltage profiles that you can effortlessly apply to boost performance.

DDR5 Power

For those looking to reach higher speeds than standard DDR5, the ROG Crosshair X870E Hero is ready to accommodate higher-end kits with support for AMD EXtended Profiles for Overclocking (EXPO). Experts can further enhance performance with a variety of UEFI settings.

Memory overclocking may vary between CPU series. Please refer to the specification table for detailed information.

NitroPath DRAM Technology

NitroPath DRAM technology helps improve the performance of DDR5 memory. Shorter gold pins and optimized signal paths provide faster data transfers between your DRAM and CPU, providing increased headroom and stability for memory overclocking. These re-engineered DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slots, making them ideal for enthusiasts upgrading their systems to the fastest kits available.

TEAMED POWER ARCHITECTURE

1. ProcCool II 8+8 Pin Power Connector

The two ProCool connectors ensure the user a reliable and suitable connection to the 12V EPS power lines.

2. 18+2+2 Power Phases:

The motherboard voltage regulator features 18+2+2 power phases, each of which is capable of handling up to 110A of current.

3. 10K Black Metal Capacitors

Input and output filtering is provided by solid polymer capacitors designed to withstand high operating temperatures.

4. MicroFine Chokes in Special Alloy

Each power phase is completed with a coil covered with a highly permeable alloy capable of handling up to 45A of current.

COOLER BY DESIGN

1. VRM Heatsink with Aluminum I/O Interface

The VRM heatsink of MOSFETS and chokes is connected to the aluminum I/O interface via an integrated heat pipe to increase the heat dissipation space.

2. Highly Conductive Thermal Pads:

Each thermal pad improves the transfer of heat generated by the power supply, directing it to the heatsink.

3. M.2 Heatsinks and Backplates

Large aluminum heatsinks provide an expanded surface area for cooling the mounted M.2 drives, and each of the three built-in PCIe 5.0 M.2 slots has a dedicated backplate for additional heat dissipation.

4. Chipset Heatsink

A dedicated heatsink dissipates heat from both chipsets to maintain optimal operating temperature.

PCIE 5.0

Five onboard M.2 slots

ROG Crosshair X870E Hero features five onboard M.2 slots, three of which support PCIe 5.0 to deliver speeds of up to 16GB/s, while the others offer an impressive 8GB/s throughput via PCIe 4.0 interfaces. It also features a SlimSAS connector, which supports PCIe 4.0 x4 mode via a transfer cable. The cable is sold separately.

Expansion slots

Both x16 expansion slots feature PCIe 5.0 processing to deliver incredible speeds of up to 64GB/s for compatible devices. To support the weight of massive graphics cards, they are also protected by SafeSlot retention brackets, and the top slot can be released easily with the PCIe Slot Q-Release Slim.

NETWORKING

1. WIFI 7:

The next-generation WiFi 7* chipset introduces an all-new 320 MHz ultra-wide bandwidth in the 6 GHz band and 4096 QAM, delivering 2.4x faster WiFi speeds. The revolutionary Multi-Link Operation (MLO) system delivers more stable WiFi connection and lower latency, breaking through the unknown in gaming, streaming, and industrial IoT.

WiFi 7 features require an onboard WiFi chipset, WiFi AP, and WiFi 7-compatible operating systems to support the corresponding features. The 320 MHz of the 6 GHz band may be unavailable in some regions or countries due to regulatory restrictions. Multi-Link Operation (MLO) support will be available later this year (October 2023). Please visit the ASUS support page for more information.


2. 2.5G Ethernet:

Low-latency gaming, fast file transfers, and high-resolution video streaming are just some of the many benefits of integrated Intel 2.5Gb/s Ethernet.

3. 5 GB ETHERNET

Low-latency gaming, fast file transfers, and high-resolution video streaming are just some of the many benefits of integrated Realtek 5Gb/s Ethernet.

ASUS WiFi Q-Antenna

Dual transceivers support 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

Simplified assembly

PCIE SLOT Q-RELEASE SLIM

With the PCIe Slot Q-Release Slim feature, simply tilt the card toward the locking mechanism to automatically release it from the PCIe slot. This makes upgrades and maintenance easier than ever. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.

M.2 Q-Release

The M.2 heatsink features a convenient switch that allows for quick removal, eliminating the need for tiny screws when installing an SSD. Its robust locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.

The switch may be a lever or a button, depending on the motherboard model.

CPU

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

 Chipset  : AMD X870E

Memory

4 x DIMM slots, max.192GB, DDR5

Supports up to

8200+MT/s(OC) with Ryzen 9000 Series Processors,

8600+MT/s(OC) with Ryzen 8000 Series Processors,

8000+MT/s(OC) ) with Ryzen 7000 Series Processors,

ECC and Non-ECC, Un-buffered Memory

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO)

NitroPath DRAM Technology

ASUS Enhanced Memory Profile (AEMP)

Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information

Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

 Graphics

1 x HDMI port

2 x USB4 (40Gbps) ports support USB Type-C display outputs

Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

VGA resolution support depends on processors' or graphic cards' resolution.

Supports 4K@60Hz as specified in HDMI 2.1.

Max. supports 4K@60Hz as specified in DisplayPort 1.4a

USB

Rear USB (Total 10 ports)

2 x USB4 (40Gbps) ports (2 x USB Type-C)

8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)

Front USB (Total 10 ports)

1 x USB 20Gbps (supports USB Type-C with up to 60W PD/QC4+)

1 x USB 20Gbps connector (supports USB Type-C)

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

USB Type-C power delivery output: max. 5V/3A

USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

 Back Panel I/O Ports

2 x USB4 (40Gbps) ports (2 x USB Type-C)

8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)

1 x HDMI port

1 x Wi-Fi module

1 x Intel 2.5Gb Ethernet port

1 x Realtek 5Gb Ethernet port

2 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1 x Clear CMOS button

 Internal I/O Connectors

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x W_PUMP+ header

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connector

1 x 8-pin PCIe Power connector

Storage Related

5 x M.2 slots (Key M)

1 x SlimSAS connector 4 x SATA 6Gb/s USB

ports 2 x USB 20Gbps connectors (support USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x LN2 Mode jumper

 Special Features

Extreme OC Kit

- FlexKey button

- LN2 Mode

- ReTry button

- Start button

Extreme Engine Digi+

- 10K Black metallic capacitors

- MicroFine alloy choke

ASUS Q-Design

- M.2 Q-Latch

- M.2 Q-Release

- M.2 Q -Slide

- Q-Release Slim (with PCIe SafeSlot)

- Q-Antenna

- Q-Code

- Q-Connector

- Q-Dashboard

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- VRM heatsink design

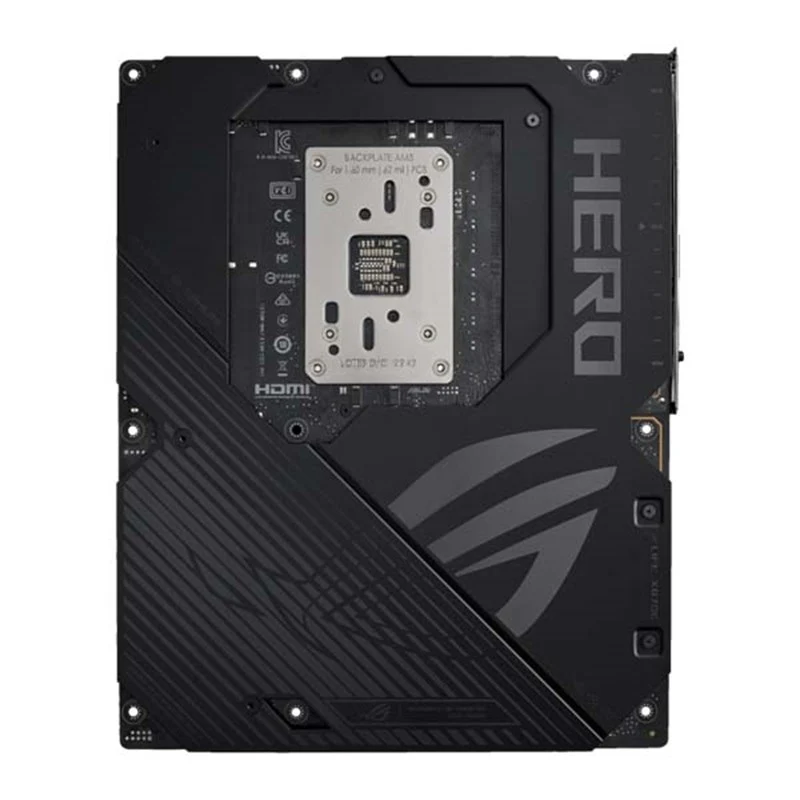

- Metal backplate

ASUS EZ DIY

- Backplate

- BIOS FlashBack™ button

- Clear CMOS button

- ProCool II

- Pre- mounted I/O shield

- SafeSlot

- SafeDIMM

Aura Sync

- Addressable Gen2 header(s)

Front Panel USB 20Gbps with Quick Charge 4+ Support

- Support: up to 60W fast charging and USB Wattage Watcher*

- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

- Compatible with PD3.0 and PPS

* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.

Form Factor

ATX Form Factor

12" x 9.6" (30.5 cm x 24.4 cm)

 Operating System

Windows 11
