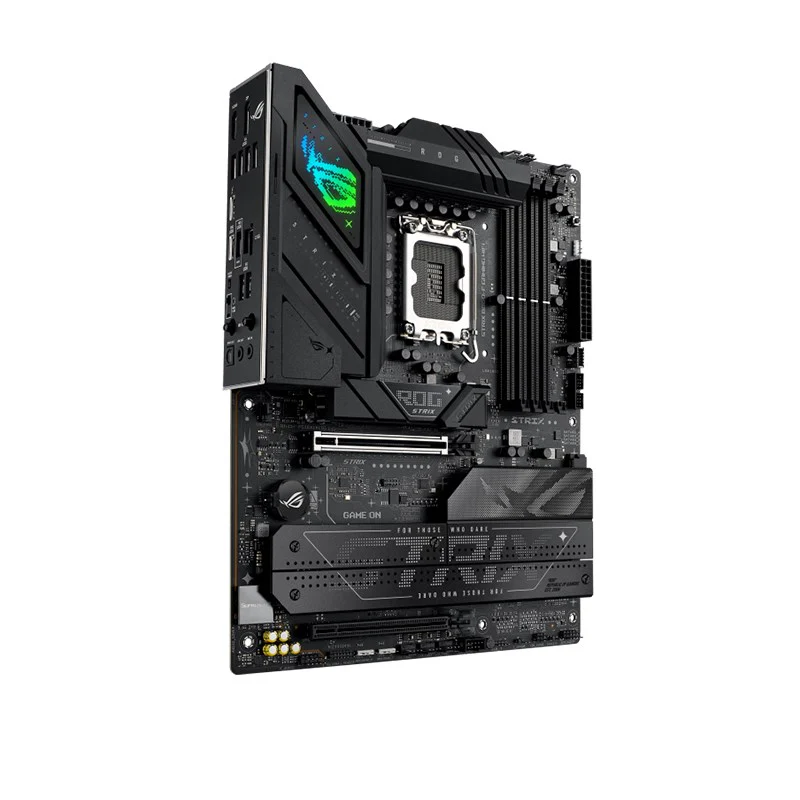

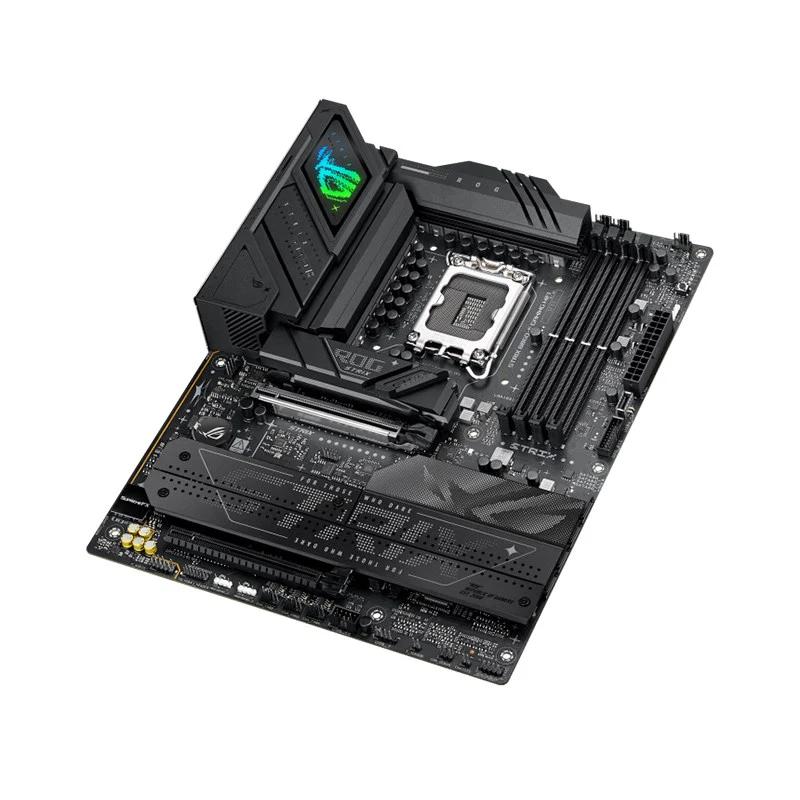

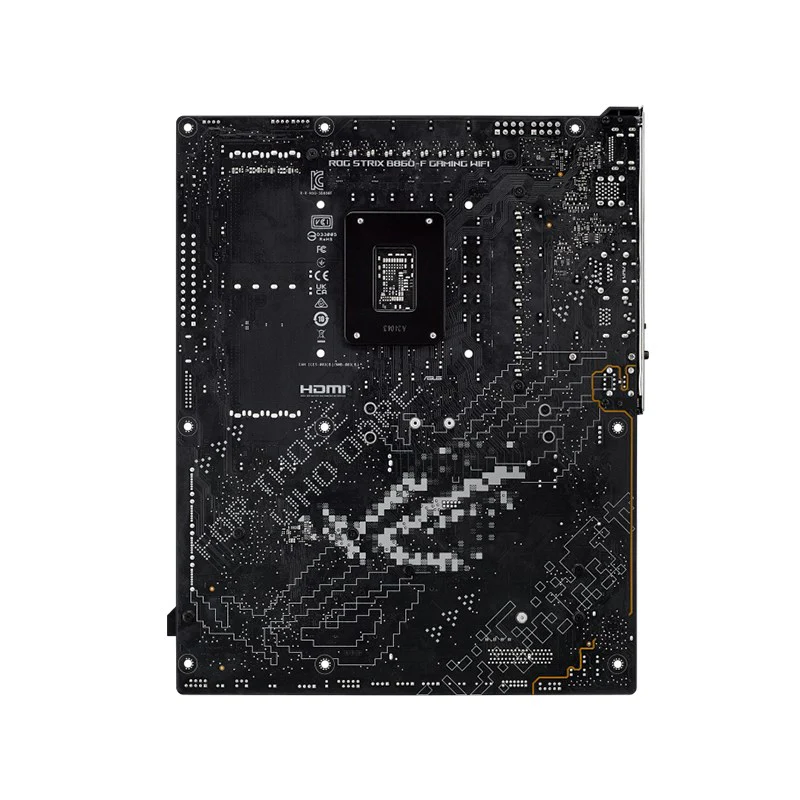

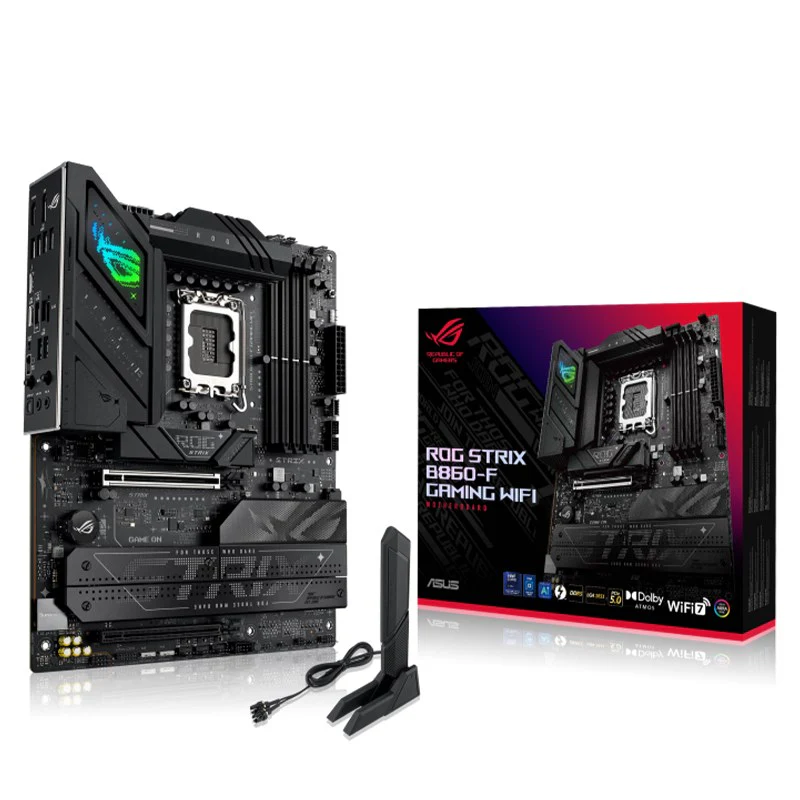

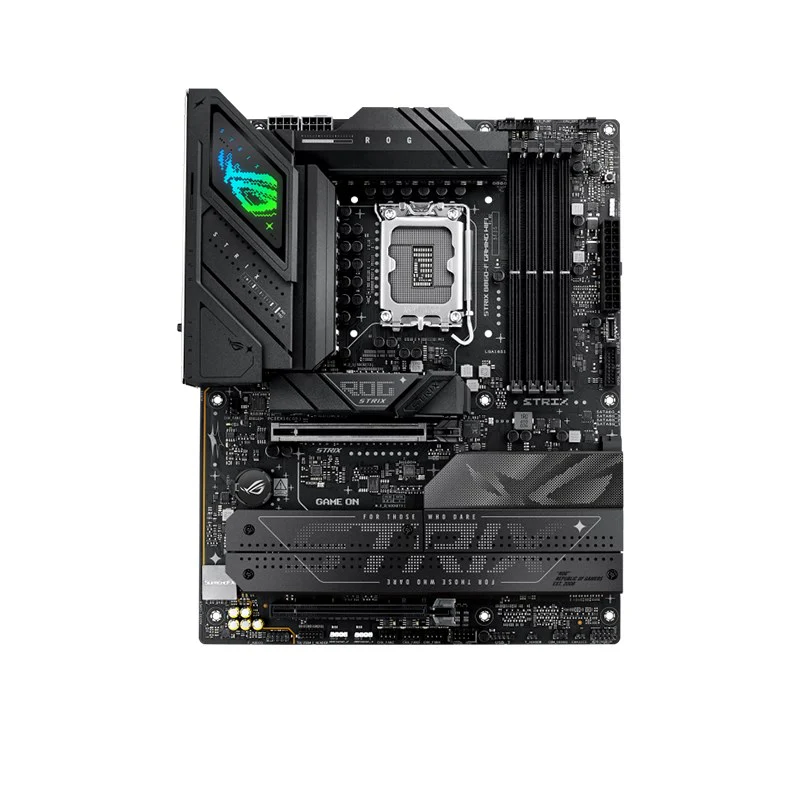

Asus ROG STRIX B860-F GAMING WI-FI ATX Gaming Motherboard

Asus ROG STRIX B860-F GAMING Wi-Fi ATX Gaming Motherboard

Asus AI Advisor

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI Networking II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of Wi-Fi 7.

NPU Boost

The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

DDR5 Domination

Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix B860-F.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

DIMM Fit / DIMM Fit Pro

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more extensive customizability for memory optimization.

Outshine the Competition

ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories.

Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

CPU Socket

Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2)

CPU Features

Supports Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0

Chipset

Intel B860 Chipset

Memory Slots

4 x DIMM slots

Maximum Memory

Up to 256 GB DDR5

Memory Speed

Up to 9066MT/s (Overclocked)

Memory Type

Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)

Memory Architecture

Dual channel

Memory Profiles

Supports Intel Extreme Memory Profile (XMP), ASUS AEMP III

Graphics Outputs

1 x DisplayPort, 1 x HDMI port, 1 x Thunderbolt 4 (USB Type-C) with DisplayPort support

Display Resolutions

Up to 8K@60 Hz with DSC on DisplayPort 1.4 and HDMI 2.1

PCIe Expansion (CPU)

1 x PCIe 5.0 x16 slot (x16 mode)

PCIe Expansion (Chipset)

1 x PCIe 4.0 x16 slot (x4 mode)

Storage Support

4 x M.2 slots and 4 x SATA 6 Gb/s ports

SATA RAID Support

Supports RAID 0/1/5/10 (Intel Rapid Storage Technology)

Bandwidth Sharing

M.2_4 shares bandwidth with PCIEX16(G4)

Ethernet

Intel 2.5Gb Ethernet with ASUS LANGuard

Wireless Networking

Wi-Fi 7 (802.11be), 2x2, supports 2.4/5/6 G Hz bands, 160  MHz bandwidth

Bluetooth

Bluetooth v5.4

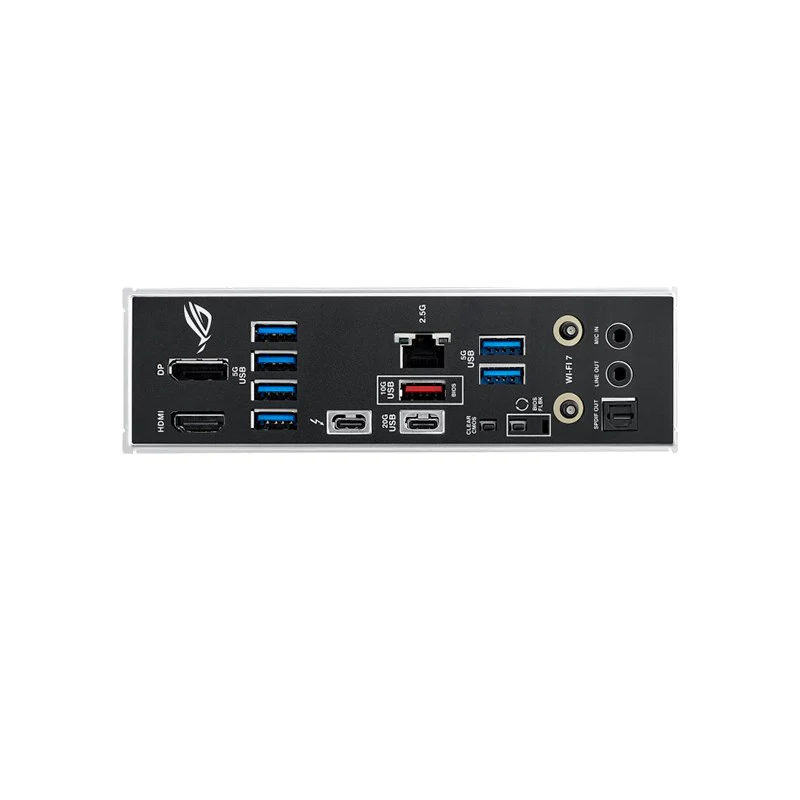

Rear USB Ports

1 x Thunderbolt 4 (USB Type-C), 1 x USB 20 Gbps (Type-C), 1 x USB 10 Gbps (Type-A), 6 x USB 5 Gbps (Type-A)

Front USB Ports

1 x USB 10 Gbps (Type-C), 1 x USB 5 Gbps header (2 ports), 2 x USB 2.0 headers (3 ports)

Audio Codec

ROG SupremeFX 7.1 Surround Sound ALC4080

Audio Features

120 dB SNR stereo playback, 110 dB SNR recording, Savitech SV3H712 AMP, S/PDIF out, premium capacitors

DisplayPort Version

DisplayPort 1.4 (up to 8K@60 Hz with DSC)

HDMI Version

HDMI 2.1 (up to 8K@60 Hz with DSC)

USB Power Delivery

USB Type-C front panel supports max 5V/3A output

Audio Output Ports

2 audio jacks, 1 Optical S/PDIF out
