Model
|

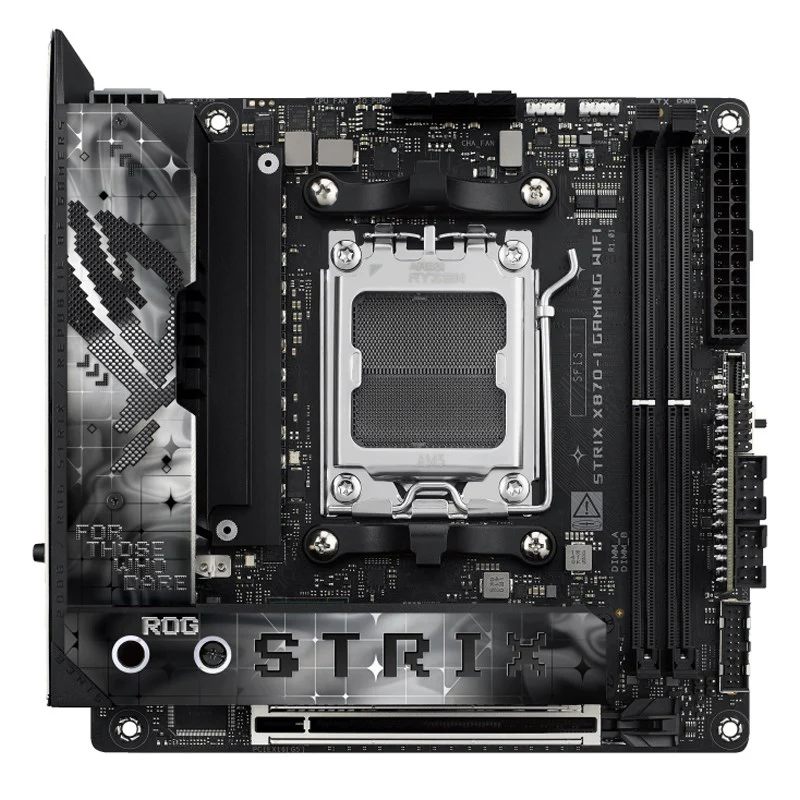

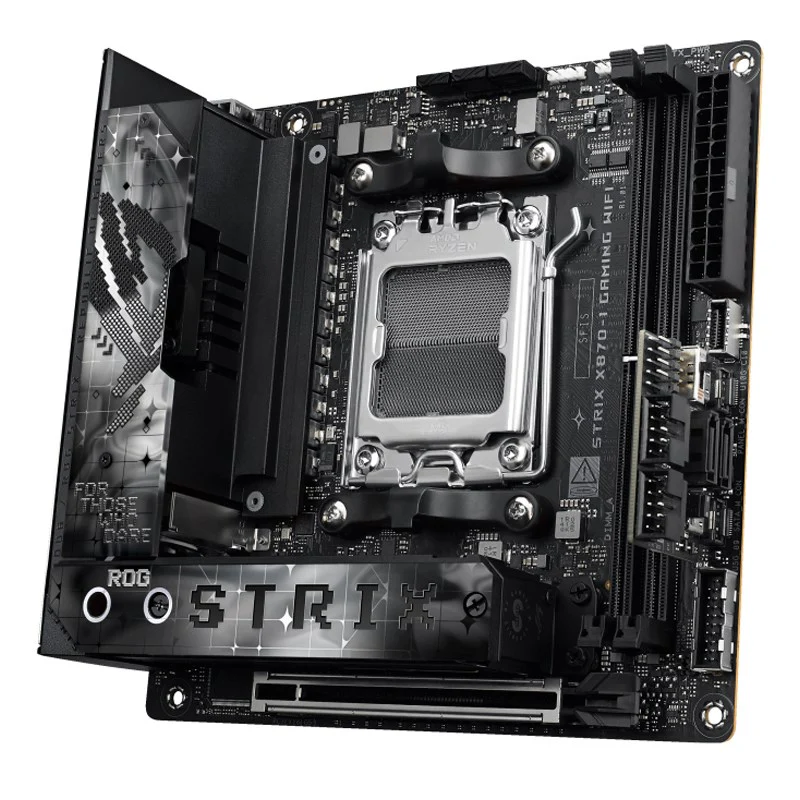

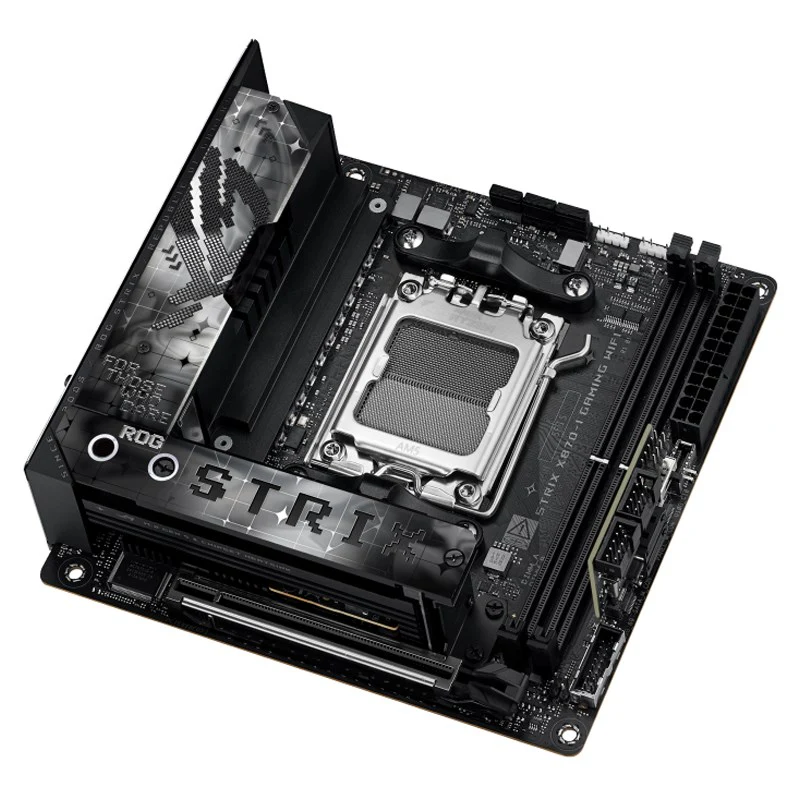

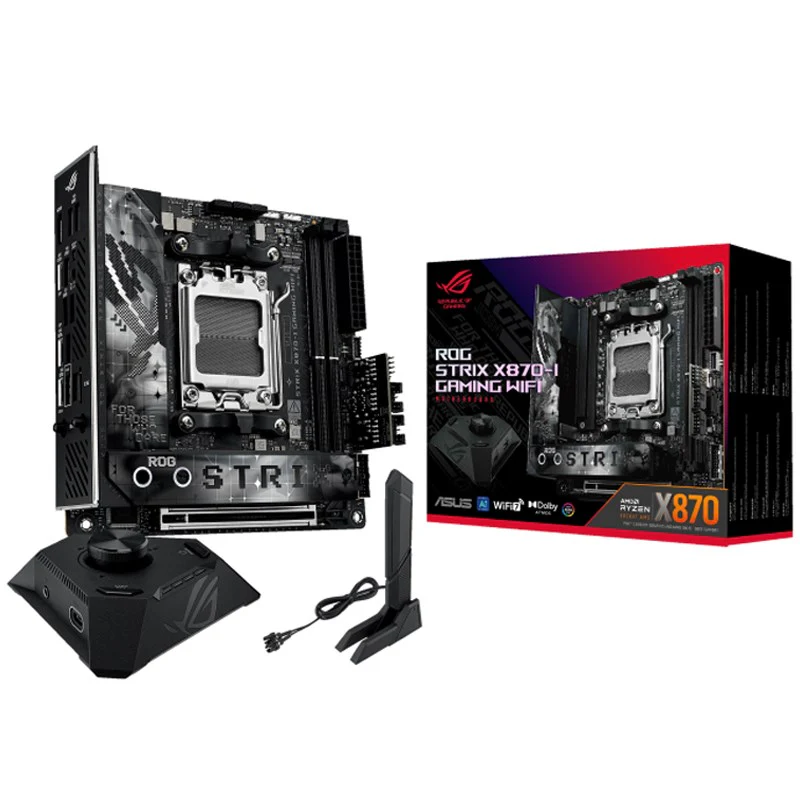

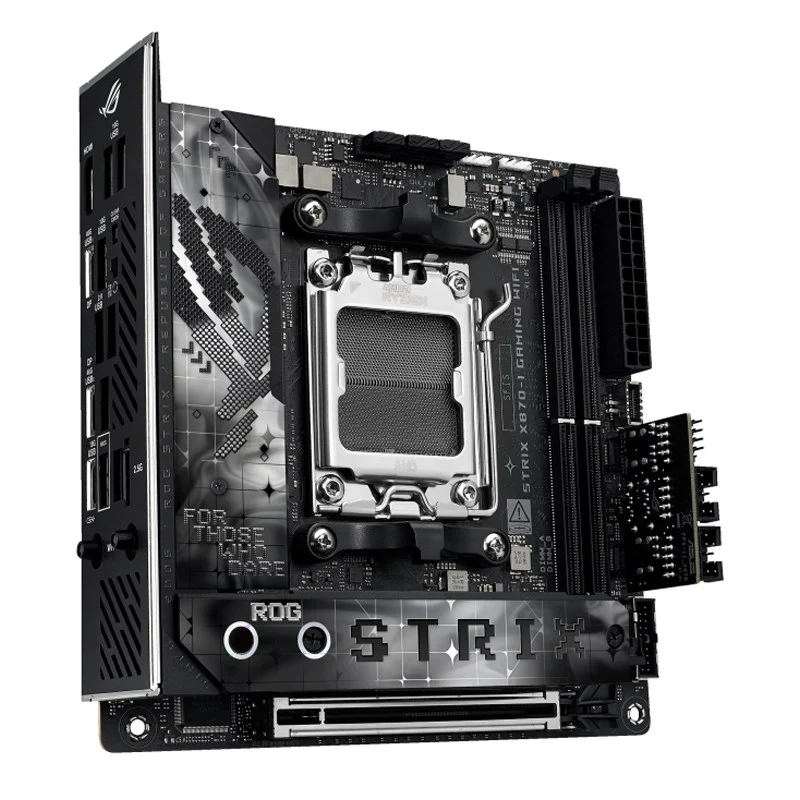

ROG STRIX X870-I GAMING WIFI
|
CPU
|
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
|
Chipset
|
AMD X870
|
Memory
|
2 x DIMM slots, max. 128GB, DDR5
|
|
Supports up to
|
|
8400+MT/s(OC) with Ryzen™ 9000 Series Processors,
|
|
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
|
|
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
|
|
ECC and Non-ECC Un-buffered DIMM*"
|
|
Dual channel memory architecture
|
|
Supports AMD Extended Profiles for Overclocking (EXPO™)
|
|
ASUS Enhanced Memory Profile (AEMP)
|
|
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
|
|
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
|
Graphics
|
1 x HDMI™ port**
|
|
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
|
|
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
|
|
** Supports 4K@60Hz as specified in HDMI 2.1.
|
|
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
|
|
**** VGA resolution support depends on processors' or graphic cards' resolution.
|
Expansion Slots
|
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
|
|
1 x PCIe 5.0 x16 slot
|
|
AMD Ryzen™ 8000 Series Desktop Processors
|
|
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*
|
|
* Specifications vary by CPU types.
|
Storage
|
Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
|
|
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
|
|
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
|
|
AMD Ryzen™ 8000 Series Desktop Processors*
|
|
M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
|
|
AMD X870 Chipset
|
|
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
|
|
2 x SATA 6Gb/s ports***
|
|
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1
|
|
*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.
|
Ethernet
|
1 x Intel® 2.5Gb Ethernet
|
|
ASUS LANGuard
|
Wireless & Bluetooth
|
Wi-Fi 7*
|
|
2x2 Wi-Fi 7 (802.11be)
|
|
Supports 2.4/5/6GHz frequency band**
|
|
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
|
|
Bluetooth® v5.4***
|
|
*Wi-Fi features may vary depending on the operating system
|
|
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
|
|
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
|
|
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
|
|
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
|
USB
|
Rear USB (Total 10 ports)
|
|
2 x USB4® (40Gbps) port(s)(2 x USB Type-C®)
|
|
5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)
|
|
3 x USB 2.0 port(s) (3 x Type-A)
|
|
Front USB (Total 3 ports)
|
|
1 x USB 10Gbps connector (supports USB Type-C®)
|
|
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
|
|
* USB Type-C® power delivery output: max. 5V/3A
|
|
ROG STRIX HIVE II(Total 2 ports)
|
|
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
|
|
ROG FPS Card (Total 3 ports)
|
|
2 x USB 2.0 headers additional 3 USB 2.0 ports
|
Audio
|
ROG Strix Hive II Audio Features
|
|
- ROG Hyper-Grounding Technology
|
|
- ESS® SABRE9260Q DAC
|
|
- Silver-plated audio jacks
|
|
- Dedicated audio PCB layers
|

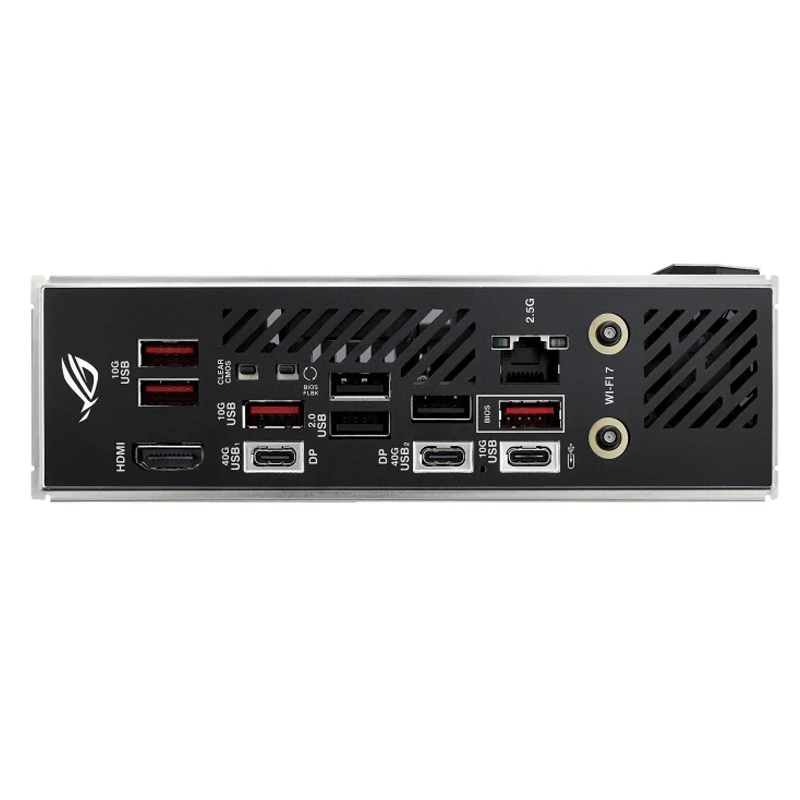

Back Panel I/O Ports
|
2 x USB4® (40Gbps)(2 x USB Type-C®)
|
|
5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1 port supports ROG STRIX HIVE II)
|
|
3 x USB 2.0 port(s) (2 x Type-A)
|
|
1 x HDMI™ port
|
|
1 x Wi-Fi module
|
|
1 x Intel® 2.5Gb Ethernet port
|
|
1 x BIOS FlashBack™ button
|
|
1 x Clear CMOS button
|
Internal I/O Connectors
|
Fan and Cooling Related
|
|
1 x 4-pin CPU Fan header(s)
|
|
1 x 4-pin AIO Pump header(s)
|
|
1 x 4-pin Chassis Fan header(s)
|
|
Power Related
|
|
1 x 24-pin Main Power connector
|
|
1 x 8-pin +12V CPU Power connector
|
|
Storage Related
|
|
2 x M.2 slots (Key M)
|
|
USB
|
|
1 x USB 10Gbps connector (supports USB Type-C® )
|
|
1 x USB 5Gbps header support(s) 2
|
|
additional USB 5Gbps ports
|
|
Miscellaneous
|
|
2 x Addressable Gen 2 headers
|
|
1 x 2-pin Power Button header
|
|
1 x Thermal Sensor header
|
|
2 x USB Type-C® connectors to install ROG FPS card
|
|

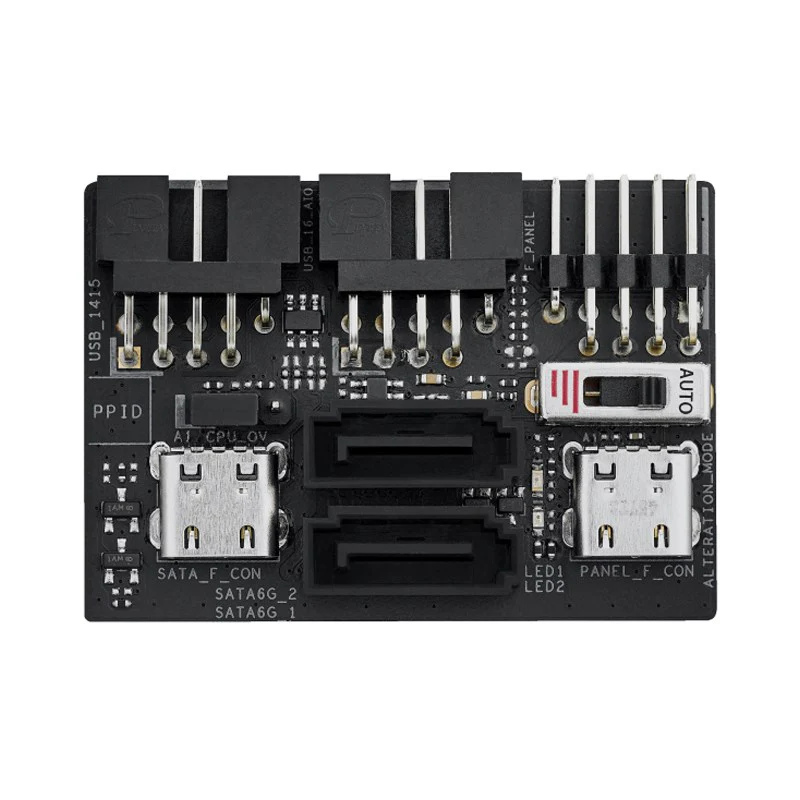

ROG FPS card
|
|
2 x SATA 6Gb/s ports
|
|
1 x CPU Over Voltage jumper
|
|
1 x Front Panel header
|
|
1 x Alteration PCIe Mode switch
|
|
2 x USB 2.0 headers support 3
|
|
additional USB 2.0 ports
|
Special Features
|
ASUS Q-Design
|
|
- M.2 Q-Latch
|
|
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
|
|
- Q-Antenna
|
|
- Q-DIMM
|
|
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
|
|
- Q-Slot
|
|
ASUS Thermal Solution
|
|
- M.2 heatsink
|
|

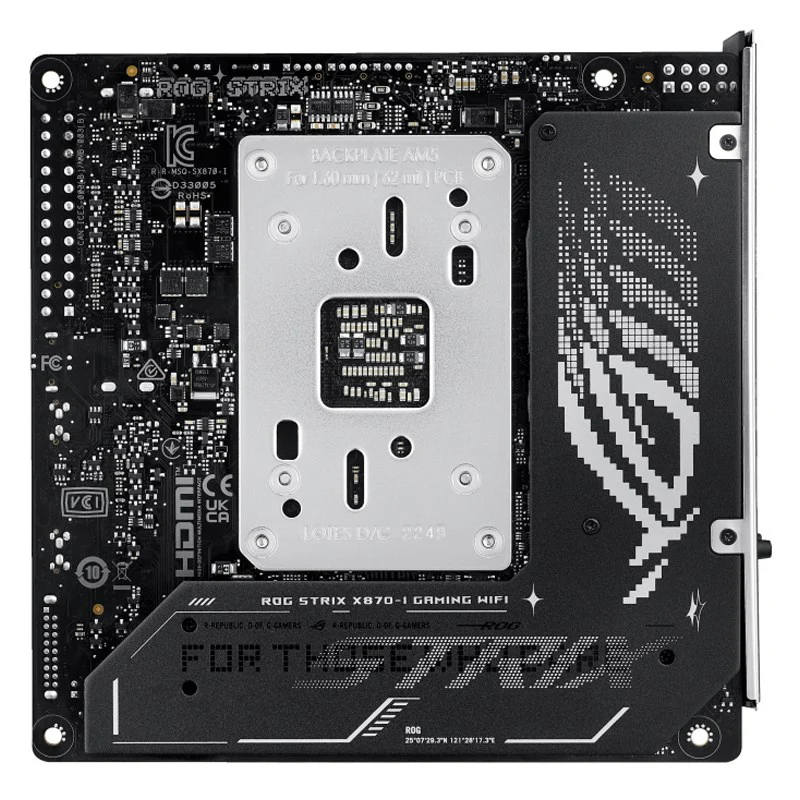

- Aluminum backplate
|
|
ASUS EZ DIY
|
|
- BIOS FlashBack™ button
|
|
- BIOS FlashBack™ LED
|
|
- Clear CMOS button
|
|
- ProCool II
|
|
- Pre-mounted I/O shield
|
|
- SafeSlot
|
|
- SafeDIMM
|
|
Aura Sync
|
|
- Addressable Gen 2 header(s)
|
|

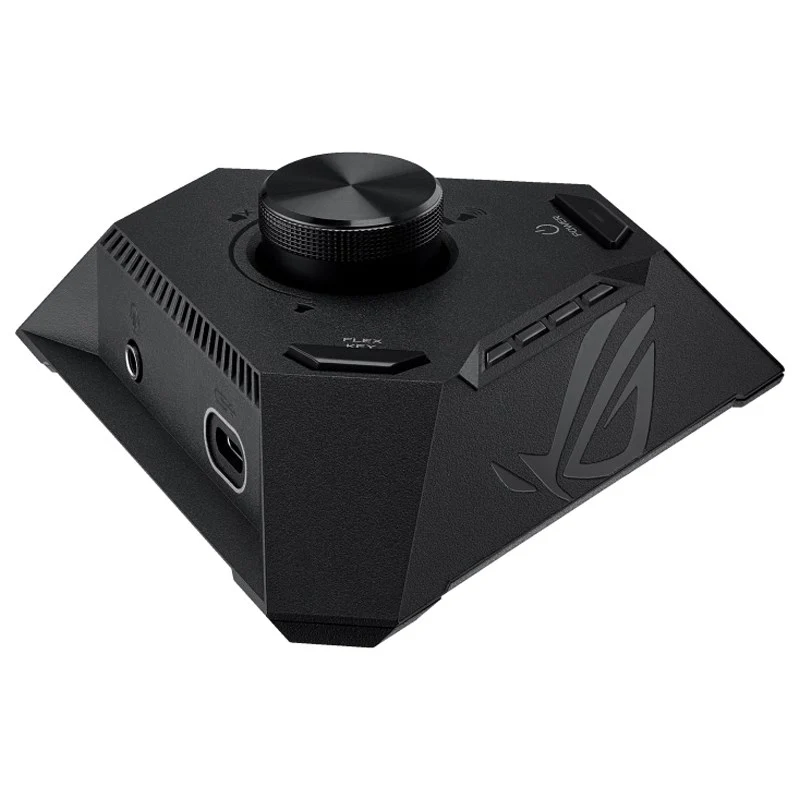

ROG STRIX HIVE II
|
|
1 x USB Type-C® connects to motherboard
|
|
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
|
|
1 x Headphone jack with mic in
|
|
1 x Power button
|
|
1 x FlexKey button
|
|
1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
|
Software Features
|
ROG Exclusive Software
|
|
- ROG CPU-Z
|
|
- Dolby Atmos
|
|
ASUS Exclusive Software
|
|
Armoury Crate
|
|
- AIDA64
|
|
- Aura Creator
|
|
- Aura Sync
|
|
- Fan Xpert 4 (with AI Cooling II)
|
|
- GameFirst
|
|
- HWiNFO
|
|
- Power Saving
|
|
ASUS Driver Hub
|
|
ASUS GlideX
|
|
Adobe Creative Cloud
|
|
Norton 360 for Gamers
|
|
WinRAR
|
|
UEFI BIOS
|
|
AI Overclocking Guide
|
|
ASUS EZ DIY
|
|
- ASUS CrashFree BIOS 3
|
|
- ASUS EZ Flash 3
|
|
- ASUS UEFI
|
|
BIOS EZ Mode
|
|
- ASUS
|
|
MyHotkey
|
|
FlexKey
|
|
Dynamic OC Switcher
|
|
Remote Management Features
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS
|
Manageability
|
WOL by PME, PXE
|

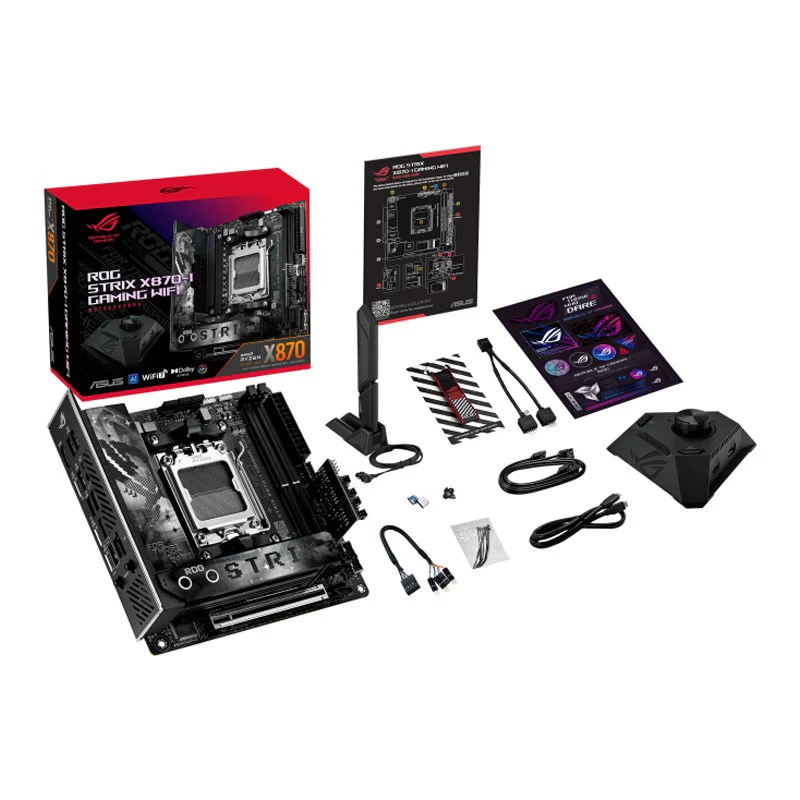

Accessories
|
|
Cables
|
1 x Panel cable
|
|
1 x ROG USB2.0 splitter cable
|
|
2 x SATA 6Gb/s cables
|
ROG FPS Card
|
1 x ROG FPS Card
|
ROG STRIX HIVE II
|
1 x ROG STRIX HIVE II
|
|
1 x USB Type-C® power connection cable
|
Miscellaneous
|
1 x ASUS WiFi Q-Antenna
|
|
1 x Cable ties package
|
|
1 x M.2 Q-Latch package(s)
|
|
1 x ROG key chain
|
|
1 x ROG Strix stickers
|
|
1 x M.2 rubber package(s)
|
Documentation
|
1 x Quick start guide
|
Operating System
|
Windows® 11 64-bit
|
Form Factor
|
Mini-ITX Form Factor
|
|
6.7 inch x 6.7 inch (17 cm x 17 cm)
|
