Asus ROG Strix X870E-H GAMING WiFi 7 Hatsune Miku Edition AMD AM5 DDR5 ATX Motherboard

Asus ROG Strix X870E-H GAMING WiFi 7 Hatsune Miku Edition AMD AM5 DDR5 ATX Motherboard

Hatsune Miku Edition

Transform your gaming experience with the ROG Strix X870E-H Gaming WiFi7 Hatsune Miku Edition. Powered by AMD Ryzen 9000 Series processors, this ATX motherboard combines cutting-edge power design, AI-enhanced features and next-gen connectivity—including a PCIe 5.0 x16 slot, dual USB4 Type-C ports and WiFi 7. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make upgrades easy. Plus, Miku’s iconic colors and graphics are fully integrated into the board’s design—bringing signature energy and personality to your build.

Effortless AI Optimization

The latest ASUS AI-powered enhancements make PC optimization effortless. AI Overclocking, AI Cooling II, and AI Networking II fine-tune performance, thermals and connectivity with a click. ASUS AI Advisor offers real-time, natural language support while AI Cache Boost accelerates LLM performance. Whether you're gaming, creating or exploring possibilities with AI, smart control is always within reach.

Play in Style

ROG Strix X870E-H Gaming WiFi7 Hatsune Miku Edition blends ROG gaming DNA with Miku’s iconic blue-green and pink palette. The entire motherboard is infused with Miku-themed visuals, including accents across various heatsinks and the back. Even the BIOS interface and Armoury Crate software carry Miku-inspired visuals. Through Armoury Crate, users can customize RGB lighting and effects via Aura Sync and synchronize them across compatible devices for a cohesive, Miku-themed build.

CPU

AMD Socket AM5 for AMD Ryzen 9000 &

8000 & 7000 Series Desktop Processors

Chipset

AMD X870E

Memory

4 x DIMM slots, max. 256 GB, DDR5

Supports up to 8000+MT/s(OC) with Ryzen

9000 & 8000 & 7000 Series Processors

Dual channel memory architecture

Supports AMD Extended Profiles for

Overclocking (EXPO)

Supports DIMM Fit / DIMM Fit Pro

Asus Enhanced Memory Profile (AEMP)

Graphics

1 x HDMI port

2 x USB4 (40Gbps) ports support USB

Type-C display outputs

Expansion Slots

AMD Ryzen 9000 & 7000 Series Desktop

Processors

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4

mode)

AMD X870E Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

RAID Support

AMD RAIDXpert2 Technology

Ryzen 9000 Series Processors: RAID

0/1/5/10

Ryzen 8000 Series Processors: RAID 0/1

Ryzen 7000 Series Processors: RAID 0/1/10

Specifications vary by CPU types.

Ethernet

1 x Realtek 5Gb Ethernet

Asus LANGuard

USB

Rear USB (Total 14 ports)

2 x USB4 (40Gbps) ports  (2 x USB Type-C)

4 x USB 10Gbps ports (3 x Type-A + 1 x USB

Type-C with up to 30W PD/PPS Fast-charge)

6 x USB 5Gbps ports (6 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 20Gbps connector (supports USB

Type-C)

1 x USB 5Gbps header supports 2 additional

USB 5Gbps ports

2 x USB 2.0 headers support 4 additional

USB 2.0 ports

USB Type-C power delivery output: max.

5V/3A

USB Type-C power delivery output: 5V/9V

max. 3A, 12V max 2.5A, 15V max. 2.0A

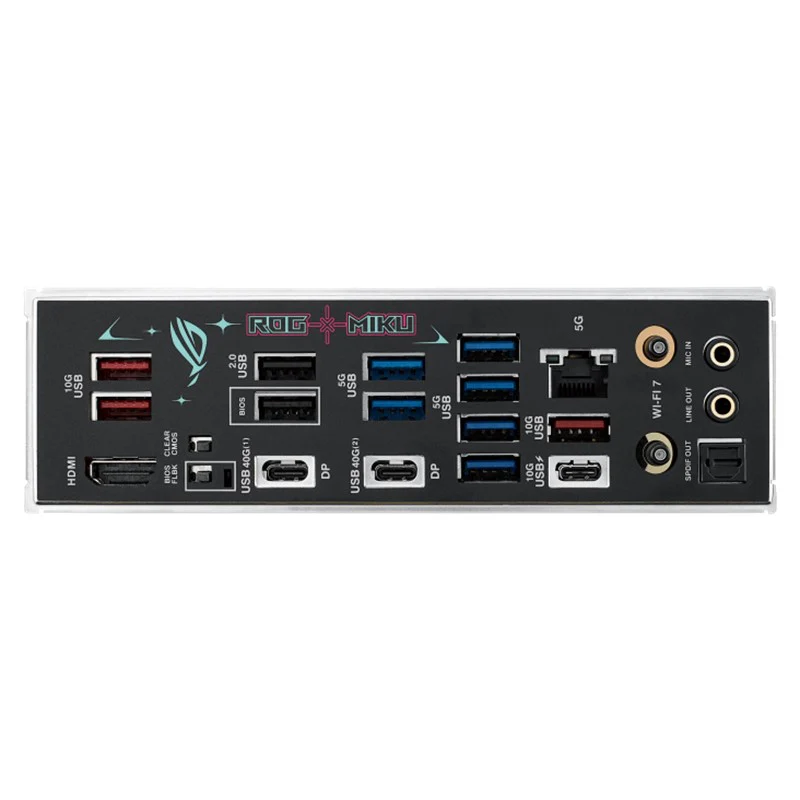

Back Panel I/O Ports

2 x USB4 (40Gbps) ports(2 x USB Type-C)

4 x USB 10Gbps ports (3 x Type-A + 1 x USB

Type-C with up to 30W PD/PPS Fast-charge)

6 x USB 5Gbps ports (6 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x HDMI port

1 x Wi-Fi module

1 x Realtek 5Gb Ethernet

2 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1 x Clear CMOS button
