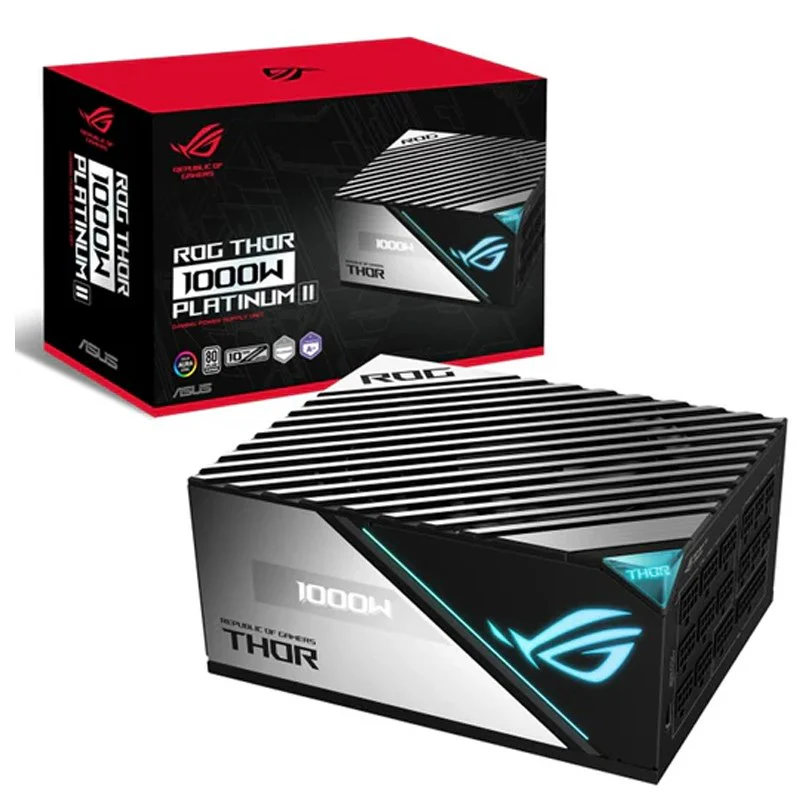

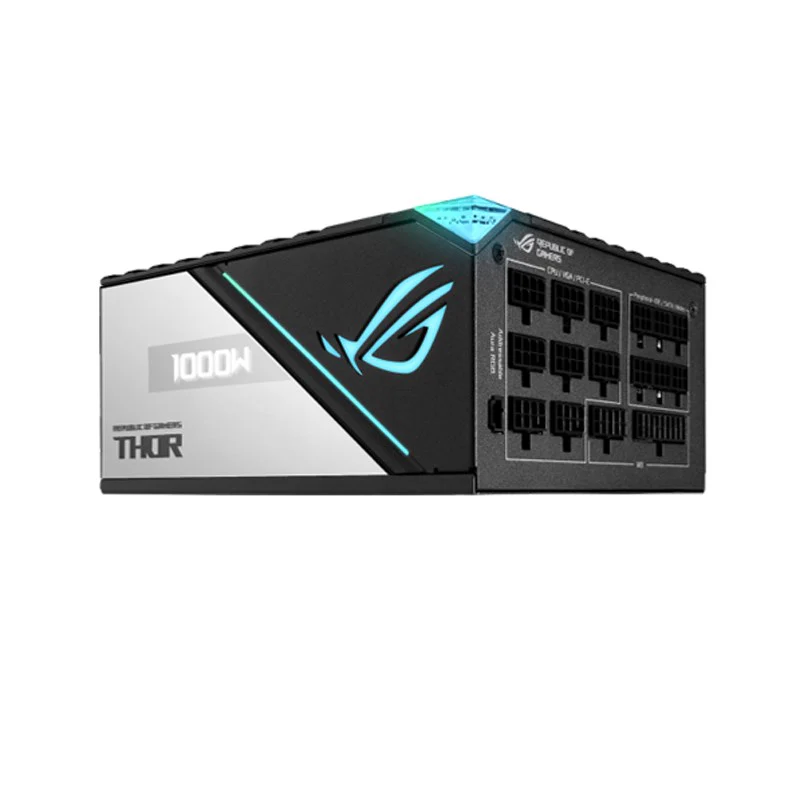

Asus ROG THOR 1000W Platinum II 1000P2 Gaming Power Supply wtih OLED Display

Asus ROG THOR 1000W Platinum II 1000P2 Gaming Power Supply with OLED Display

Asus ROG Thor 1000P2 Gaming 1000W Platinum II OLED Power Supply Unit

ROG Thor 1000 W Platinum II is the quietest PSU in its class.

The Quietest 1000W Power Supply

Back with a vengeance, the second iteration of the ROG Thor 1000 W Platinum wields cooling and component upgrades that make it the quietest PSU in its class.

And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.

ROG Heatsinks

ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.

Axial-tech Fan Design

A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.

Dual Ball Fan Bearings

The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

0dB Technology

To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.

80 Plus Platinum Certification

The ROG Thor 1000W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation.

These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load.

The increased efficiency results in less heat, reduces fan noise, and increases reliability.

OLED Power Display

The built-in OLED panel makes it easy to tune your system for best performance and efficiency.

Sleeved Cables
A range of sleeved cables are bundled with Thor II, and we also provide a 20% CableMod discount.

PCIe Gen 5.0 Ready

Each ROG Thor 1000 W Platinum II PSU is bundled with a 12-pin PCIe cable that can pipe up to 450 W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.

Intel Specification

ATX12V

Dimensions

190 x 150 x 86mm

Efficiency

80 Plus Platinum

Protection Features

OPP / OVP / UVP / SCP / OCP / OTP

Hazardous Materials

RoHS Compliant

AC Input Range

100–240

Thermal Features

ROG Thermal Solution

Maximum Load

25 A, 25 A, 83 A, 0.3 A, 3 A

Combined Load

125 W, 125 W, 996 W, 3.6 W, 15 W

Total Output

1000 W

Weight

2.37 kg
