Asus ROG THOR 850W Platinum II Fully Modular ATX Gaming Power Supply with OLED Display

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

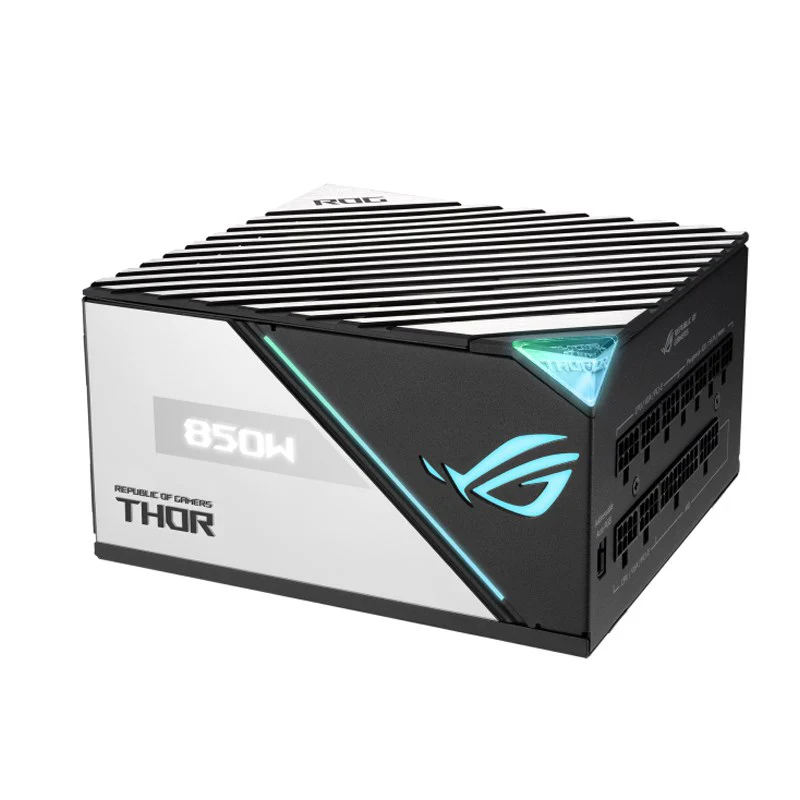

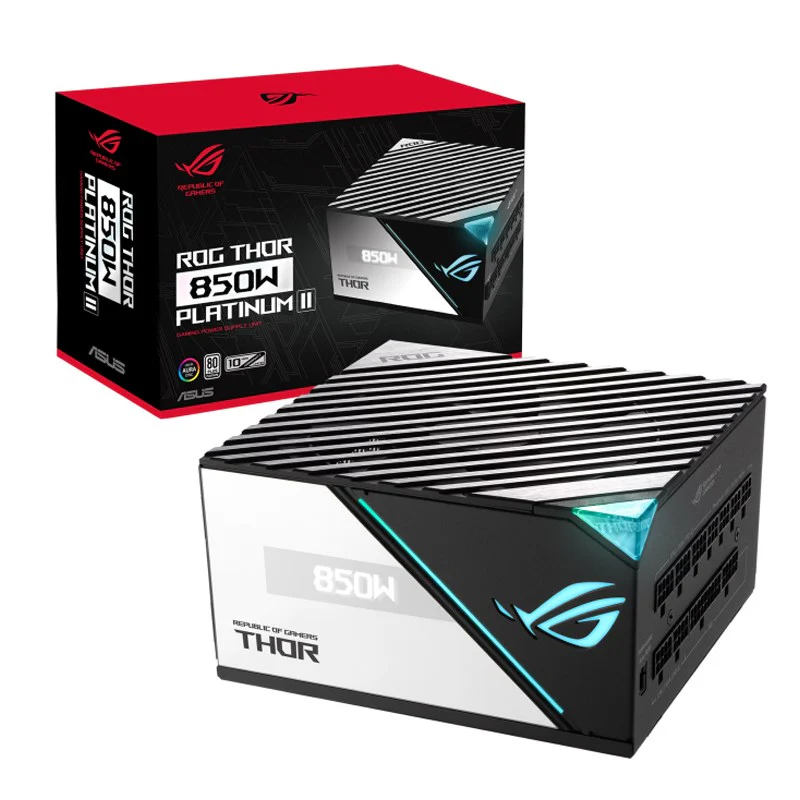

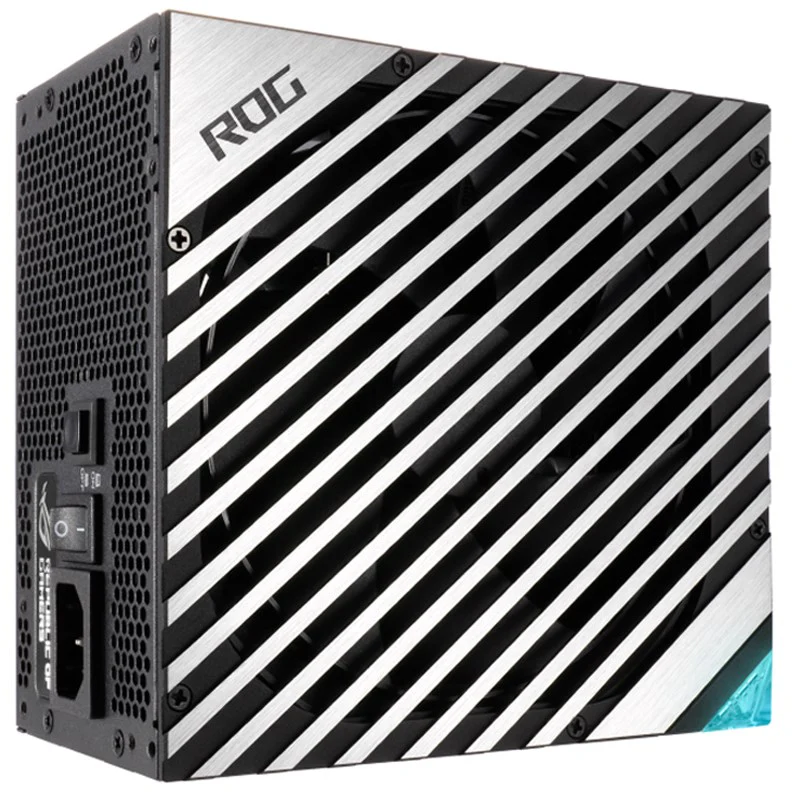

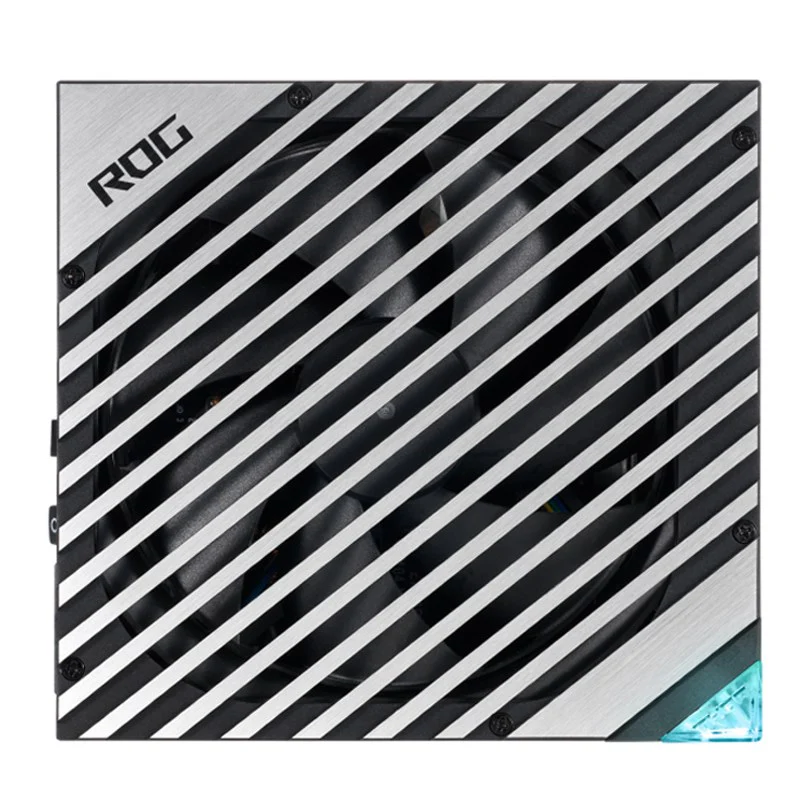

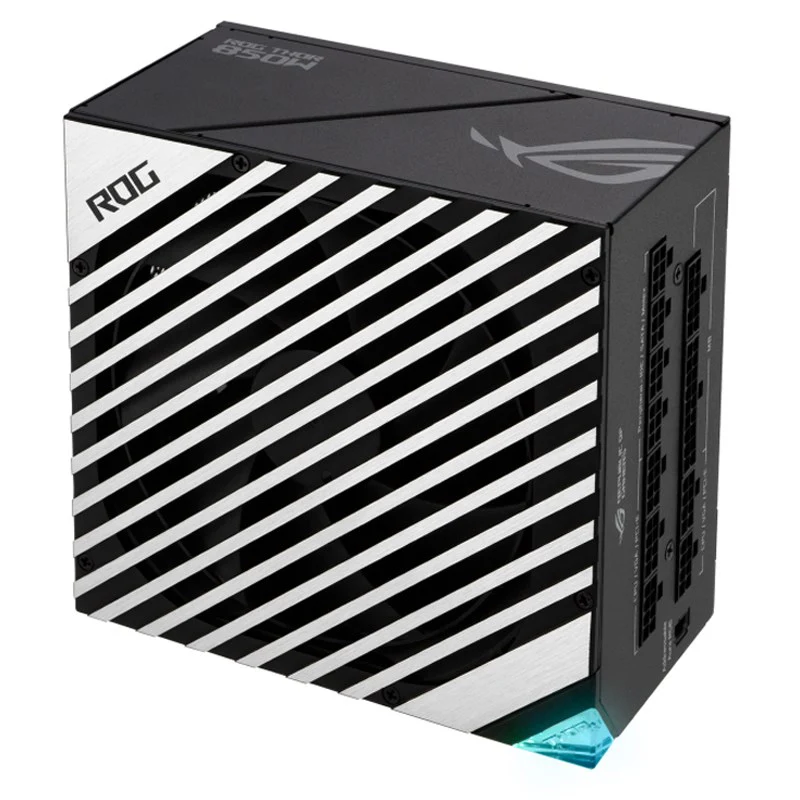

Asus ROG THOR 850W Platinum II Fully Modular ATX Gaming Power Supply with OLED Display

Asus ROG THOR 850W Platinum II Fully Modular ATX Gaming Power Supply with OLED Display

The Quietest 850W Platinum Power Supply

Back with a vengeance, the second iteration of the ROG Thor 850W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.

Specifications:

Model

ROG THOR 850W Platinum II

Intel Specification

ATX12V

PFC Type

Active PFC

Dimensions

160 x 150 x 86 mm

Efficiency

80Plus Platinum

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

20A 20A 71A 0.3A 3A

Combined Load

100W 100W 852W 3.6W 15W

Total Output

850W

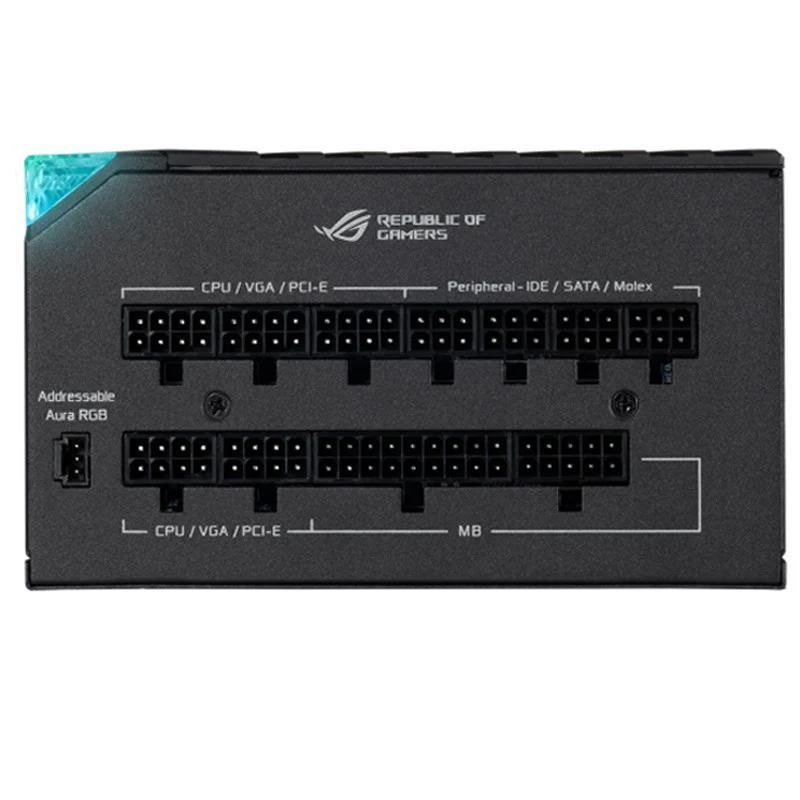

Cable Connectors

MB 24/20-pin x 1



CPU 4+4-pin x 2



PCI-E 16-pin x 1 (component side)



PCI-E 6+2-pin x 3



SATA x 10



PERIPHERAL x 6

Package Contents

Power Cord x 1



Motherboard Power Cable x1 (610mm)



CPU Cable x2 (650mm)



PCIE Cable 16-pin x1 (675mm)



PCIE 1-to-1 Cable x3 (675mm)



PCIE 1-to-2 Cable x2 (675+75mm)



SATA 1-to-2 Cable x1 (400+120mm)



SATA 1-to-4 Cable x2 (400+120+120+120mm)



Peripheral 1-to-3 Cable x2 (450+120+120mm)



Addressable RGB Cable x1 (800mm)



ROG sticker x 1



ROG cable tie x 4



Sleeved Cable Combs (6-pin) x 2



Sleeved Cable Combs (8-pin) x 6



Sleeved Cable Combs (24-pin) x 2



Chassis Screws Package x 1



Cable Tie x 10



User Manual x 1

Weight

1.865kg (Single)

AURA SYNC

ARGB

Cybenetics Noise Level Certification

A++

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button

Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
