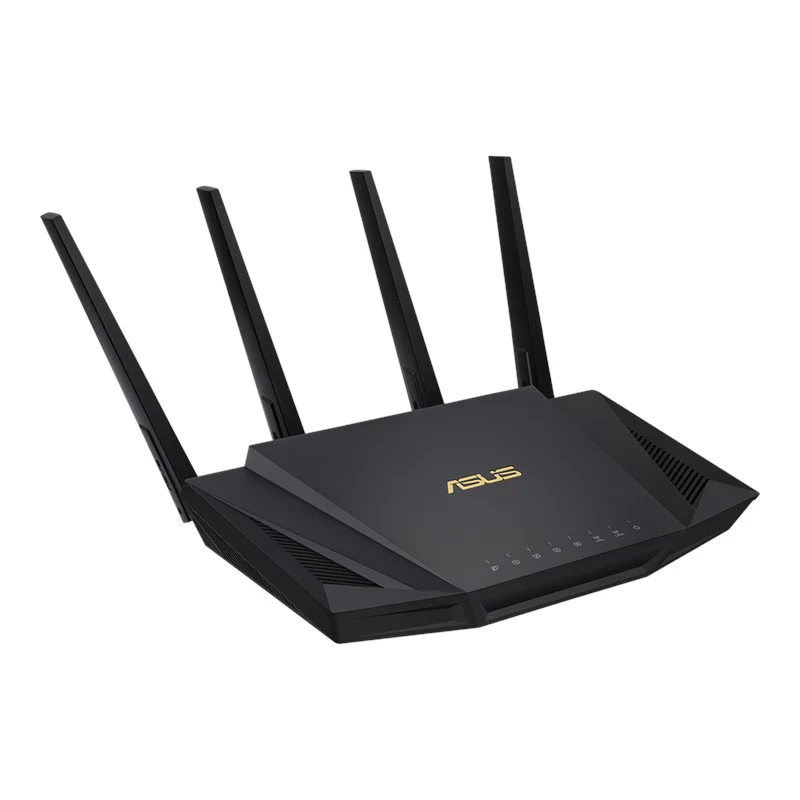

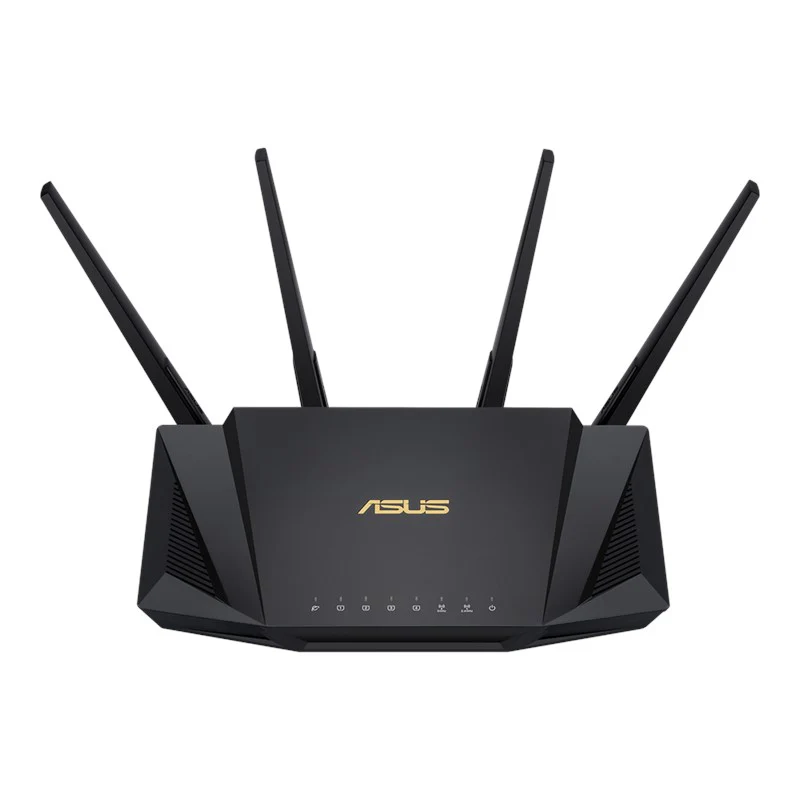

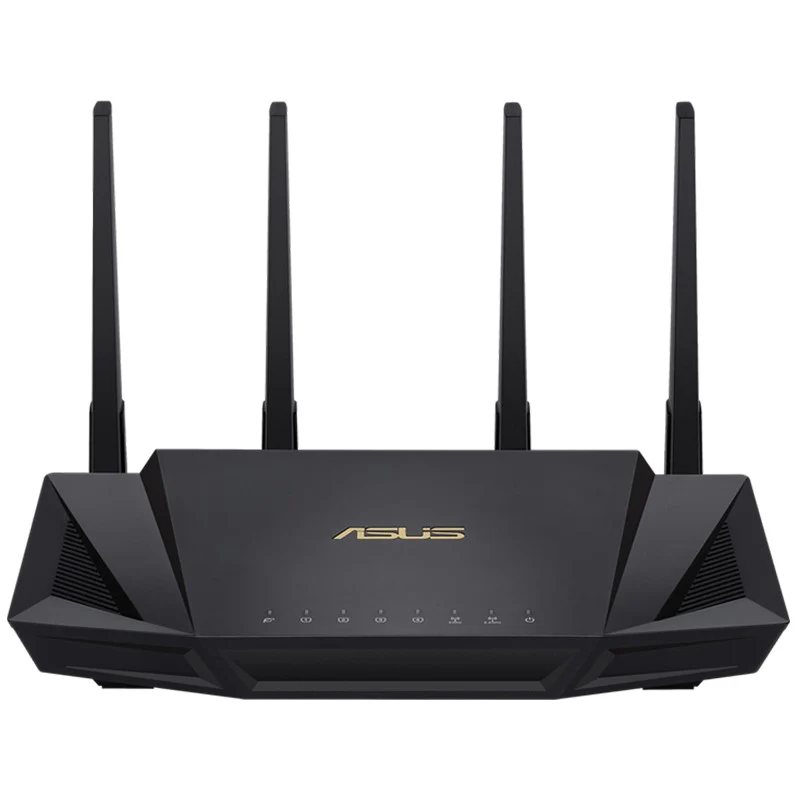

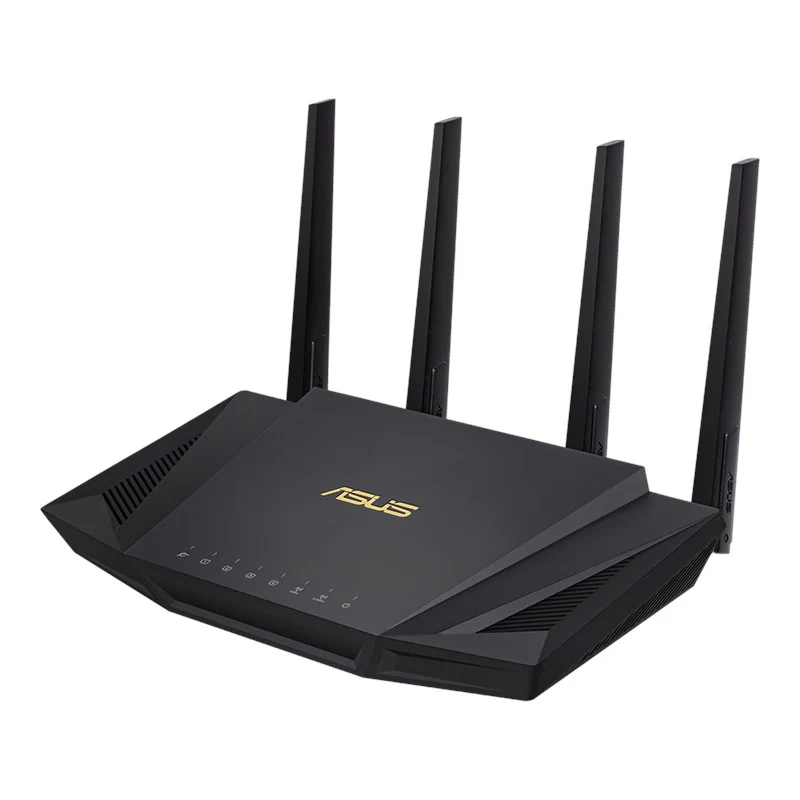

Asus RT-AX58U V2 AX3000 Dual Band WiFi 6 (802.11ax) Router - Black

Asus RT-AX58U V2 AX3000 Dual Band WiFi 6 (802.11ax) Router

Next-Gen WiFi Standard

Supporting the latest WiFi standard 802.11AX (WiFi 6) and 160MHz bandwidth for better capacity and efficiency.

Ultra-fast WiFi Speed

RT-AX58U supports 160MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 3000Mbps — 574 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band.

Increase Capacity and Efficiency

Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously

Commercial-grade Security

Lifetime free AiProtection, powered by Trend Micro, blocks internet security threats for all your connected smart devices.

Better Partner with Mesh System

Compatible with ASUS AiMesh Wi Fi system for seamless whole-home coverage.

Get Your Home Ready for WiFi 6 (802.11ax)

The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current Wi-Fi standard. The latest 802.11ax standard provides future-proof technologies, higher network efficiency, faster Wi-Fi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.

Built for Multi-device Households

With a revolutionary combination of OFDMA and MU-MIMO technology, 802.11ax technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11ac Wi-Fi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the 802.11ax Wi-Fi standard divides each channel into small sub-channels, allowing signals from multiple devices to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive Wi-Fi experience.

What are the benefits of Asus Router ?

• Supports WiFi 6 (802.11ax) with 160 MHz bandwidth for improved speed and efficiency

• Ultra-fast wireless speeds up to 3000 Mbps for smoother streaming and gaming

• MU-MIMO and OFDMA technologies allow multiple devices to connect efficiently at the same time

• AiProtection security powered by Trend Micro blocks online threats for connected devices

• Compatible with ASUS AiMesh for easy expansion and seamless whole-home WiFi coverage

Network Standard

IPv6

IPv4

WiFi 6 (802.11ax)

WiFi 5 (802.11ac)

WiFi 4 (802.11n)

IEEE 802.11g

IEEE 802.11b

IEEE 802.11a

Product Segment

AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

WiFi Data Rate

WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 1733 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
802.11g : up to 54 Mbps
802.11b : up to 11 Mbps
802.11a : up to 54 Mbps

Antenna

External antenna x 4

Transmit / Receive

5GHz 2x2

2.4GHz 2x2

Processor

V2: 1.7 GHz quad-core processor

V1: 1.5 GHz tri-core processor

Memory

256 MB Flash, 512 MB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)、Beamforming: standard-based and universal、1024-QAM high data rate、20/40/80/160 MHz bandwidth

Operating Frequency

2.4G Hz / 5 GHz

Operating Mode

Wireless router mode

Access point mode

Media bridge mode

Repeater mode

AiMesh node mode

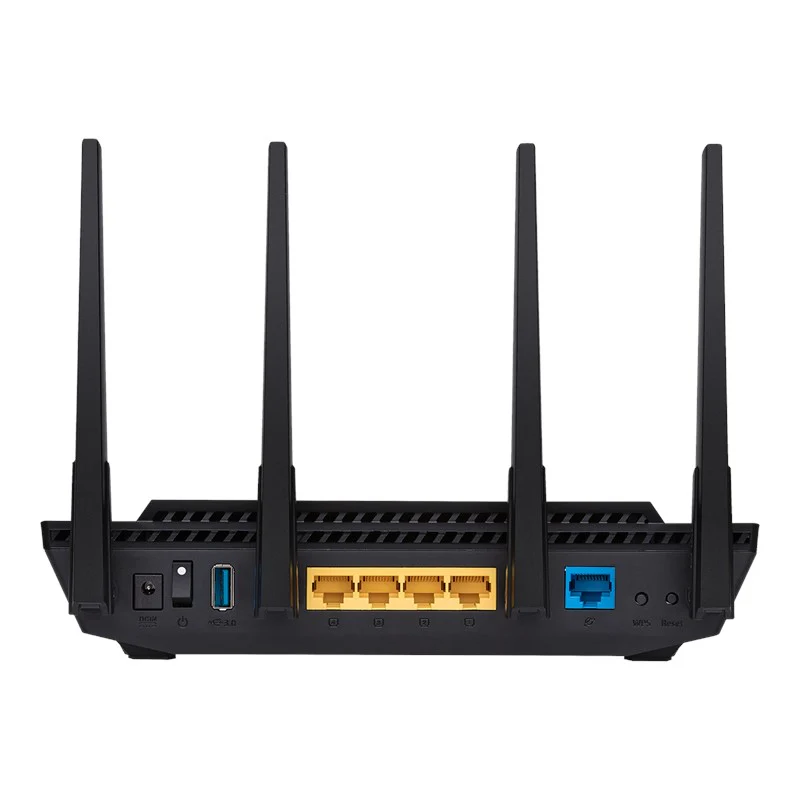

I/O Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1

Buttons

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1、2.4G x 1、5G x 1、LAN x 4、WAN x 1
