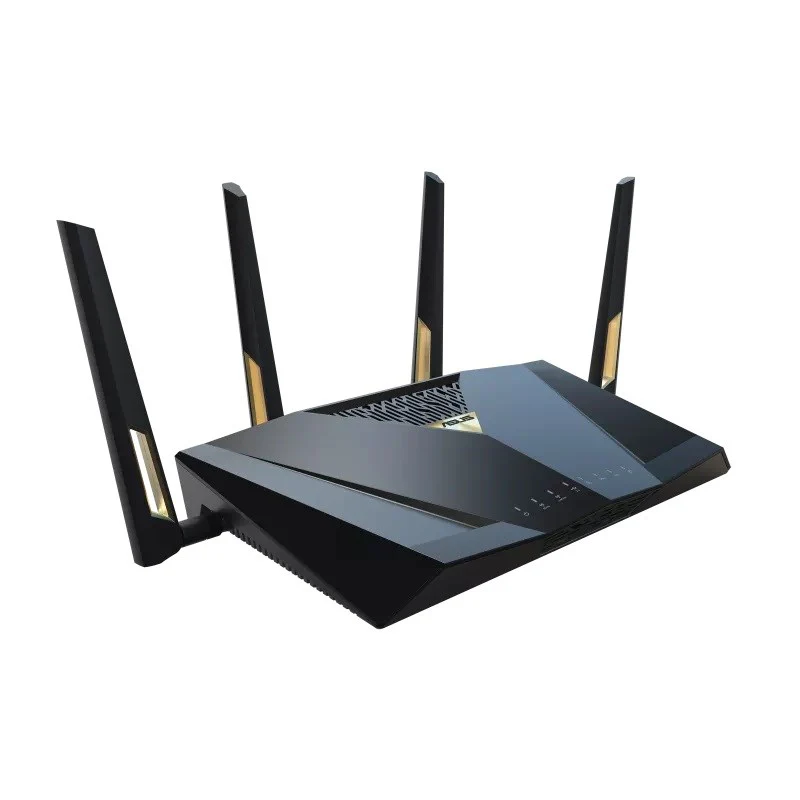

Asus RT-BE88U Dual-band Wi-Fi 7 AiMesh Extendable Performance Router 4K-QAM - Black

Asus RT-BE88U Dual-band Wi-Fi 7 AiMesh Extendable Performance Router 4K-QAM

Blazing-fast Wi-Fi 7 tech boosts throughput up to 7200Mbps with Multi-Link Operation and 4096-QAM.

Bolster your wired network capacity up to 34G with one cutting-edge 10G SFP+ port and one standard 10G WAN/LAN port.

Establish always-on internet through AI WAN detection, versatile WAN configuration options, and a convenient USB port ready for 4G LTE and 5G Mobile tethering.

Unleash demanding WiFi 7 and 10G network applications with a powerhouse quad-core 2.6GHz 64-bit CPU.

Easily establish up to five SSIDs with Guest Network Pro for easy IoT device setup and management, instant VPN connections, and convenient parental controls.

Stay secure with commercial-grade AiProtection Pro powered by Trend Micro, one-tap security scanning, comprehensive VPN support, and site-to-site VPN.

Ensure seamless connectivity for all devices with a feature-rich whole-home network powered by AiMesh.

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

Wi-Fi 4 (802.11n)

Wi-Fi 5 (802.11ac)

Wi-Fi 6 (802.11ax)

Wi-Fi 7 (802.11be)

IPv4

IPv6

Product Segment

BE7200 ultimate BE performance : 1376+5764 Mbps

Wi-Fi Data Rate

Wi-Fi 7 (802.11be) (2.4GHz): up to 1376 Mbps

Wi-Fi 7 (802.11be) (5GHz): up to 5764 Mbps

Antenna

External antenna x 4

Transmit / Receive

2.4GHz 4x4

5GHz 4x4

Processor

2.6GHz quad-core processor

Memory

256 MB Flash and 2 GB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

4096-QAM high data rate

20/40/80/160 MHz bandwidth

Operating Frequency

2.4 GHz

5 GHz

Operating Mode

Wireless Router Mode

AiMesh Node Mode

Access Point Mode

Media Bridge Mode

Repeater Mode

I/O Ports

1 x 10Gbps for WAN/LAN, 1 x 10Gbps SFP+ for WAN, 1 x 2.5Gbps for WAN/LAN, 3 x 2.5 Gbps for LAN, 4 x RJ45 10/100/1000Mbps for LAN, USB 3.2 Gen1 x1

Buttons

WPS Button, Reset Button, Power Switch

LED Indicator

WAN x1

10G WAN x1

10G SFP+ x1

LAN x1

USB 3.2 Gen 1 x1

2.4GHz x1

5GHz x1

Power x1

Power Supply

AC Input : 110V~240V(50~60Hz)

DC Output : 12V with max. 5 A current；19 V with max. 2.37 A current ； 19.5 V with max. 2.31 A current

Product Weight

1060 g

AiMesh

AiMesh

Primary AiMesh Router

AiMesh Node

Game

Mobile Game Mode

Gear Accelerator

OpenNAT (Game Profile)

Gaming Port

Parental Control

Allow you to block access to unwanted websites and apps

Web & Apps Filters

Time Scheduling

Safe Browsing

Customized Internet Schedule

Maximum Parental Control Profile : 64

Maximum Parental Control Content Cilter Rule : 64

Guest Network

You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings

Support Guest Network Pro

Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5

Guest Network Connection Time Limit

Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal

Security

AiProtection

VPN

WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE

WPS

Let's Encrypt

DNS-over-TLS

SSH

Security Scan

Firewall

Maximum Firewall Keyword Filter : 64

Maximum Firewall Network Service Filter : 32

Maximum Firewall URL Filter : 64

AiProtection

AiProtection Pro

Router Security Assessment

Malicious Site Blocking

Two-Way IPS

Infected Device Prevention and Blocking

VPN

Instant Guard

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Support Surfshark

Traffic Control

Adaptive QoS

Bandwidth Monitor

Bandwidth Limiter

Maximum Bandwidth Limiter Rule : 32

Traditional QoS

Traffic Monitor

Real-time Traffic Monitor

Wired Traffic Monitor

Wireless Traffic Monitor

Traffic Analyzer

Traffic Analysis Period : Daily, Weekly, Monthly

Website History

WAN

Internet Connection Type :

PPPoE

PPTP

L2TP

Automatic IP

Static IP

IPSec

Dual WAN

WAN Aggregation

3G / 4G LTE dongle

Port forwarding

Maximum Port Forwarding Rule : 64

Port triggering

Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough :

PPTP Pass-Through

L2TP Pass-Through

IPSec Pass-Through

RTSP Pass-Through

H.323 Pass-Through

SIP Pass-Through

PPPoE Relay

LAN

IGMP Snooping

IPTV

DHCP Server

LAN Link Aggregation

Manually Assign IP Address

Maximum Manually Assign IP Address Rule : 128

Wake on LAN (WOL)

Wireless

MU-MIMO

UTF-8 SSID

Wi-Fi MAC Address Filter

Maximum MAC Filters : 64

Wireless Scheduler

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit Beamforming

USB application

File System :

HFS+

NTFS

vFAT

ext2

ext3

ext4

Safely Remove Disk

AiCloud

Download Master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder Privileges

User Interface

WEB: ASUSWRT

APP: ASUS Router APP

Administration

Configuration Backup and Restore

Diagnosis tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update
