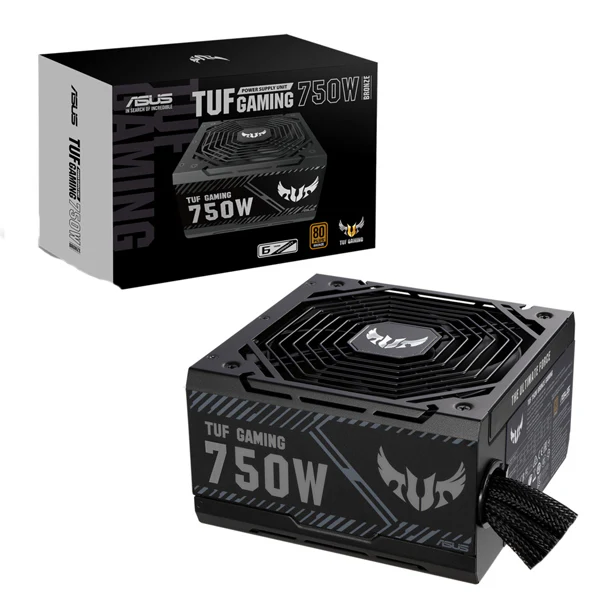

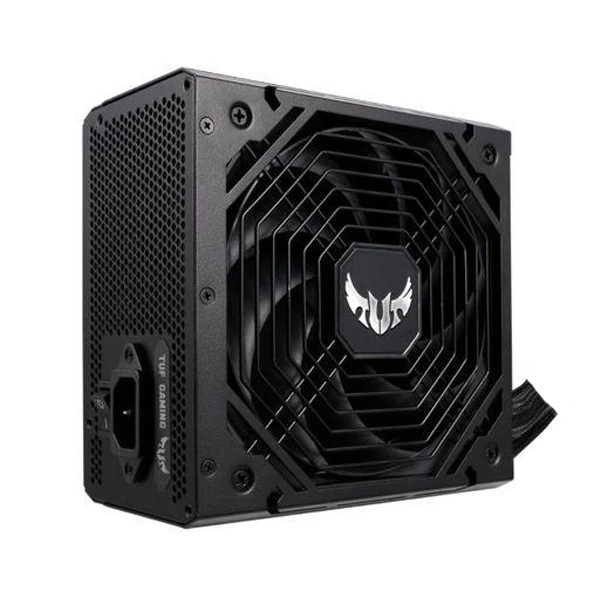

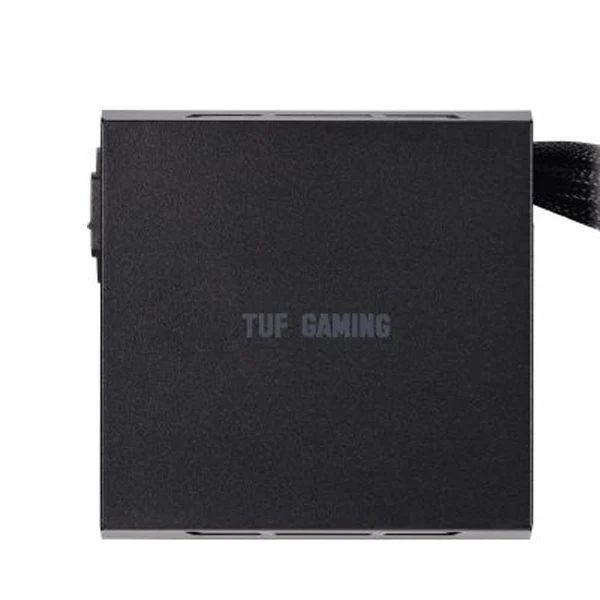

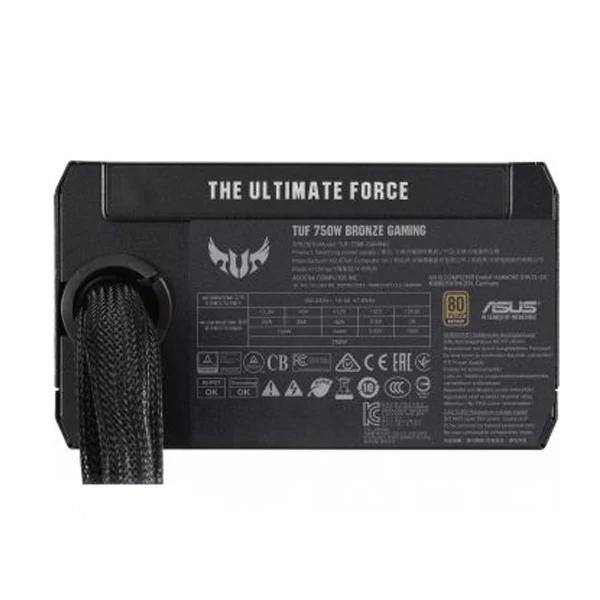

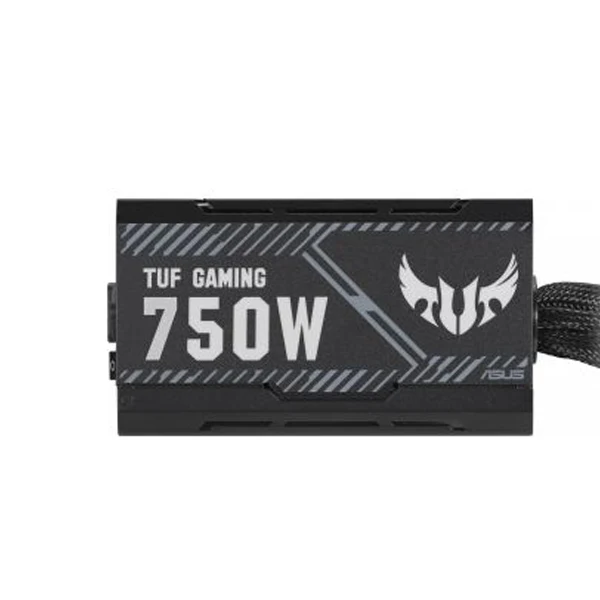

ASUS TUF 750B 80 Plus Bronze Gaming Power Supply

Military-grade Certification

Capacitors and chokes in TUF Gaming PSUs are certified to pass military-grade specifications, ensuring these critical components can survive harsh environmental conditions as well as bumps and vibrations.

Dual Ball Fan Bearings, Different bearing types have unique pros and cons. In a PSU, durability is paramount, so we built a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

Protective PCB coating

A protective conformal coating envelops the PCB to protect against moisture and dust

0dB Technology, An onboard controller brings the 135mm fan to a standstill when thermal design power (TDP) is below 30%, letting you enjoy light gaming in relative silence. Above 30% TDP, the fans automatically start up again

Axial-tech Fan Design

Originally developed for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.

For TUF Gaming Series PSUs, we’ve scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.

Intel Specification

ATX 12V

Efficiency

80 Plus Bronze

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

AC Input Range

100-240Vac

DC Output Voltage

+3.3V, +5V, +12V, -12V, +5Vsb

Maximum Load

25A, 25A, 62A, 0.8A, 3A

Combined Load

130W, 744W, 9.6W, 15W

Total Output

750W

Connectors

MB 24/20-pin x 1

SATA x 8

CPU 4+4-pin x 2

Peripheral x 4

PCI-E 6+2-pin x 4

Package Contents

Power Cord x 1

(Cable + Accessory)

Motherboard Power Cable x 1

CPU Cable (800mm) x 2

PCI-E Cable x 2

SATA Cable x 2

Peripheral x 1

TUF Gaming sticker x 1

Dimension

PSU Size (mm)

150 x 150 x 86

Color Box (mm)

290 x 200 x 108

Weight

Single PSU (kg)

2.18

Product Weight (kg) (with packing)

2.87
