Asus TUF Gaming AX4200 Dual Band WiFi 6 Gaming Router with Mobile Game Mode, 3 steps port forwarding, 2.5Gbps port, AiMesh for mesh WiFi, AiProtection Pro network security

Asus TUF Gaming AX4200 Dual Band WiFi 6 Gaming Router with Mobile Game Mode, 3 Steps Port Forwarding, 2.5Gbps Port, Ai Mesh for mesh WiFi, AiProtection Pro Network Security

4X Capacity. 2X Faster.

WiFi 6 provides faster wireless speeds with OFDMA, BSS colouring and MU-MIMO technologies, and it also boosts network efficiency, so all your devices get their fair share of WiFi bandwidth. It's perfect for busy networks with lots of different WiFi devices, such as laptops, smartphones and smart home devices.

True Multi-Gigabit Wired Speeds

TUF Gaming AX4200 can unlock up to 2Gbps of internet bandwidth by 2.5Gbps port, and aggregating two separate 1Gbps internet services using the LAN1 and LAN2 ports.* *Link Aggregation (802.3ad) refers to the combining throughput of multiple devices.

WiFi that Goes Further

We've designed TUF Gaming AX4200 to give you the widest possible WiFi coverage. It uses OFDMA, a new technology in WiFi 6 that allows signals to travel further than they can in WiFi 5.

Along with other enhancements like beamforming, which focuses the signal towards each device, TUF Gaming AX4200 reaches every corner.

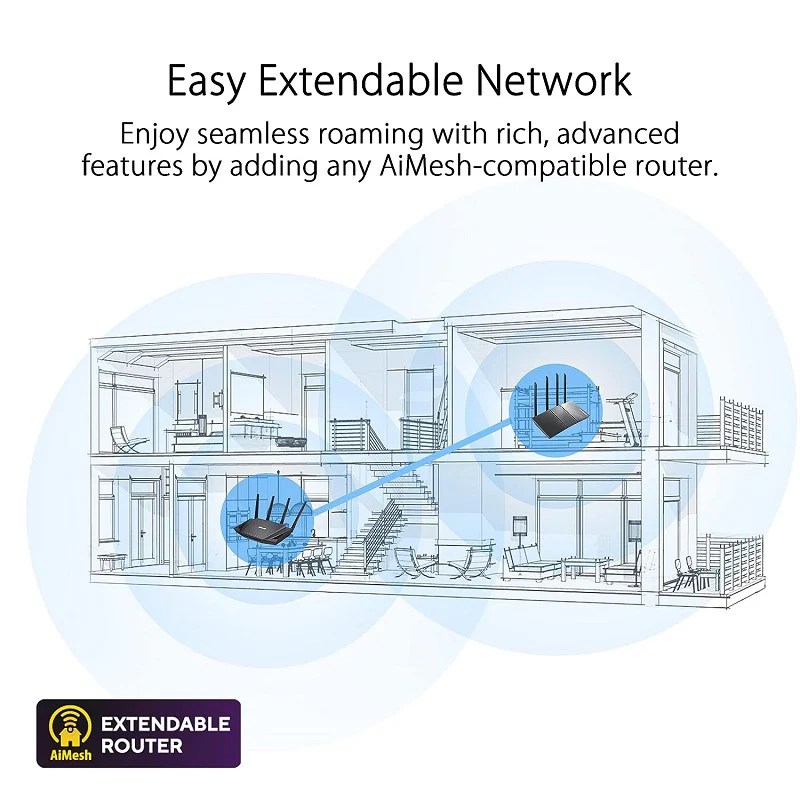

Flexible and Scalable Wireless Mesh Networking

If you need more coverage or new functions, you can simply add another compatible router to your AiMesh network at any time!

Stable and Durable

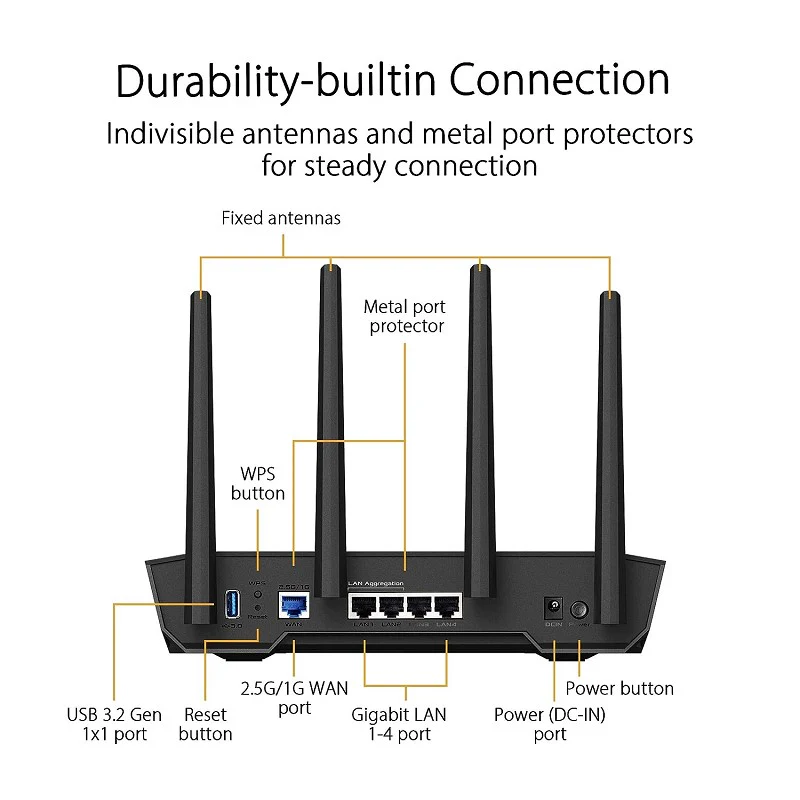

TUF Gaming AX4200 is engineered to deliver maximum WiFi performance. The vent location and heatsink design improve cooling for increased stability, and the fixed antennas and metal port protectors increase physical durability.

More Privacy, Anywhere

Instant Guard gives you one-click secure internet access via TUF Gaming AX4200 from anywhere in the world, thanks to its encrypted data-tunnelling VPN technology.

With TUF Gaming AX4200, you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!

Commercial-Grade Security for Your Home

Home network security is crucial when you have multiple connected devices, and even more so when there are devices without anti-virus capabilities such as IoT devices.

TUF Gaming AX4200 includes lifetime free AiProtection Pro, including the latest WPA3 security protocol and advanced Parental Controls. Every device is protected with TUF Gaming AX4200, and you can keep an eye on everything that's happening on your network via the handy mobile app.

Model

TUF Gaming AX4200

Network Standard

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

IPv4

IPv6

Product Segment

AX4200 ultimate AX performance: 574+3603 Mbps

Data Rate

Data Rate

802.11a : up to 54 Mbps

802.11b : up to 11 Mbps

802.11g : up to 54 Mbps

WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps

WiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps

Antenna

Antenna

External antenna x 4

Transmit/Receive

Transmit/Receive

2.4GHz 2x2

5GHz 3x3

Processor

2.0 GHz quad-core processor

Memory

256 MB Flash

512 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

1024-QAM high data rate

20/40/80/160 MHz bandwidth

Operating Frequency

2.4GHz / 5GHz

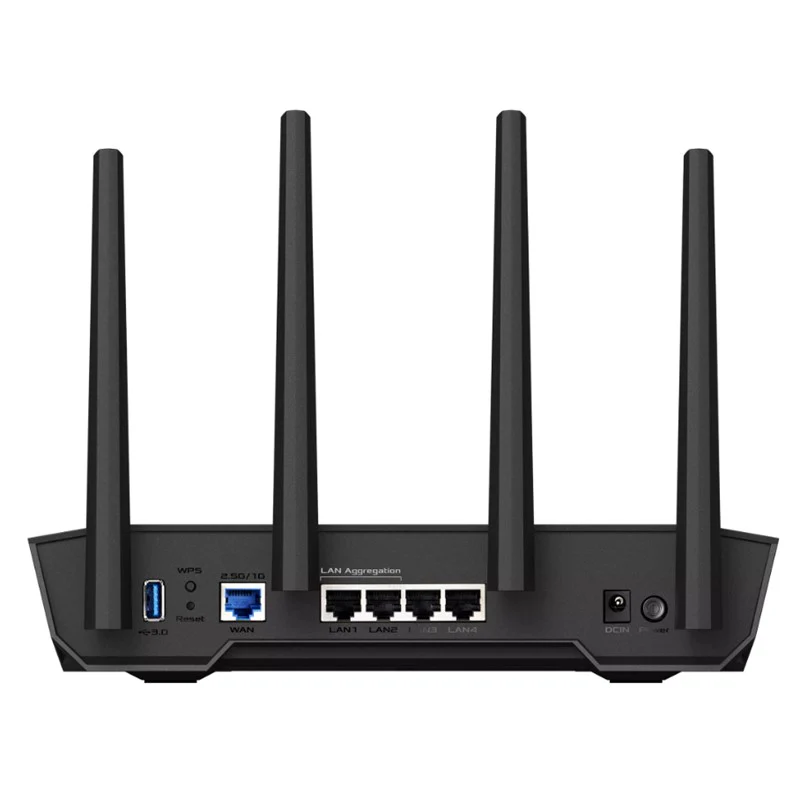

Ports

RJ45 for 2.5 Gigabits BaseT for WAN x 1,

RJ45 for Gigabits BaseT for LAN x 4,

USB 3.2 Gen 1 x 1,

Button

WPS Button, Reset Button, Power Button

Power Supply

Power Supply

AC Input : 100V~240V (50~60Hz)

DC Output : 12 V with max. 2.5 A current

Product Weight (g)

547.4 g

AiProtection

AiProtection

AiProtection Pro

AiProtection

Malicious site blocking

Two-Way IPS

Infected Device Prevention and Blocking

Wireless

Wireless

IPv6

Wi-Fi Encryption : WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

UTF-8 SSID

Guest Network

Maximum Guest Network rule : 2.4GHz x3, 5GHz x3

Guest Network Connection time limit

WPS

WiFi MAC address filter

Maximum MAC filters : 64

Wireless scheduler

Airtime fairness

RADIUS Client

Universal beamforming

Explicit beamforming

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

3G/4G LTE dongle

Android tethering

Port forwarding

Maximum port forwarding rule : 64

Port triggering

Maximum port triggering rule : 32

DMZ

DDNS

NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

Safe browsing

DNS-over-TLS
