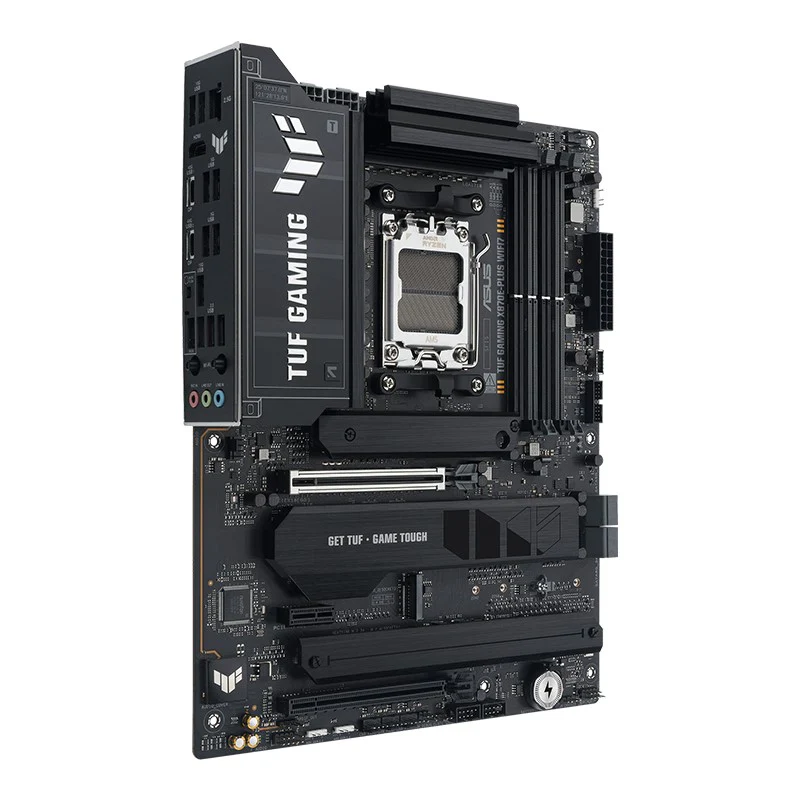

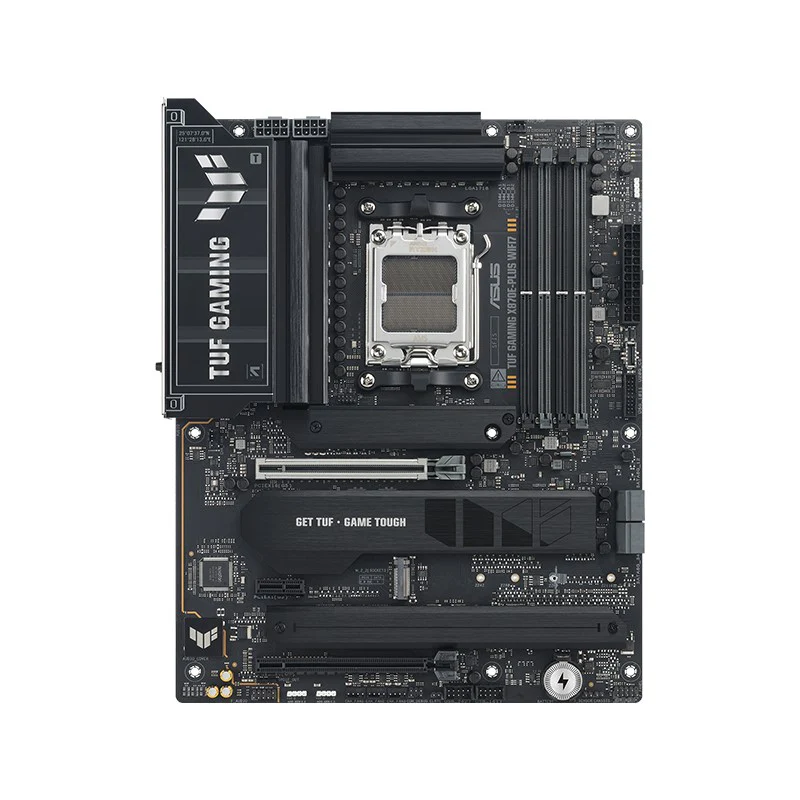

Asus TUF GAMING X870E-PLUS WIFI7 AMD AM5 ATX Gaming Motherboard

Asus TUF GAMING X870E-PLUS WIFI7 AMD AM5 ATX Gaming Motherboard

Complete AI Solution

ASUS AI Solutions – including AI Advisor, AI Overclocking, AI Cooling II for thermal control and AI Networking II for real-time bandwidth optimization offer smart assistance, one-click overclocking, efficient cooling and new levels of ultrafast connectivity.

Premium Power Design

Stable power is crucial for maximizing the performance of AMD processors.

The motherboard is designed to meet the needs of high-core-count CPUs. It features 16(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each.

This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Build for the Most Advanced PC for Gaming and Creating

When only the fastest will do, TUF Gaming X870E / X870 motherboards deliver.

With USB 4.0 onboard along with robust overclocking capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO technology and PCIe 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of a TUF Gaming X870 motherboard and AMD Ryzen 7000–9000 Series processors.

PCIe Slot Q-Release Slim

Simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot.

This makes upgrades and maintenance easier than ever before. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.

PCIe 5.0 for Graphics Card

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks.

PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of the PCIe bus.

CPU Support

AMD Socket AM5, Ryzen 7000/8000/9000 Series Desktop Processors

Chipset

AMD X870E

Memory

4 x DDR5 DIMM slots, max 256 GB, dual-channel, supports up to 8000+ MT/s (OC), ECC and Non-ECC un-buffered DIMM, EXPO & AEMP support

Graphics

1 x HDMI (4K, 60Hz), 2 x USB4 Type-C display outputs (4K, 60Hz)

Expansion Slots

1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1

Storage

4 x M.2 slots (PCIe 5.0/4.0 depending on CPU), 4 x SATA 6 Gb/s ports

RAID Support

AMD RAIDXpert2: RAID 0/1/5/10 (varies by CPU)

Ethernet

1 x Realtek 2.5Gb Ethernet with TUF LANGuard

Wireless

Wi-Fi 7 (802.11be) 2x2, 2.4/5/6GHz, up to 2.9Gbps, Bluetooth v5.4

Rear USB Ports

2 x USB4 (Type-C), 3 x USB 10Gbps, 4 x USB 5 Gbps, 4 x USB 2.0

Front USB Ports

1 x USB 20Gbps Type-C (up to 30 W PD fast charge), 1 x USB 5Gbps header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports)

Audio

Realtek ALC1220P 7.1 HD Audio, impedance sense, internal amplifier, 32-bit/192kHz playback

Audio Features

Audio shielding, premium capacitors, dedicated PCB layers, de-pop circuit

Back Panel I/O

HDMI, USB ports, 1 x Wi-Fi module, 1 x 2.5Gb Ethernet, 3 x audio jacks, BIOS FlashBack button

Internal I/O Connectors

CPU fan headers, CPU OPT fan header, AIO pump header, 4 x chassis fan headers, power connectors (24-pin + 2 x 8-pin CPU)

Storage Connectors

4 x M.2 slots, 4 x SATA 6Gb/s ports

USB Internal Connectors

1 x USB 20Gbps Type-C, 1 x USB 5Gbps header, 2 x USB 2.0 headers

Miscellaneous Internal Headers

3 x Addressable Gen 2 headers, Clear CMOS, Chassis Intrusion, Front Panel Audio, System Panel, Thermal Sensor

Form Factor

ATX

Cooling

Comprehensive fan and thermal support with multiple headers

Special Features

AI Solutions: AI Advisor, AI Overclocking, AI Cooling II, AI Networking II

Power Design

Premium power design for stable performance with high-core-count CPUs
