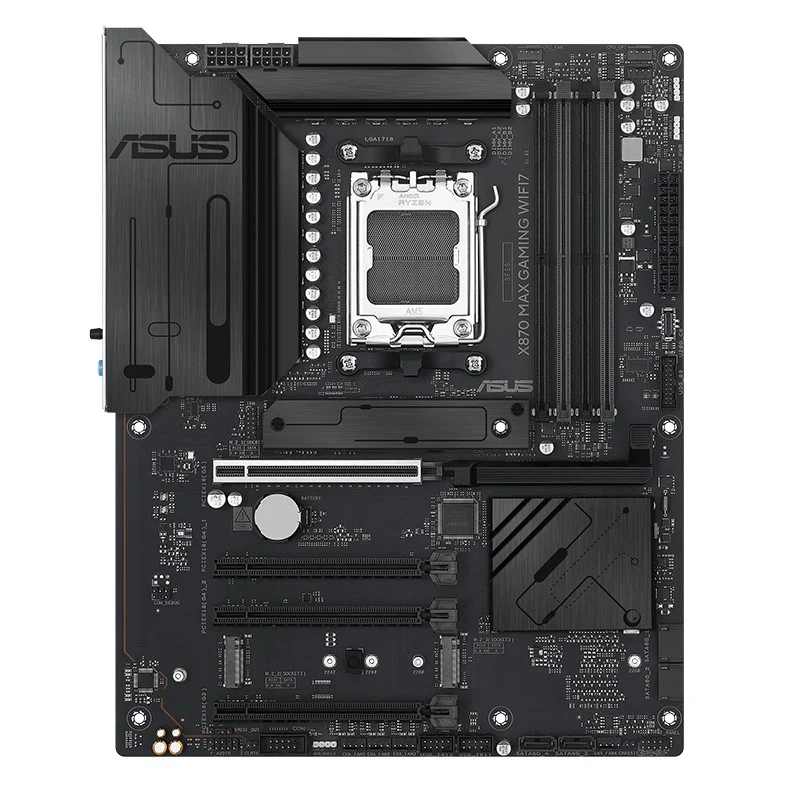

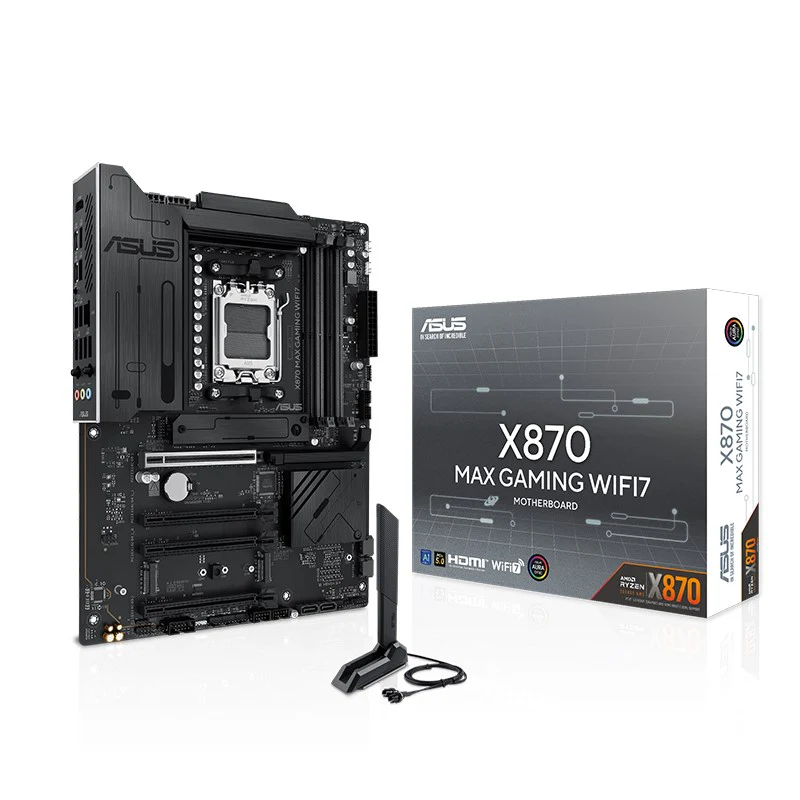

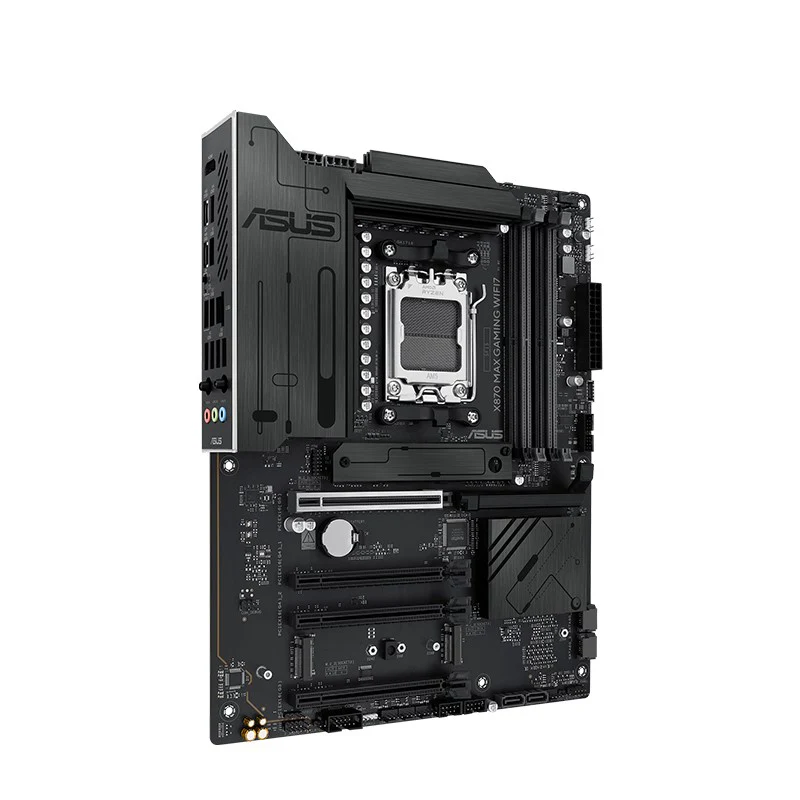

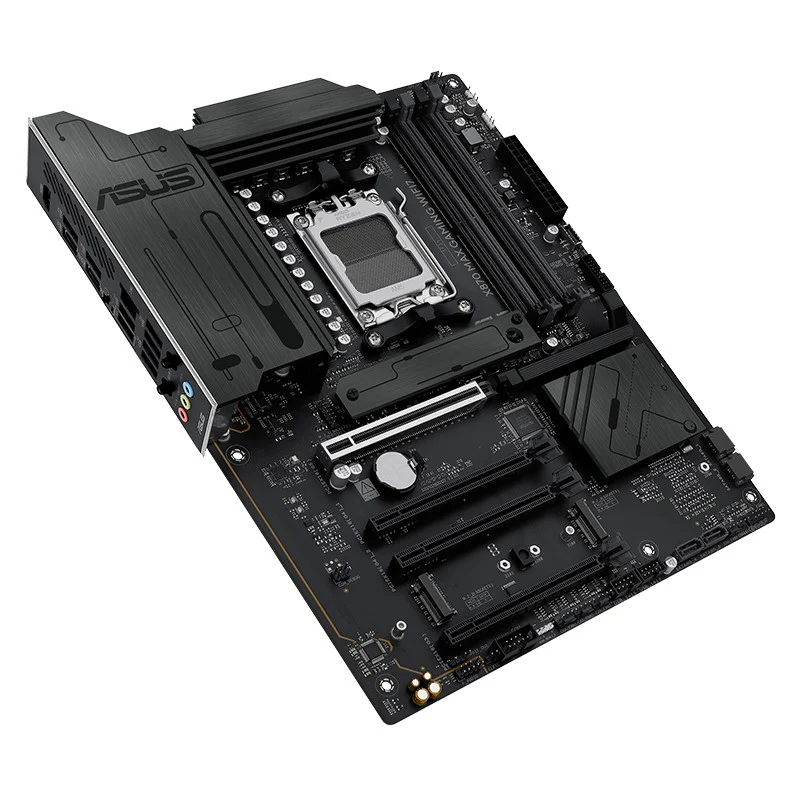

Asus X870 MAX GAMING WIFI7 AMD AM5 ATX Gaming Motherboard

Asus X870 MAX GAMING WIFI7 AMD AM5 ATX Gaming Motherboard

Enhanced DDR5 performance

Comprehensive memory tuning options are the cornerstone of X870 series motherboards.

The X870 MAX GAMING WIFI7 maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.

For entry-level modules without EXPO support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.

For those looking to surpass stock DDR5 speeds, the X870 MAX GAMING WIFI7 offers extensive AMD Extended Profiles for Overclocking (EXPO) support and a wide array of UEFI settings for further performance tweaks

Three M.2 slots (up to 128 Gbps)

X870 MAX GAMING WIFI7 offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, two that support 64Gbps via PCIe 4.0.

This enables quicker boot-up and app load times with OS or application drives

Cooler by design

The X870 MAX GAMING WIFI7 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Cooler compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig

ASUS Fan Xpert 4

ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers.

Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.

WiFi7

The next-gen WiFi 7 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM.

Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.

CPU

AMD Socket AM5, supports Ryzen 9000, 8000, 7000 Series Desktop Processors

Chipset

AMD X870

Memory

4 x DDR5 DIMM slots, max. 256GB, dual channel, ECC and Non-ECC support, EXPO and AEMP profiles, up to 8000+ MT/s (OC)

Graphics

1 x HDMI port (4K@60Hz), 2 x USB4 (40Gbps) Type-C ports with display output

Expansion Slots

Ryzen 9000/7000: 1 x PCIe 5.0 x16; Ryzen 8000: 1 x PCIe 4.0 x16; Chipset: 2 x PCIe 4.0 x16 (x1 mode), 1 x PCIe 3.0 x16 (x1 mode)

Storage

3 x M.2 slots, 4 x SATA 6Gb/s ports

RAID Support

RAID 0/1/5/10 (varies by CPU)

Ethernet

1 x Realtek 2.5Gb Ethernet, ASUS LANGuard

Wireless

Wi-Fi 7 (2x2, 802.11be), 2.4/5/6GHz, up to 2.9Gbps

Bluetooth

v5.4

Rear USB Ports

2 x USB4 Type-C, 1 x USB 10Gbps, 3 x USB 5Gbps, 4 x USB 2.0

Front USB Ports

1 x USB 20Gbps Type-C, additional USB headers for extra ports

Audio

Realtek 7.1 Surround Sound HD Audio, supports 24-Bit/192 kHz, premium audio components

Fan Headers

1 x CPU, 1 x CPU OPT, 1 x AIO pump, 4 x chassis fans

Power Connectors

1 x 24-pin main, 2 x 8-pin CPU power

Internal Storage Connectors

3 x M.2 slots, 4 x SATA 6Gb/s ports

USB Headers

1 x USB 20Gbps Type-C, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)

RGB Headers

3 x Addressable RGB Gen2

Miscellaneous Headers

Clear CMOS, Chassis Intrusion, COM, Front panel audio, S/PDIF, SPI TPM, System panel header

Form Factor

ATX
