Cooler Master MasterBox TD500 Mesh V2 ARGB ATX Mid Tower Gaming Case - Black (3 FANS Included)

Cooler Master MasterBox TD500 Mesh V2 ARGB ATX Mid Tower Gaming Case

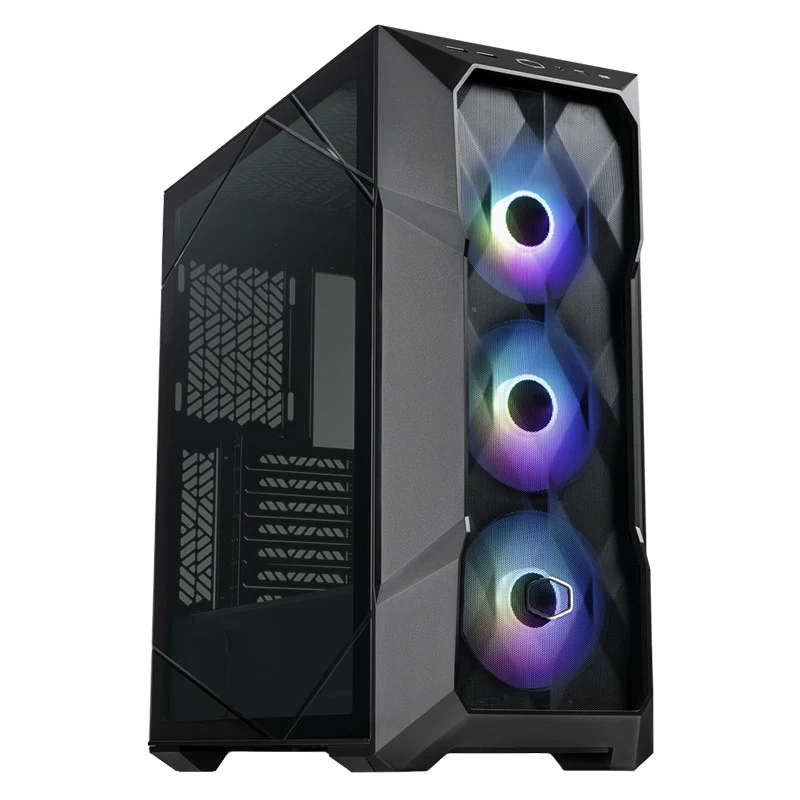

FINEMESH PERFORMANCE FRONT PANEL

Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.

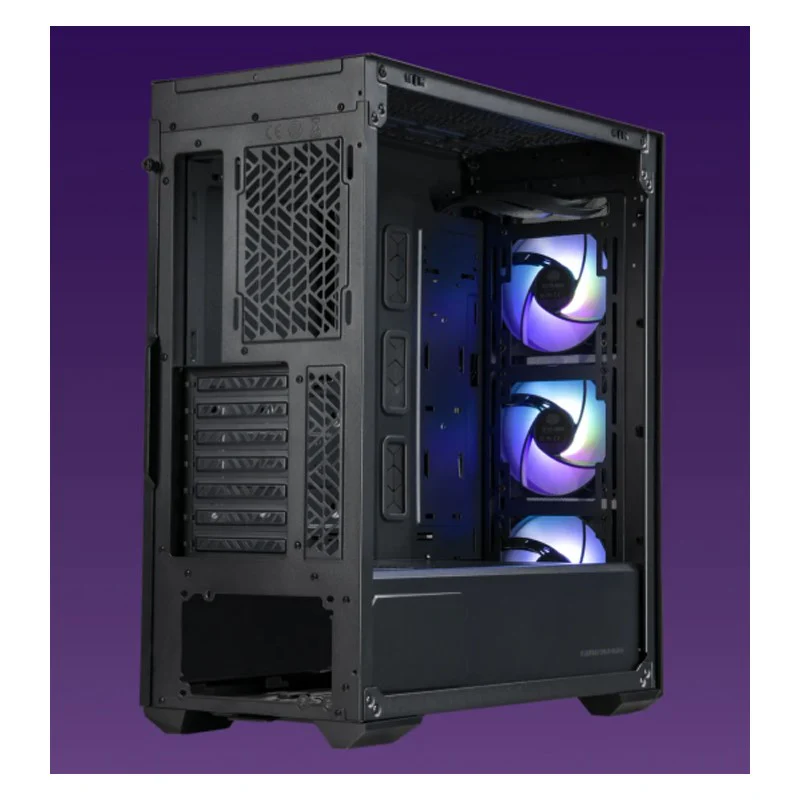

THREE CF120 ARGB FANS INCLUDED

Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.

USB 3.2 GEN 2 TYPE-C SUPPORT

USB 3.2 Gen 2 Type C port built into the 1/0 panel allows multi-purpose, streamlined data transmission.

REMOVABLE TOP PANEL

The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.

VERSATILE COOLING OPTIONS

Support for up to seven 120mm fans and 60mm front and top radiator support nsure that performance is not ompromised.

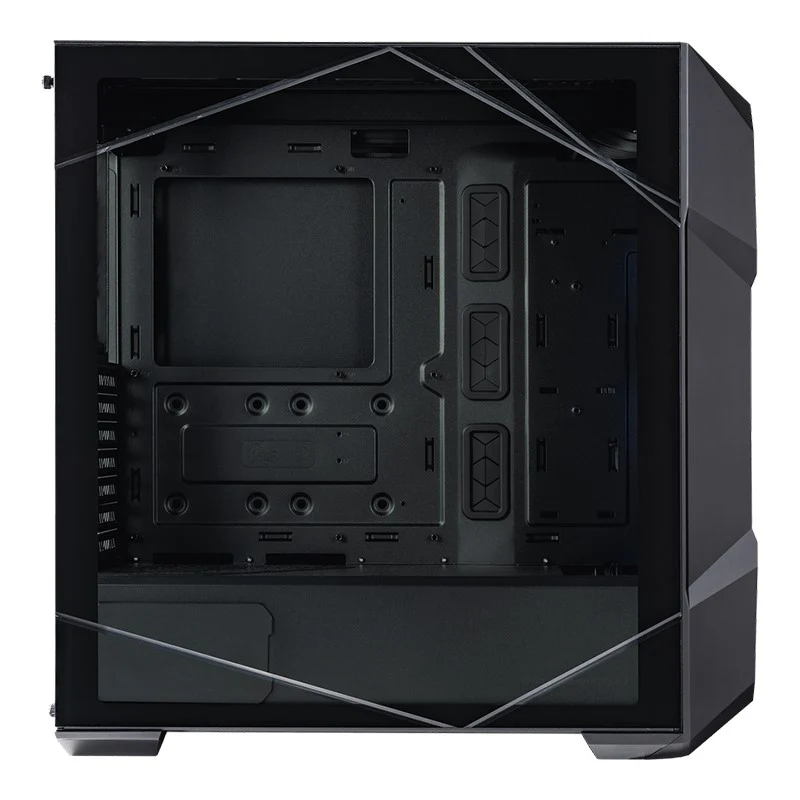

TOOL-FREE CRYSTALLINE TG SIDE PANEL

Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.

PSU SHROUD WITH REMOVABLE COVER

MasterBox TD500 Mesh V2's removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.

What are the benefits of Cooler Master MasterBox TD500 Mesh V2 ARGB ATX Mid Tower Gaming Case ?

High Airflow Design: FineMesh front panel improves cooling while reducing dust.

Built-In Cooling: Includes three CF120 ARGB fans for strong airflow and visual appeal.

Fast Connectivity: USB 3.2 Gen 2 Type-C for high-speed data transfer.

Easy Build Access: Removable top panel and tool-free tempered glass side panel.

Flexible Cooling Options: Supports up to seven 120mm fans and large radiators.

Clean Cable Management: PSU shroud with removable cover for a tidy or showcased build.

Materials

Materials - ExteriorSteel, Mesh, Plastic

Materials - Left Side PanelTempered Glass

Dimensions

Dimensions (L x W x H)499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)

Motherboard Info

Motherboard SupportMini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)

Expansion Slots7

3.5" Drive Bays2

2.5" Drive Bays3

I/O Panel

I/O Panel - USB Ports2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 type C

I/O Panel - Audio In / Out1x Audio Jack

I/O Panel - Other1x ARGB Fan Hub

Pre-installed Fans

Pre-installed Fans - TopN/A

Pre-installed Fans - Front3x 120mm CF120 ARGB

Pre-installed Fans - RearN/A

Fan Support

Fan Support - Top3x 120mm, 2x 140mm

Fan Support - Front3x 120mm, 2x 140mm

Fan Support - Rear1x 120mm

Radiator Support

Radiator Support - Top120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)

Radiator Support - Front120 / 140 / 240 / 280 / 360mm

Radiator Support - Rear120mm

Clearance

Clearance - CPU Cooler165mm

Clearance - PSU200mm (Recommended up to 170mm)

Clearance - GFX410mm

Cable Routing - Behind Motherboard Tray

19mm / 0.74"

Dust Filters

Front, Top, Bottom

Power Supply Support

Bottom Mount, ATX
