EZCap 324B LIVE GAMER RAW PCIe 4K HDMI Video Capture Card

EZCap 324B LIVE GAMER RAW PCIe 4K HDMI Video Capture Card

LIVE GAMER RAW PCIe for Professional Gamers

ezcap LIVE GAMER RAW PCIe capture card is born for professional gamers. Compared with the USB capture card, the advantages are self-evident. Install it firmly, fix it in the PCIe slot and fix the capture card with the chassis tightly with screws. Super speed and bandwidth, up to 5000Gbps/S. Provide stable and redundant current. It is the first choice for experts.

Resolution up to 2160p30/1080p120/1440p60

ezcap LIVE GAMER RAW PCIe supports HDMI input, pass-through and capture streaming up to 2160p30, 1080p120 and 1440p60, also includes audio input and output for audio mixing and haedphone.

Specifications:

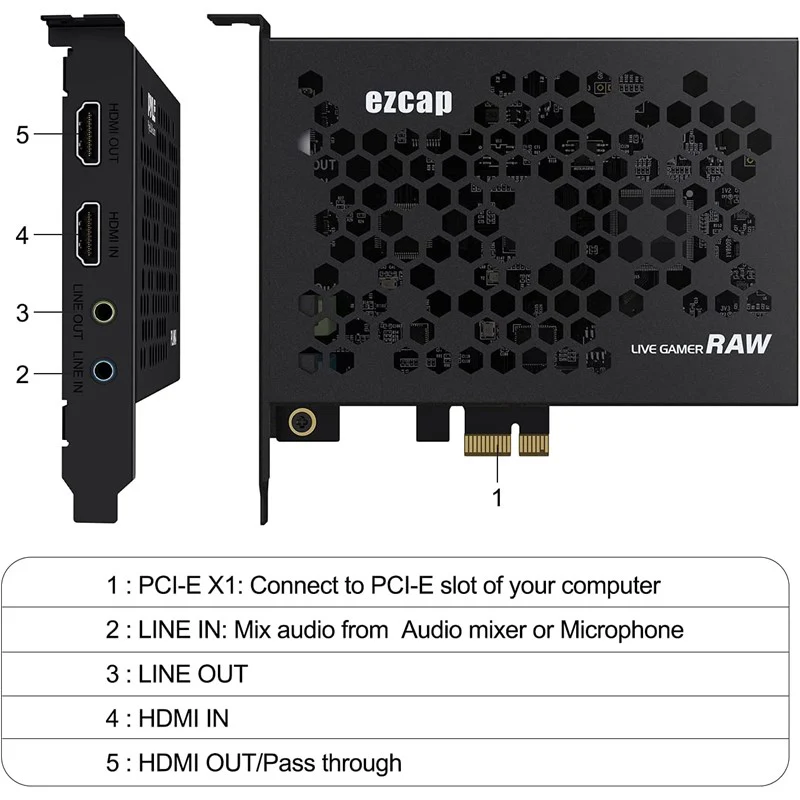

Interface

PCIe Gen2 X1

Video Input

HDMI 1.4

Audio Input

HDMI, Line In (3.5 mm TRS)

Video Output

HDMI 1.4

Audio Output

HDMI, Line Out (3.5mm TRS)

Max. Input and Pass-Through

2160p30, 1440p60, 1080p120

Max. Recording

1080p120, 2160p30, 1440p60

Supported Resolution

2160p, 1440p, 1080p, 720p

Output Video Format

YUY2, NV12, RGB

Recording Resolution and Max FPS

3840x2160 - NV12/30; 2560x1440 - NV12/60, YUY/50; 1920x1080 - NV12/120, YUY/60, XRGB/30; 1280x720 - NV12/60, YUY/60, XRGB/60.

LED status indicator

RED-power, BLUE-HDMI input, Mixing Slow Flashing-device running.

System Requirement

Windows 10 x 64, PCI-E X1 slot

For 4Kp30 or 1080p120 recording

Intel Core i5-6XXX / AMD, Ryzen 3 XXX or above, NVIDIA GTX 1060 / AMD RX 5700 or above, 8 GB RAM.

For 1080p60 recording

Intel Core i7-3770 recommended, NVIDIA GeForce GTX 650 / AMD Radeon R7 250X or above, 4 GB RAM.



Mac Pro, Mac OS High Sierra 10.15 and above, PCI-E X1 slot

Package Contents

ezcap324 Live Gamer RAW,  Manual

Dimensions

151 x 121 x 22 mm
