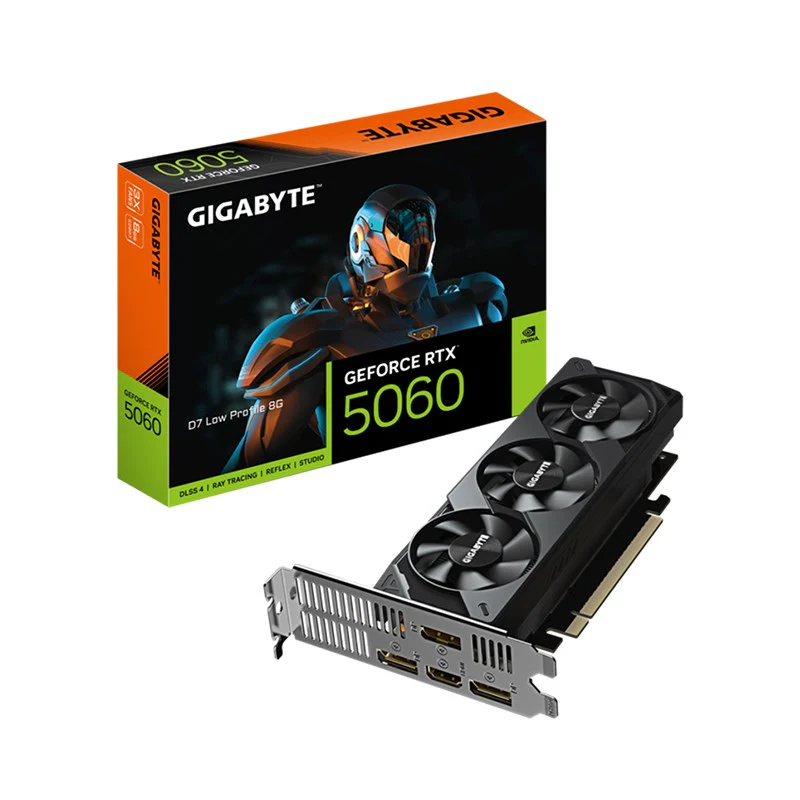

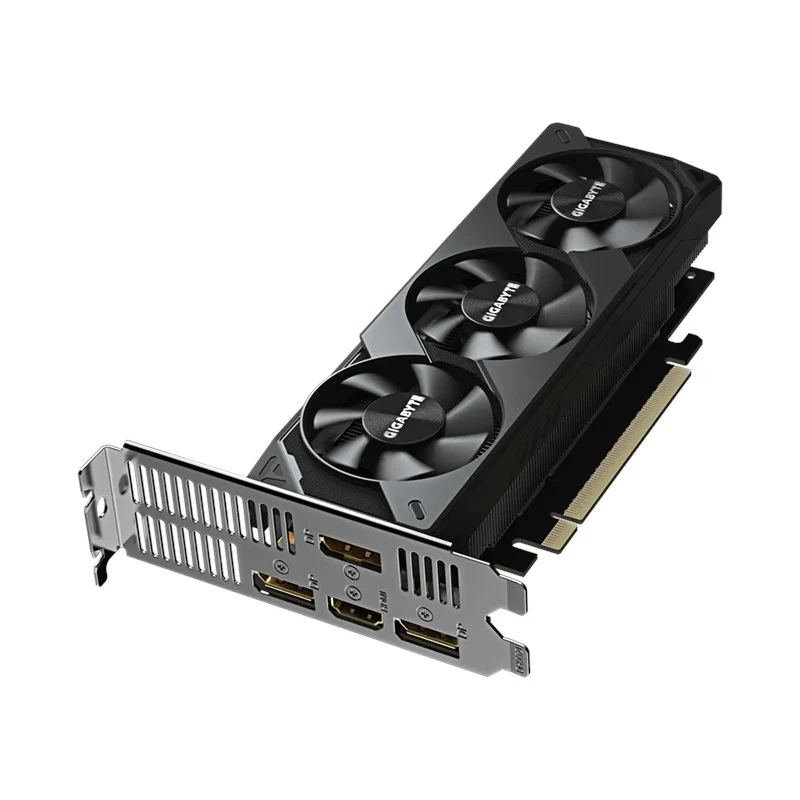

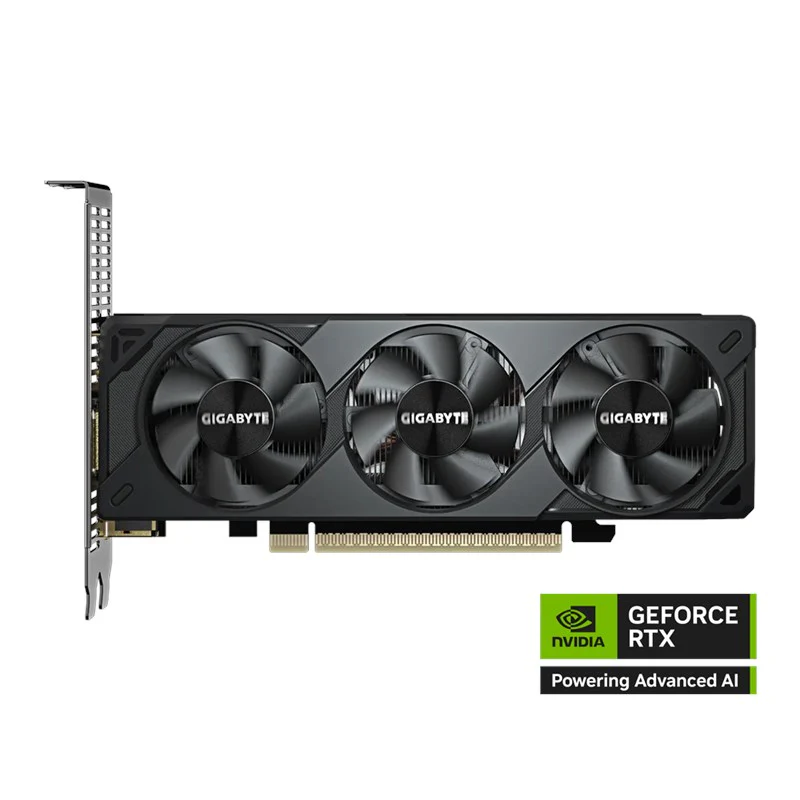

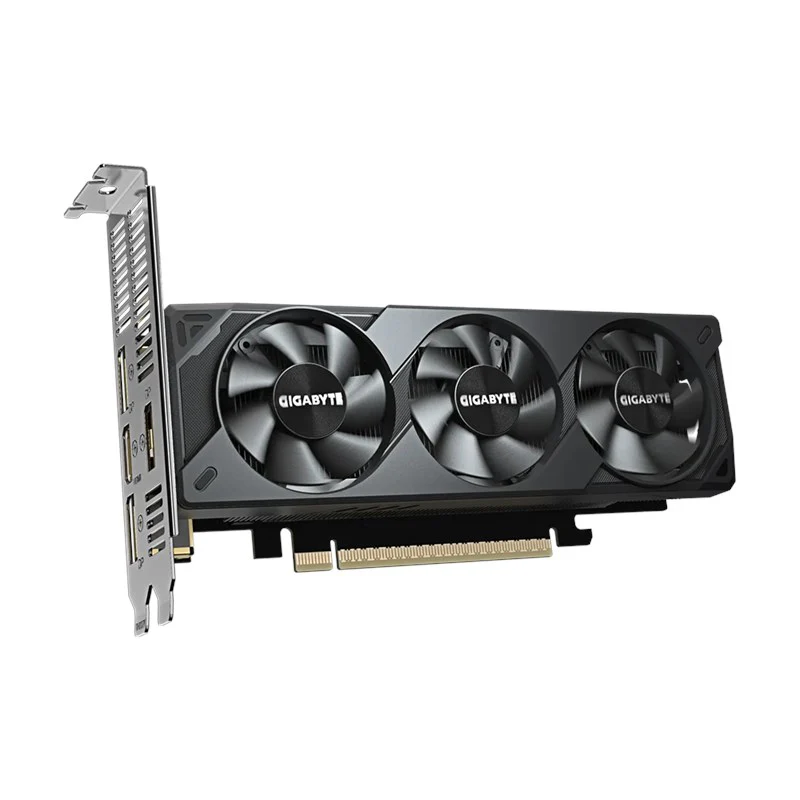

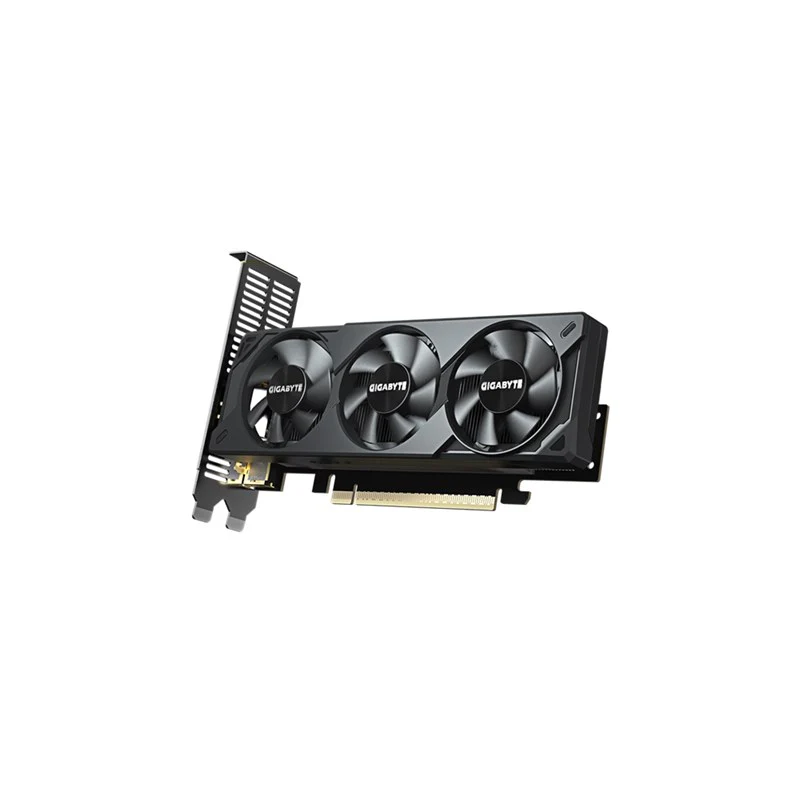

Gigabyte D7 Low Profile GeForce RTX 5060 8GB GDDR7 Gaming Graphics Card - Black

Gigabyte D7 Low Profile GeForce RTX 5060 8GB GDDR7 Gaming Graphics Card

GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM

GIGABYTE's custom-designed cooling system ensures efficient heat dissipation, featuring server-grade thermal conductive gel, a copper plate with direct GPU contact, and composite copper heat pipes. These elements facilitate enhanced heat transfer to the heatsink, enabling higher performance at lower temperatures.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

COPPER PLATE & COMPOSITE COPPER HEAT PIPE

The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

What are the benefits of Gigabyte RTX 5060 8GB Graphics Card ?

• Efficient cooling system ensures lower temperatures and stable performance

• Direct GPU contact with copper plate improves heat transfer

• Composite heat pipes enhance overall cooling efficiency

• Server-grade thermal gel improves reliability and long-term durability

• Better contact on components like VRAM and MOSFETs for consistent cooling

• Graphene nano lubricant extends fan lifespan significantly

• Quieter operation compared to traditional cooling solutions

Graphics Processing

GeForce RTX 5060

Core Clock

2497 MHz

CUDA Cores

3840

Memory Clock

28 Gbps

Memory Size

8 GB

Memory Type

GDDR7

Memory Bus

128 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=182 W=69 H=36

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

550W

Power Connectors

8 Pin*1

Output

DisplayPort 2.1b *2

DisplayPort 1.4a *1

HDMI 2.1b *1
