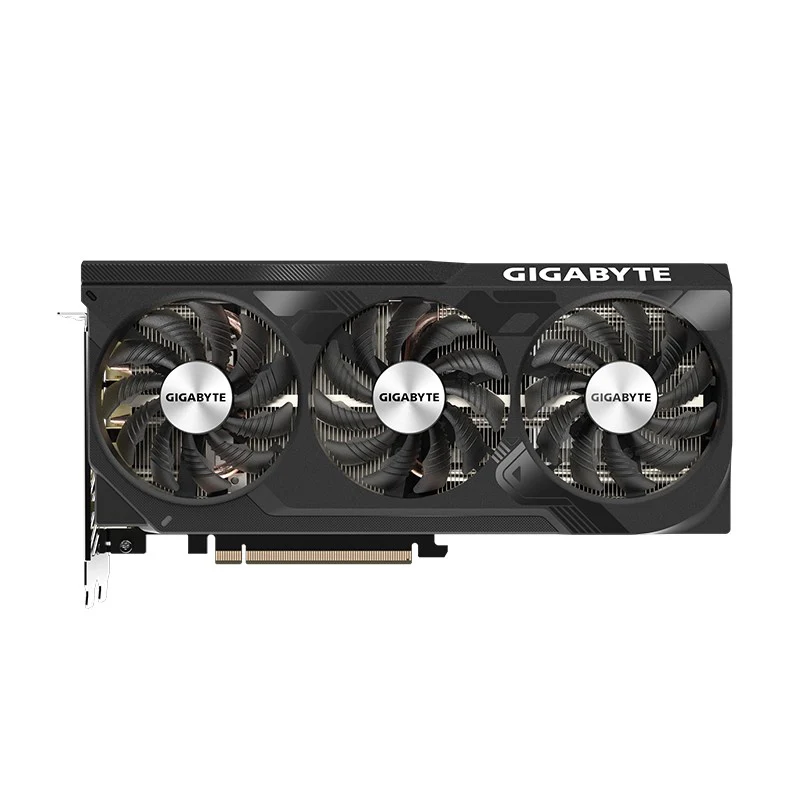

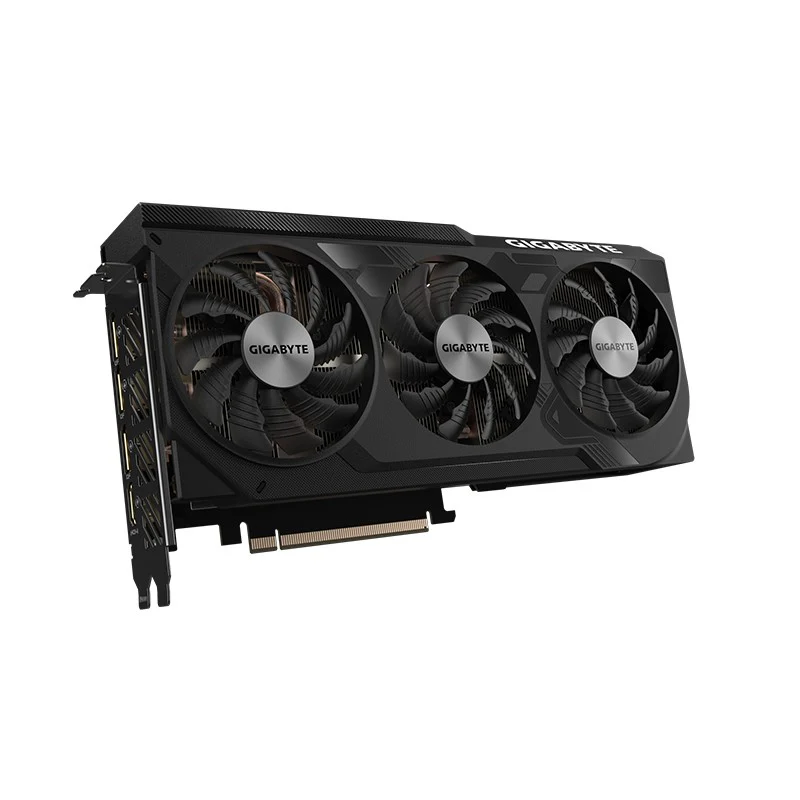

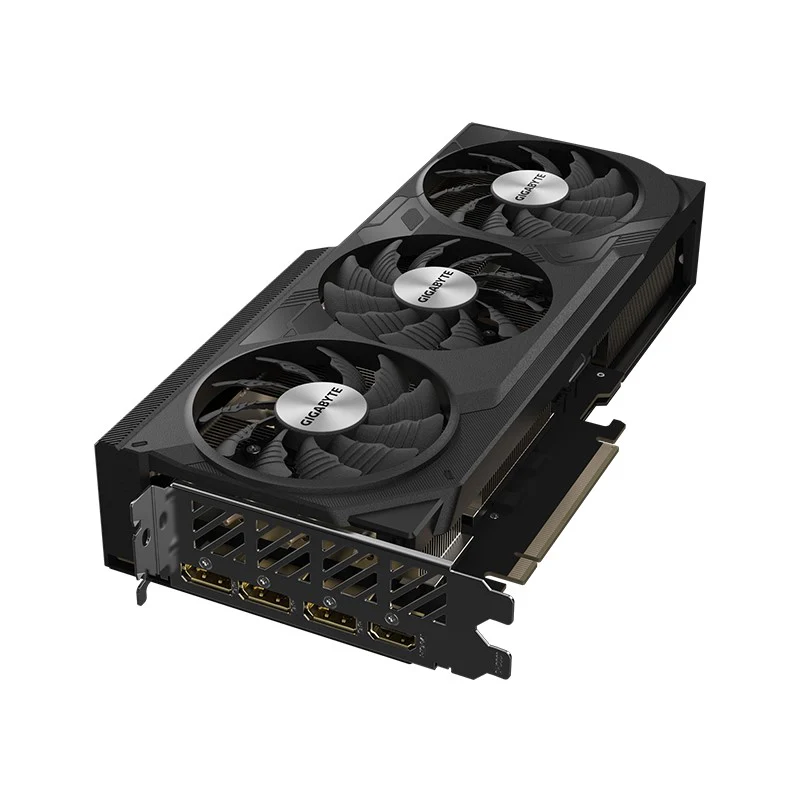

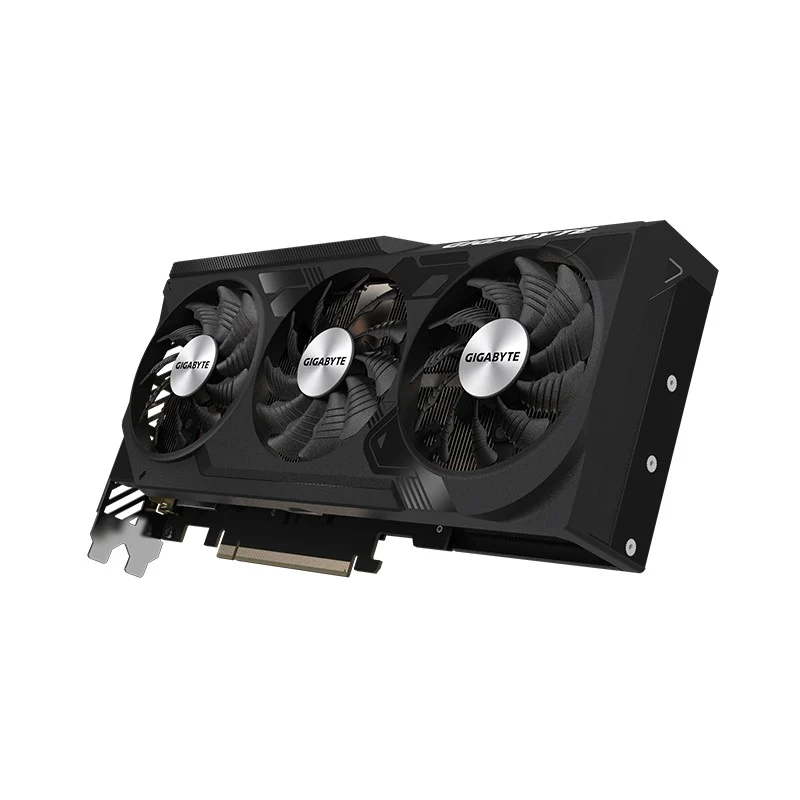

Gigabyte GeForce RTX 4070 SUPER WINDFORCE OC 12GB GDDR6X Gaming Graphics Card

Gigabyte GeForce RTX 4070 SUPER WINDFORCE OC 12GB GDDR6X Gaming Graphics Card

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 80 mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

SMOOTH AIRFLOW

GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

HEAT PIPES DIRECT TOUCH

The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2 oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Graphics Processing

GeForce RTX 4070 SUPER

Core Clock

2505 MHz (Reference card: 2475 MHz)

CUDA Cores

7168

Memory Clock

21 Gbps

Memory Size

12 GB

Memory Type

GDDR6X

Memory Bus

192 bit

Card Bus

PCI-E 4.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=261 W=126 H=50 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

700 Watts

Power Connectors

16 pin *1

Output

DisplayPort 1.4a *3

HDMI 2.1a *1

Accessories

1. Quick guide

2. One 16 pin two 8-pin power adaptor
