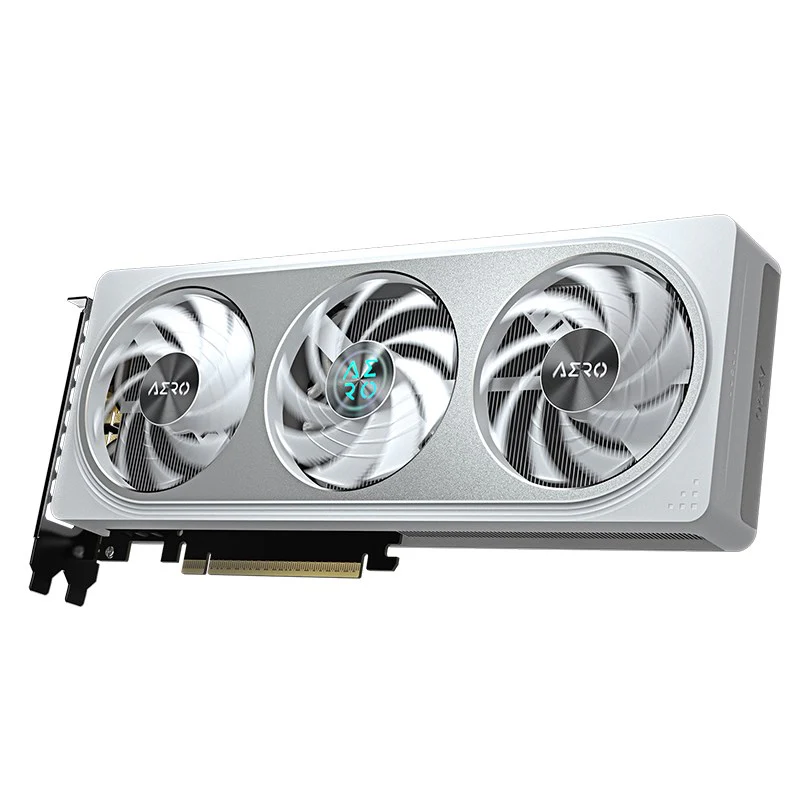

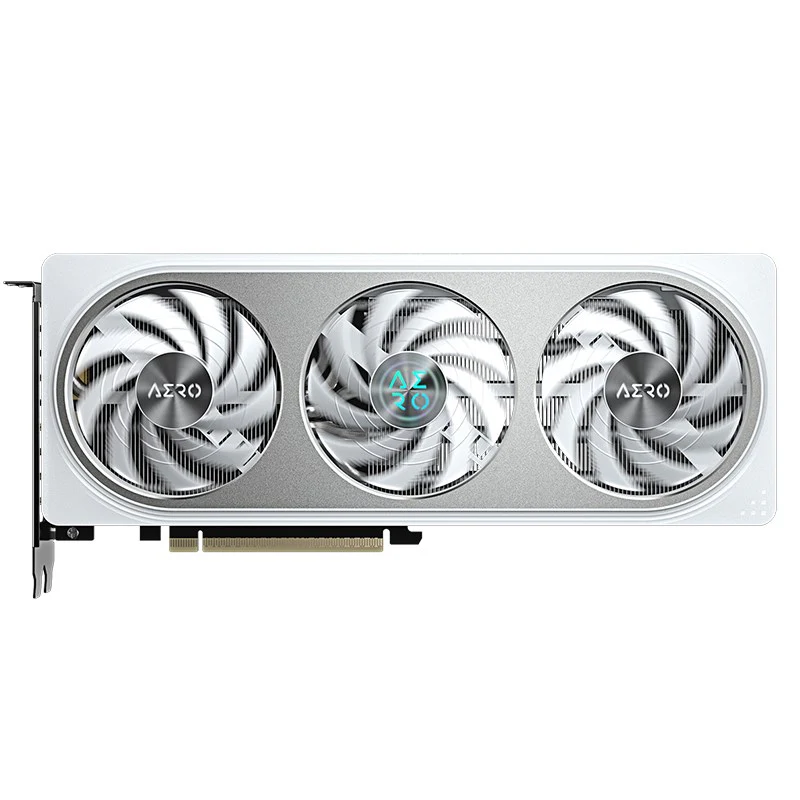

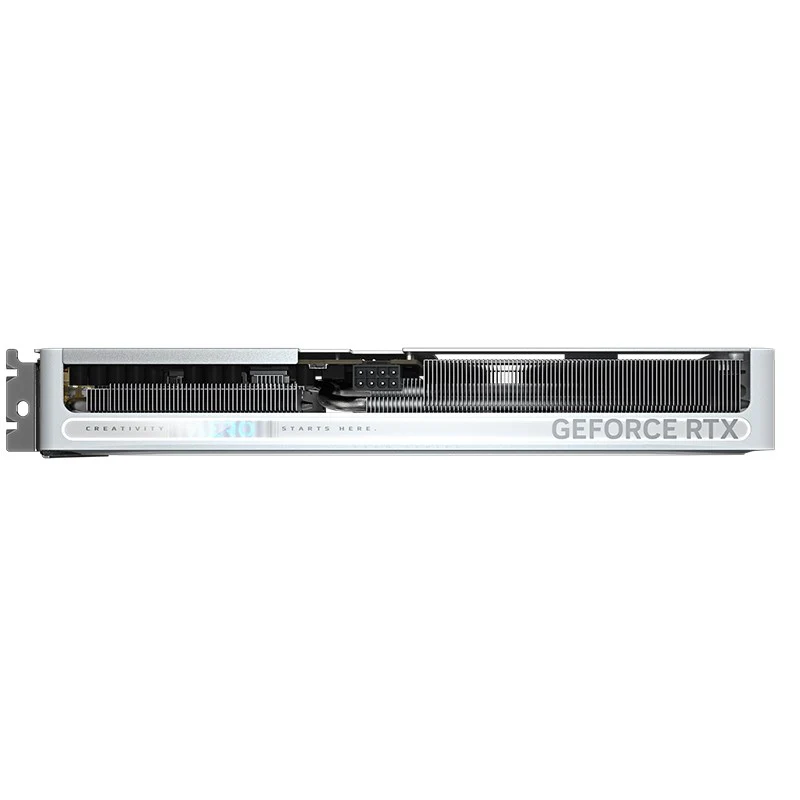

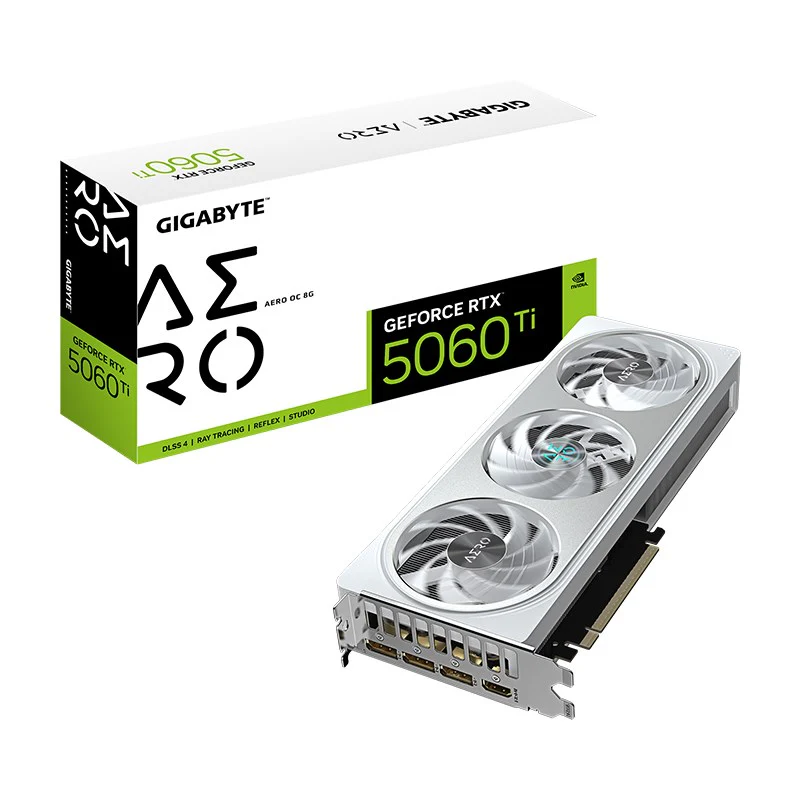

Gigabyte GeForce RTX 5060 Ti AERO OC 8GB GDDR7 Gaming Graphics Card - White

Gigabyte GeForce RTX 5060 Ti AERO OC 8GB GDDR7 Gaming Graphics Card

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

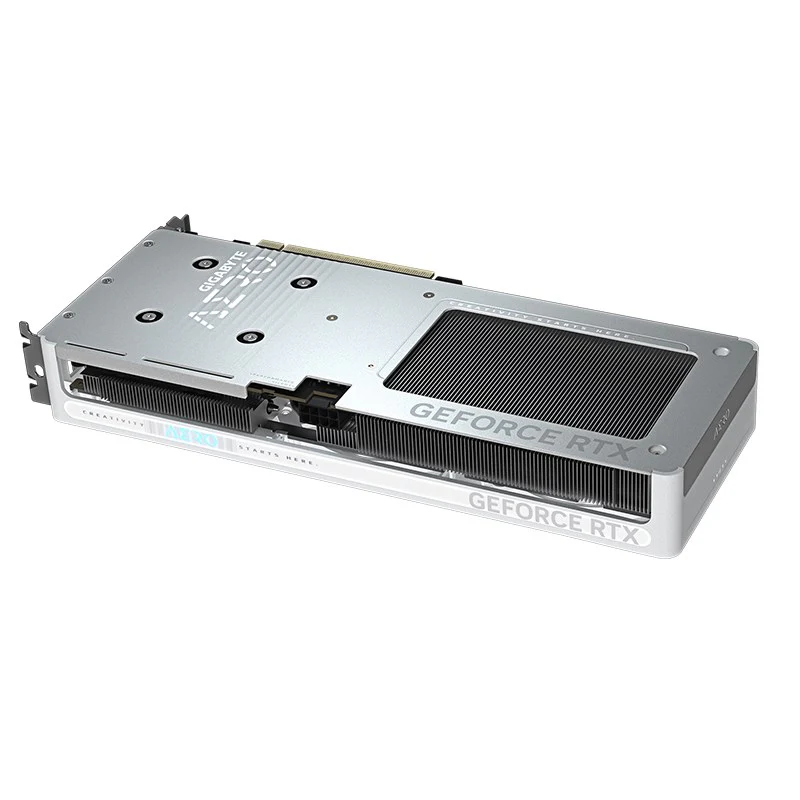

Drawing inspiration from water, the back panel's ripples evoke flowing water, with mirrored, frosted, and light elements reflecting the water's shimmering surface. Metal craftsmanship refines the texture, while teal and iridescent hues accentuate the serene lake. The fan's rotation creates expanding ripples, infusing natural movement into the details.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Graphics Processing

GeForce RTX 5060 Ti

Core Clock

2647 MHz (Reference card :2572 MHz)

CUDA Cores

4608

Memory Clock

28 Gbps

Memory Size

8 GB

Memory Type

GDDR7

Memory Bus

128 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=281 W=117 H=40mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

650W

Power Connectors

8 Pin*1

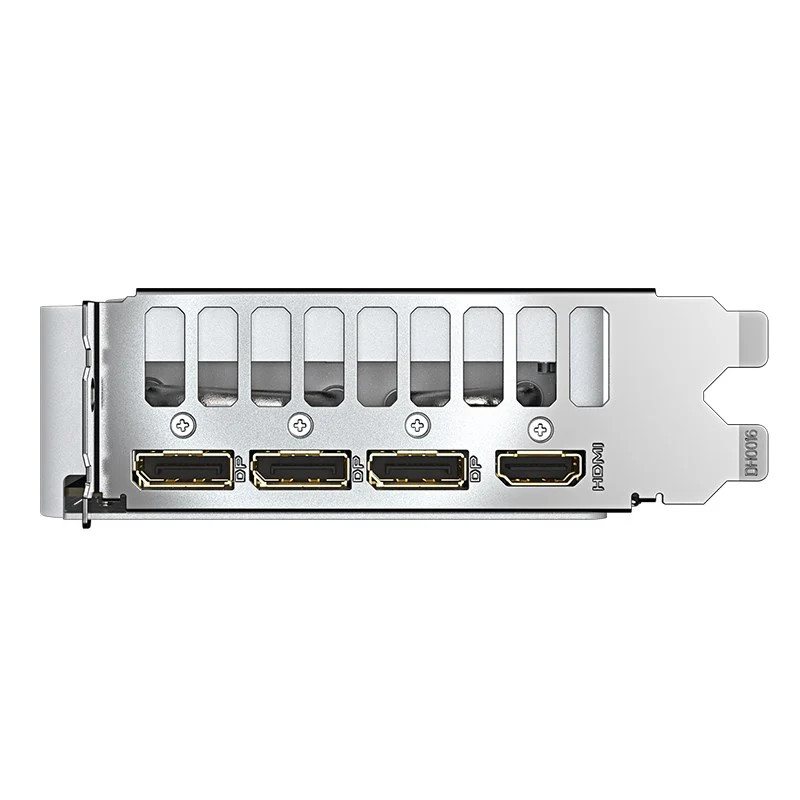

Output

DisplayPort 2.1b *3

HDMI 2.1b *1
