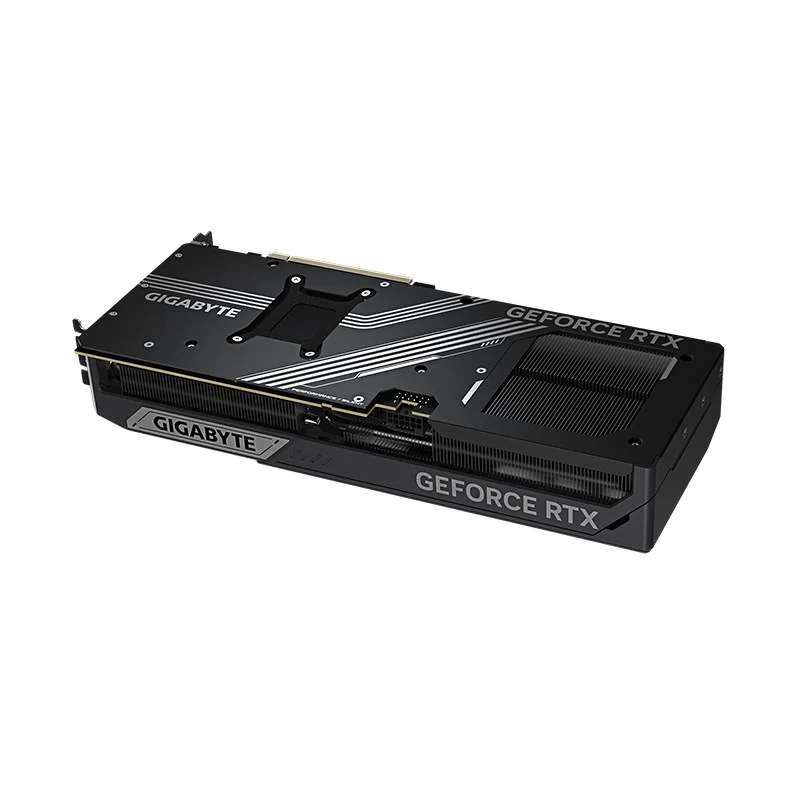

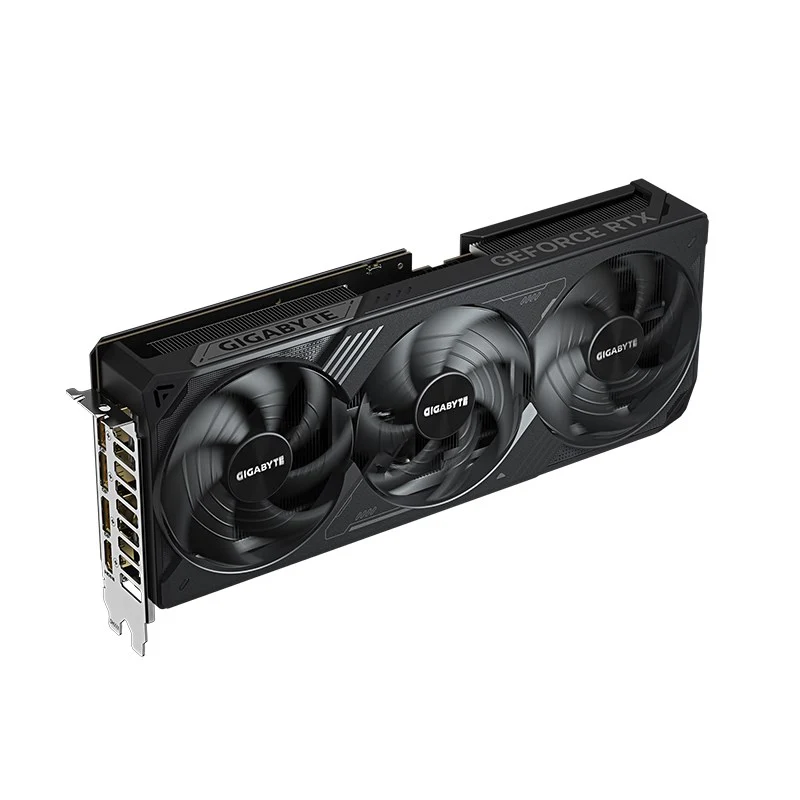

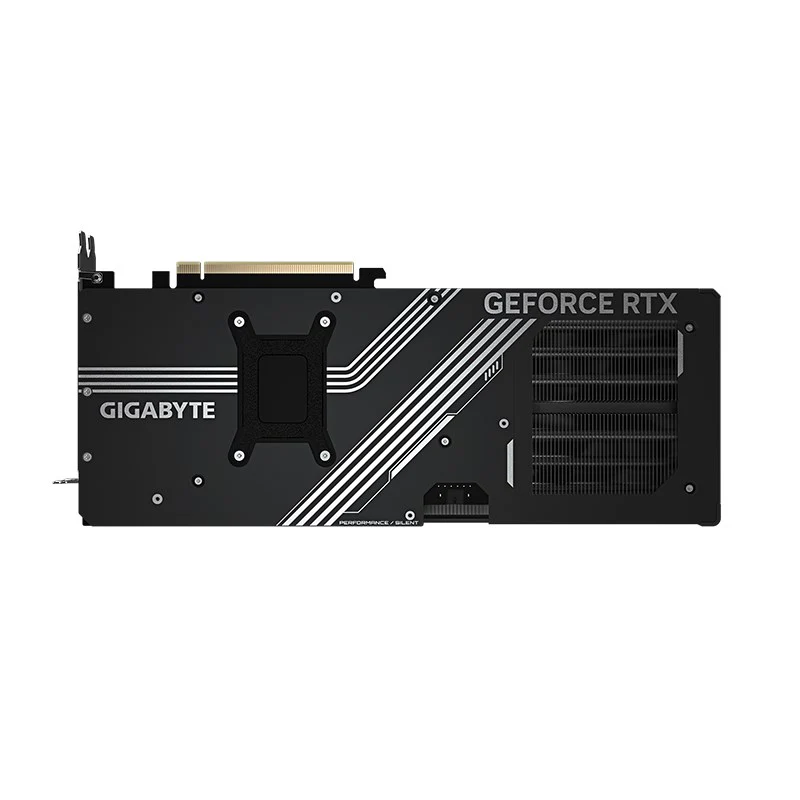

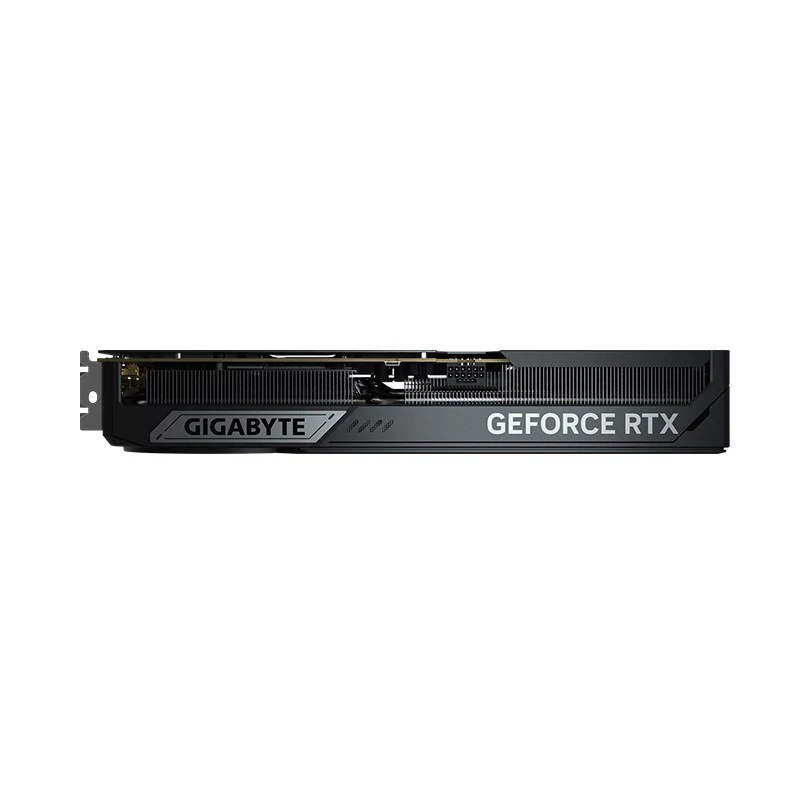

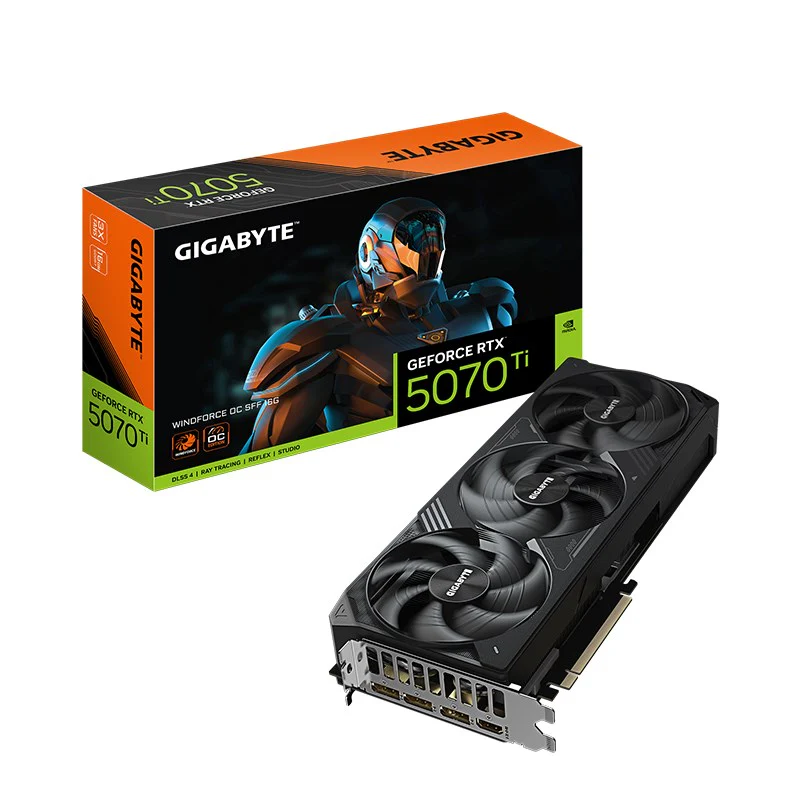

Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16GB GDDR7 Gaming Graphics Card - Black

Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16GB GDDR7 Gaming Graphics Card

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE

The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

Graphics Processing

GeForce RTX 5070 Ti

Core Clock

2497 MHz (Reference: 2452 MHz)

CUDA Cores

8960

Memory Clock

28 Gbps

Memory Size

16 GB

Memory Type

GDDR7

Memory Bus

256 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680 x 4320

Multi-view

4

Card size

L=304 W=126 H=50mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

OpenGL 4.6

Recommended PSU

750W

Power Connectors

16 pin*1

Output

DisplayPort 2.1b x3

HDMI 2.1b x1

Accessories

1. VGA manual

2. 1x 12V-2x6 to 2x PCIe 8pin adapter

3. Versatile VGA holder

4. Versatile VGA holder manual
