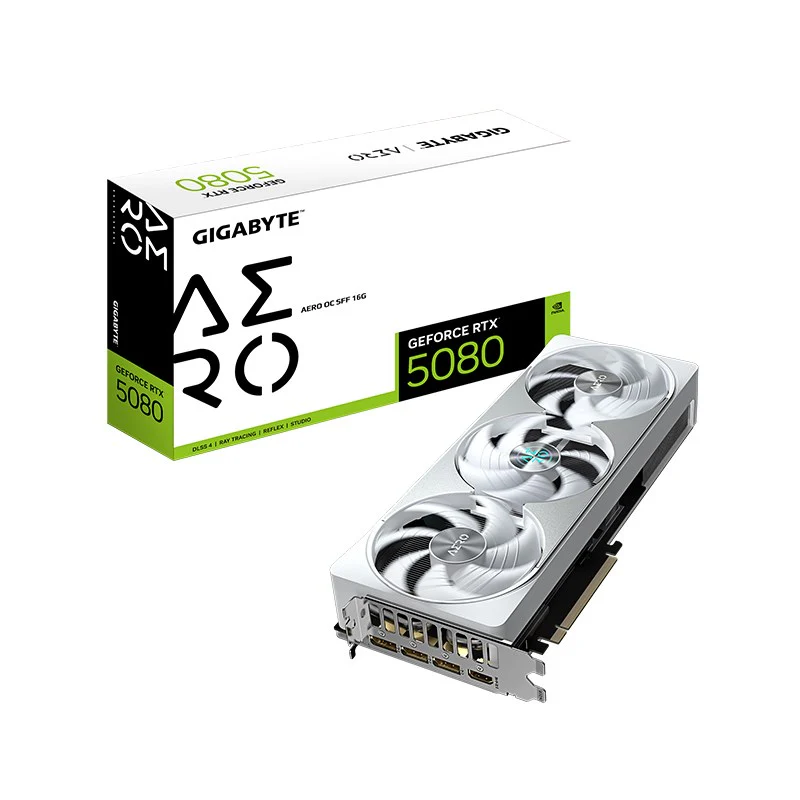

GIGABYTE GeForce RTX 5080 AERO OC SFF 16 GB GDDR7 Gaming Graphics Card - White

GIGABYTE GeForce RTX 5080 AERO OC SFF 16GB GDDR7 Gaming Graphics Card

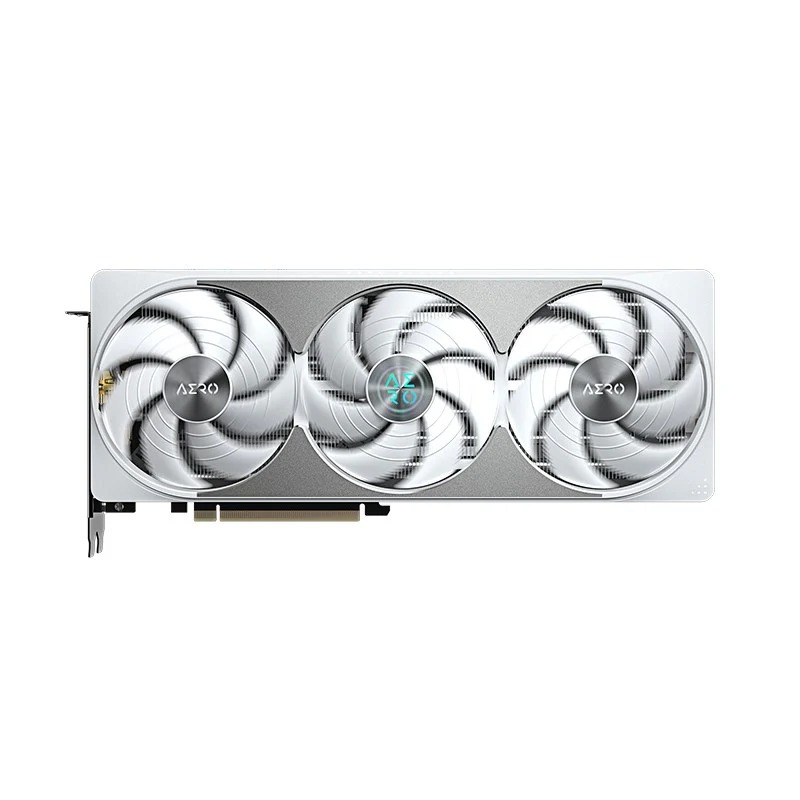

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

Drawing inspiration from water, the back panel's ripples evoke flowing water, with mirrored, frosted, and light elements reflecting the water's shimmering surface. Metal craftsmanship refines the texture, while teal and iridescent hues accentuate the serene lake. The fan's rotation creates expanding ripples, infusing natural movement into the details.

RGB LIGHTING

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Graphics Processing

GeForce RTX 5080

Core Clock

2730 MHz (Reference: 2617 MHz)

CUDA Cores

10752

Memory Clock

30 Gbps

Memory Size

16 GB

Memory Type

GDDR7

Memory Bus

256 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=304 W=126 H=50mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

OpenGL 4.6

Recommended PSU

850W

Power Connectors

16 Pin*1

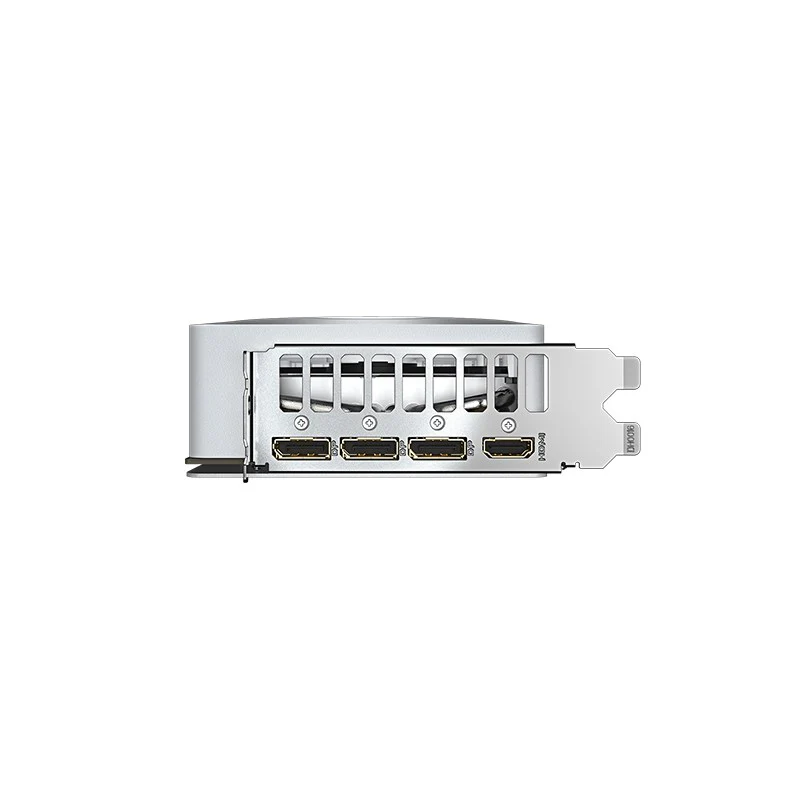

Output

DisplayPort 2.1b *3

HDMI 2.1b *1
