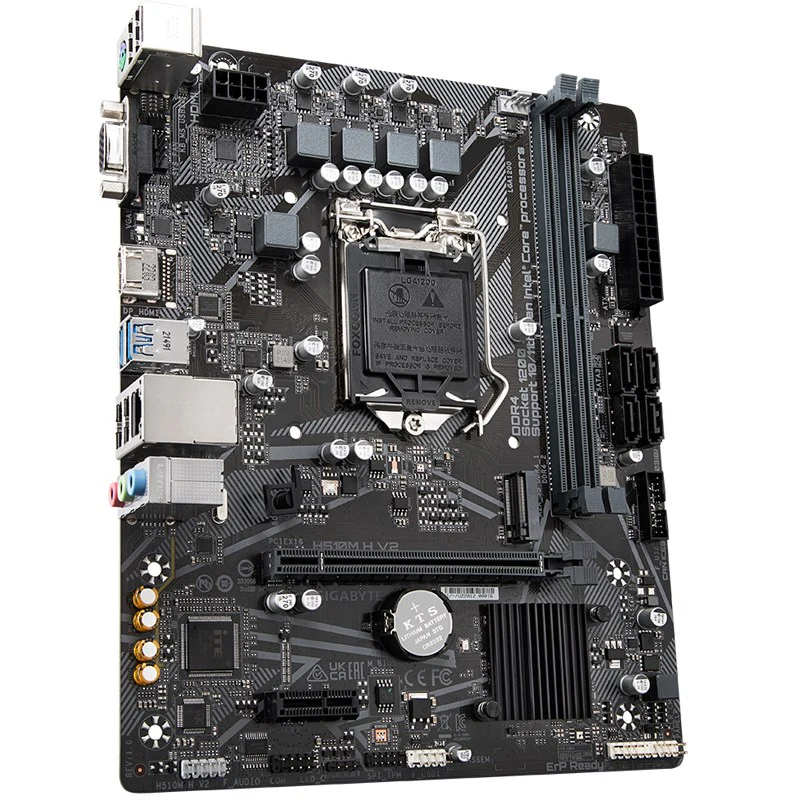

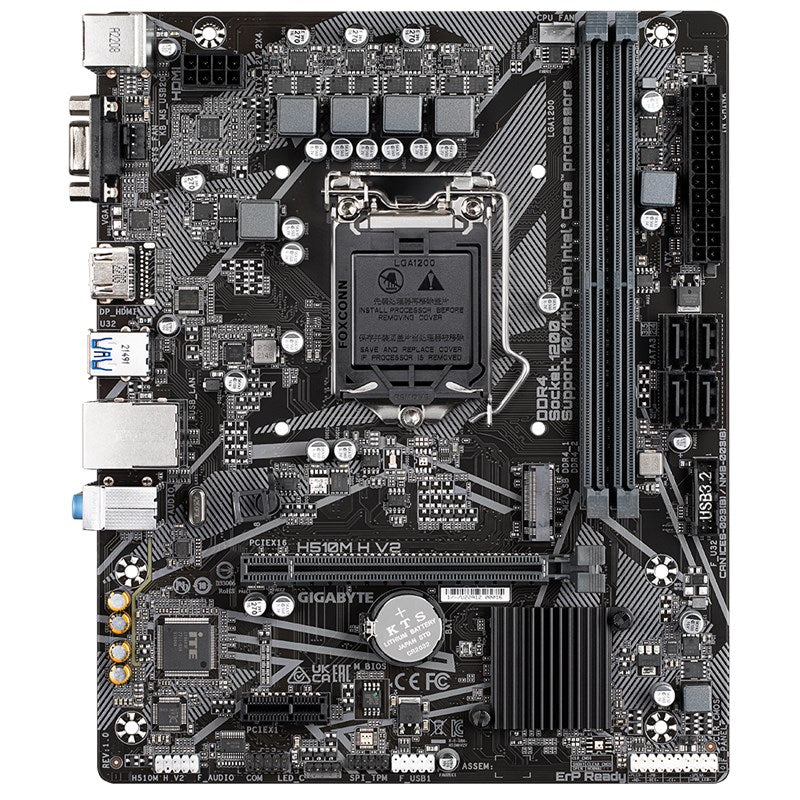

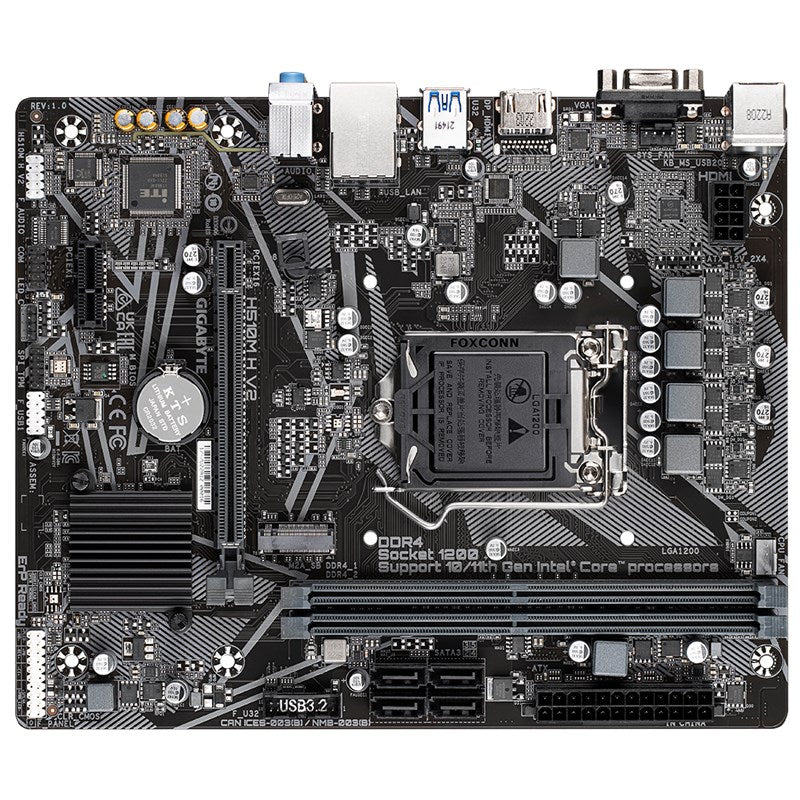

CPU
|
Ā
|
LGA1200 package:
|
1. 11th Generation IntelĀ®Ā Coreā¢ i9 processors / IntelĀ®Ā Coreā¢ i7 processors / IntelĀ®Ā Coreā¢ i5 processors
|
Ā
|
2. 10th Generation IntelĀ®Ā Coreā¢ i9 processors / IntelĀ®Ā Coreā¢ i7 processors / IntelĀ®Ā Coreā¢ i5 processors / IntelĀ®Ā Coreā¢ i3 processors/ IntelĀ®Ā PentiumĀ®Ā processors / IntelĀ®Ā CeleronĀ®Ā processors
|
Ā
|
3. L3 cache varies with CPU
|
Chipset
|
1. IntelĀ®Ā H470 Express Chipset
|
Memory
|
1. 11th Generation IntelĀ®Ā Coreā¢ i9/i7/i5 processors:
|
Ā
|
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
|
Ā
|
2. 10th Generation IntelĀ®Ā Coreā¢ i9/i7 processors:
|
Ā
|
Support for DDR4 2933/2666/2400/2133 MHz memory modules
|
Ā
|
3. 10th Generation IntelĀ®Ā Coreā¢ i5/i3/PentiumĀ®/CeleronĀ®Ā processors:
|
Ā
|
Support for DDR4 2666/2400/2133 MHz memory modules
|
Ā
|
4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
|
Ā
|
5. Dual channel memory architecture
|
Ā
|
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
|
Ā
|
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
|
Ā
|
8. Support for Extreme Memory Profile (XMP) memory modules
|
Onboard Graphics
|
Integrated Graphics Processor-IntelĀ®Ā HD Graphics support:
|
Ā
|
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
|
Ā
|
* Support for HDMI 1.4 version and HDCP 2.3.
|
Ā
|
2. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
|
Ā
|
* The D-Sub port is only available with the 10th Generation processors.
|
Ā
|
(Graphics specifications may vary depending on CPU support.)
|
Audio
|
1. RealtekĀ®Ā Audio CODEC
|
Ā
|
2. High Definition Audio
|
Ā
|
3. 2/4/5.1/7.1-channel
|
Ā
|
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
|
LAN
|
1. RealtekĀ®Ā GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
|
Expansion Slots
|
CPU:
|
Ā
|
1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
|
Ā
|
Chipset:
|
Ā
|
1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
|
Storage Interface
|
Chipset:
|
Ā
|
1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
|
Ā
|
2. 4 x SATA 6Gb/s connectors
|
Ā
|
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
|
Ā
|
* Supported with an additional PCIe to M.2 NVMe SSD adapter card
|
Ā
|
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
|
USB
|
Chipset:
|
Ā
|
1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
|
Ā
|
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
|
Internal I/O Connectors
|
1. 1 x 24-pin ATX main power connector
|
Ā
|
2. 1 x 8-pin ATX 12V power connector
|
Ā
|
3. 1 x CPU fan header
|
Ā
|
4. 1 x system fan header
|
Ā
|
5. 1 x RGB LED strip header
|
Ā
|
6. 1 x M.2 Socket 3 connector
|
Ā
|
7. 4 x SATA 6Gb/s connectors
|
Ā
|
8. 1 x front panel header
|
Ā
|
9. 1 x front panel audio header
|
Ā
|
10. 1 x USB 3.2 Gen 1 header
|
Ā
|
11. 1 x USB 2.0/1.1 header
|
Ā
|
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
|
Ā
|
13. 1 x serial port header
|
Ā
|
14. 1 x Clear CMOS jumper
|

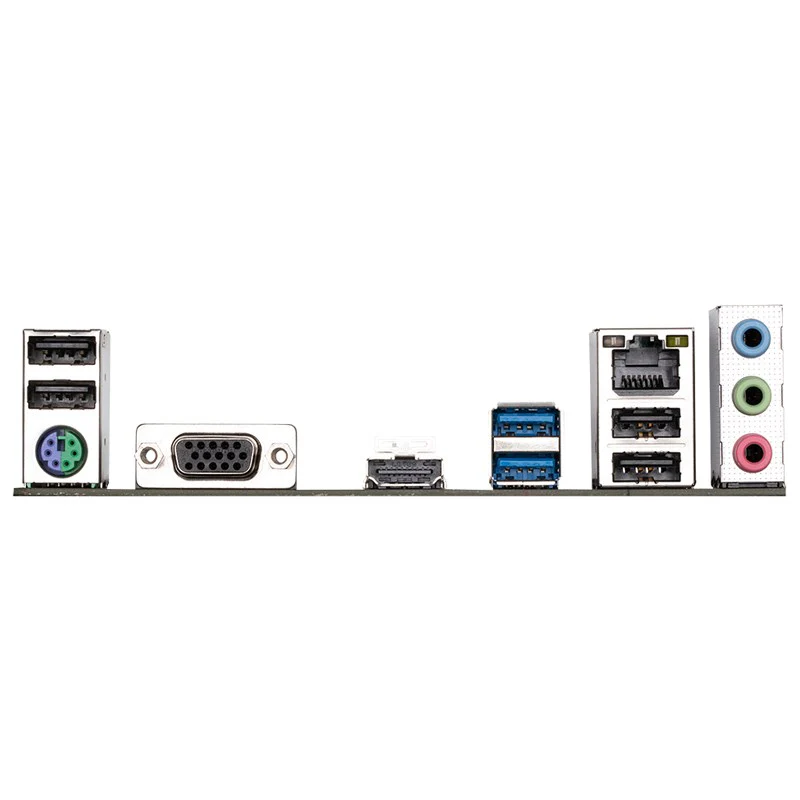

Back Panel Connectors
|
1. 1 x PS/2 keyboard/mouse port
|
Ā
|
2. 1 x D-Sub port
|
Ā
|
3. 1 x HDMI port
|
Ā
|
4. 2 x USB 3.2 Gen 1 ports
|
Ā
|
5. 4 x USB 2.0/1.1 ports
|
Ā
|
6. 1 x RJ-45 port
|
Ā
|
7. 3 x audio jacks
|
I/O Controller
|
1. iTEĀ®Ā I/O Controller Chip
|
H/W Monitoring
|
1. Voltage detection
|
Ā
|
2. Temperature detection
|
Ā
|
3. Fan speed detection
|
Ā
|
4. Fan fail warning
|
Ā
|
5. Fan speed contro
|
Ā
|
* Whether the fan speed control function is supported will depend on the cooler you install.
|
BIOS
|
1. 1 x 128 Mbit flash
|
Ā
|
2. Use of licensed AMI UEFI BIOS
|
Ā
|
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Unique Features
|
1. Support for APP Center
|
Ā
|
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
|
Ā
|
@BIOS
|
Ā
|
Ambient LED
|
Ā
|
EasyTune
|
Ā
|
Smart Backup
|
Ā
|
System Information Viewer
|
Ā
|
2. Support for Q-Flash
|
Ā
|
3. Support for Xpress Install
|
Operating System
|
1. Support for Windows 11 64-bit
|
Ā
|
2. Support for Windows 10 64-bit
|
Form Factor
|
1. Micro ATX Form Factor; 22.6cm x 18.5cm
|
