CPU
|
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
|
|
L3 cache varies with CPU
|
Chipset
|
Intel® H610 Express Chipset
|
Memory
|
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
|
|
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
|
|
Dual channel memory architecture
|
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
|
|
Support for Extreme Memory Profile (XMP) memory modules
|
|
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules
|
Onboard Graphics
|
Integrated Graphics Processor-Intel® HD Graphics support:
|
|
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
|
|
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
|
|
* Support for HDMI 2.1 version and HDCP 2.3.
|
|
** Support native HDMI 2.1 TMDS compatible ports.
|
|
(Graphics specifications may vary depending on CPU support.)
|
Audio
|
Realtek® Audio CODEC
|
|
High Definition Audio
|
|
2/4/5.1/7.1-channel
|
|
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
|
LAN
|
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
|
Expansion Slots
|
|
CPU
|
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
|
Chipset
|
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
|
Storage Interface
|
|
Chipset
|
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
|
|
4 x SATA 6Gb/s connectors
|
USB
|
|
Chipset
|
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
|
|
4 x USB 2.0/1.1 ports on the back panel
|
Chipset+USB 2.0 Hub
|
4 x USB 2.0/1.1 ports available through the internal USB headers
|
Internal I/O Connectors
|
1 x 24-pin ATX main power connector
|
|
1 x 8-pin ATX 12V power connector
|
|
1 x CPU fan header
|
|
2 x system fan headers
|
|
1 x M.2 Socket 3 connector
|
|
4 x SATA 6Gb/s connectors
|
|
1 x RGB LED strip header
|
|
1 x front panel header
|
|
1 x front panel audio header
|
|
1 x speaker header
|
|
1 x USB 3.2 Gen 1 header
|
|
2 x USB 2.0/1.1 headers
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
|
|
1 x serial port header
|
|
1 x Clear CMOS jumper
|
|
1 x chassis intrusion header
|

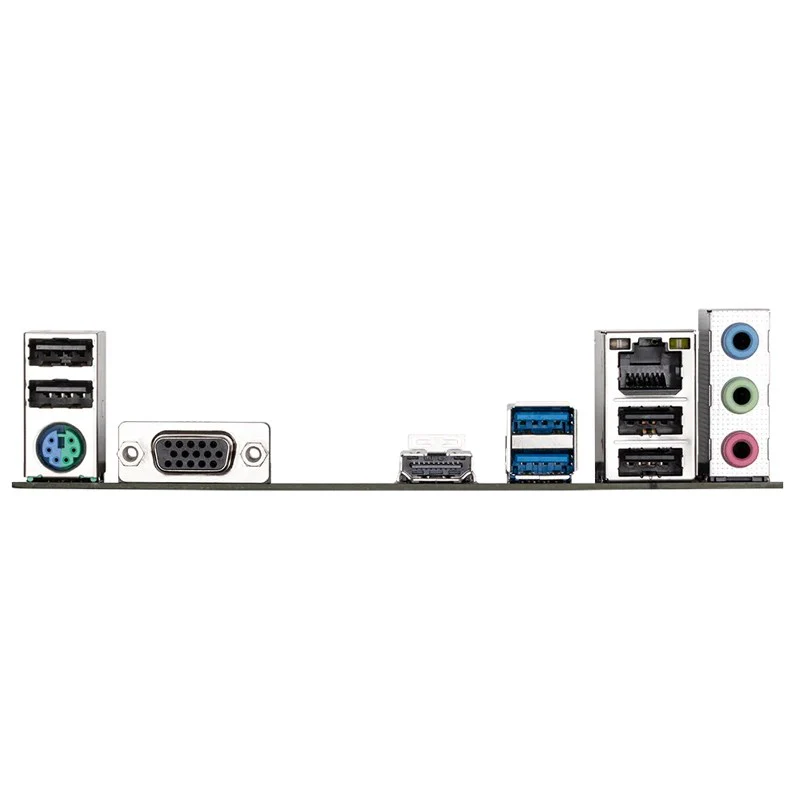

Back Panel Connectors
|
1 x PS/2 keyboard/mouse port
|
|
1 x D-Sub port
|
|
1 x HDMI port
|
|
2 x USB 3.2 Gen 1 ports
|
|
4 x USB 2.0/1.1 ports
|
|
1 x RJ-45 port
|
|
3 x audio jacks
|
I/O Controller
|
iTE® I/O Controller Chip
|
H/W Monitoring
|
Voltage detection
|
|
Temperature detection
|
|
Fan speed detection
|
|
Water cooling flow rate detection
|
|
Fan fail warning
|
|
Fan speed control
|
|
* Whether the fan speed control function is supported will depend on the fan you install.
|
BIOS
|
1 x 128 Mbit flash
|
|
Use of licensed AMI UEFI BIOS
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Unique Features
|
Support for APP Center
|
|
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
|
|
- @BIOS
|
|
- EasyTune
|
|
- Smart Backup
|
|
- System Information Viewer
|
|
Support for Q-Flash
|
Operating System
|
Support for Windows 11 64-bit
|
Form Factor
|
Micro ATX Form Factor; 22.3cm x 19.3cm
|
