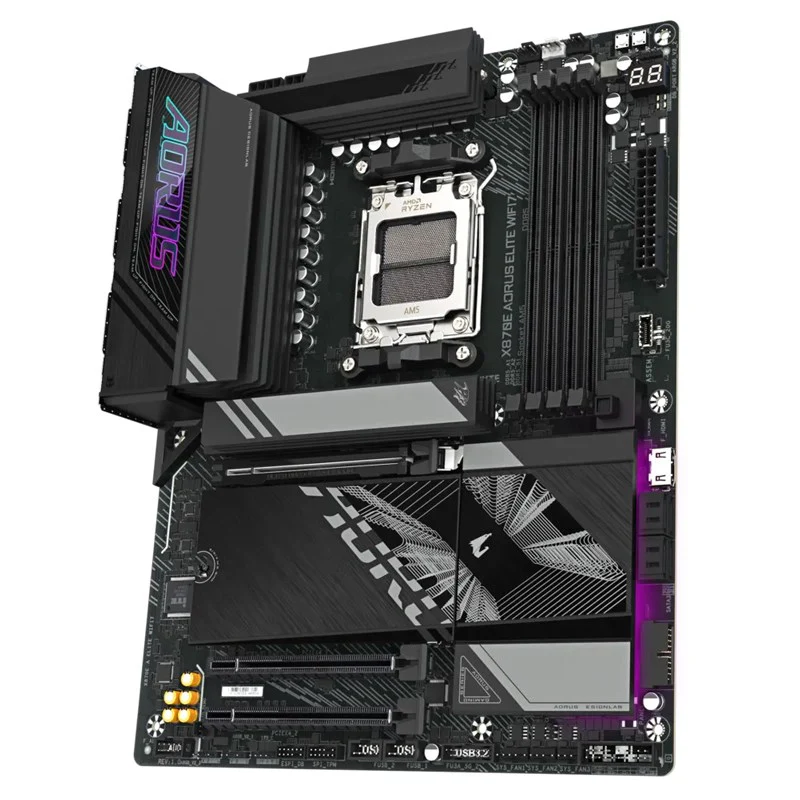

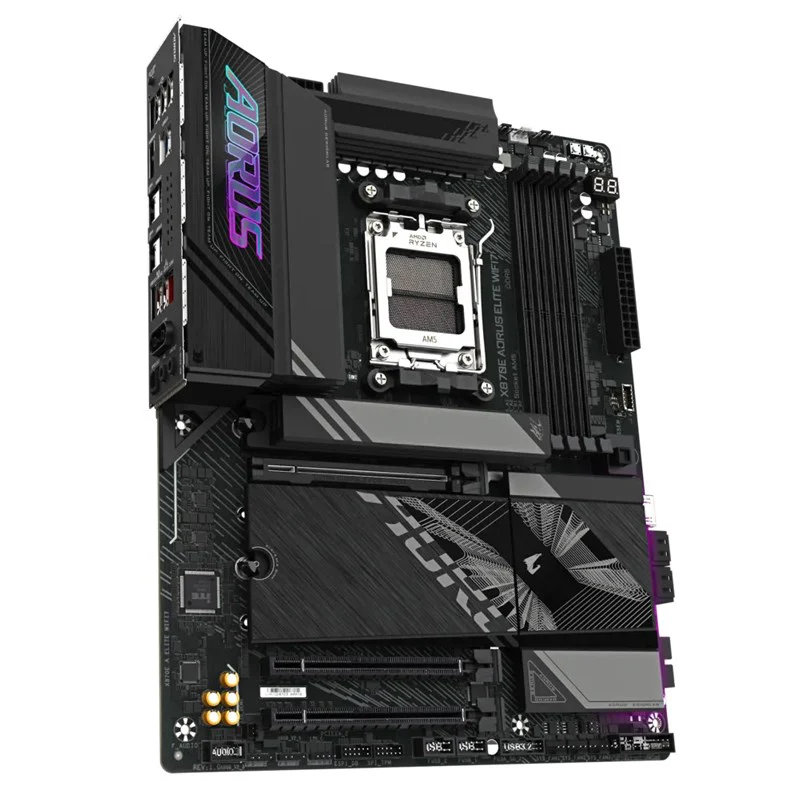

CPU
|
AMD Socket AM5, support for:
|
|
AMD Ryzen™ 9000 Series Processors/
|
|
AMD Ryzen™ 8000 Series Processors/
|
|
AMD Ryzen™ 7000 Series Processors
|
|
(Go to GIGABYTE's website for the latest CPU support list.)
|
Chipset
|
AMD X870E
|
Memory
|
Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
|
|
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
|
|
Dual channel memory architecture
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
|
|
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
|
Onboard Graphics
|
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
|
|
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
|
|
* Support for DisplayPort 1.4 version and HDR.
|
|
Integrated Graphics Processor with AMD Radeon™ Graphics support:
|
|
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
|
|
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
|
|
** Support native HDMI 2.1 TMDS compatible ports.
|
|
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
|
|
* Support for HDMI 1.4 version
|
|
(Graphics specifications may vary depending on CPU support.)
|
|
Support for up to quad-display at the same time
|
Audio
|
Realtek® ALC1220 CODEC
|
|
* The back panel line out jack supports DSD audio.
|
|
High Definition Audio
|
|
2/4/5.1/7.1-channel
|
|
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
|
|
Support for S/PDIF Out
|
LAN
|
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
Wireless Communication module
|
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
|
|
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
|
|
- BLUETOOTH 5.4
|
|
- Support for 11be 160MHz wireless standard
|
|
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1/1.2)
|
|
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
|
|
- BLUETOOTH 5.4
|
|
- Support for 11be 160MHz wireless standard
|
|
(Actual data rate may vary depending on environment and equipment.)
|
|
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
|
|
**Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
|
Expansion Slots
|
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
|
|
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
|
|
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
|
|
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
|
|
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
|
|
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
|
|
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
|
|
Chipset:
|
|
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
|
|
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
|
Storage Interface
|
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
|
|
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
|
|
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
|
|
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
|
|
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
|
|
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
|
|
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.
|
|
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
|
|
4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
|
|
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
|
|
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
|
USB
|
CPU+ASMedia USB4® controller:
|
|
- 2 x USB4® USB Type-C® ports on the back panel
|
|
CPU:
|
|
- 1 x USB 3.2 Gen 1 port on the back panel
|
|
Chipset:
|
|
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
|
|
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
|
|
- 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
|
|
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
|

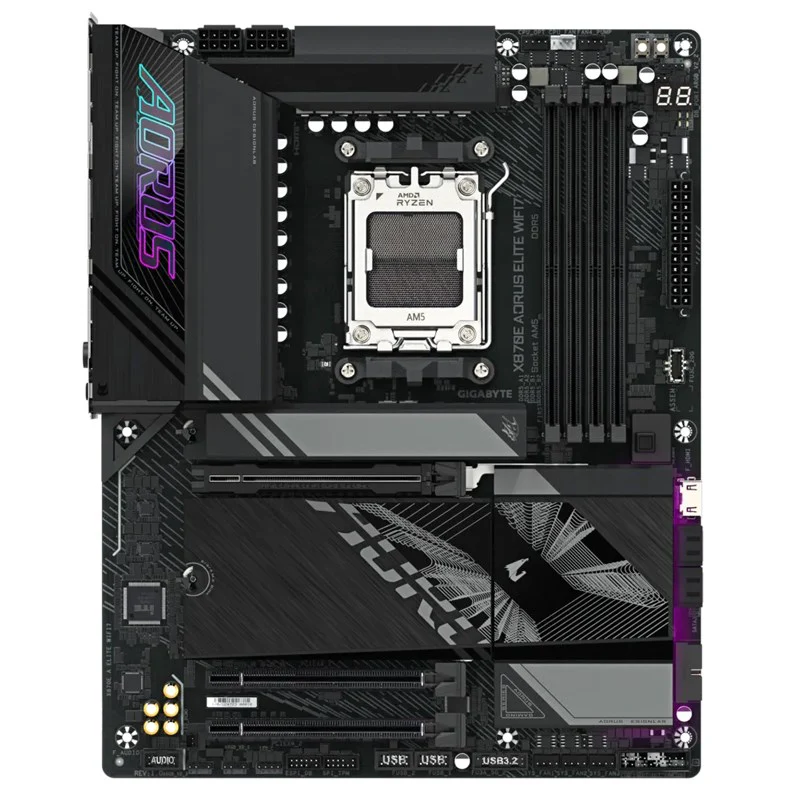

Internal I/O Connectors
|
1 x 24-pin ATX main power connector
|
|
2 x 8-pin ATX 12V power connectors
|
|
1 x CPU fan header
|
|
1 x CPU fan/water cooling pump header
|
|
3 x system fan headers
|
|
1 x system fan/water cooling pump header
|
|
3 x addressable RGB Gen2 LED strip headers
|
|
1 x RGB LED strip header
|
|
4 x M.2 Socket 3 connectors
|
|
4 x SATA 6Gb/s connectors
|
|
1 x front panel header
|
|
1 x front panel audio header
|
|
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
|
|
2 x USB 3.2 Gen 1 headers
|
|
2 x USB 2.0/1.1 headers
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
|
|
1 x HDMI port (Note)
|
|
1 x power button
|
|
1 x reset button
|
|
1 x reset jumper
|
|
1 x Clear CMOS jumper
|

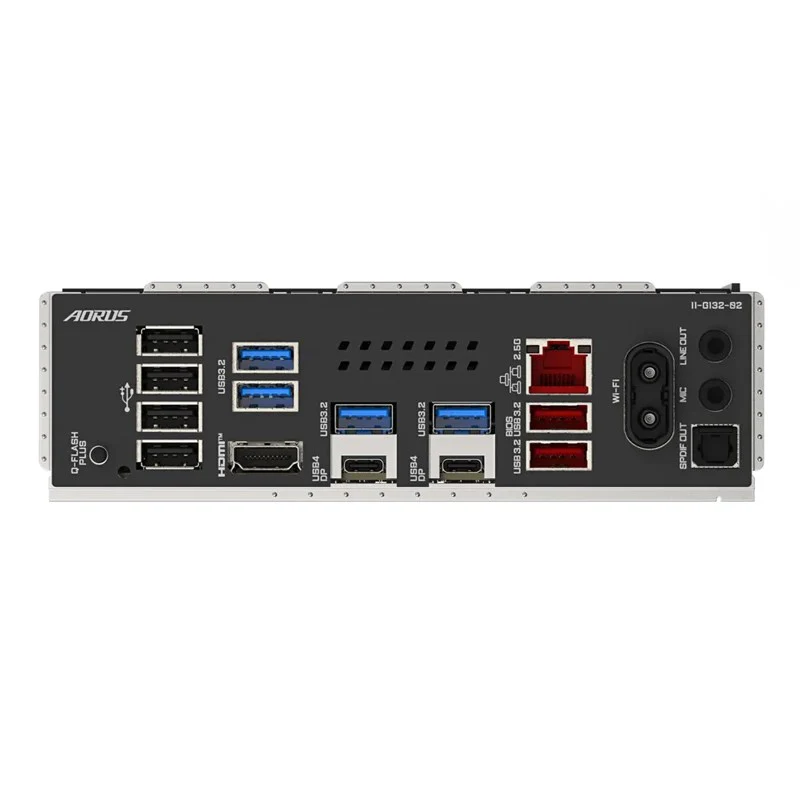

Back Panel Connectors
|
1 x Q-Flash Plus button
|
|
4 x USB 2.0/1.1 ports
|
|
4 x USB 3.2 Gen 1 ports
|
|
1 x HDMI port (Note)
|
|
2 x USB4® USB Type-C® ports (DisplayPort (Note))
|
|
1 x RJ-45 port
|
|
2 x USB 3.2 Gen 2 Type-A ports (red)
|
|
2 x antenna connectors (2T2R)
|
|
2 x audio jacks
|
|
1 x optical S/PDIF Out connector
|
I/O Controller
|
iTE® I/O Controller Chip
|
H/W Monitoring
|
Voltage detection
|
|
Temperature detection
|
|
Fan speed detection
|
|
Water cooling flow rate detection
|
|
Fan fail warning
|
|
Fan speed control
|
|
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
|
|
Noise detection
|
BIOS
|
1 x 256 Mbit flash
|
|
Use of licensed AMI UEFI BIOS
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Unique Features
|
Support for GIGABYTE Control Center (GCC)
|
|
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
|
|
Support for Q-Flash
|
|
Support for Q-Flash Plus
|
|
Support Smart Backup
|
Operating System
|
Support for Windows 11 64-bit
|
Form Factor
|
ATX Form Factor; 30.5cm x 24.4cm
|
