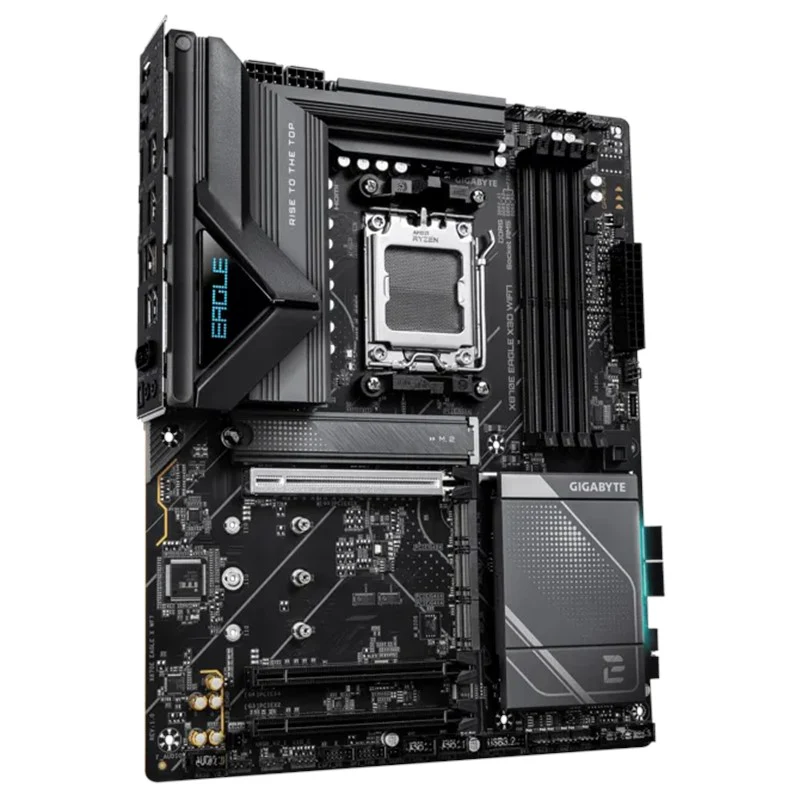

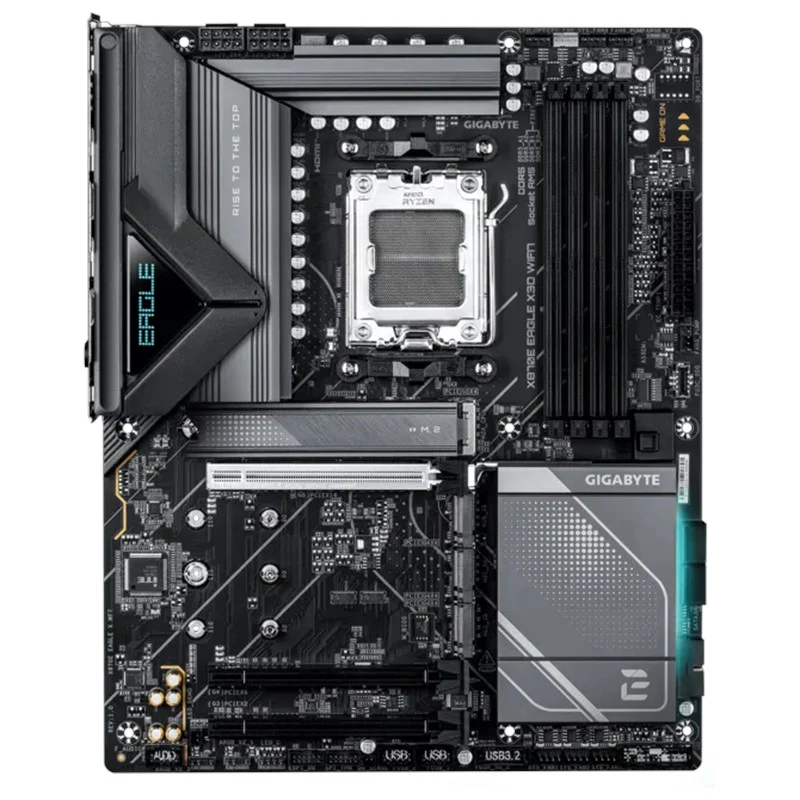

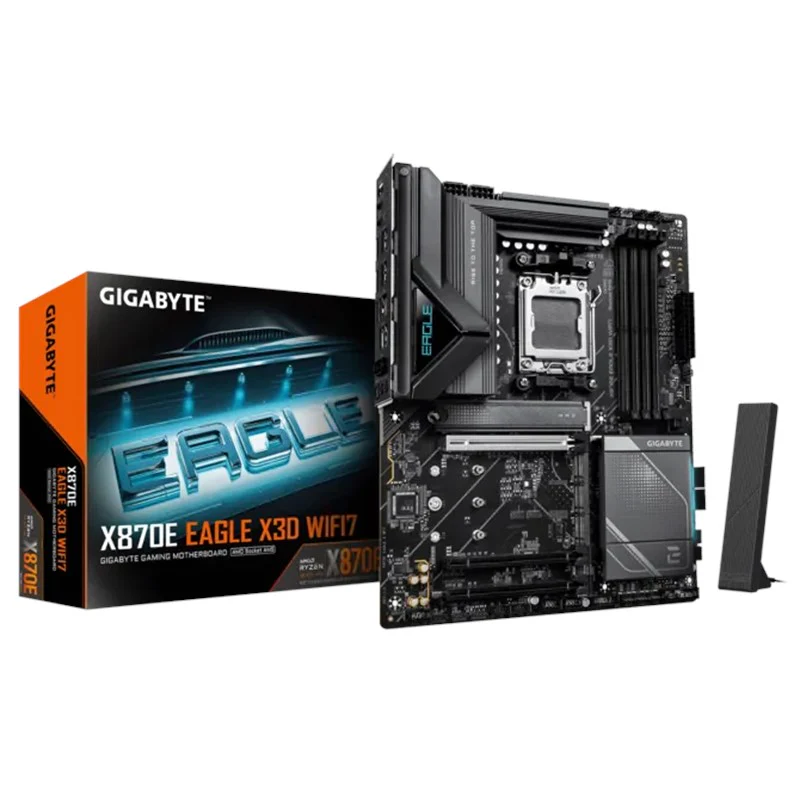

GIGABYTE X870E Eagle X WIFI7 AMD AM5 ATX Gaming Motherboard - Black

GIGABYTE X870E Eagle X WIFI7 AMD AM5 ATX Gaming Motherboard

Brand New Gaming Experience

X3D Turbo Mode 2.0

X3D Turbo Mode 2.0 delivers enhanced gaming and multitasking performance over the first generation. Built-in AI model and hardware circuits dynamically optimize X3D processor parameters in real-time, significantly boosting Ryzen X3D performance.

Through GIGABYTE's innovative X3D Turbo Mode 2.0 technology, users can enjoy a smoother gaming experience.

One-Click Acceleration: Faster, fiercer, more precise with a single click.

Memory

Infinite Memory Performance

EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Sturdy VRM Design

Steady Power

EAGLE Series with steady power keeps your AI operation smooth.

Cooling

Comprehensive Thermal

Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

Easy & Friendly

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

PCB Mastery

Enhanced PCB Design for Superior Gameplay

Serving as the cornerstone of the motherboard, the PCB holds a fundamental and vital influence on system performance.

What are the benefits of GIGABYTE X870E Gaming Motherboard ?

• Boosted Gaming Performance – X3D Turbo Mode 2.0 uses AI optimization to enhance Ryzen X3D performance for smoother gameplay.

• One-Click Acceleration – Instantly improves speed and responsiveness with a single click.

• High-Speed DDR5 Support – Optimized memory performance with excellent compatibility.

• Stable Power Delivery – Sturdy VRM design ensures reliable power for gaming and AI workloads.

• Advanced Cooling – Full-metal thermal design and durable heatsinks keep temperatures low.

• Easy DIY Build – User-friendly layout for quick, hassle-free assembly.

• Enhanced PCB Quality – Improved stability and signal integrity for better overall performance.

CPU

AMD Socket AM5, support for:

AMD Ryzen 9000 Series Processors/

AMD Ryzen 8000 Series Processors/

AMD Ryzen 7000 Series Processors

Chipset

AMD X870E

Memory

Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Audio

Realtek ALC1220 CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Qualcomm Wi-Fi 7 QCNCM865

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 5 is only available on AMD Ryzen 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Internal I/O Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

4 x system fan headers

2 x system fan/water cooling pump headers

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

4 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 x reset jumper

1 x Clear CMOS jumper

2 x temperature sensor headers

1 x noise detection header

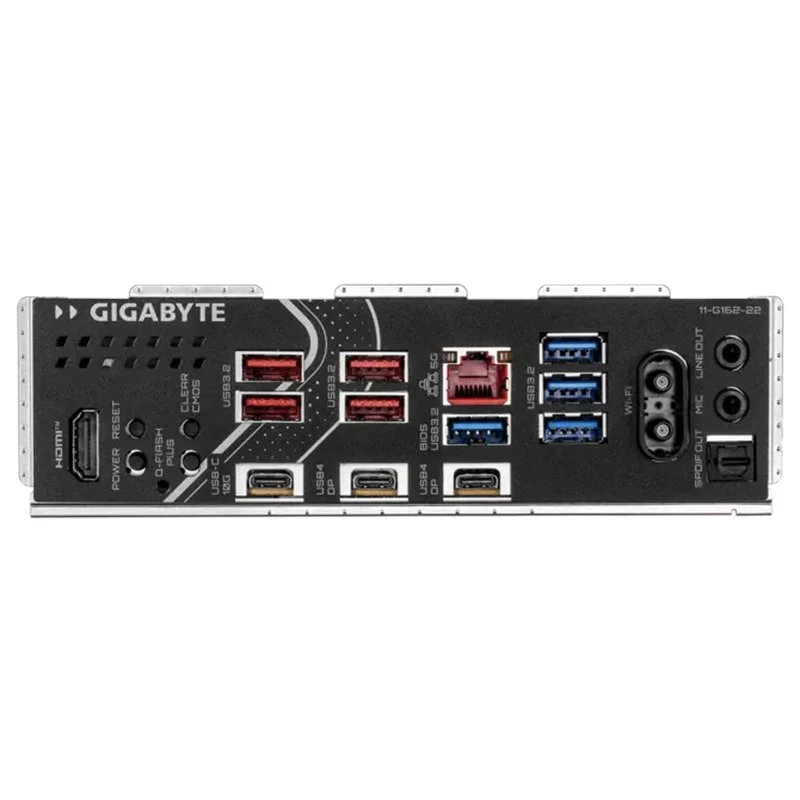

Back Panel Connectors

1 x HDMI port

1 x reset button

1 x power button

1 x Clear CMOS button

1 x Q-Flash Plus button

4 x USB 3.2 Gen 2 Type-A ports (red)

1 x USB Type-C port, with USB 3.2 Gen 2 support

2 x USB4 USB Type-C ports (DisplayPort)

1 x RJ-45 port

4 x USB 3.2 Gen 1 ports

2 x antenna connectors (2T2R)

2 x audio jacks

1 x optical S/PDIF Out connector

Actual support may vary by CPU

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Noise detection

BIOS

1 x 512 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System

Support for Windows 11 64-bit

Form Factor

ATX Form Factor; 30.5 cm x 24.4 cm
