Specifcations:
Socket
|
LGA1700 (Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors)
|
Chipset
|
Intel® Z790 Express Chipset
|
Memory
|
DDR5 8266(O.C) / 8200(O.C) / ... up to 192 GB (Dual-channel, ECC and non-ECC support, XMP support)
|
Graphics
|
Integrated Intel® HD Graphics (HDMI, DisplayPort)
|
Audio
|
Realtek® ALC1220-VB CODEC (High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out)
|
LAN
|
Intel® 2.5GbE LAN chip
|
Wireless Communication
|
MediaTek Wi-Fi 7 MT7927, Intel® Wi-Fi 7 BE200, Qualcomm® Wi-Fi 7 QCNCM865 (Wi-Fi 6E, Bluetooth 5.3)
|
Expansion Slots
|
1 x PCI Express x16 (PCIe 5.0), 2 x PCIe 4.0 x16 (x4), Other PCIe slots specified
|
Storage Interface
|
M.2 (PCIe 4.0), SATA 6Gb/s, RAID support
|
USB Ports
|
USB Type-C® (Gen 2x2), USB Type-C® (Gen 2), USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0/1.1
|
Internal Connectors
|
Various power connectors, fan headers, RGB LED strip headers, M.2 connectors, SATA connectors, USB headers, Thunderbolt™ connectors, TPM header, etc.
|

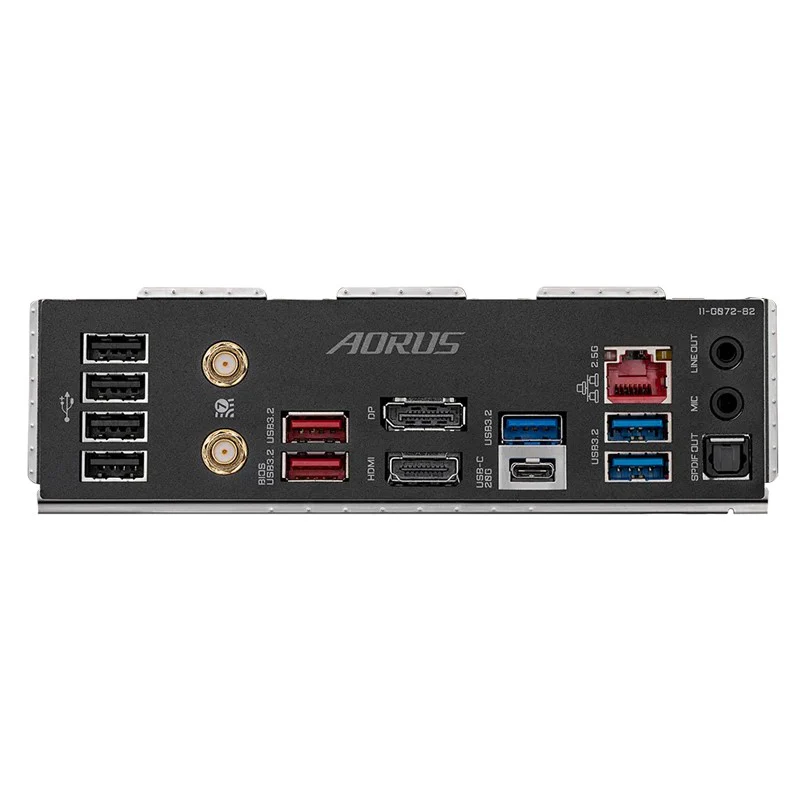

Back Panel Connectors
|
USB Type-C®, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0/1.1, HDMI, DisplayPort, RJ-45, optical S/PDIF Out, audio jacks
|
BIOS
|
256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Unique Features
|
GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
|
Bundled Software
|
Norton® Internet Security (OEM version), LAN bandwidth management software
|
Operating System Support
|
Windows 11 64-bit
|
Form Factor
|
ATX (30.5cm x 24.4cm)
|
|
