CPU
|
LGA1851 socket: Support for Intel® Core™ Ultra Processors
|
|
L3 cache varies with CPU
|
Chipset
|
Intel® Z890 Express Chipset
|
Memory
|
Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
|
|
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
|
|
Dual channel memory architecture
|
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
|
|
Support for Extreme Memory Profile (XMP) memory modules
|
|
Support CUDIMM memory module
|
|
The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules
|
Onboard Graphics
|
Integrated Graphics Processor-Intel® HD Graphics support:
|
|
- 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs
|
|
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
|
|
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
|
|
* Support for DisplayPort 2.1 version and HDCP 2.3
|
|
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
|
|
* Support for HDMI 1.4 version.
|
|
(Graphics specifications may vary depending on CPU support.)
|
|
Support for up to triple-display at the same time
|
Audio
|
Realtek® ALC1220 CODEC
|
|
* The front panel line out jack supports DSD audio.
|
|
ESS ES9118 DAC chip
|
|
Support for DTS:X® Ultra
|
|
High Definition Audio
|
|
2/4/5.1-channel
|
|
* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
|
|
Support for S/PDIF Out
|
LAN
|
Marvell® AQtion AQC113C 10GbE LAN chip
|
|
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
|
Wireless Communication module
|
Intel® Wi-Fi 7 BE200NGW
|
|
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
|
|
- BLUETOOTH 5.4
|
|
- Support for 11be 320MHz wireless standard
|
|
(Actual data rate may vary depending on environment and equipment.)
|
|
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
|
|
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
|
Expansion Slots
|
CPU:
|
|
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
|
|
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
|
|
* The PCIEX16 slot shares bandwidth with the M2D_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2D_CPU connector.
|
|
Chipset:
|
|
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
|
|
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
|
|
Storage Interface
|
|
CPU:
|
|
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
|
|
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
|
|
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU)
|
|
Chipset:
|
|
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
|
|
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
|
|
- 4 x SATA 6Gb/s connectors
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
|
USB
|
CPU:
|
|
- 2 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
|
|
*Support up to 40Gbps with Thunderbolt devices
|
|
*Support up to 20Gbps with USB4 devices
|
|
*Support up to 10Gbps with USB 3.2 devices
|
|
Chipset:
|
|
- 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
|
|
Chipset+USB 3.2 Gen 2x2 Hub:
|
|
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
|
|
Chipset+2 USB 3.2 Gen 1 Hubs:
|
|
- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
|
|
Chipset+2 USB 2.0 Hubs:
|
|
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
|
Internal I/O Connectors
|
1 x 24-pin ATX main power connector
|
|
2 x 8-pin ATX 12V power connectors
|
|
1 x CPU fan header
|
|
1 x CPU fan/water cooling pump header
|
|
4 x system fan headers
|
|
4 x system fan/water cooling pump headers
|
|
4 x addressable RGB Gen2 LED strip headers
|
|
1 x RGB LED strip header
|
|
5 x M.2 Socket 3 connectors
|
|
4 x SATA 6Gb/s connectors
|
|
1 x front panel header
|
|
1 x front panel audio header
|
|
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
|
|
2 x USB 3.2 Gen 1 headers
|
|
2 x USB 2.0/1.1 headers
|
|
1 x noise detection header
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
|
|
1 x HDMI port (Note)
|
|
1 x power button
|
|
1 x reset button
|
|
1 x reset jumper
|
|
1 x Clear CMOS jumper
|
|
2 x temperature sensor headers
|
|
Voltage Measurement Points
|
|
(Note) Actual support may vary by CPU
|

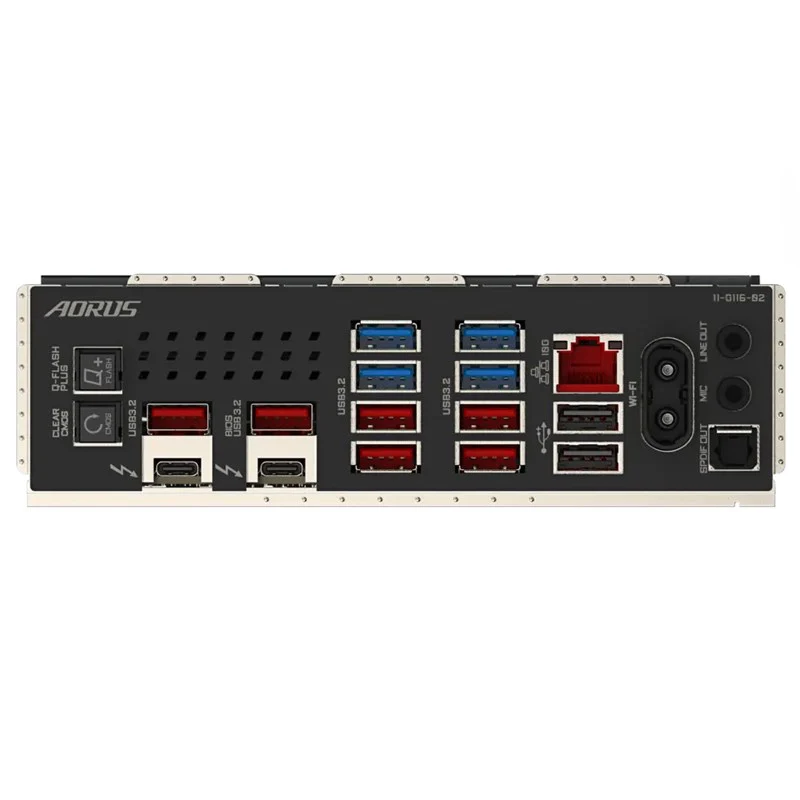

Back Panel Connectors
|
1 x Q-Flash Plus button
|
|
1 x Clear CMOS button
|
|
2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
|
|
6 x USB 3.2 Gen 2 Type-A ports (red)
|
|
4 x USB 3.2 Gen 1 ports
|
|
2 x USB 2.0/1.1 ports
|
|
1 x RJ-45 port
|
|

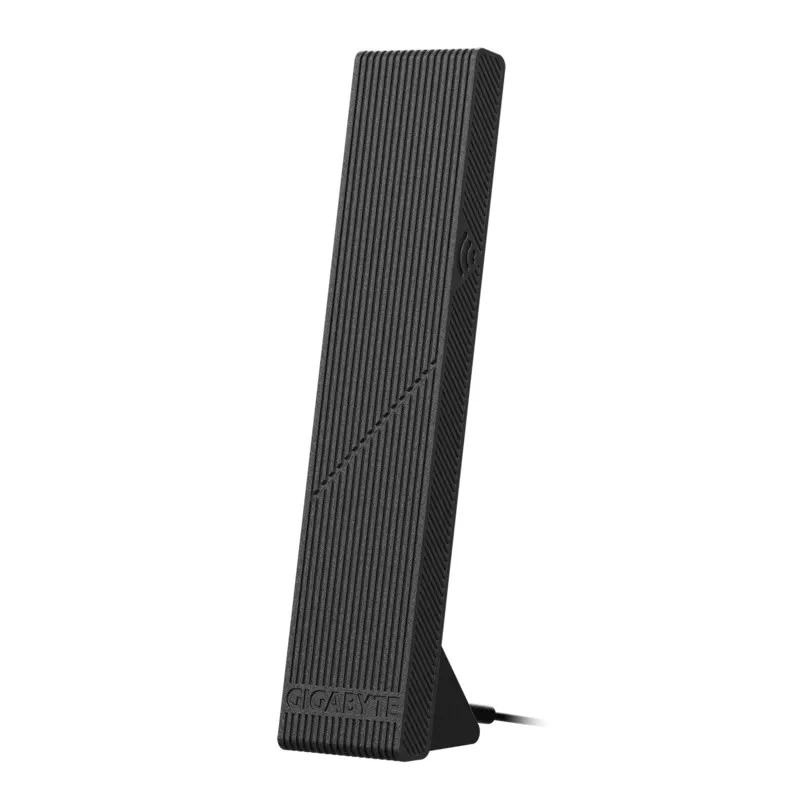

2 x antenna connectors (2T2R)
|
|
2 x audio jacks
|
|
1 x optical S/PDIF Out connector
|
|
I/O Controller
|
|
iTE® I/O Controller Chip
|
|
H/W Monitoring
|
|
Voltage detection
|
|
Temperature detection
|
|
Fan speed detection
|
|
Water cooling flow rate detection
|
|
Fan fail warning
|
|
Fan speed control
|
|
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
|
|
Noise detection
|
BIOS
|
1 x 256 Mbit flash
|
|
Use of licensed AMI UEFI BIOS
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Unique Features
|
Support for GIGABYTE Control Center (GCC)
|
|
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
|
|
Support for Q-Flash
|
|
Support for Q-Flash Plus
|
|
Support for Smart Backup
|
Bundled Software
|
Norton® Internet Security (OEM version)
|
|
LAN bandwidth management software
|
Operating System
|
Support for Windows 11 64-bit
|
Form Factor
|
ATX Form Factor; 30.5cm x 24.4cm
|
