Gigabyte Z890 EAGLE WIFI 7 ATX Gaming Motherboard

Gigabyte Z890 EAGLE WIFI 7 ATX Gaming Motherboard

Name: Gigabyte Z890 EAGLE WIFI 7 ATX Gaming Motherboard
Brand: Blink
SKU: gigabyte-z890-eagle-wifi-7-atx-gaming-motherboard
Availability: InStock

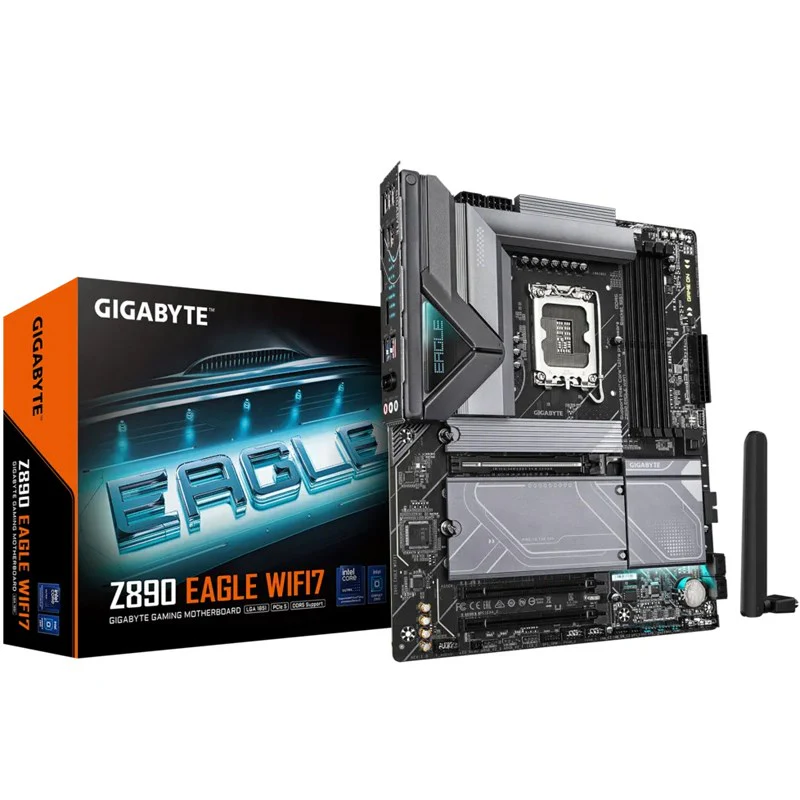

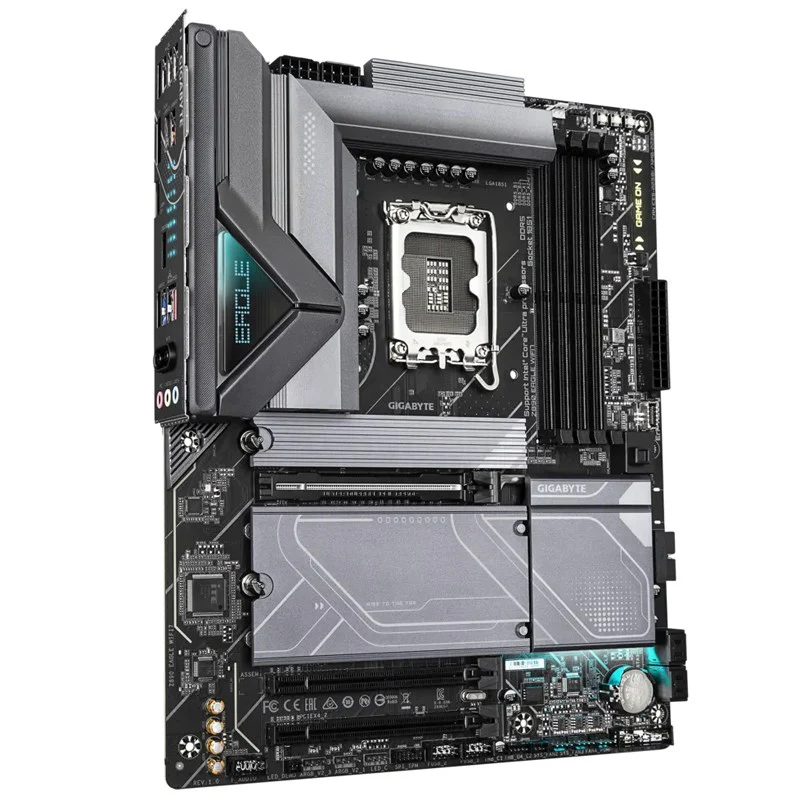

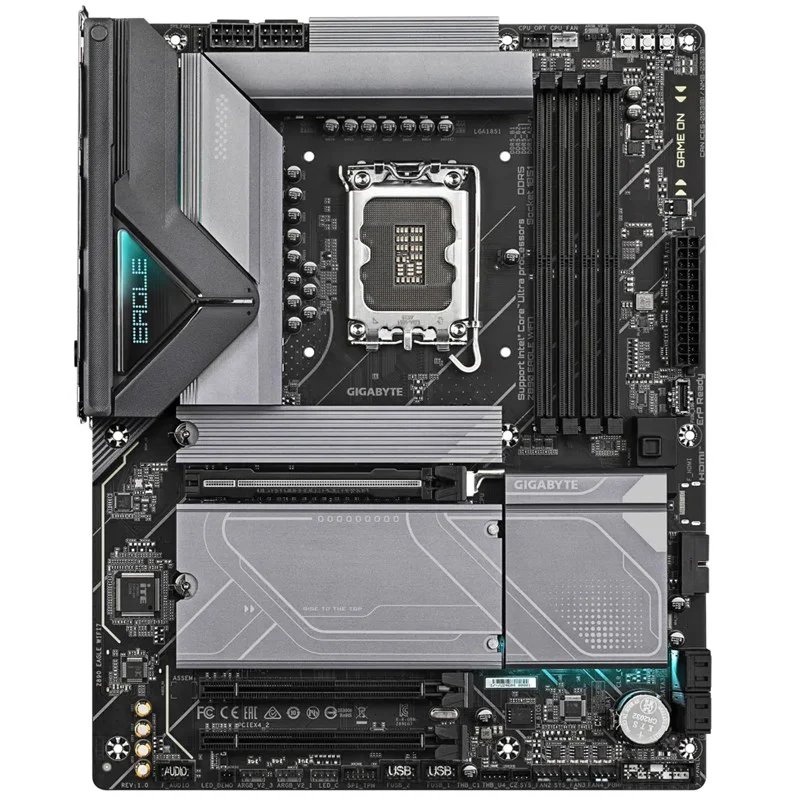

Z890 EAGLE WIFI7

Designed for gamers, the matte black Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard from Gigabyte supports Intel Core Ultra Series 2 processors that fit into the LGA 1851 socket. With four DDR5 slots, one PCIe 5.0 x16 slot with UD, two PCIe 4.0 x16/x4 slots, one M.2 25110/22110/2580/2280 PCIe slot, two 22110/2280 PCIe slots, one M.2 22110/2280 PCIe/SATA slot, and four SATA III 6 Gb/s slots, you'll be able to build a powerful gaming rig. With EZ-Latch Plus and Click, installing a graphics card and M.2 SSDs with heat sinks is user-friendly and doesn't require tools. For online connectivity, the motherboard provides fast connectivity with 2.5GbE LAN and Wi-Fi 7 (802.11be). Other integrated features include Bluetooth 5.4, support for up to 256GB of DDR5 memory with XMP support, automatic AI overclocking, and more.

For your external peripherals, there is one USB4 port with DisplayPort 2.1 (3840 x 2160 at 144 Hz), two USB-A 3.2 Gen 2 ports, three USB-A 3.2 Gen 1 ports, four USB-A 2.0 ports, and three 3.5mm jacks.

Please note that this motherboard requires Windows 11 (64-bit).

Supports Intel Core Ultra processors (Series 2)

Digital twin 14+1+2 phases VRM solution

D5 Bionic Corsa for Infinite Memory Performance

AORUS AI SNATCH

Automatic overclocking software by AI models.

AI Perfdrive

Provides optimal and customized BIOS preset profile for user.

Premium Compatibility

Four DDR5 slots with XMP memory module support.

WIFI EZ-Plug

Quick and easy design for Wi-Fi antenna installation.

EZ-Latch Plus

PCIe and M.2 slots with quick release and screwless design.

EZ-Latch Click

M.2 heat sinks with screwless design.

Sensor Panel Link

Onboard video port for hassle-free in-chassis panel setup.

Friendly UI

Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

Power Monitor

New Power Monitor in HWinfo for real time monitoring on CPU power phases.

Fast Storage

Four M.2 slots, including one PCIe 5.0 x4 slot.

Efficient Thermals

VRM Thermal Armor Advanced and M.2 Thermal Guard L.

Fast Networking

2.5GbE LAN & Wi-Fi 7 (802.11be) with directional ultra-high gain antenna.

Extended Connectivity

USB4 with DisplayPort support via USB-C.

PCIe UD Slot X

PCIe 5.0 x16 slot with 10x greater strength for graphics cards.

Specifications:

CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors
	L3 cache varies with CPU
Chipset	Intel® Z890 Express Chipset
Memory	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	Support CUDIMM memory module
	The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
	* Support for DisplayPort 2.1 version
	- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
	* Support for DisplayPort 2.1 version
	(Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
	- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.4
	- Support for 11be 160MHz wireless standard
	Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
	- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.4
	- Support for 11be 160MHz wireless standard
	(Actual data rate may vary depending on environment and equipment.)
	* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
	** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Expansion Slots	CPU:
	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
Storage Interface	CPU:
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
	- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
	Chipset:
	- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
	- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
	- 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	CPU:
	- 1 x USB4® USB Type-C® port on the back panel
	Chipset:
	- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
	- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
	Chipset+2 USB 2.0 Hubs:
	- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	2 x 8-pin ATX 12V power connectors
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	3 x system fan headers
	1 x system fan/water cooling pump header
	3 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	4 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 2 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	2 x Thunderbolt™ add-in card connectors
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x power button
	1 x Q-Flash Plus button
	1 x reset button
	1 x reset jumper
	1 x Clear CMOS jumper

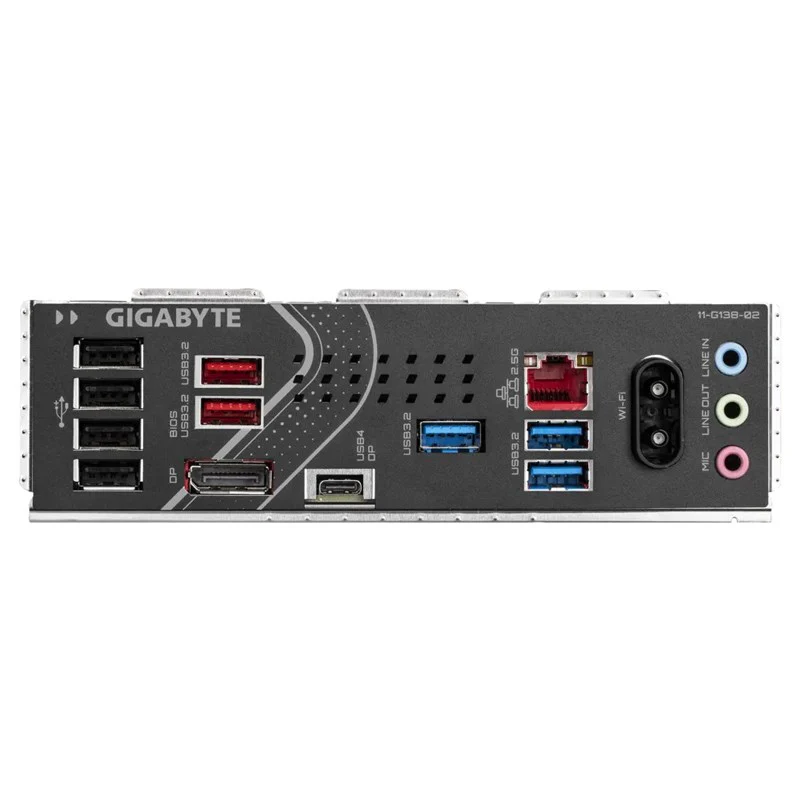

Back Panel Connectors	1 x USB4® USB Type-C® port (DisplayPort (Note))
	2 x USB 3.2 Gen 2 Type-A ports (red)
	3 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	1 x DisplayPort (Note)
	2 x antenna connectors (2T2R)
	1 x RJ-45 port
	3 x audio jacks
	(Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
	Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
