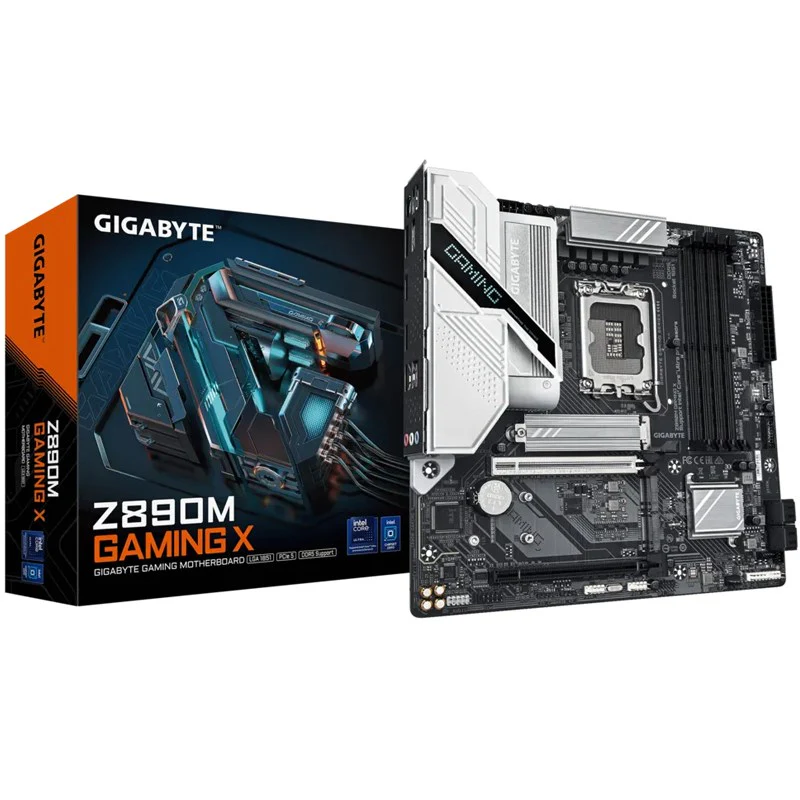

GIGABYTE Z890M GAMING X M-ATX Gaming Motherboard

GIGABYTE Z890M GAMING X M-ATX Gaming Motherboard

Name: GIGABYTE Z890M GAMING X M-ATX Gaming Motherboard
Brand: Blink
SKU: gigabyte-z890m-gaming-x-m-atx-gaming-motherboard
Availability: InStock

Z890M GAMING X

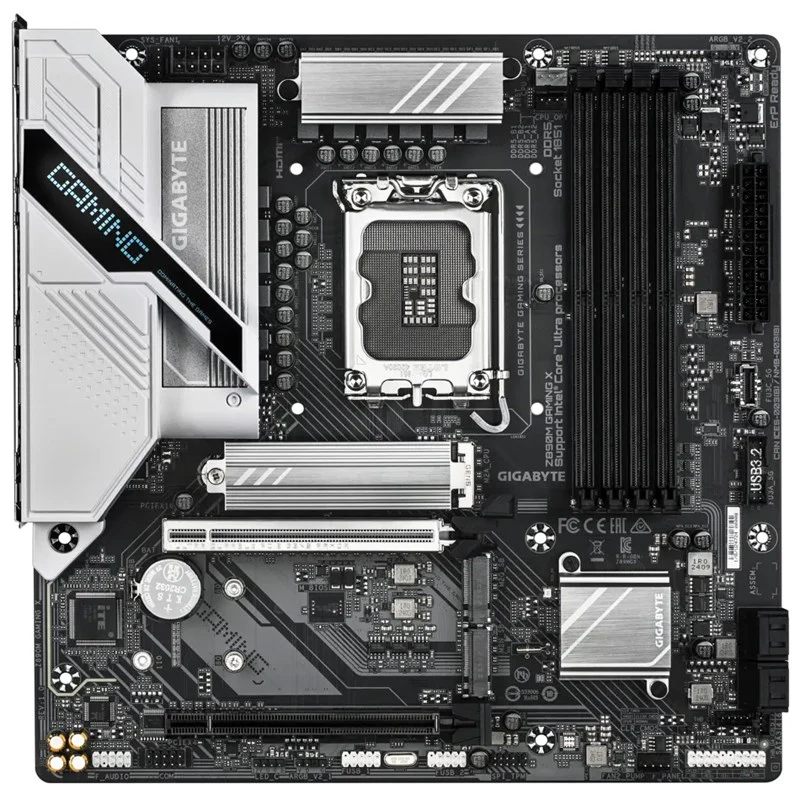

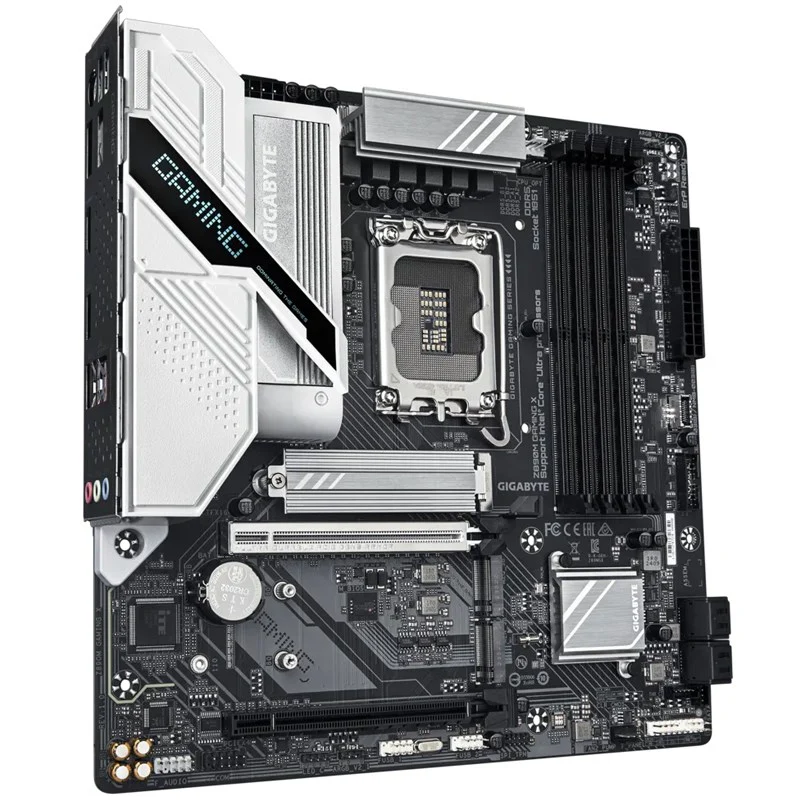

Designed for gamers, the matte black Z890M GAMING X LGA 1851 Micro-ATX Motherboard from Gigabyte supports Intel Core Ultra Series 2 processors that fit into the LGA 1851 socket. With four DDR5 slots, one PCIe 5.0 x16 slot with UD, one PCIe 4.0 x16/x4 slot, one M.2 2580/2280 PCIe SSD slot, one M.2 2280 PCIe SSD slot, one M.2 25110/22110/2580/2280 PCIe slot, and four SATA III 6 Gb/s slots, you'll be able to build a powerful gaming rig. With EZ-Latch, installing a graphics card and M.2 SSDs with heat sinks is user-friendly and doesn't require tools. For online connectivity, the motherboard provides fast connectivity with 2.5GbE LAN. Other integrated features include support for up to 256GB of DDR5 memory with XMP support, automatic AI overclocking, two Thunderbolt add-in card connectors, and more.

For your external peripherals, there are three USB-A 3.2 Gen 1 ports, two USB-A 2.0 ports, two DisplayPort 2.1 ports (4096 x 2304 at 60 Hz), one HDMI 2.1 port (4096 x 2160 at 60 Hz), and three 3.5mm jacks. All in all, this motherboard can support three external displays.

Please note that this motherboard requires Windows 10 or 11 (64-bit).

Supports Intel Core Ultra processors (Series 2)

Digital twin 8+1+2 phases VRM solution

D5 Bionic Corsa

For Infinite Memory Performance

AORUS AI SNATCH

Automatic overclocking software by AI models.

AI Perfdrive

Provides optimal and customized BIOS preset profile for user.

Premium Compatibility

Four DDR5 slots with XMP memory module support.

PCIe EZ-Latch

PCIe slots with Quick Release and screwless design

Friendly UI

Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

Power Monitor

New Power Monitor in HWinfo for real time monitoring on CPU power phases.

Fast Storage

Three M.2 slots, including one PCIe 5.0 x4 slot.

Efficient Thermals

VRM Thermal Armor Advanced and M.2 Thermal Guard.

Fast Networking

2.5GbE LAN.

Extended Connectivity

HDMI and DisplayPort.

Specifications:

CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors
	L3 cache varies with CPU
Chipset	Intel® Z890 Express Chipset
Memory	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	Support CUDIMM memory module
	The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support for native HDMI 2.1 TMDS compatible ports.
	- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 2.1 version.
	(Graphics specifications may vary depending on CPU support.)
	Support for up to triple-display at the same time
Audio	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	CPU:
	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface	CPU:
	- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
	- 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset:
	- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
	- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
	- 2 x USB 2.0/1.1 ports on the back panel
	Chipset+2 USB 2.0 Hubs:
	- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	1 x system fan header
	1 x system fan/water cooling pump header
	2 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	3 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	2 x Thunderbolt™ add-in card connectors
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x serial port header
	1 x Clear CMOS jumper

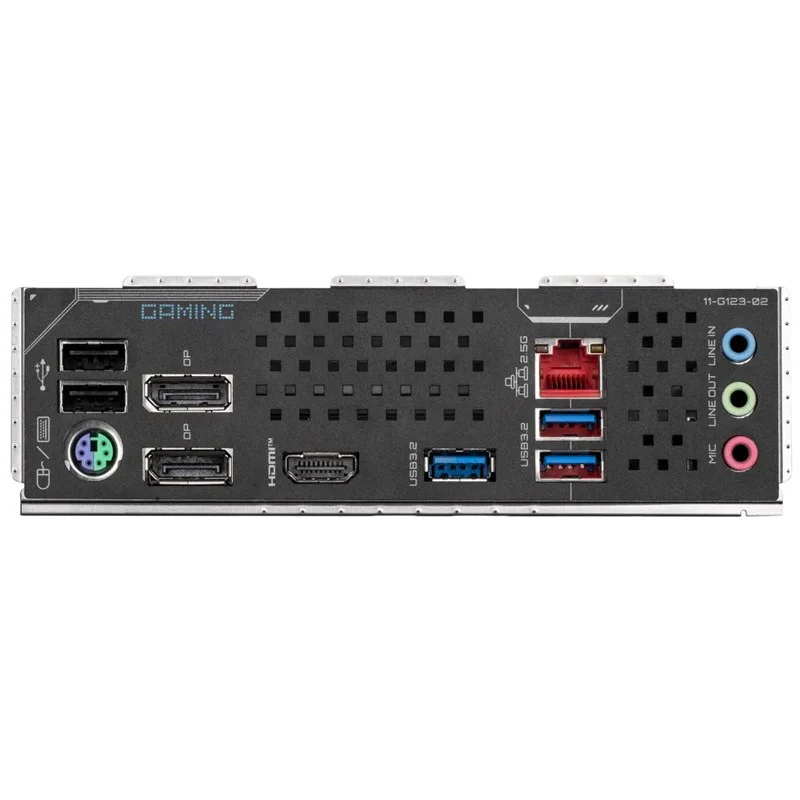

Back Panel Connectors	1 x PS/2 keyboard/mouse port
	3 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x HDMI port (Note)
	2 x DisplayPorts (Note)
	1 x RJ-45 port
	3 x audio jacks
	(Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
	H/W Monitoring
	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functionsof each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

$223.23
