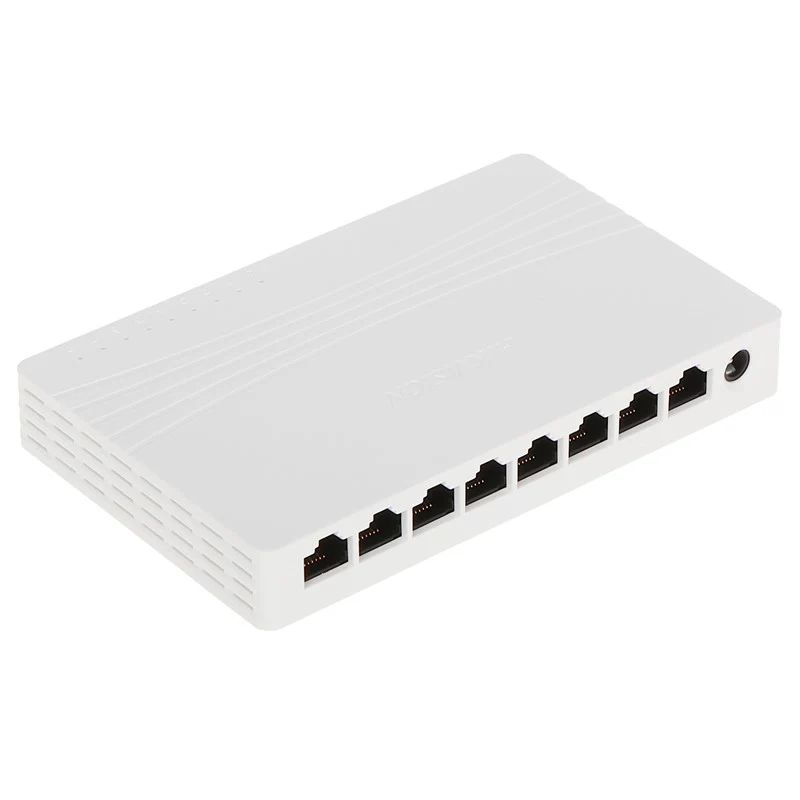

Hikvision 8 Port 10/100/1000 Gigabit Unmanaged Desktop Switch
Hikvision 8 Port 10/100/1000 Gigabit Unmanaged Desktop Switch |
8 x 10/100/1000 Mbps ethernet portsSupports ADI/ADIXStore-and-forward switchingSupports MAC address auto-learning and agingSimple, compact body designSupports desktop and wall-mountingPlug & play, easy to use. |
Specification
Network Parameters |
 |
Port Number |
8 |
Port Type |
10/100/1000 Mbps RJ45 ports |
Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
Forwarding Mode |
Store-and-forward switching |
MAC Address Table |
4K |
Switching Capacity |
16 Gbps |
Packet Forwarding Rate |
11.904 Mpps |
Shell |
ABS |
Net Weight |
0.07 kg (0.15 lb) |
Dimension (L Ă— H Ă— D) |
142.00 mm Ă— 90.00 mm Ă— 23.00 mm (5.60'' Ă— 3.54'' Ă— 0.91'') |
Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
Storage Temperature |
–40 °C to 70 °C (–40 °F to 158 °F) |
Operating Humidity |
10%~90% RH non-condensing |
Storage Humidity |
5%~90% RH non-condensing |
Power Supply |
9 V DC, 0.6 A |
Â
Original: $15.85
-65%$15.85
$5.55Product Information
