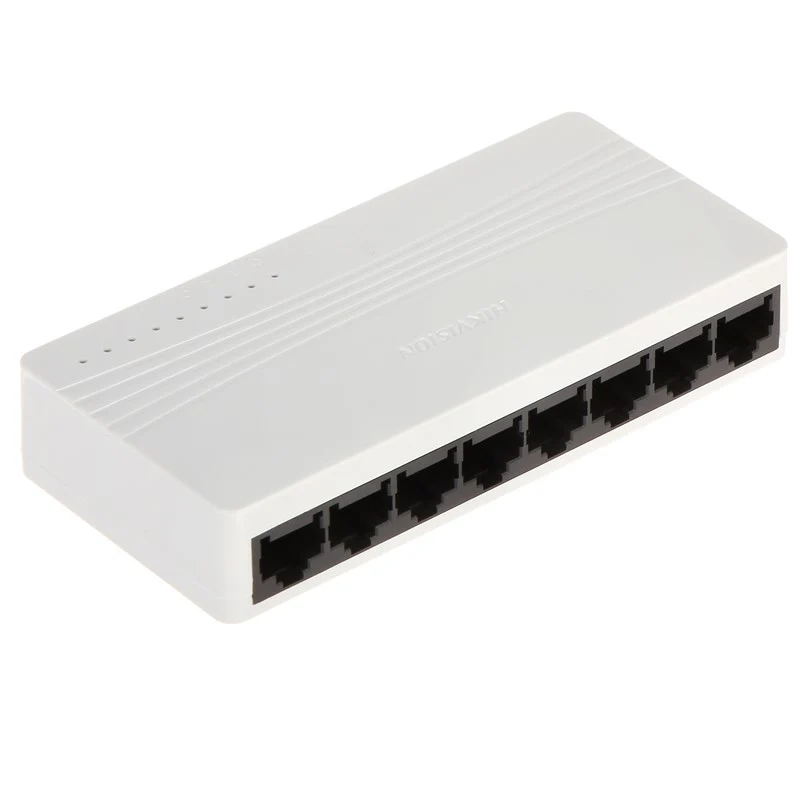

Hikvision 8 Port 10/100 Unmanaged Desktop Switch

Hikvision 8 Port 10/100 Unmanaged Desktop Switch

8 x 10/100 Mbps ethernet ports

Supports ADI/ADIX

Store-and-forward switching

Supports MAC address auto-learning and aging

Simple, compact body design

Supports desktop and wall-mounting

Plug & play, easy to use.

Network Parameters

Port Number

8

Port Type

10/100 Mbps RJ45 ports

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Forwarding Mode

Store and forward

MAC Address Table

1 K

Switching Capacity

1.6 Gbps

Packet Forwarding Rate

1.1904 Mpps

Shell

ABS

Net Weight

0.041 kg

Dimension (L × H × D)

124 × 59 × 23.2 mm

Operating Temperature

0°C~40°C

Storage Temperature

-40°C~70°C

Operating Humidity

10%~90% RH non-condensing

Storage Humidity

5%~90% RH non-condensing

Power Supply

5 V DC, 0.6 A
