i5 GAMING PC, i5-13400F, RTX 3050 8GB, Windows 11 PRO

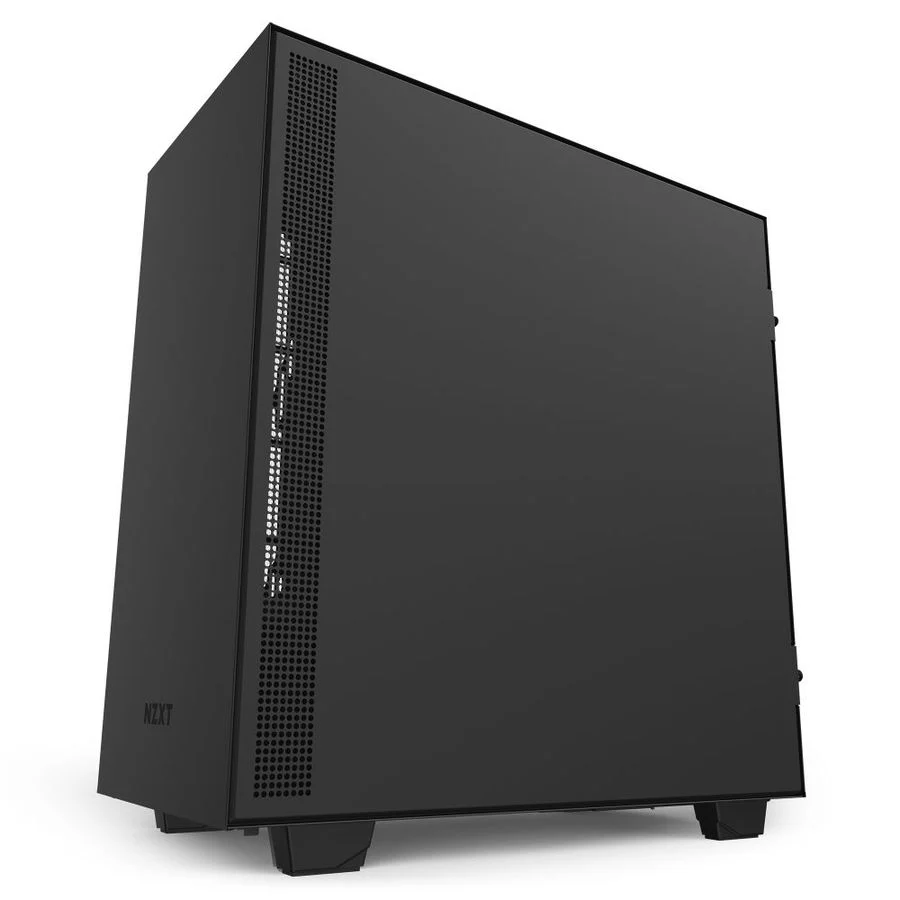

The NZXT H510i Mid-Tower Case

The NZXT H510i Mid-Tower Case features a sleek and minimalistic design with plenty of helpful additions for a clean and easy build. Aside from its signature cable management bar, it also has a PSU shroud and a built-in cable management system at the back.

Smarter Design

It supports up to an ATX motherboard, three 2.5" or 3.5" drives, and three dual-slot graphics cards. Alternatively, you can install a single dual-slot graphics card vertically using an optional riser cable.

Whether you choose to liquid cool or not, the H510i supports up to two 120/140mm fans at the front, a 120/140mm fan at the rear, and another 120/140mm fan at the top.

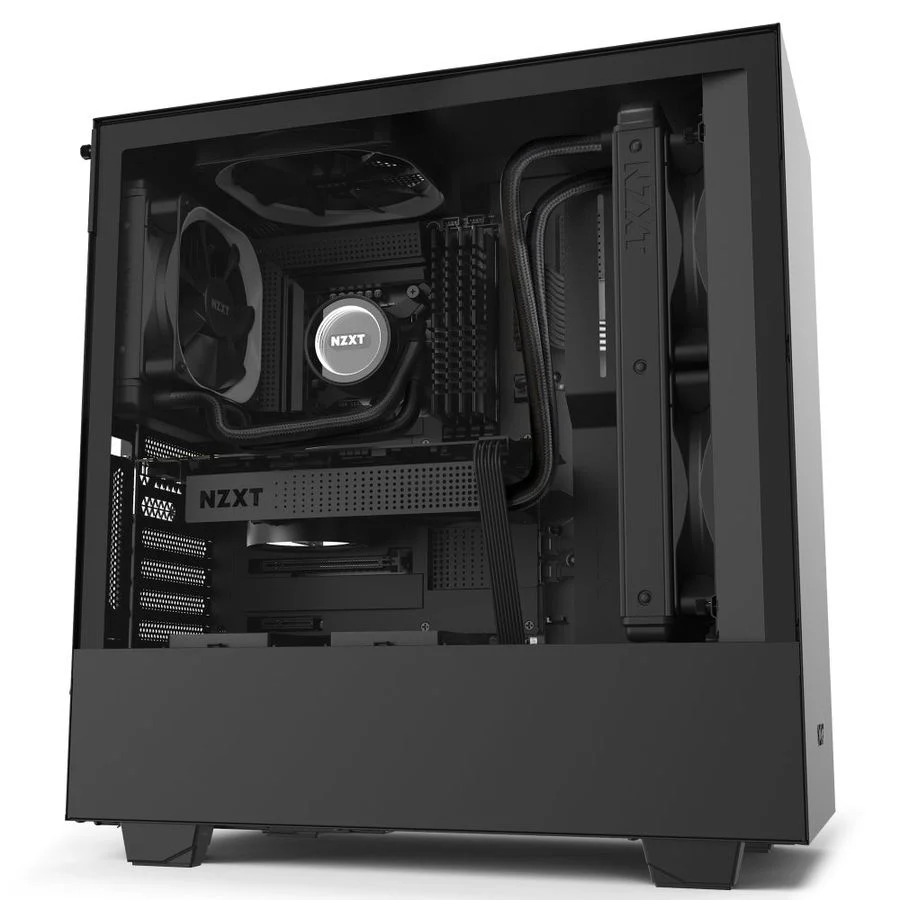

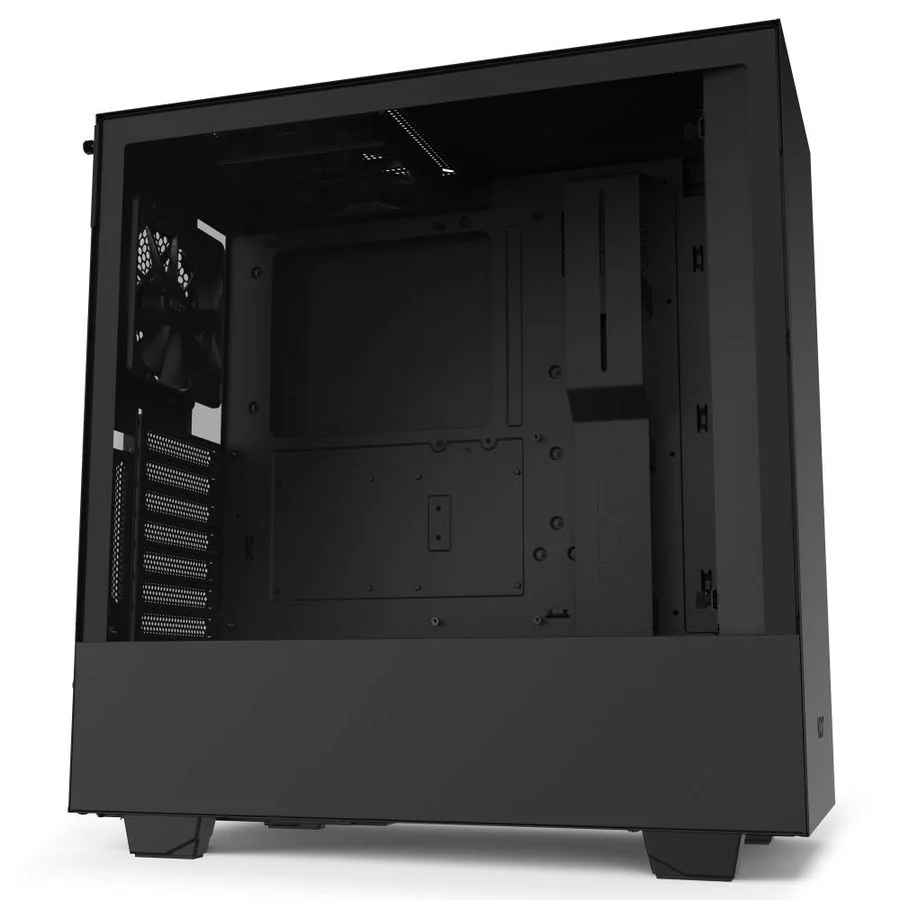

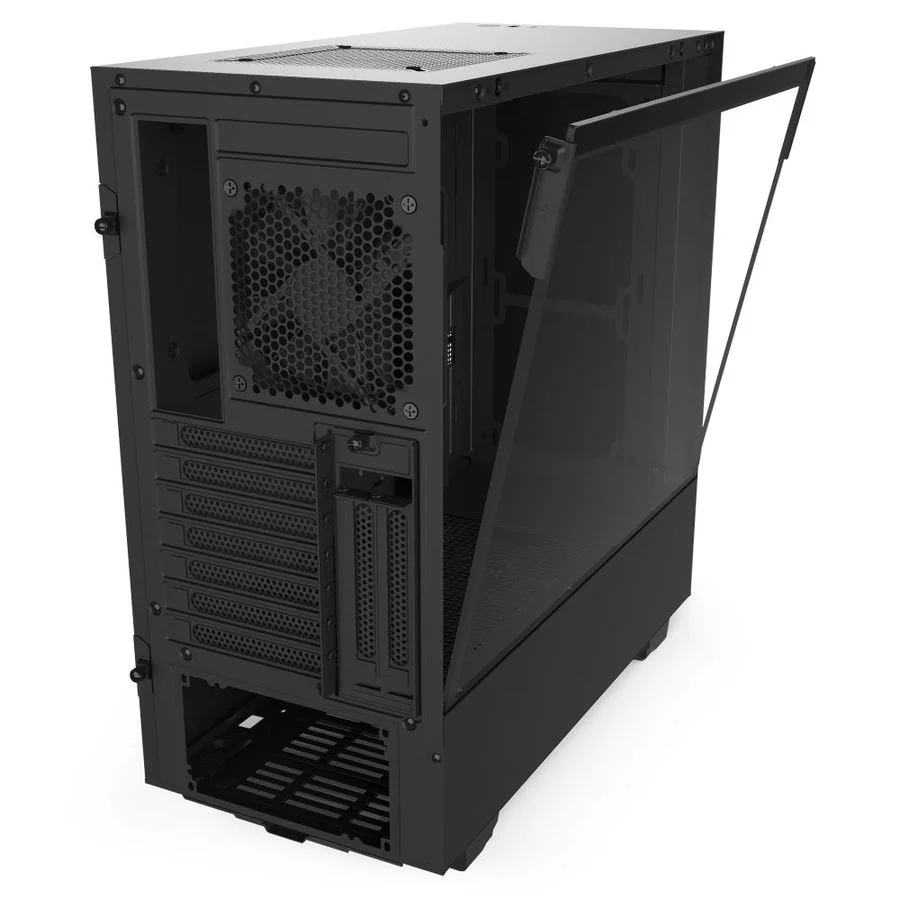

Thanks to its tempered-glass side panel, you can show off your hardware along with any custom LED lighting.

This "i" version of the H510 case includes NZXT's CAM-powered Smart Device, which is a fan and RGB LED lighting control unit.

More Modern

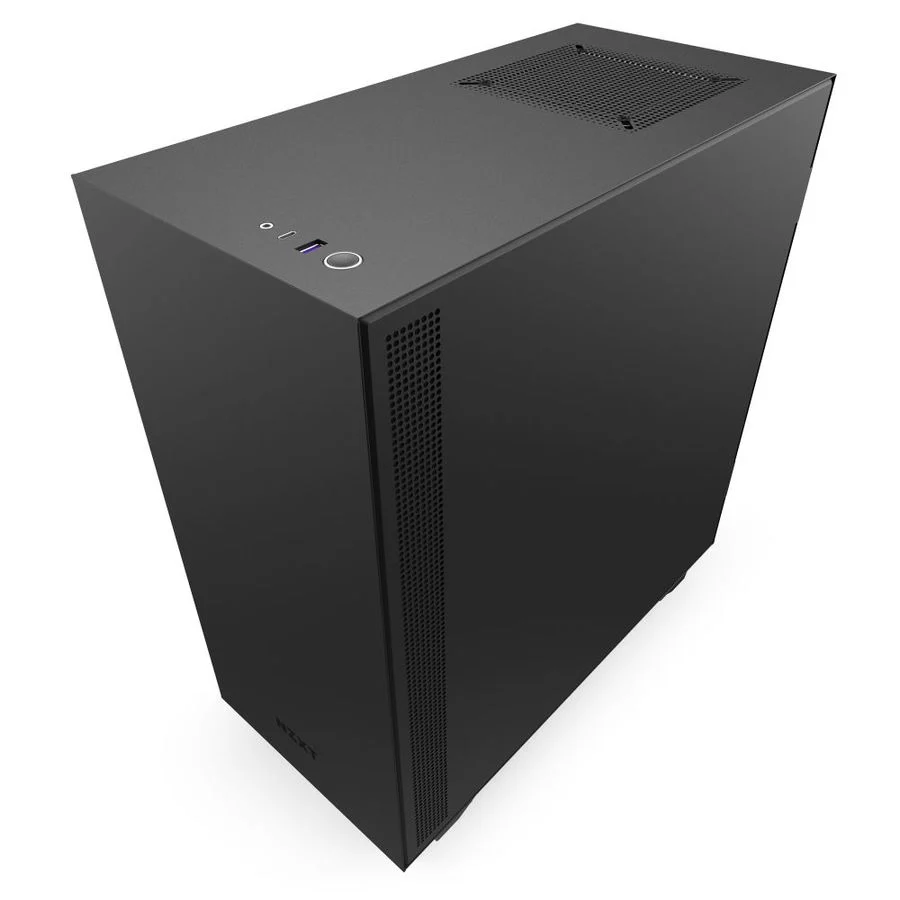

With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC.

Eye Catching

The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.

Enjoyable Builds For All

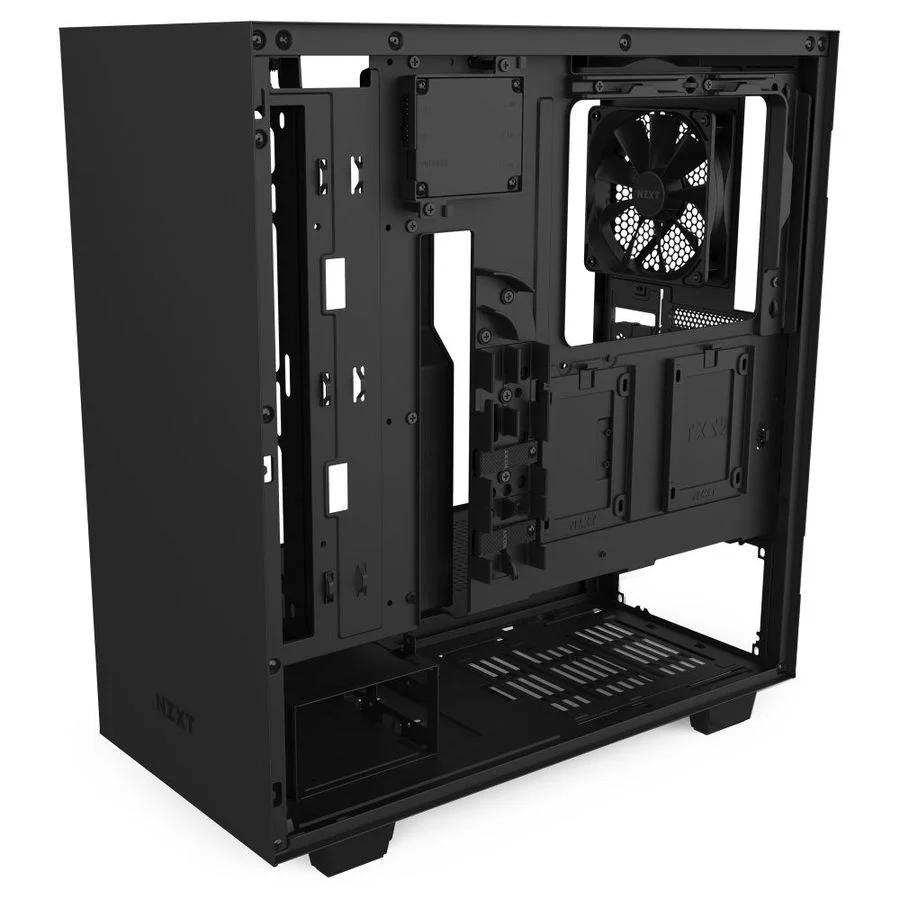

Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring

Dimensions

W: 210mm H: 435mm D: 428mm (without feet) / W: 210mm H: 460mm D: 428mm (with feet)

Material(s)

SGCC Steel, Tempered Glass

Weight

6.8 kg

Motherboard Support

Mini-ITX, MicroATX, and ATX

Front I/O Ports

1x USB 3.1 Gen 2 Type-C  / 1x Headset audio Jack /  1x USB 3.1 Gen 1 Type-A / Front I/O internal header / 1x USB 3.1 Gen 2 Internal Header / 1x USB 3.1 Gen 1 Internal Header / 1x USB 2.0 Internal Header / 1x HD Audio Header/

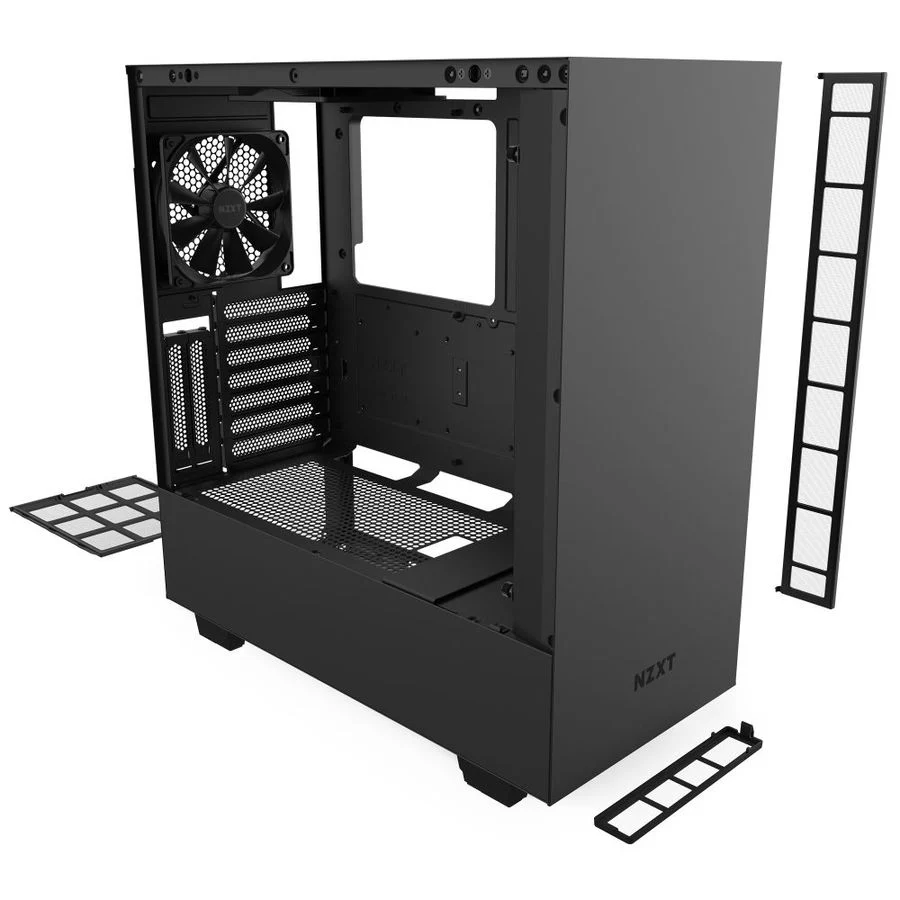

Filters

All Air Intakes

Smart Device V2

3x Fan channels with Max 10W per channel output / 2x RGB LED port support up to 4x HUE 2 addressable LED strips or 5x Aer RGB or Aer RGB 2 fans / Built-in noise detection module/

LED Strip(s)

2 integrated addressable LED strip

Vertical GPU Mount

2 Slots

Included Accessories

Installation screws / 10x Cable ties / 1x Headset Audio Jack splitter (4 pole to 3 pole) /

Drive Bays

2.5”: 2+1 / 3.5”: 2+1

Expansion Slots

7

Radiator Support

Front: 2x 140 or 2x 120mm with Pull / Rear: 1x 120mm /

Fan Support

Front: 2 x 120/ 2 x 140mm / Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included) / Rear: 1x 120mm (1 Aer F120 Case Version included) /

Fan Specs

Aer F120 (Case Version) / Speed: 1200 ± 200 RPM /  Airflow: 50.42 CFM / Noise: 28 dBA / Bearing: Rifle Bearing /

Clearance

Cable Management: 19-23mm / GPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installed / Vertical GPU Mount Clearance: 40.64mm / CPU Cooler: Up to 165mm / Front Radiator: 60mm / Rear Radiator: 60mm / Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
