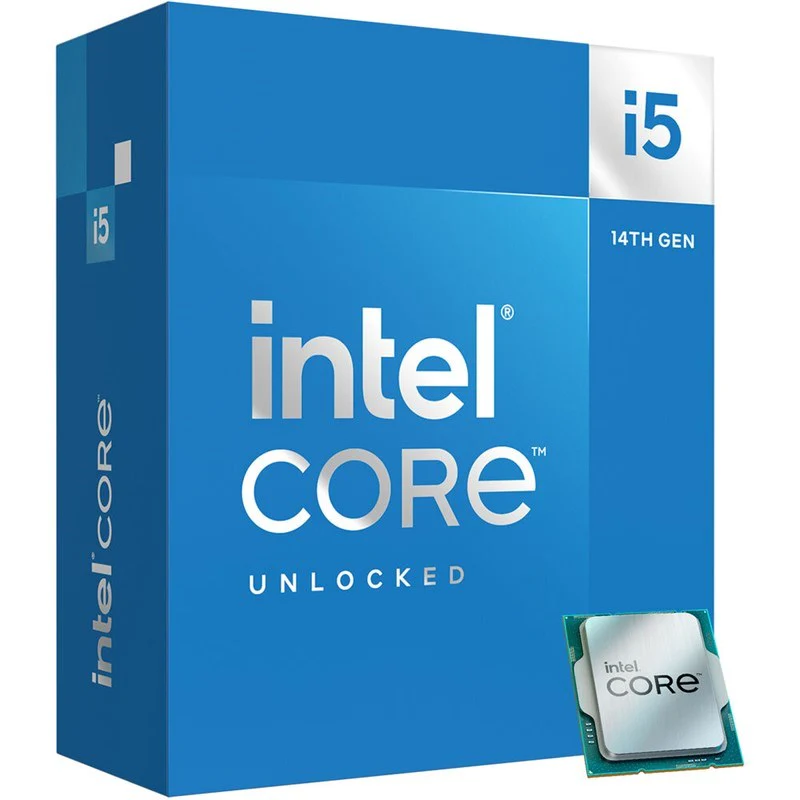

Intel Core i5-14400F 14th Generation 2.5 GHz LGA 1700 Processor

Intel Core i5-14400F 14th Generation 2.5 GHz LGA 1700 Processor

Power up your productivity, gaming, and content creation with the Intel Core i5-14400F 2.5 GHz 10-Core LGA 1700 Processor. Built with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i5-14400F powers applications and games with six 2.5 GHz Performance-cores while the four low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.

With 20MB of cache and a 5 GHz Turbo Boost frequency, this processor is made to handle a variety of workloads. The Core i5-14400F also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 memory at 4800 MHz.

The Core i5-14400F does not include integrated graphics, meaning that users will need to purchase a separate dedicated graphics card. A Laminar RM1 cooler is included.

Hybrid Core Design

Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor's Efficient-cores.

Intel Thread Director

The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 16 threads are assigned to the right core at the right time.

PCIe 4.0 & 5.0

This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.

Gaussian & Neural Accelerator 3.0

Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Intel Deep Learning Boost

Accelerates AI inference to improve performance for deep learning workloads.

General

CPU Model

Intel Core i5-14400F (14th Gen)

CPU Socket

LGA 1700

Manufacturing Process

10 nm

Maximum CPU Configuration

1S

Maximum Number of PCIe Lanes

20 (Revision 5.0)

Unlocked

No

Performance

Number of Cores

10 (6 x P-Cores + 4 x E-Cores)

Number of Threads

16

Base Clock Speed

P-Core: 2.5 GHz

E-Core: 1.8 GHz

Maximum Boost Speed

P-Core Turbo: 4.7 GHz

E-Core Turbo: 3.5 GHz

L3 Cache

20 MB

Memory Support

Maximum Capacity

192 GB

Memory Support

DDR5 Up to 4800 MHz

DDR4 Up to 3200 MHz

ECC Memory

No

Channel Architecture

Dual Channel

Maximum Memory Bandwidth

89.6 GB/s

Optane Memory Support

No

Power

Thermal Design Power (TDP)

65 W

Included Thermal Solution

Laminar RM1

Maximum Temperature

212°F / 100°C

Thermal Monitoring Technologies

Yes

Technology

AES Support

Yes

Extension

AVX 2.0, SSE 4.1, SSE 4.1/4.2

Instruction Set

64-Bit

Virtualization

Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)

DMI

DMI4 (16 GT/s)

vPro Support

No

Performance Technologies

Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, Intel Thread Director, SpeedShift, SpeedStep, Turbo Boost 2.0

Security Technologies

Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key

Packaging Info

Package Weight

1.02 lb

Box Dimensions (LxWxH)

5.1 x 4.9 x 3.1"
