Keychron Q6 HE QMK Wireless Keyboard Gateron double-rail magnetic switch 2.4 GHz / Bluetooth / Type-C wired (Arabic Layout)

Keychron Q6 HE QMK Wireless Custom Gaming Keyboard (Gateron Double-Rail Magnetic Nebula Switch) - Carbon Black (Arabic Layout)

Keychron Q6 HE

Meet the Q6 HE, a full-size (100%) layout wireless QMK custom keyboard equipped with Hall Effect Gateron double-rail magnetic switches.

These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements for the gaming experience tailored to your individual preferences.

Gateron Double-Rail Magnetic Hall Effect Switches

With the first invented dual-rail structure, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.

Adjustable Actuation Point

Customize each key with ultra-precise 0.1mm sensitivity and adjustable actuation points ranging from 0.2 to 3.8mm.

Setting the actuation point to 0.8mm or 1.0mm shortens the trigger and increases sensitivity.

The reset occurs once you release the key, ensuring a faster response.

Dynamic Rapid Trigger

Activate or deactivate keys based on travel distance rather than fixed points.

They activate precisely upon pressing and deactivate upon letting go, allowing for immediate repetition of keystrokes in mod-motion.

This enables you to execute a chain of actions in quick succession during gameplay.

Multiple Actions, One Keystroke

Assign four actions to a single key based on the depth of your press.

For example, lightly press a key to walk forward in a game, and press deeper to run. Additionally, releasing the key also supports two-stage settings.

This allows for smoother, personalized combinations that can give you an edge in competitive gaming.

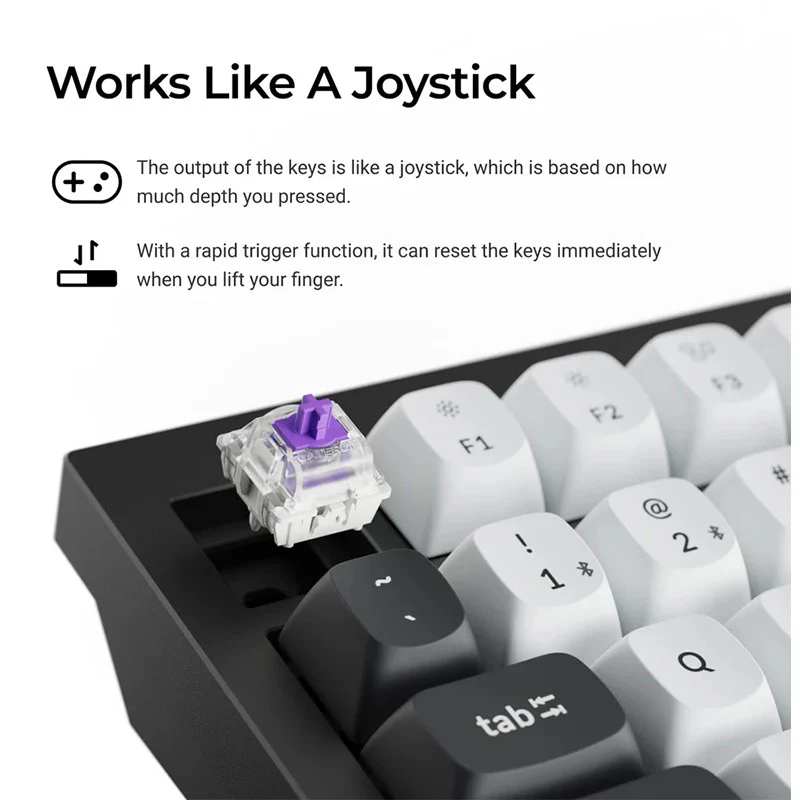

Analog Mode

Experience the power of Analog Mode on your Q6 HE, bringing game controller-like precision to your keyboard.

This mode enables variable inputs instead of the usual on/off signals, letting you achieve more fluid and dynamic control.

Width

137.00mm

Length

446.01mm

Front Height

20.6mm (without keycaps)

Back Height

31.09mm (without keycaps)

Feet Height

2.4mm

Angle

5.3°

Weight

2178 g ± 10 g (Fully Assembled version)

Body Material

Aluminum

Polling Rate

1000 Hz (Wired and 2.4 GHz) / 90 Hz (Bluetooth)

N-Key Rollover (NKRO)

Yes, for both wireless and wired modes

Rapid Trigger

Yes

Adjustable Actuation Points

0.2 - 3.8mm

Dynamic Keystrokes

4-in-1 action keys

Sensitivity

0.1mm

Keycap

OSA Double-shot PBT keycaps, not shine-through

MCU

ARM Cortex-M4 32-bit STM32F402RC (256KB Flash)

Backlight

South-facing RGB LED

Switch

Gateron double-rail magnetic switch

Hot-swappable Support

Yes, compatible with Gateron double-rail magnetic switch only

Stabilizer

Screw-in PCB stabilizer

Cable

Type-C cable (1.8 M) + Type-A to Type-C adapter

Connectivity

2.4 GHz / Bluetooth / Type-C wired

Bluetooth Version

5.2

Bluetooth Device Name

Keychron Q6 HE

Battery

4000mAh Rechargeable li-polymer battery

Operating Environment

-10 to 50℃

Wireless Working Time (Backlit off)

Up to 100 hours
