Keychron V6 Max 100% RGB Backlight Swappable Fully Assembled Knob, QMK/VIA Wireless Mechanical Gaming Keyboard (Gateron Jupiter Red Switch) - Carbon Black - English/Arabic Keyboard

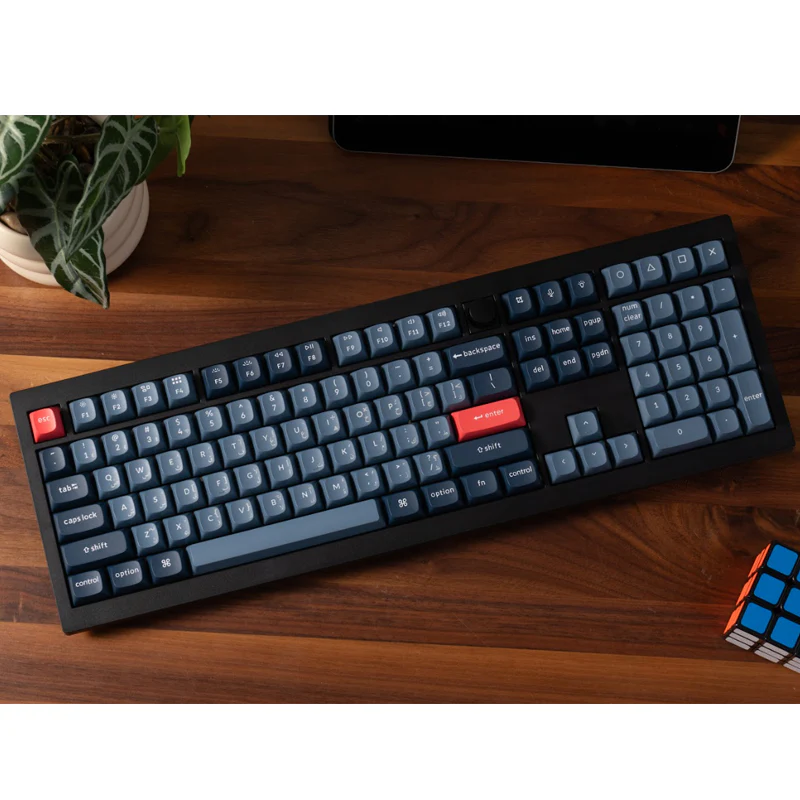

Keychron V6 Max

The V6 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection. It has a full-size 100% layout and offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more. The V6 Max is designed for a personalized experience and enhanced typing comfort.

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V6 Max via Bluetooth 5.1 to three devices.

All-around customizable keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

Dual Receivers

For a better 2.4 GHz wireless experience, the V6 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.

An Epic Core Inside The Keyboard

A powerful ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile Double-shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V6 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Width

149mm

Length

447.9mm

Front Height

23.6mm (without keycaps)

Back Height

32.5mm (without keycaps)

Feet Height

2mm

Angle

3.5° / 8° / 10°

Weight

1110 ± 10 g (Fully Assembled Version)

Body Material

ABS Plastic

Plate Material

PC

Polling Rate

1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)

Mount Style

Gasket Mount Design

Bluetooth Device Name

Keychron V6 Max

Battery

4000 mAh Rechargeable li-polymer battery

Wireless Working Time (Backlit off)

Up to 225 hours (Lab test result may vary by actual use)

Wireless Working Time (RGB)

Up to 100 hours (Lowest brightness)

Charging Time

Around 5 hours

Bluetooth Version

5.1

Compatible System

Windows/macOS/Linux

N-Key Rollover (NKRO)

Yes for both wireless and wired modes

Hot-swappable

Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.

Keycaps (Fully Assembled Version)

Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)

MCU

ARM Cortex-M4 32-bit STM32F402 (256KB Flash)

Switches

Gateron Jupiter (Fully Assembled Version)

Backlight

South-facing RGB LED

Stabilizer

Screw-in PCB stabs

Charging Port

USB Type-C

Cable

Type-C cable + Type-A to Type-C adapter

Operating Environment

-10℃ to 50℃
