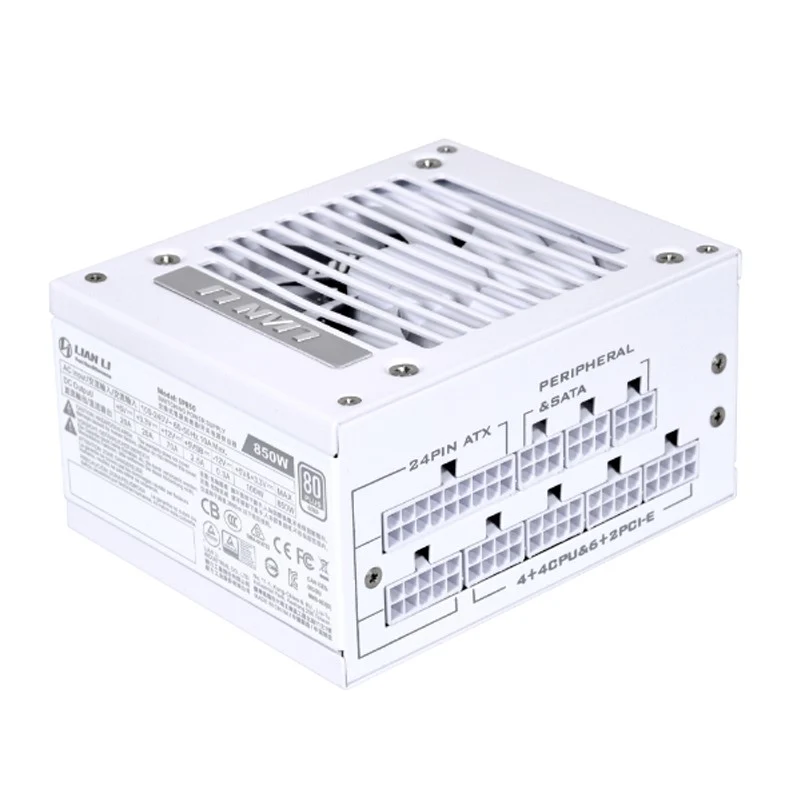

Lian LI SP 850 Watts 80+ Gold SFX Form factor Gaming Power Supply, White

Product image 1
Product image 2
Product image 3

Lian LI SP 850 Watts 80+ Gold SFX Form factor Gaming Power Supply, White

Lian LI SP 850 Watts 80+ Gold SFX Form factor Gaming Power Supply, Black

SP850

Performance SFX Form Factor Power Supply

The SP850 is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components.

80 Plus Gold Certificate

SP850 achieves 91.55% efficiency 115VAC at 50% load, which edges close to the 80PLUS PLATINIUM a requirement at 92% efficiency 115VAC at 50%, ensuring less power wastage.

Cooling In Silence

To achieve minimal acoustic levels, the SP850 features a 92mm hydraulic bearing fan that operates at zero RPM mode until the PSU reaches 40% load or once the ambient temperature reaches 60°C.

Japanese Electrolytic Capacitors

Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offer the highest stability.

Transfers 350w- 400w

A PCIe 5.0 12-pin (12VHPWR connector cable without sideband contact) is included, which is 16 AWG thick to transfer 350W- 400W and doesn’t need the use of an adaptor for the GPUs.

Fully Modular Braided Cables

All necessary braided cables are included right out of the box, ensuring reduced cable clutter and a better aesthetic.

Specifications:

Model

SP850

Dimensions

(D)100 mm X (W)63.5mm X (H)125 mm

Power Supply Design

Fully modular

Color

White

Material

Steel/brushed aluminum housing

Form Factor

SFX

Certification

80 PLUS Gold

Power Supply Design

Fully modular

Max. DC Output

850W

Combined +3.3V & +5V

100W

Combined +12V

840W

Input Voltage

100-240Vrms

Input Frequency Range

50Hz-60Hz

PFC

Active PFC(PF)>0.90 at full load

Efficiency

93.53% MAX

Protective Circuit

OCP OVP OTP OPP SCP UVP

Connectors

1 x 24/20-Pin motherboard connector (300mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (600mm) x2pcs 1 x 8/6+2 Pin PCle connector (400mm) x1pcs 2 x 8/6+2 Pin PCle connector (400mm-120mm) x1pcs 4 x SATA connector (120mm120mm-120mm-120mm) x2pcs 4 x 4-Pin Peripheral connector (120mm-120mm-120mm- 120mm) x1pcs 1×12VHPWR connector cable without sideband contact (400mm) × 1pcs

Noise Level

17.1-40.6DBA

Fan RPM

1000-2800 RPM

Bearing Type

HYB



$55.48

Original: $158.52

-65%
Lian LI SP 850 Watts 80+ Gold SFX Form factor Gaming Power Supply, White

$158.52

$55.48
