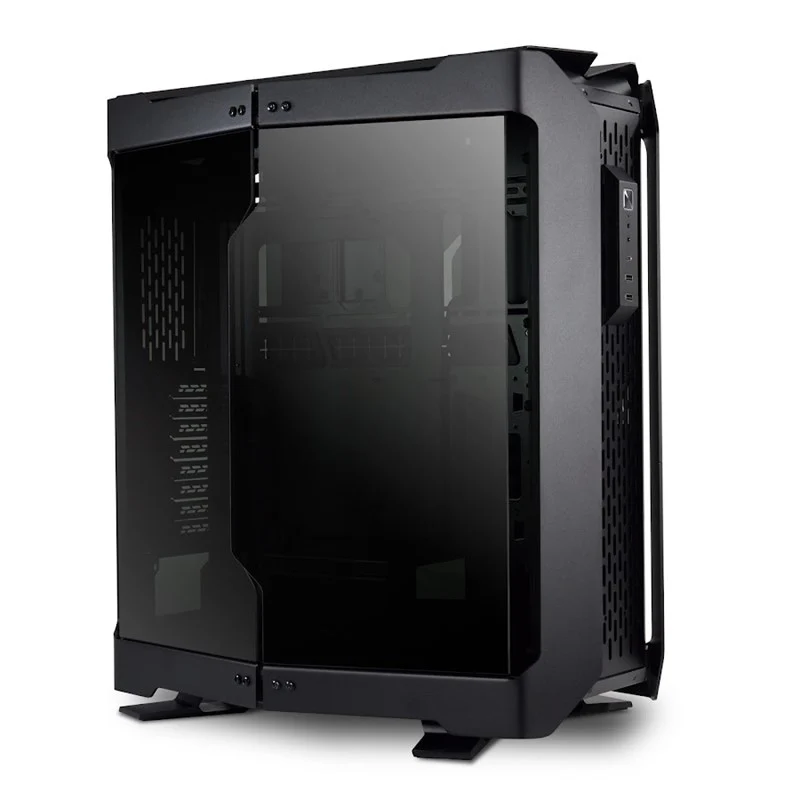

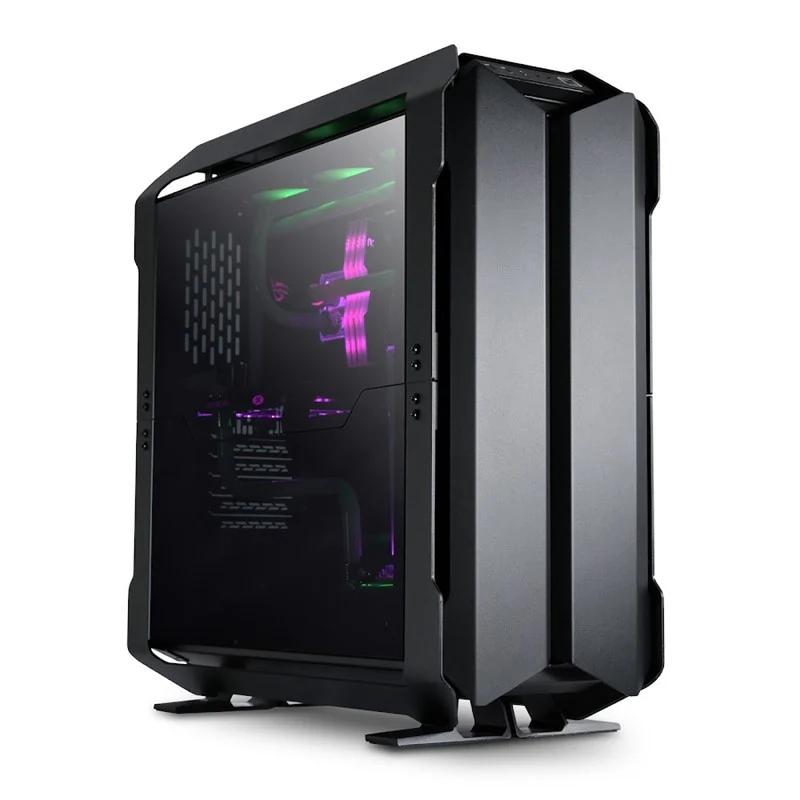

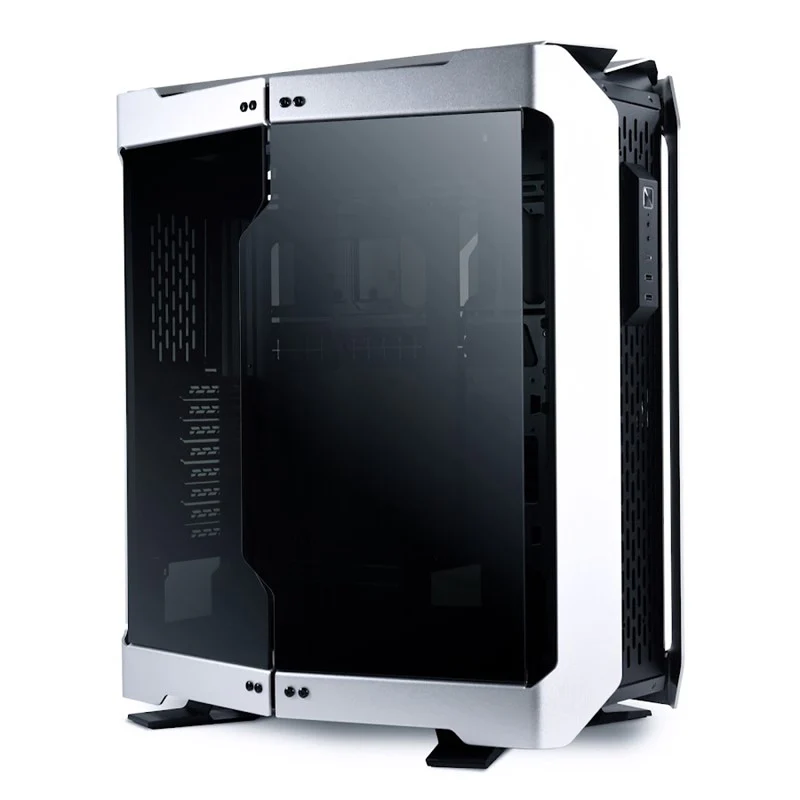

LIAN LI TR-01 ODYSSEY X Full Tower Gaming Case

2 Styles with 3 Modes of Your Choice

ODYSSEY X enables PC enthusiasts to transform this full tower case into the mode they prefer. ODYSSEY X is a high-quality aluminum chassis that established a unique look for performance-oriented enthusiasts with an open airflow design and spacious main chamber for large components.

Premium Aluminum Craftsmanship

Each bracket is sturdily designed with high-end materials.

Two optional styles can be achieved by mounting the aluminum wings differently at the front panel of the Dynamic and Dynamic R (Rotate) mode, revealing or concealing the interior components.

Optimized Cable Management and Ample Drive Mounting Space

With rubber grommets covering the cable pass-through holes and the presence of the 5 cable channels equipped with Velcro straps, routing cables in the ODYSSEY X is an easy job. Moreover, the Dynamic mode top cover is converted into a cable cover in Performance mode, enhancing the look of the build.

in Collaboration with DER8AUER

Like the O11 Dynamic series, LIAN LI consulted with DER8AUER to review the design of the ODYSSEY X, a world-renowned German overclocking, water cooling, and gaming evangelist.

Dimensions

DIMENSIONS Dynamic/Dynamic-R (Rotate)

Color

Silver

(D) 575.5mm x (W) 234mm x (H) 558.5mm

Performance

(D) 537.1mm x (W) 368.6mm x (H) 596.7mm

Materials

Aluminum

Steel

4.0mm Black tempered glass (both sides)

Motherboard Support

EEB/E-ATX/ATX/Micro-ATX/Mini-ITX

Fan Support

Dynamic

Front：3 x 120mm or 2 x 140mm

Top：3 x 120mm or 2 x 140mm

Side：3 x 120mm or 2 x 140mm

Dynamic-R (Rotate)

Front：3 x 120mm or 2 x 140mm

Base：4 x 120mm or 3 x 140mm

Performance

Front：4 x 120mm or 3 x 140mm

Top：3 x 120mm or 2 x 140mm

RADIATOR SUPPORT Dynamic

Front：1 x 360/280/240mm

Side：1 x 360/280/240mm

Dynamic-R (Rotate)

Front：1 x 360/280/240mm

Base：1 x 480/420/360/280/240mm

Performance

Front：1 x 480/420/360/280/240mm

Top：1 x 360/280/240mm

Psu Support Length

Max 280mm

Gpu Length Clearance

Max 423mm

Cpu Cooler Height Clearance

Max 167mm

Drive

3 X 3.5″ HDD or 3 X 2.5″ SSD

Expansion Slot

8

I/O Ports

2 X USB 3.0, 1 X USB 3.1 TYPE-C, 1 X HD AUDIO
