Lian Li UNI FAN TL Fan Controller

LIAN LI

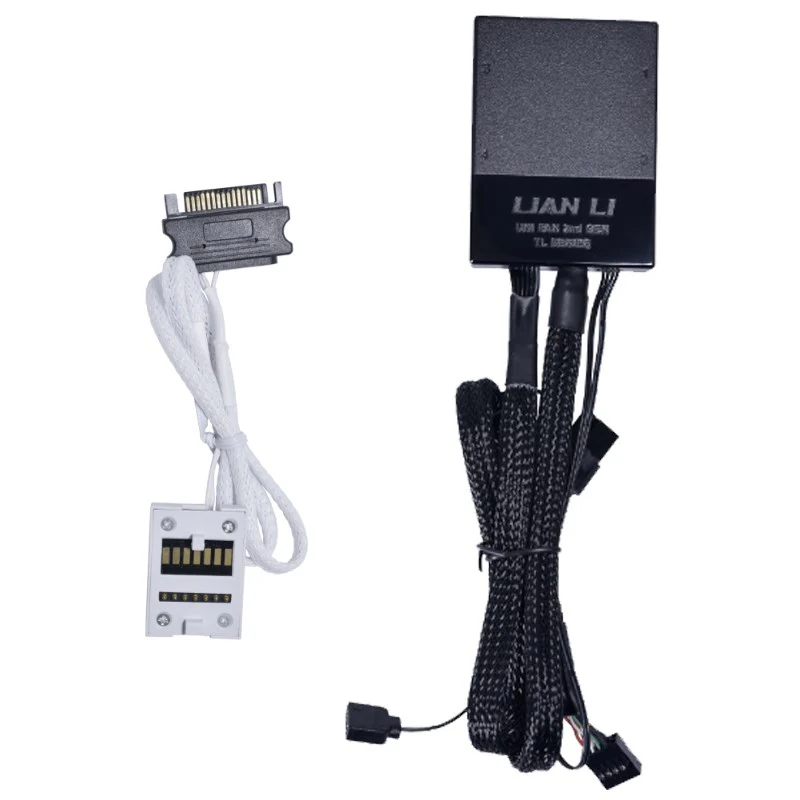

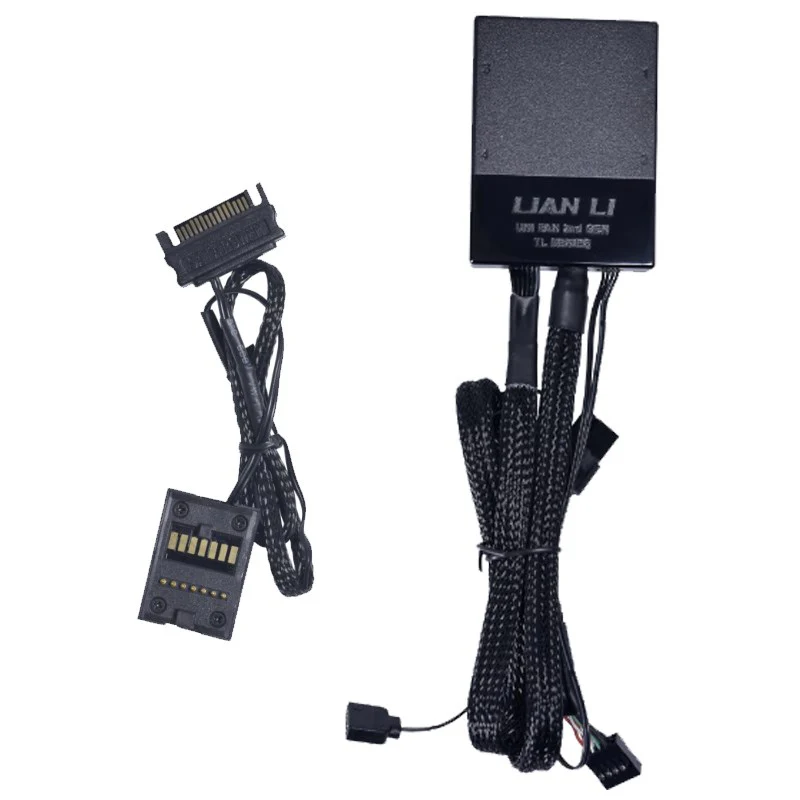

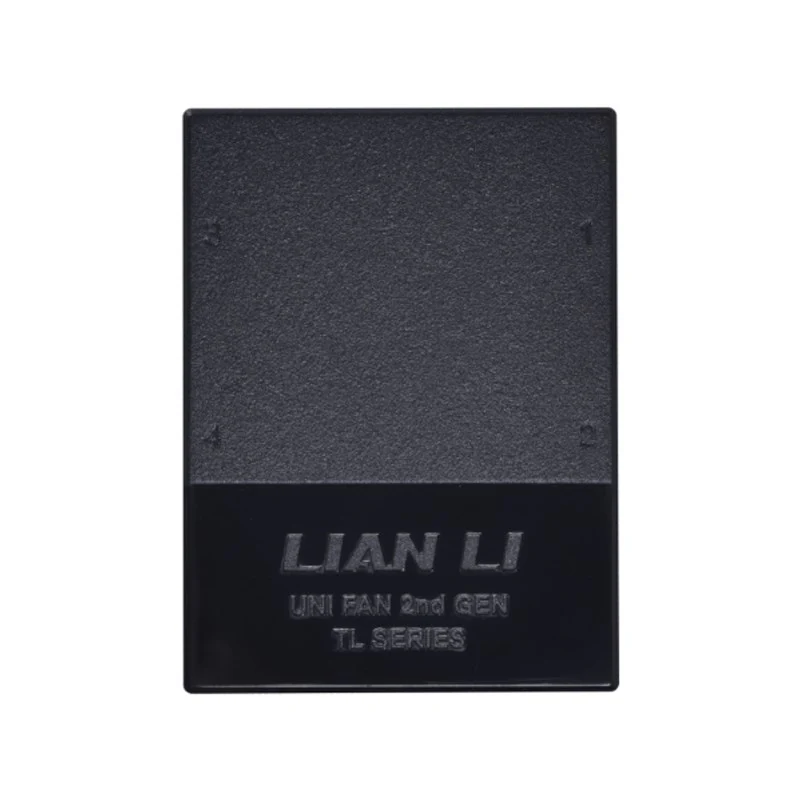

UNI HUB - TL Series Controller

The controller that can control UNI FAN TL & TL LCD in size of 120 / 140 at regular or reverse with L-Connect 3 in one go.

Two Fans, One Controller

UNI FAN TL and TL LCD share the same controller, enabling the connection of up to 16 TL and TL LCD fans simultaneously, with a maximum of 7 TL LCD fans.

Note:

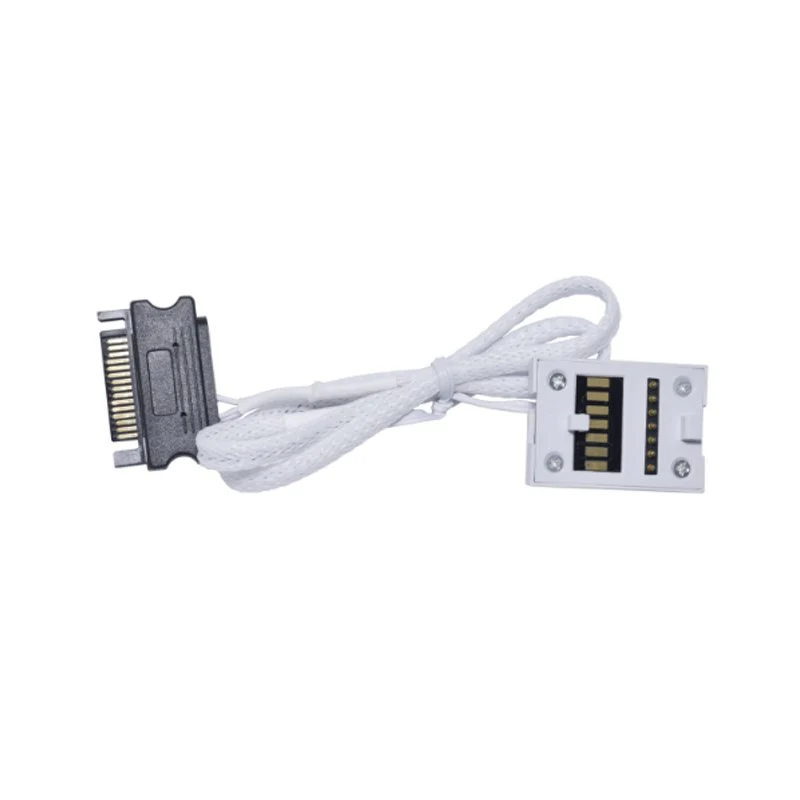

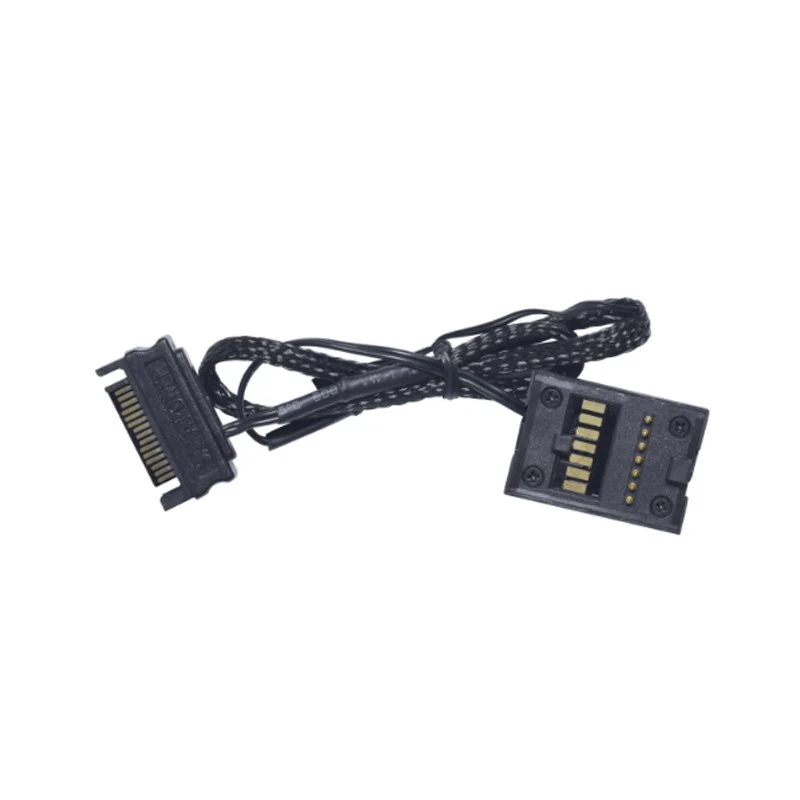

TL and TL LCD share the same controller but use different controller cables. Do not mix the controller cables.

The UNI HUB is only compatible with UNI FAN TL and TL LCD, do not connect any other fan.

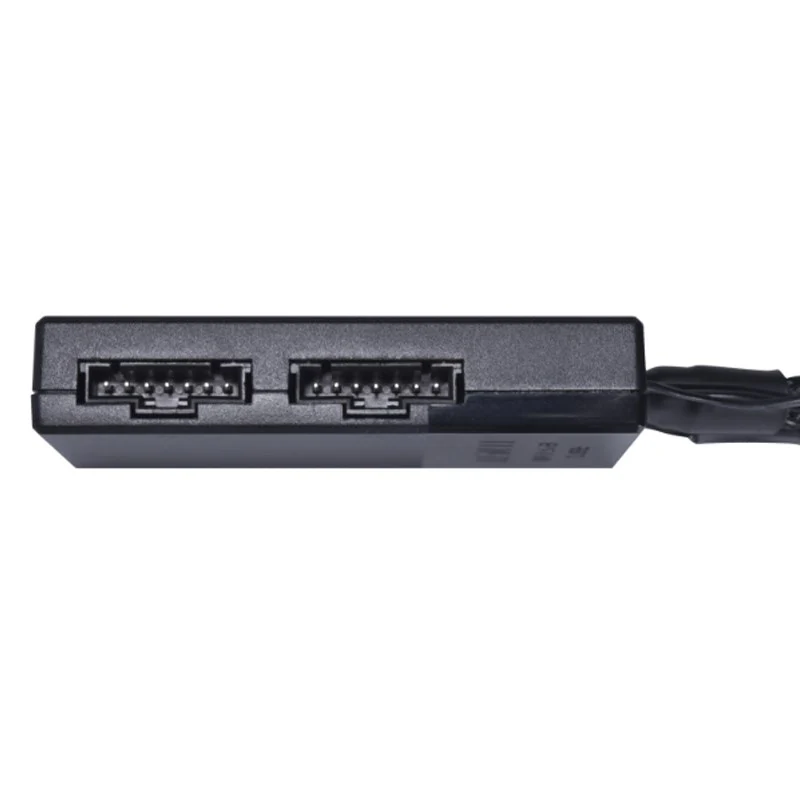

Fan Group Signal

Each port supports a maximum of 10 TL fans or 3 TL LCD fans

Note: Plug TL LCD fans on controller port 2,3,4 only

Power PCIe Cable

Power up the connected fans

USB Cable

Plug directly into a motherboard 9-pin USB header

Note: Do not use a splitter; plug directly for a stable signal

5v ARGB / 4 Pin Pwm Cable

Required for motherboard sync function

Seamless Software

L-Connect 3 offers complete control over the UNI FAN TL series, including the lighting effects, fan speed, and LCD screen.
