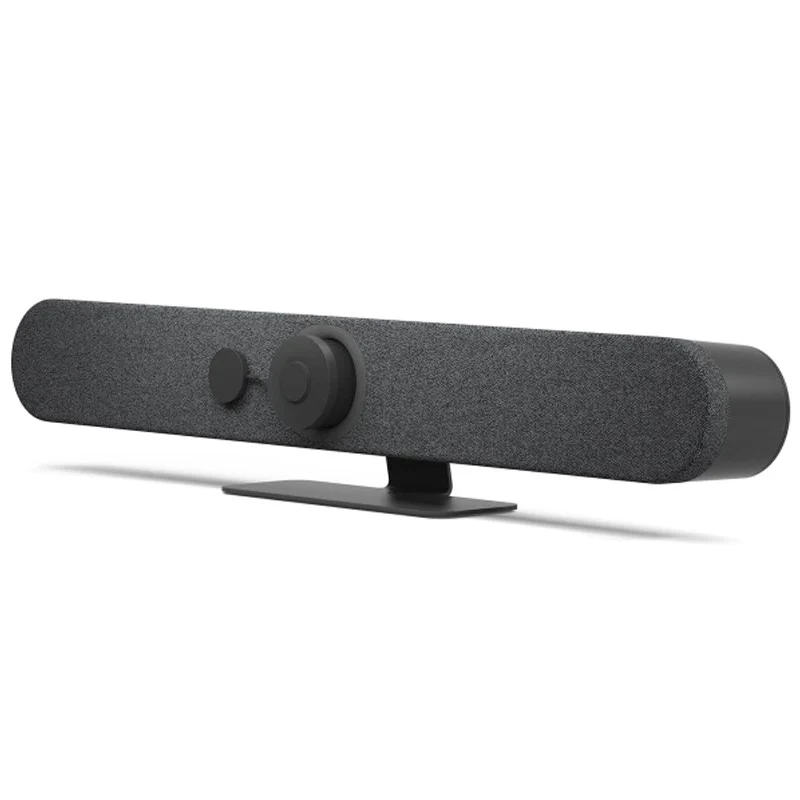

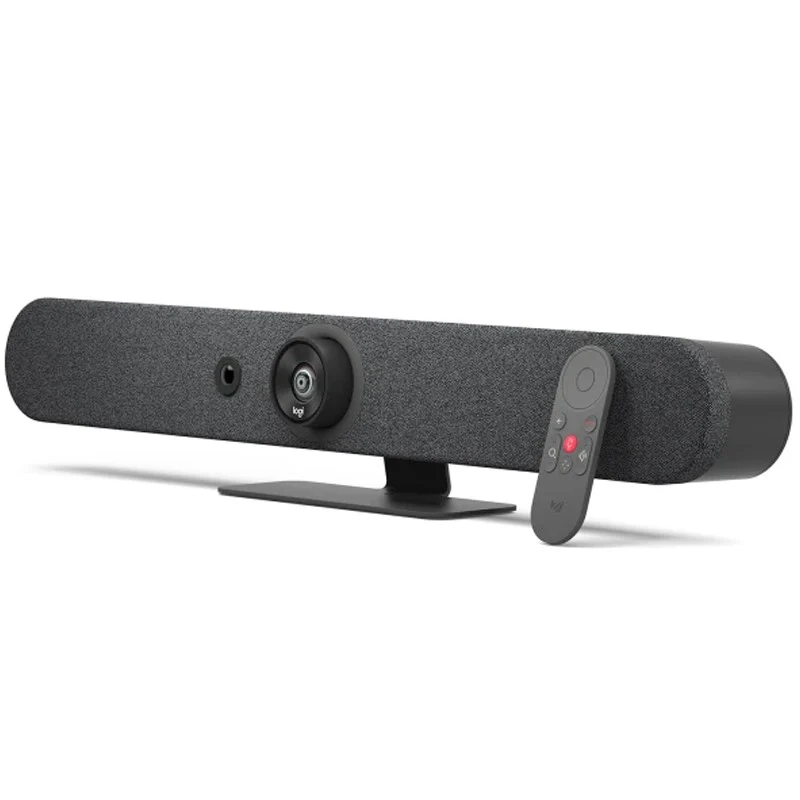

Logitech Rally Bar Mini, All-in-One Video Conferencing Bar - Graphite

Appliance Mode

Run supported video conferencing applications – such as Zoom, Microsoft Teams, and others – directly on the device with no computer or laptop required.

AI Sound Optimization

Auto-level loud and soft voices – while suppressing unwanted noise – with AI-based RightSound technology that improves over time.

Mounting Options

Take advantage of multiple mounting options to deploy Rally Bar Mini quickly and easily across all your small meeting rooms.

Auto-framing Technology

With a dual-camera system and RightSight 2 auto-framing technology, Rally Bar welcomes remote participants to the conversation. Choose Grid View to eliminate empty space and frame each person in their own stream, Speaker View to highlight the active speaker, or Group View to capture everyone in the room.

Adaptive Beamforming

Focus on the active talker with high-precision beamforming mics. Patented anti-vibration suspension system for full duplex.

Expand The Conversation

Easily accommodate larger spaces with Rally Mic Pods. Out of the box, Rally Bar Mini has a pickup range up to 7 M, which you can significantly extend by adding up to three Mic Pods.

Camera

‎

Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps

Pan: Motorized ±25°

Tilt: Motorized ±15°

Zoom: 15X HD zoom (5X optical, 3X digital available with upcoming software update

Diagonal field of view (dFoV): 90°

Horizontal Field of View: 82.1°

Vertical Field of View: 52.2°

Total Room Coverage: 132.1° Horizontal x 82.2° Vertical

Speakers

Drivers: 2x 70 mm

Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ M

Sensitivity: 90+/-3dB SPL at 1W, ½ M

THD: 1kHz < 2%

Speaker Sampling Rate: 48 kHz

General Specifications

Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform

Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference

Device Management: Logitech Sync

Displays Supported: 2

Display Resolution: Up to 4K

Microphones

Frequency Response: 90 Hz – 16 kHz

Sensitivity: >-36 dBFS +/-1 dB @ 1Pa

Microphone data rate output: 48 kHz

Pickup Range: Up to 7 M

RightSense Technologies

RightLight: Renders natural skin tones for each participant.

RightSight: Maintains persistent room awareness and detects human figures to auto-frame participants

RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and ech

Security

Full Disk Encryption: AES-128

Data Encryption: Symmetric Keys, PKI

Device Identity: Protected by device attestation

Device Access: Authenticated using API

Key Protection: Arm TrustZone, RPMP
