Mercusys AX1500 Wi-Fi 6 Range Extender, Dual Band Speeds

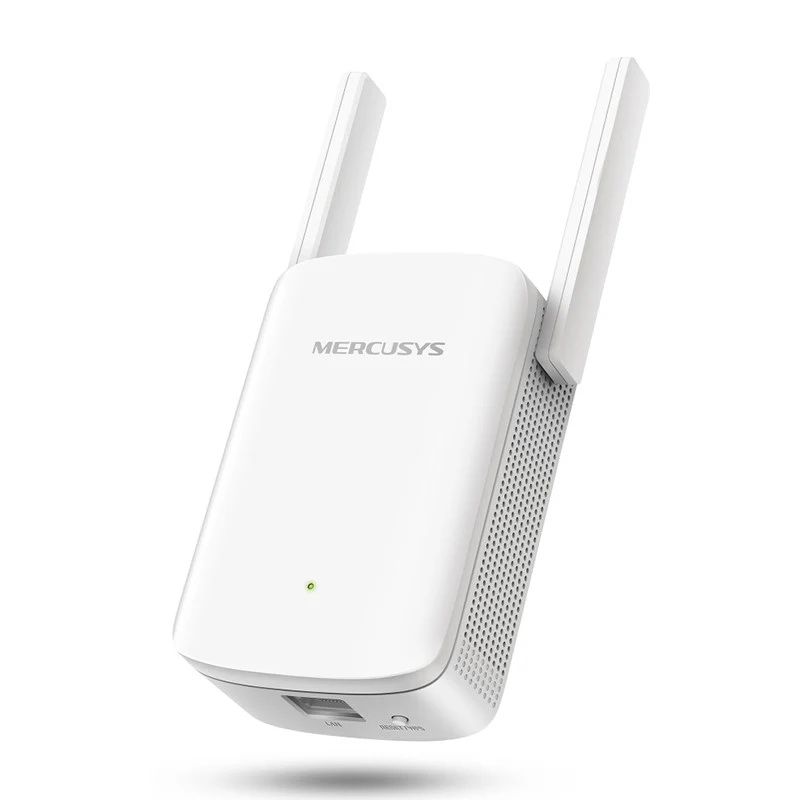

Mercusys AX1500 Wi-Fi 6 Range Extender

Wi-Fi 6 Brings Your Network to a Next Level

Armed with Wi-Fi 6 , ME60X improves virtually every aspect of your network: speed, efficiency, and capacity.

Extend Wi-Fi to Where You Need It Most

Expand coverage of your Existing Router. The two adjustable high-gain antennas extends Wi-Fi signals to where your router Wi-Fi cannot reach. This AX1500 Range Extender is backward compatible with previous Wi-Fi generations (11b/g/n/a/ac) and will work with all your existing internet-connected devices.

Cover Your Whole Home with EasyMesh

ME60X is compatible with EasyMesh, enabling you to set up a whole home mesh network with one Wi-Fi name and password with any other APs that support EasyMesh from multiple vendors. Enjoy flexible, scalable, and seamless mesh Wi-Fi throughout your home!

Effortless One-Touch Setup

Press the WPS button on your router and extender to expand your Wi-Fi coverage in seconds.

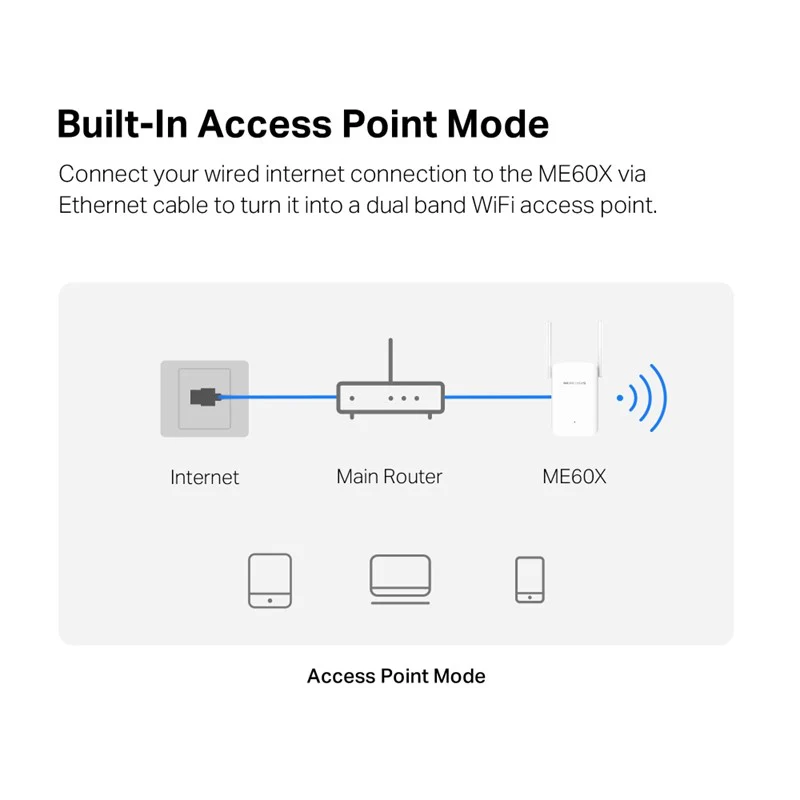

Built-In Access Point Mode

ME60X is more than just a Wi-Fi range extender. Connect your wired internet connection to the ME60X via Ethernet cable to turn it into a dual band Wi-Fi access point.

Control at Your Fingertips

Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).

Wireless

Wireless Standards

IEEE 802.11a/n/ac/ax 5GHz,

IEEE 802.11b/g/n 2.4GHz

Frequency

2.4GHz and 5GHz

WiFi Speeds

300 Mbps at 2.4GHz, 1201 Mbps at 5GHz

Reception Sensitivity

5 GHz:

11ax HE80 MCS0: -88 dBm

11ax HE80 MCS11: -58 dBm

11a 6Mbps: -94 dBm

11a 54Mbps: -76 dBm

11ac VHT80 MCS0: -91dBm

11ac VHT80 MCS9: -63dBm

2.4 GHz:

11g 6Mbps: -95 dBm

11g 54Mbps: -77 dBm

11n HT40: -72dBm

Wireless Security

WPA, WPA2, WPA3-PSK

Hardware

Dimensions

84.7 × 39 × 112 mm (Without Plug)

Interfaces

1 Gigabit Ethernet Port

Button

WPS / Reset Button

Antenna Type

2× External Antennas

Power

10W

Others

Certifications

RoHS

Package Contents

Wi-Fi Range Extender ME60X

Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90% Non-Condensing
