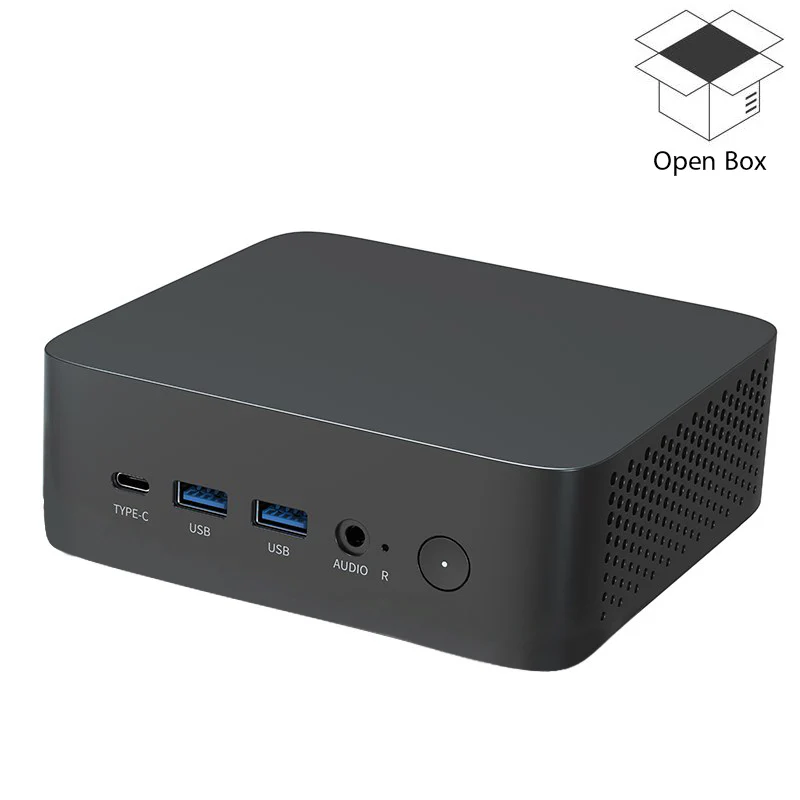

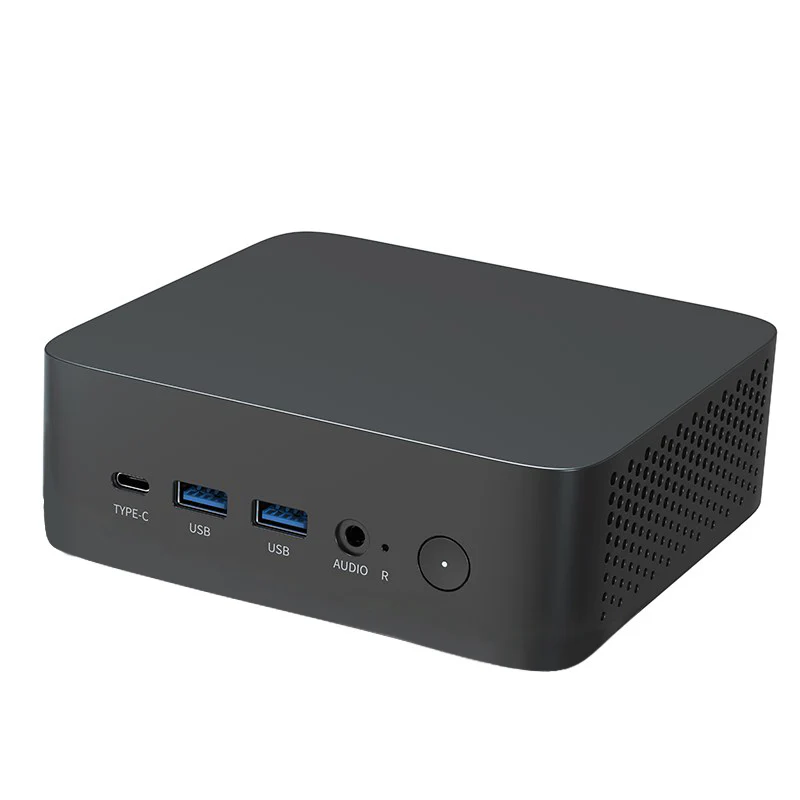

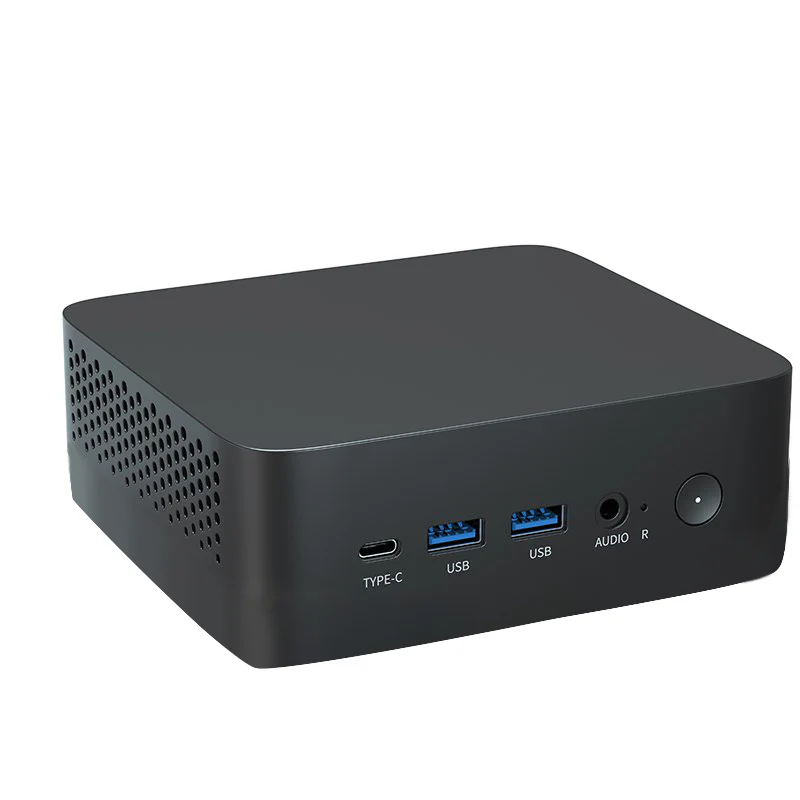

Mini PC CPU: i5-12450H 16 GB + 512 GB - Open Box

Mini PC CPU: i5-12450H 16 GB + 512 GB

The Versatile Mini PC

This Mini PC packs robust performance into a surprisingly small footprint, making it ideal for a variety of uses. Don't let its size fool you – it's equipped with the processing power and connectivity you need to stay productive and entertained.

Powerful Processing

Driven by an Intel processor, this mini PC offers a compelling blend of performance and efficiency. Experience smooth multitasking, responsive application loading, and the power to handle demanding tasks.

Compact and Portable Design

The small form factor makes this mini PC easy to place on a desk, mount behind a monitor (VESA mount supported), or even take with you on the go.

Versatile I/O

A wide range of ports ensures compatibility with your peripherals and devices.

Product

Special Feature

Support fingerprint unlocking (Optional)

Dimension

138.5mm * 126mm * 50mm

Case Material

Plastic

Weight

Net: 540 g, Gross: 1120 g

CPU

CPU Model

i5-12450H

CPU Max Turbo

4.4GHz

CPU Power

45W

Memory

Model

2x SO-DIMM DDR4

Capacity

Max 64GB (Optional)

Storage

SSD

M.2 2280 NVME GEN4*1 + M.2 2280 NVME GEN3/NGFF*1

2.5" SSD

Optional，2.5 '' SATA，Max 2 TB

RTC BIOS

Real-time Clock, Time Boot

Auto Power On (BIOS)

Support auto power on after electrified

Diskless Network (BIOS)

Support uefi/Legacy Diskless Switch

TPM

Support TPM 2.0 (CPU integrated)

Dual Display

HDMI1 + HDMI2

Internet Connection

Wi-Fi

Model

M.2 E_key intel 7265/ WIFI6 AX210 (Optional)

Protocol

IEEE 802.11 a, b/g, n, ac/g, n, ax

Bluetooth

Model

M.2 E_key intel 7265/ BT5.2 A

Protocol

Support Bluetooth 4.2/5.2

Ethernet (LAN1)

10M/100M/1000M Self-adaption

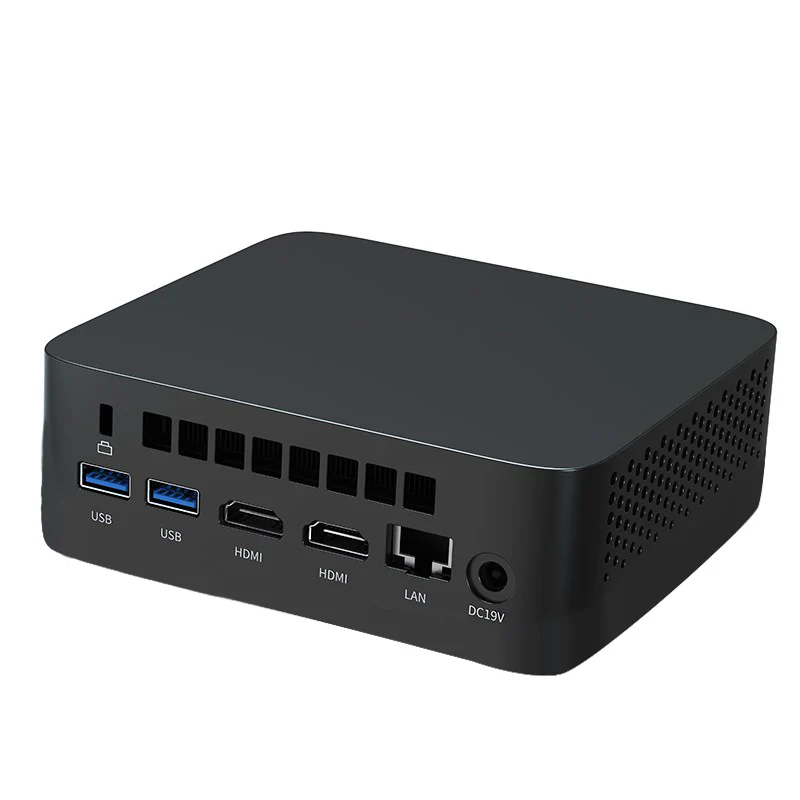

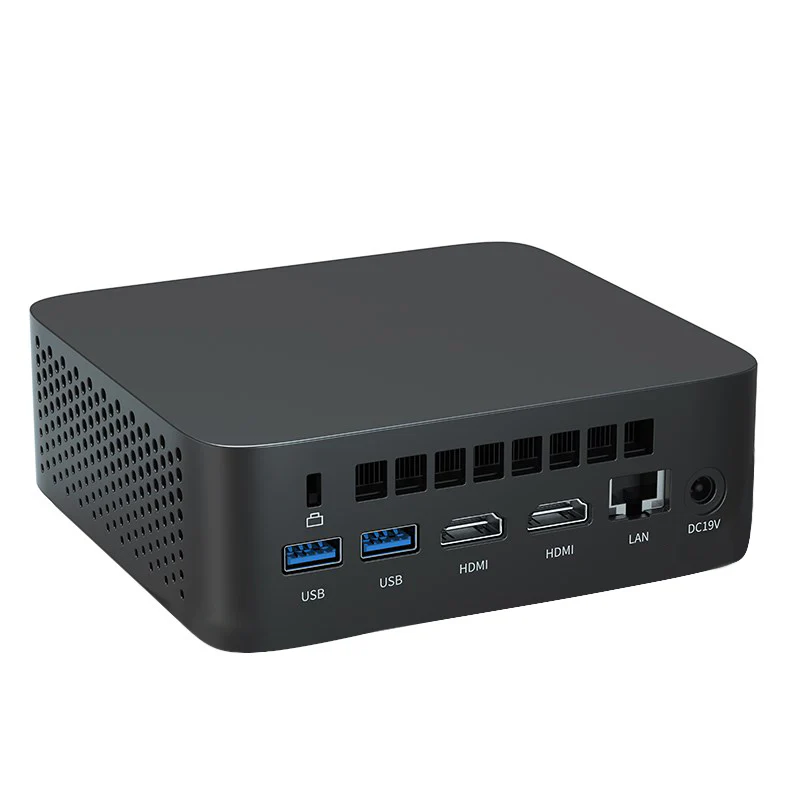

I/O

USB

4x USB 3.0 Type-A

HDMI (AV Output)

2x HDMI 1.4b Type A

RJ45 (Gigabyte Ethernet)

RJ45 x1

Type-C

1x Type-C (Only Data Transmission)

Power Button

x1

DC IN

5.5/2.1mm DC Jack x1

Audio-in/out

3.5mm Phone Jack x1 （Two-in-one interface)

Antenna1

FPC Antenna WiFi 2.4+BT x1

Antenna2

FPC Antenna WIFI 5.0

Software Configuration

OS

OS Version WIN11/Win10 / Ubuntu

Environment

Working Temperature

0~40℃

Memory Temperature

-20~60℃

Humidity

90% @ 40 °C (No Condensation)

Accessory

Power Supply

Vesa (Input 100~240V 50/60Hz Output 19V/3.42A DC 5.5*2.1mm)

VESA Mount

Supported (117mm*45mm)
