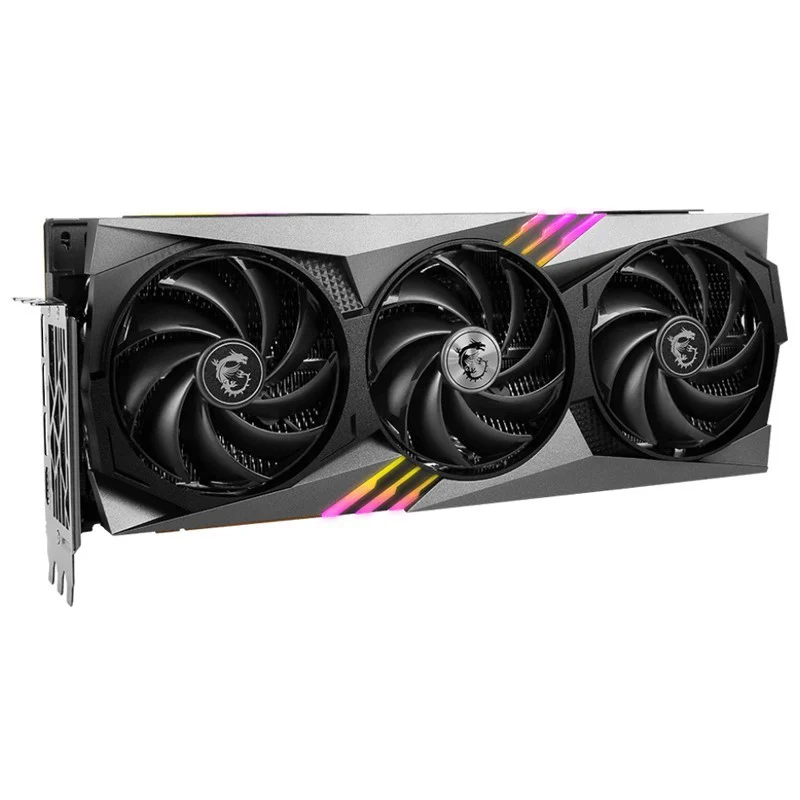

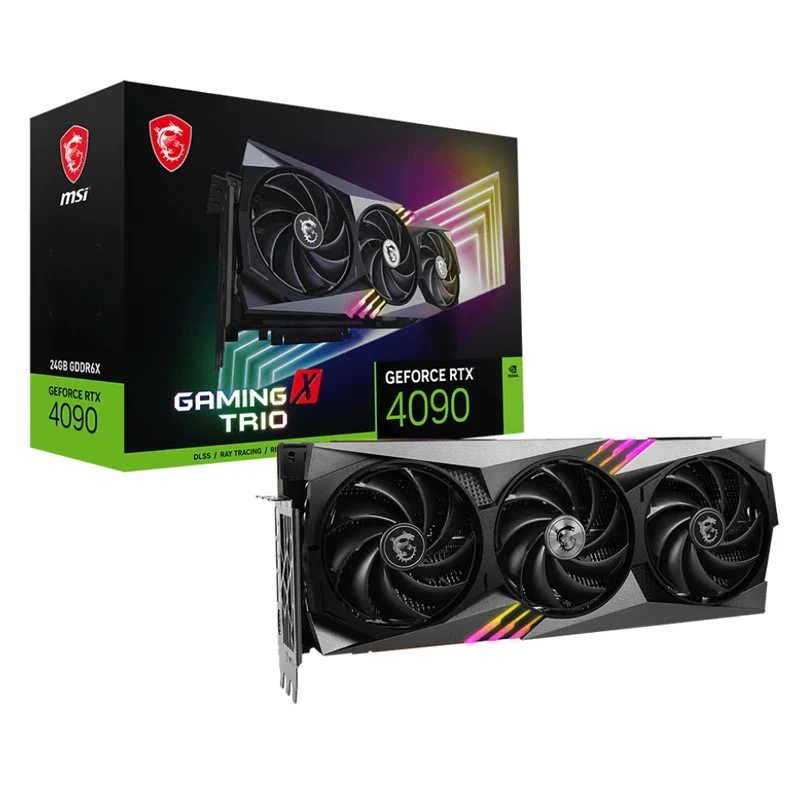

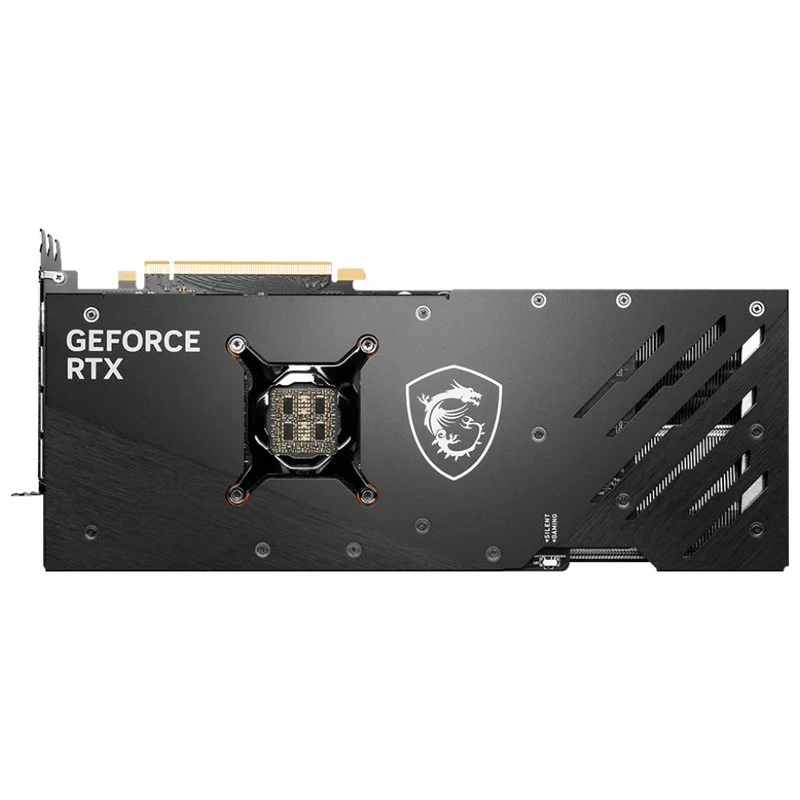

MSI GeForce RTX 4090 GAMING X TRIO 24GB GDDR6X Gaming Graphics Card
MSI GeForce RTX 4090 GAMING X TRIO 24GB Gaming Graphics Card |
| | Strength And ArtistryMSI envisioned the GAMING series as the favored graphic cards solution for all sorts of gamers, including adventure seekers, esport competitors, livestream broadcasters, and more |
| | Tri FROZR 3 Thermal DesignStay cool and quiet. MSIās TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card |
| | TORX Fan 5.0TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink.Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan. |
| | Facing The Heat Head-OnHeat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes.This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency |
| | Keeping The Core CoolCore Pipes are precision-crafted to make maximum use of the available space.A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink. |
| | Change Focus When NeededDual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in Silent mode.Effective Thermal PaddingAn abundance of clay-based thermal pads provide additional heat dissipation for board components. |
Specifications:
| Model Name | GeForce RTX 4090 GAMING X TRIO 24G |
| Graphics Processing Unit | NVIDIA GeForce RTX 4090 |
| Interface | PCI Express Gen 4 |
| Core Clocks | Extreme Performance: 2610 MHz (MSI Center) |
|
| Boost: 2595 MHz (GAMING & SILENT Mode) |
| CudaĀ® Cores | 16384 Units |
| Memory Speed | 21 Gbps |
| Memory | 24GB GDDR6X |
| Memory Bus | 384-bit |

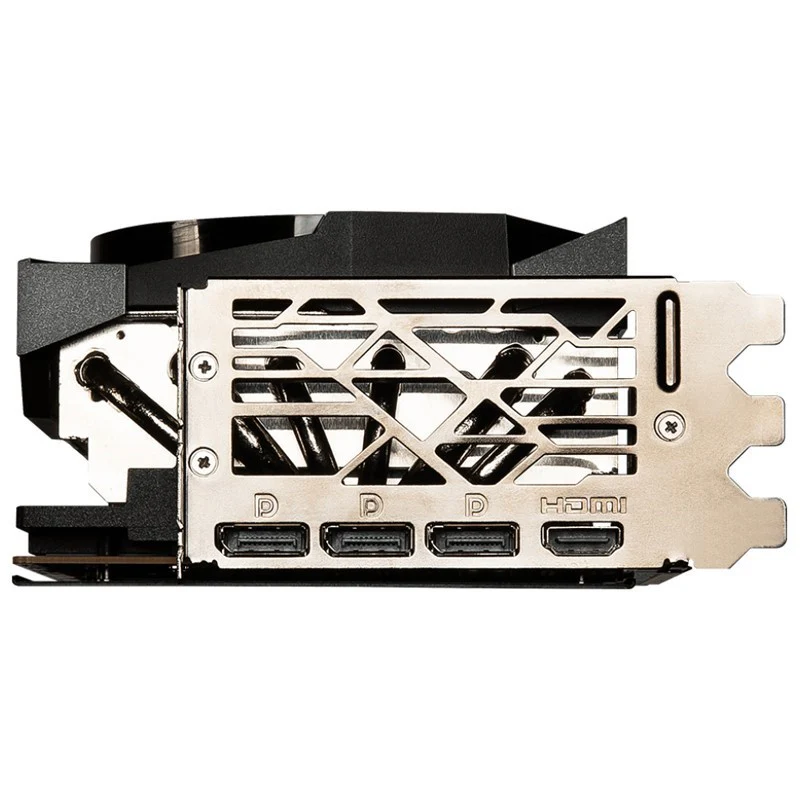

| Output | DisplayPort x 3 (v1.4a) |
|
| HDMI x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a) |
| HDCP Support | YES |
| Power Consumption | 450 W |
|
| 16-pin x 1 |
| Power Connectors | 850 W |
| Recommended Psu | 337 x 140 x 77 mm |
| Card Dimension (Mm) | 2170 g / 3093 g |
| Weight (Card / Package) | 12 Ultimate |
| DirectX Version Support | 4.6 |
| OpenGL Version Support | 4 |
| Maximum Displays | YES |
| G-Sync Technology | 7680x4320 |
| Digital Maximum Resolution | 7680 x 4320 |
