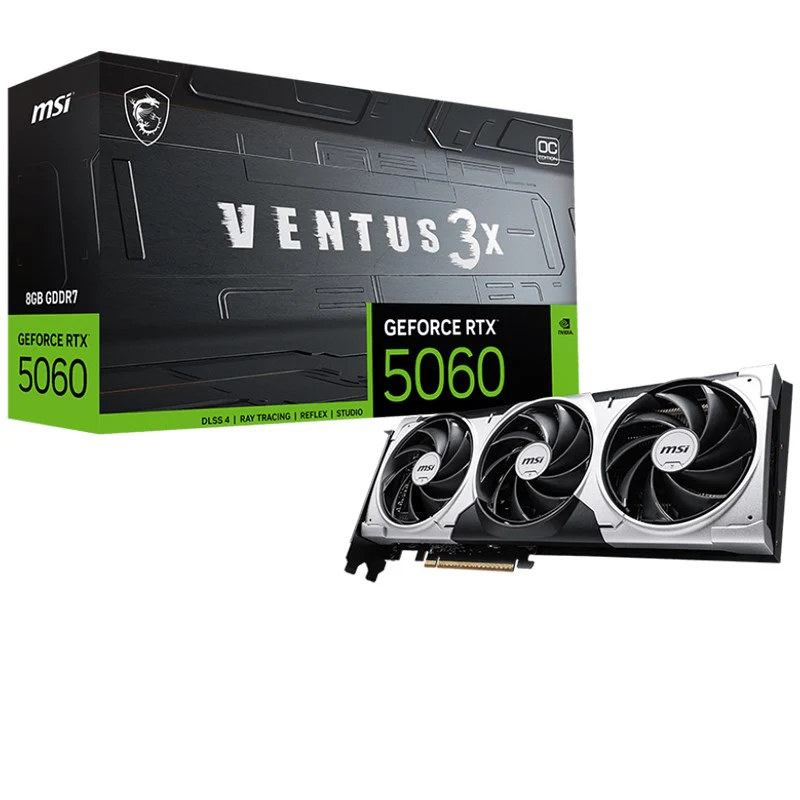

MSI GeForce RTX 5060 8 GB VENTUS 3X OC GDDR7 Gaming Graphics Card

MSI GeForce RTX 5060 8 GB VENTUS 3X OC GDDR7 Gaming Graphics Card

TAKE THE ESSENTIALS

VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

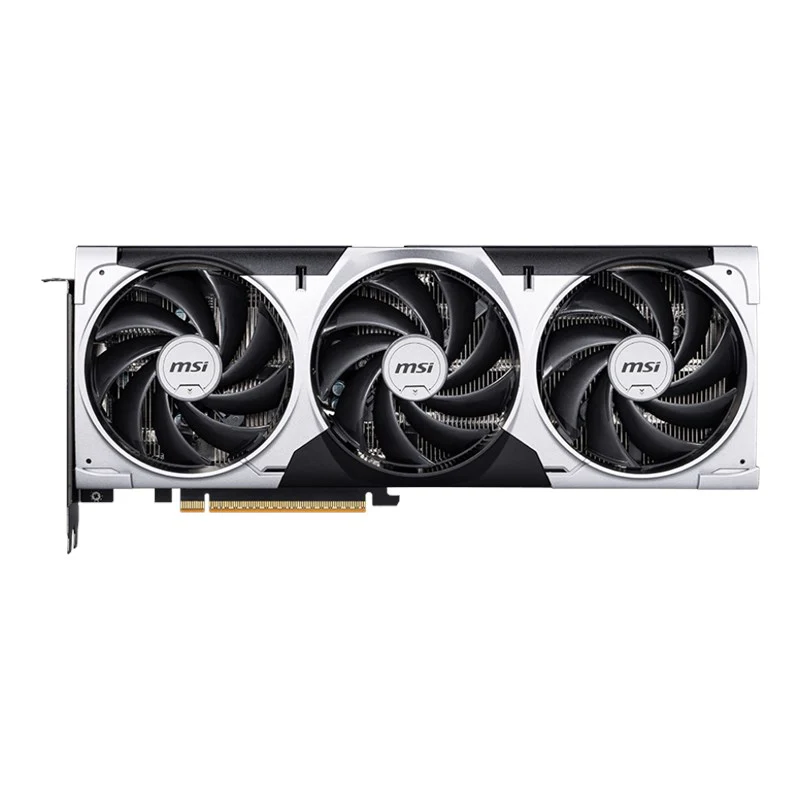

Triple-Fan Thermal Design

Three fans on a large heatsink deliver both superior and quieter cooling.

Marketing Name

GeForce RTX 5060 8G VENTUS 3X OC

Model Name

G5060-8V3C

Graphics Processing Unit

NVIDIA GeForce RTX 5060

Interface

PCI Express Gen 5 X16 (uses x8)

Core Clocks

Extreme Performance: 2550 MHz (MSI Center)
Boost: 2535 MHz

CUDA CORES

3840 Units

Memory Speed

28 Gbps

Memory

8 GB GDDR7

Memory Bus

128-bit

Output

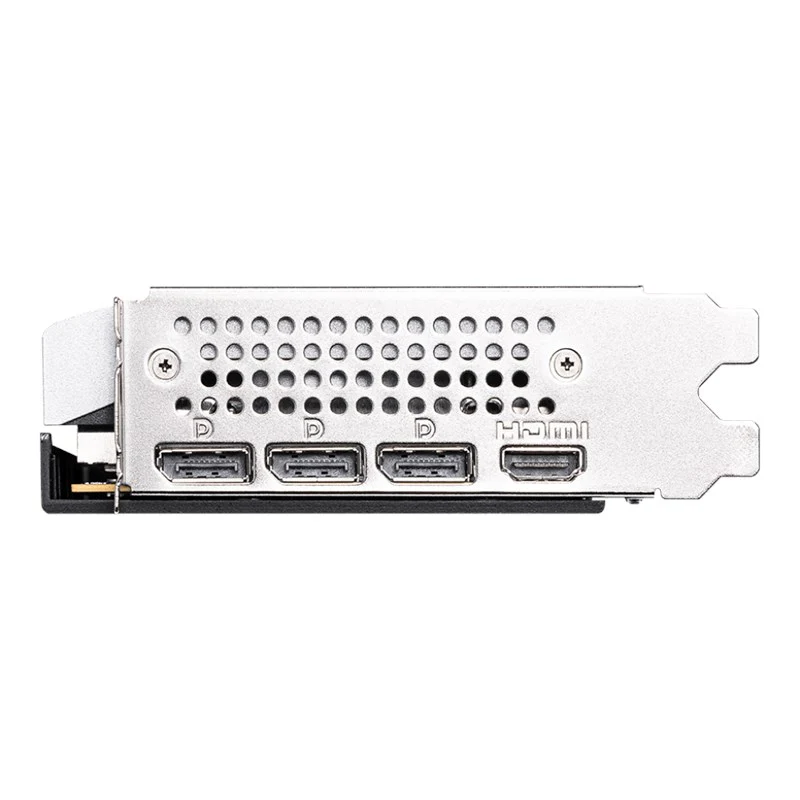

DisplayPort x 3 (v2.1b)
HDMI x 1 (As specified in HDMI 2.1b: up to 4K 480 Hz or 8K 120 Hz with DSC, Gaming VRR, HDR)

HDCP Support

Y

Power consumption

145W

Power connectors

8-pin x1

Recommended PSU

550 W

Card Dimension (mm)

303 x 121 x 41mm

Weight (Card / Package)

684 g / 1042 g

DirectX Version Support

12 Ultimate

OpenGL Version Support

4.6

Maximum Displays

4

G-SYNC technology

Y

Digital Maximum Resolution

7680 x 4320
