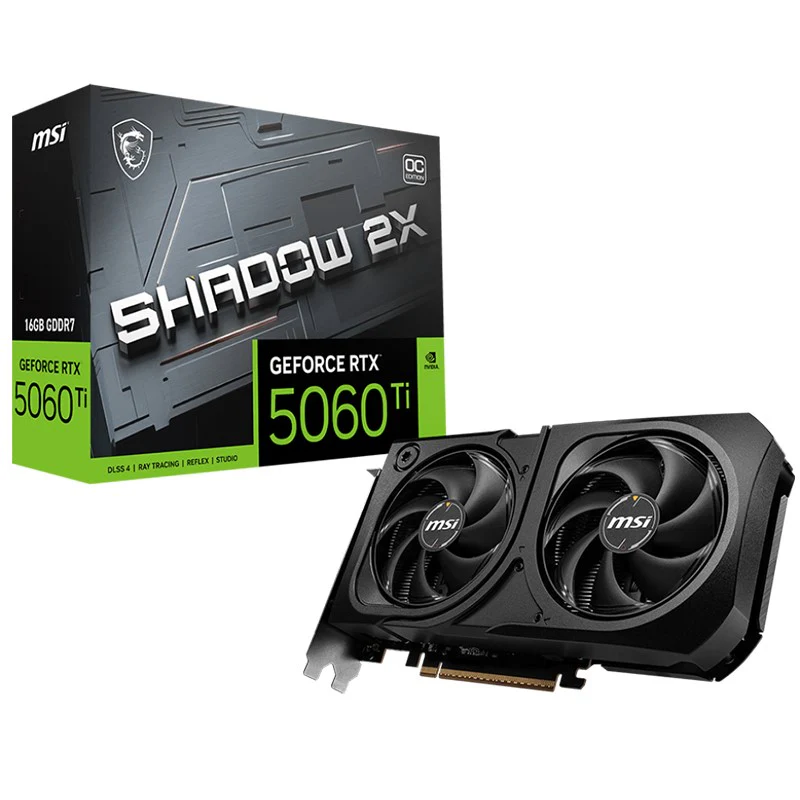

MSI GeForce RTX 5060 Ti 16G SHADOW 2X OC PLUS GDDR7 Gaming Graphics Card

MSI GeForce RTX 5060 Ti 16G SHADOW 2X OC PLUS GDDR7 Gaming Graphics Card

Take The Essentials

MSI SHADOW brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig.

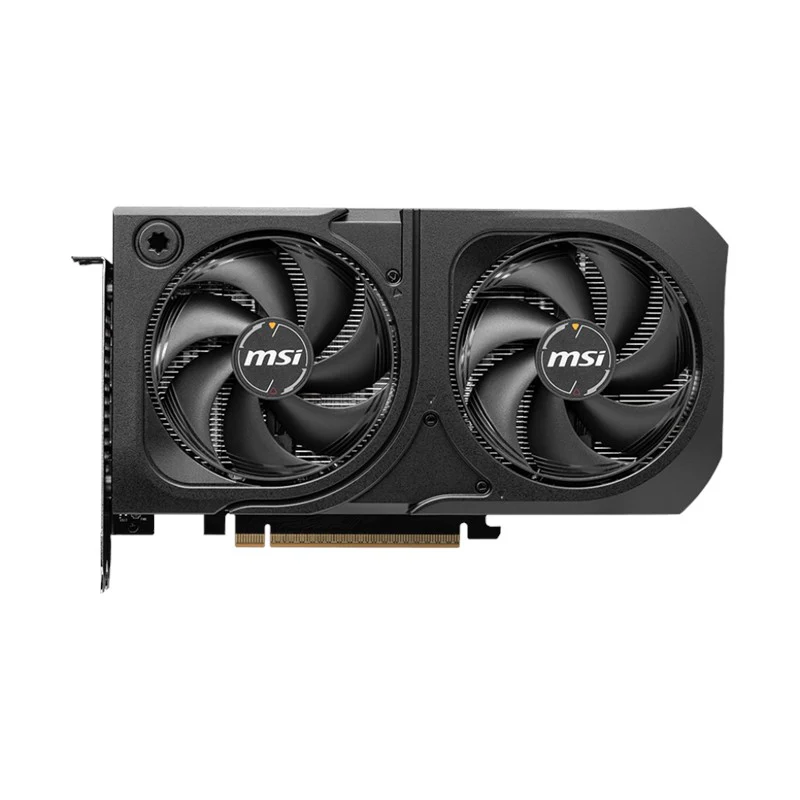

DUAL-Fan Thermal Design

Two fans on a large heatsink ensure great cooling performance with a quieter experience

STORMFORCE Fan

Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.

Heat Pipes

Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

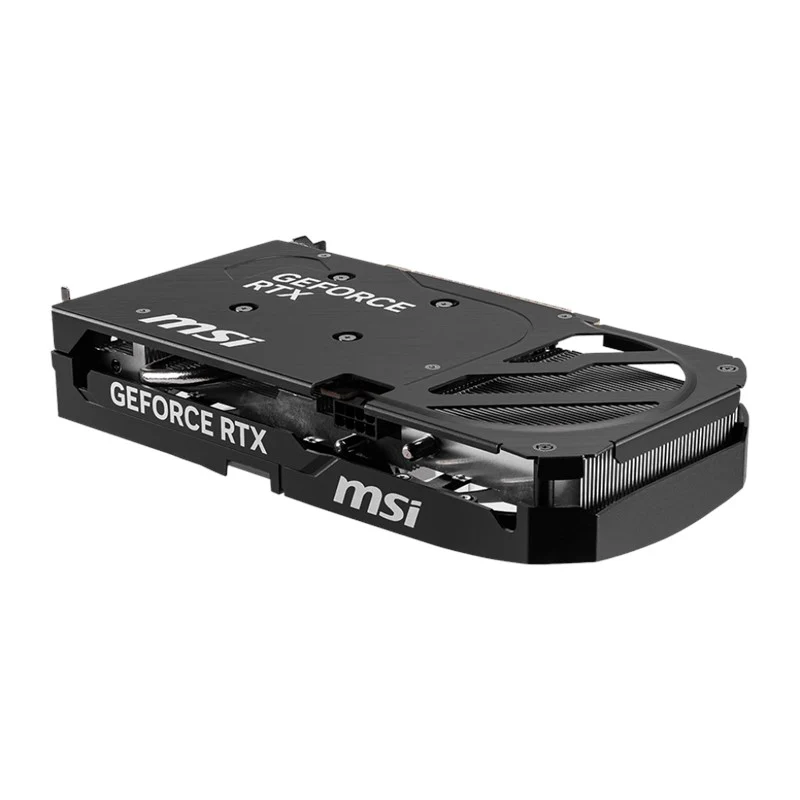

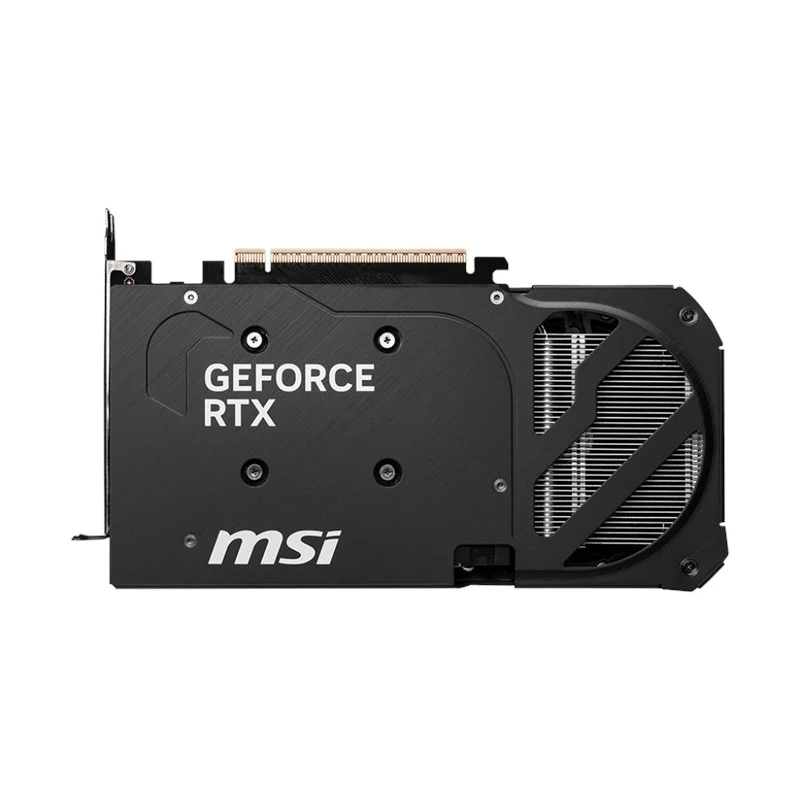

Metal Backplate

A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.

Marketing Name

GeForce RTX 5060 Ti 16G SHADOW 2X OC PLUS

Model Name

G506T-16S2CP

Graphics Processing Unit

NVIDIA GeForce RTX 5060 Ti

Interface

PCI Express Gen 5 x16 (uses x8)

Core Clocks

Extreme Performance: 2617 MHz (MSI Center)

Boost: 2602 MHz

CUDA CORES

4608 Units

Memory Speed

28 Gbps

Memory

16 GB GDDR7

Memory Bus

128-bit

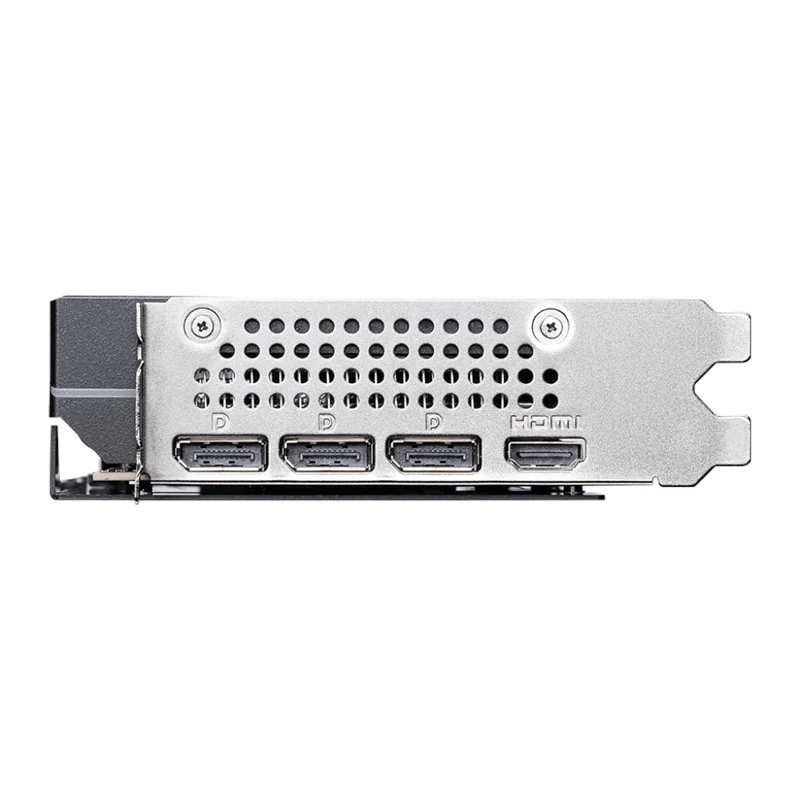

Output

DisplayPort x 3 (v2.1b)

HDMI x 1 (As specified in HDMI 2.1b: up to 4K 480 Hz or 8K 120 Hz with DSC, Gaming VRR, HDR)

HDCP Support

Y

Power consumption

180 W

Power connectors

8-pin x 1

Recommended PSU

600 W

Card Dimension (mm)

226 x 126 x 41 mm

Weight (Card / Package)

578 g / 851 g

DirectX Version Support

12 Ultimate

OpenGL Version Support

4.6

Maximum Displays

4

G-SYNC technology

Y

Digital Maximum Resolution

7680 x 4320
