MSI GeForce RTX 5070 Ti 16G VENTUS 3X OC Edition GDDR7 Gaming Graphics Card

MSI GeForce RTX 5070 Ti 16G VENTUS 3X OC Edition GDDR7 Gaming Graphics Card

TAKE THE ESSENTIALS

VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

Build Small. Play Big.

You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

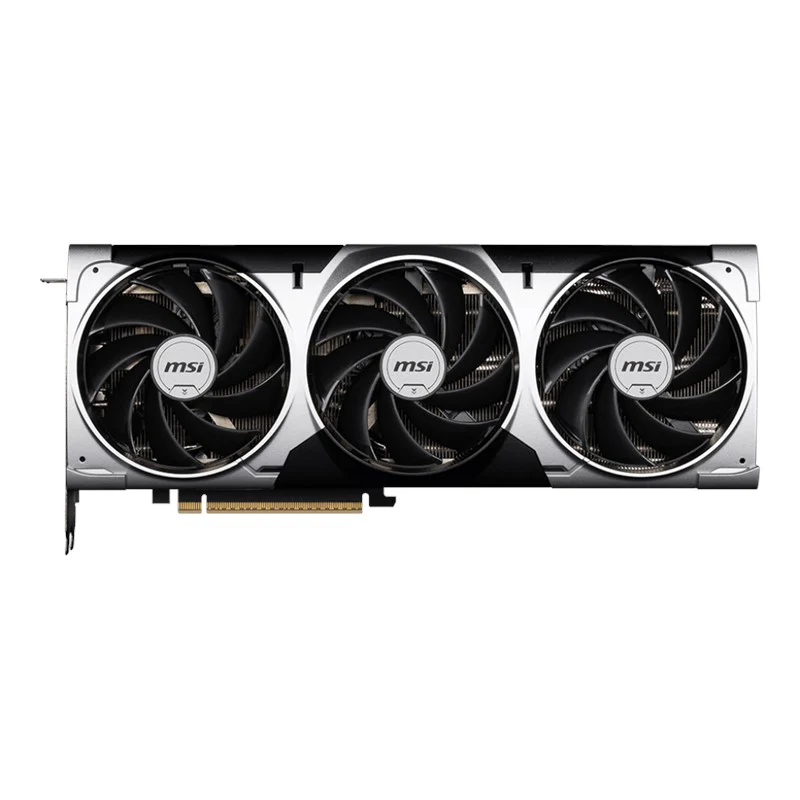

Triple-Fan Thermal Design

Three fans on a large heatsink deliver both superior and quieter cooling.

Marketing Name

GeForce RTX 5070 Ti 16G VENTUS 3X OC

Model Name

G507T-16V3C

Graphics Processing Unit

NVIDIA GeForce RTX 5070 Ti

Interface

PCI Express Gen 5

Core Clocks

Extreme Performance: 2497 MHz (MSI Center)

Boost: 2482 MHz

CUDA CORES

8960 Units

Memory Speed

28 Gbps

Memory

16 GB GDDR7

Memory Bus

256-bit

Output

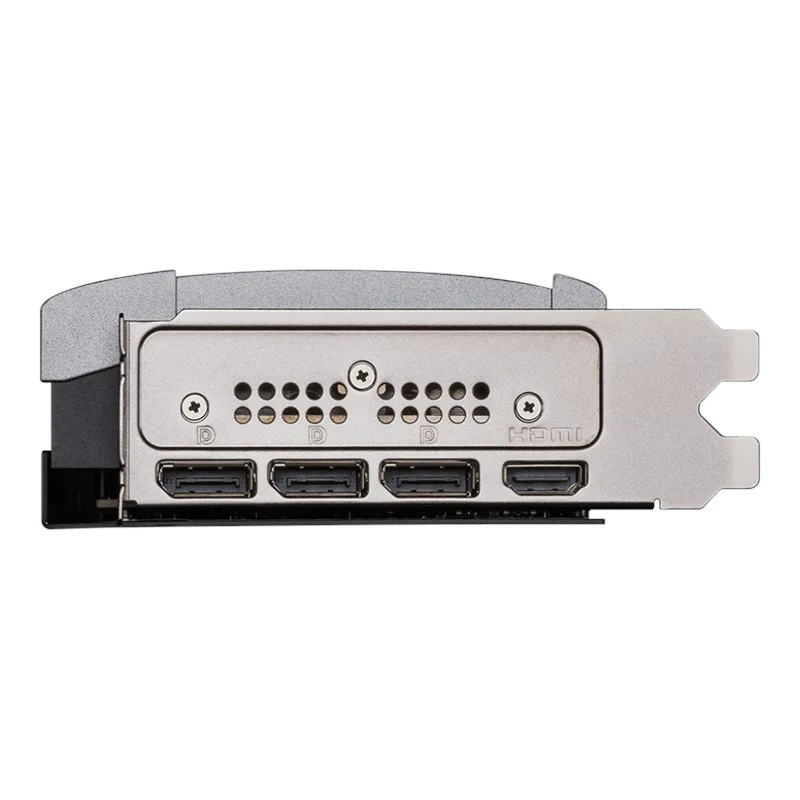

DisplayPort x 3 (v2.1b)

HDMI x 1 (As specified in HDMI 2.1b: up to 4K 480 Hz or 8K 120 Hz with DSC, Gaming VRR, HDR)

HDCP Support

Y

Power consumption

300 W

Power connectors

16-pin x 1 (ATX 3.1 PSU recommended)

Recommended PSU

750 W

Card Dimension (mm)

303 x 121 x 49 mm

Weight (Card / Package)

1073 g / 1566 g

DirectX Version Support

12 Ultimate

OpenGL Version Support

4.6

Maximum Displays

4

G-SYNC technology

Y

Digital Maximum Resolution

7680 x 4320
